Description

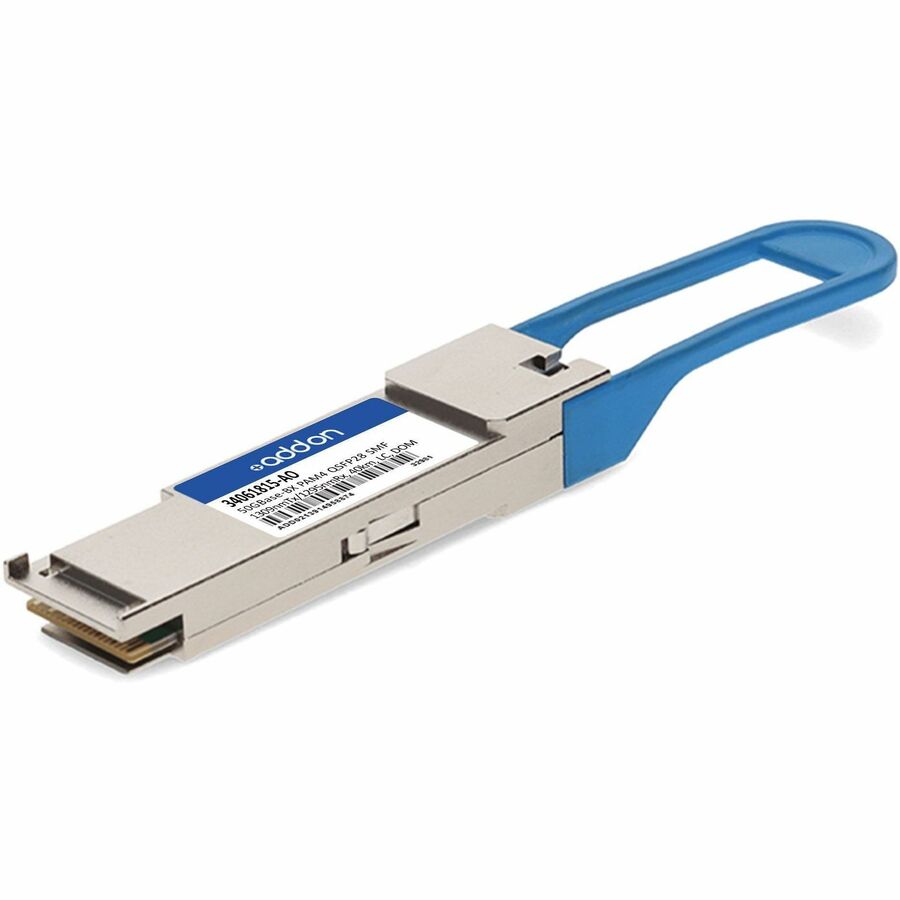

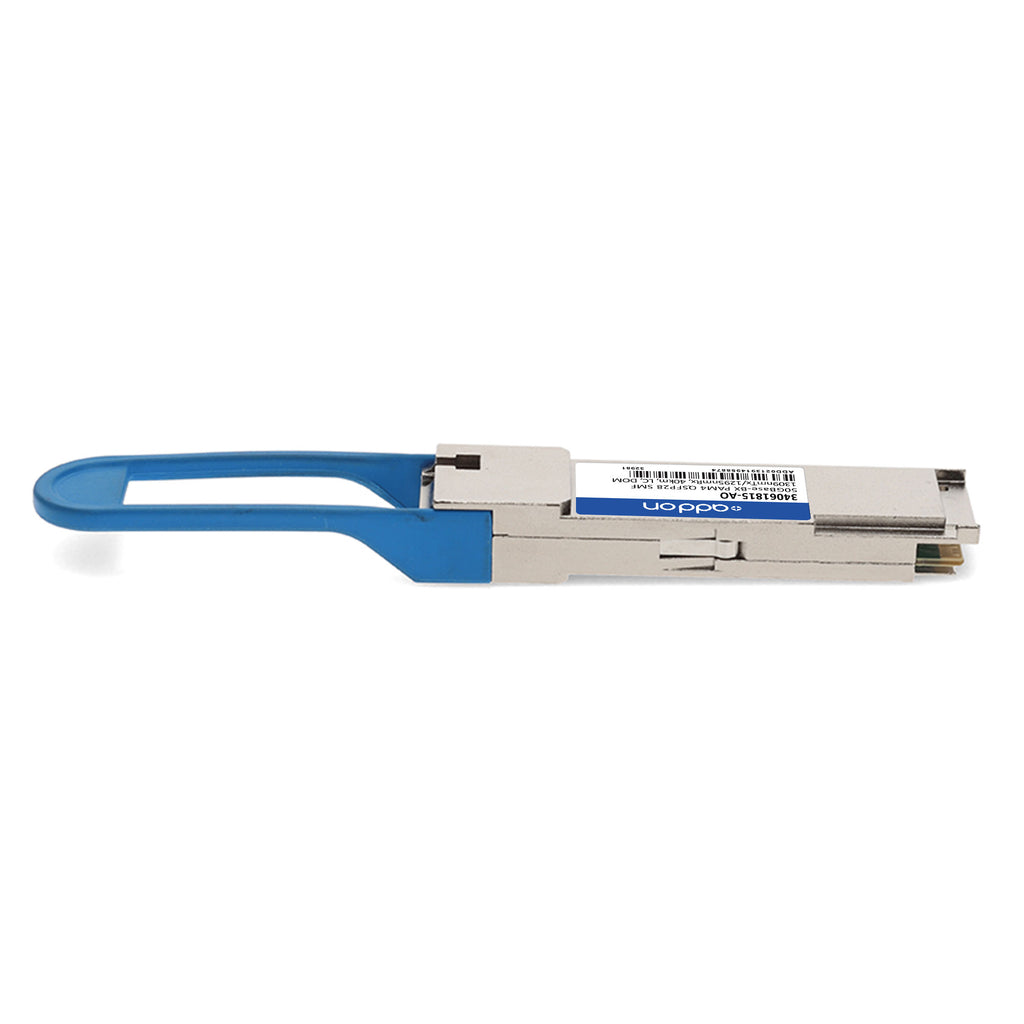

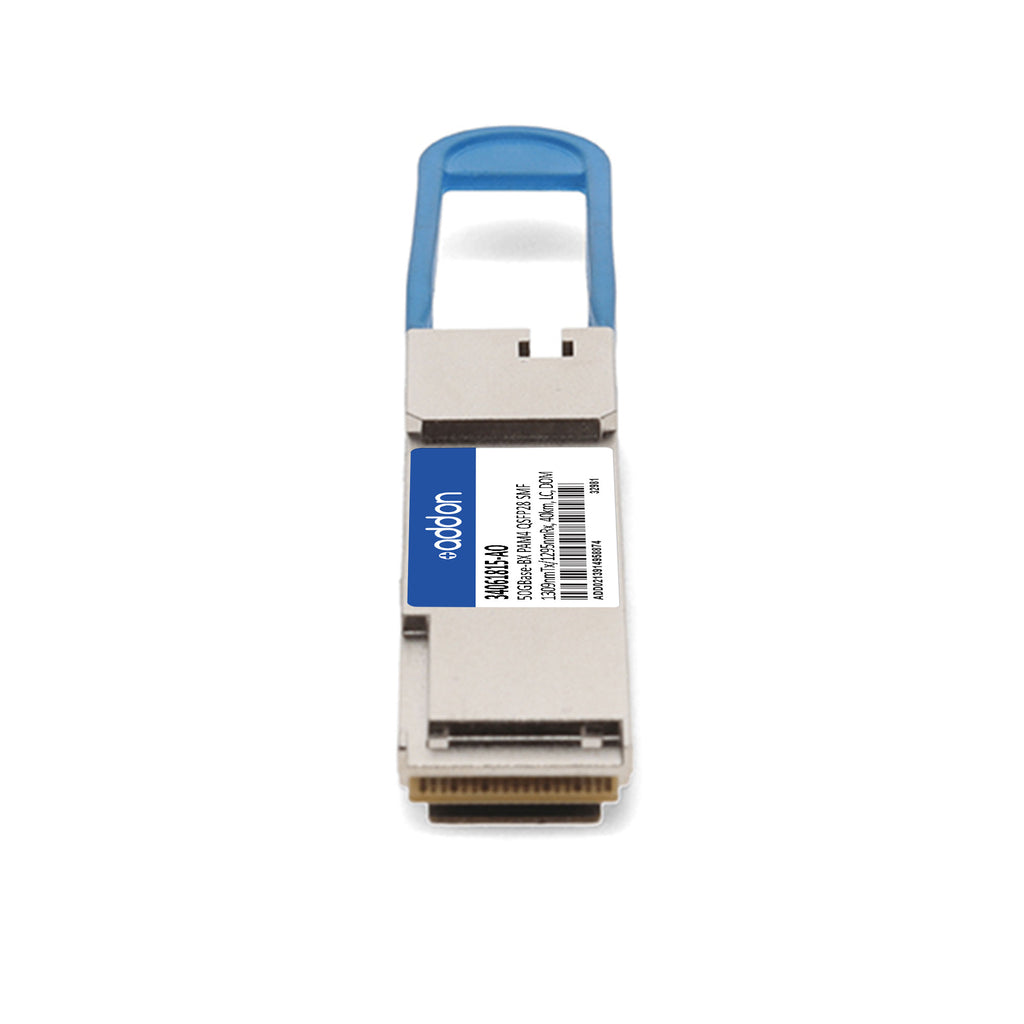

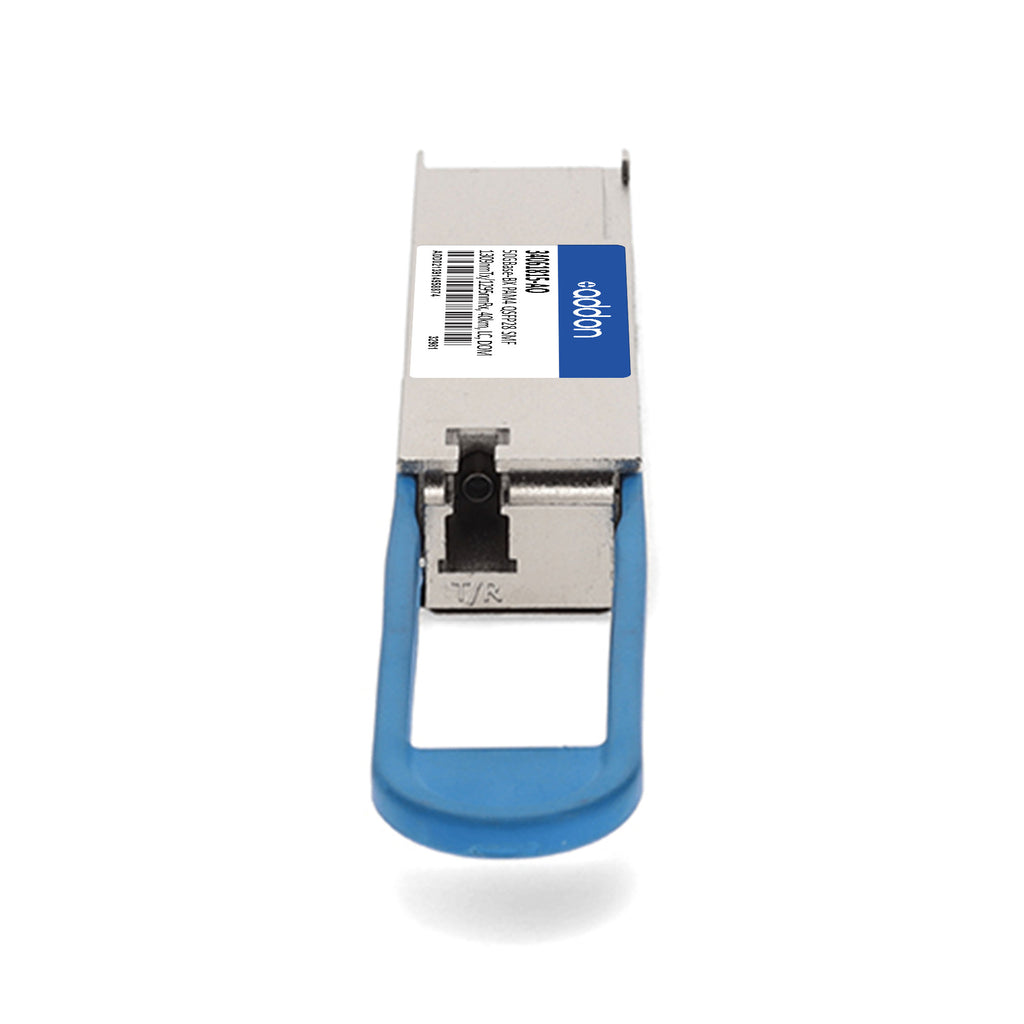

The AddOn Huawei® 34061815 Compatible TAA 50GBase-BX PAM4 QSFP28 Transceiver delivers high-performance bidirectional 50Gbps connectivity over single-mode fiber (SMF) for distances up to 40km. Utilizing 1309nm transmit and 1295nm receive wavelengths through a single LC connector, it’s engineered to meet or exceed OEM specifications while remaining fully compliant with QSFP28 MSA, IEEE 802.3cd, and SFF-8665 standards.
Featuring EML laser and APD receiver technology, this transceiver supports digital optical monitoring (DOM) for real-time parameter tracking and operates on a single 3.3V power supply with a maximum power consumption of 4.5W. Hot-swappable and Trade Agreements Act (TAA) compliant, it’s ideal for access, enterprise, and 50G Ethernet applications. Each unit is individually programmed, serialized, and rigorously tested to guarantee seamless integration and consistent performance in Huawei® network environments.
| Specification | Description |
|---|---|
| SKU | 34061815-AO |
| Brand Compatibility | Huawei® |
| Form Factor | QSFP28 |
| Data Rate | 50Gbps PAM4 |
| Standard Compliance | QSFP28 MSA, IEEE 802.3cd, SFF-8665 Rev 1.9, SFF-8636 Rev 2.9 |
| Interface | 50GAUI-2 C2M electrical |
| Wavelength (Tx/Rx) | 1309nm (Tx) / 1295nm (Rx) |
| Fiber Type | SMF (Single-Mode Fiber) |
| Connector | LC Duplex |
| Reach / Distance | Up to 40km |
| Laser Type | EML (Transmitter) |
| Receiver Type | APD |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Operating Temperature Range | 0°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Power Supply Voltage | 3.3V |
| Maximum Power Consumption | 4.5W |
| Launch Power (Average) | 0.4 to 6.63 dBm |
| Receiver Sensitivity (OMAouter) | Max (−15.1, SECQ − 16.5) dBm |
| Extinction Ratio | ≥ 6 dB |
| Compliance | RoHS, TAA |
| Applications | 50G Ethernet, Access, Enterprise |
| Warranty | Limited Lifetime Warranty |
