Description

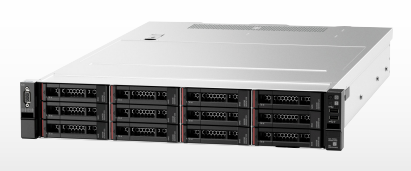

The i-PRO SRL3E Series NVR-RL-2-220TB-V5 is a high-performance, rack-mountable network video recorder engineered for enterprise-level video surveillance environments. Equipped with dual Intel Xeon Silver 8-core processors, 64 GB of memory, and a 12 Gb/s RAID controller with 4 GB cache, this unit ensures fast, reliable data handling for demanding video workloads.
With 11 × 20 TB enterprise-grade drives, the NVR provides 220 TB total (200 TB usable) storage in a RAID 5 configuration, alongside dual M.2 SSDs for the operating system in RAID 1 for added redundancy. Connectivity options include dual 1 GbE and dual 10 GbE SFP+ interfaces, supporting recording rates from 600 Mbps up to 1 Gbps.
The NVR comes preloaded with Video Insight software (VI Enterprise Server Activation and maintenance included) and is fully configured, tested, and ready for plug-and-play deployment. Backed by a 5-year Next Business Day On-site Service warranty, the SRL3E Series offers the reliability, scalability, and long-term support needed for mission-critical surveillance applications.
| Category | Specification |
|---|---|
| Model | i-PRO SRL3E Series NVR-RL-2-220TB-V5 |
| Form Factor | 2U Rack-mountable |
| Processor | 2 × Intel Xeon Silver 8-Core / 16-Thread |
| Memory | 64 GB DDR4 |
| Storage (Total / Usable) | 220 TB (11 × 20 TB) / 200 TB usable (RAID 5) |
| Operating System Drives | 2 × M.2 SSD (RAID 1) |
| RAID Controller | 940-16i 12 Gb/s 4 GB Cache (RAID 5) |
| Operating System | Windows Server 2022 Standard |
| Network Interfaces | 2 × 1 GbE Base-T ports and 2 × 10 GbE SFP+ ports |
| Video Output | VGA |
| Graphics | On-board (CPU based) |
| Trusted Platform Module | TPM 2.0 (on-board encryption) |
| Power Supply | 2 × 1100 W Hot-Swap PSU |
| Drive Bays | Up to 12 × 3.5" Enterprise HDDs (Storage RAID 5) |
| Recording Performance | 600–1000 Mbps (10 Gb network) |
| Accessories | Keyboard and Mouse included |
| Rails | Included (4-post side rails) |
| Monitor | Not included |
| Weight | 71 lbs |
| Dimensions (H × W × D) | 3.4 in × 17.5 in × 30.1 in |
| Warranty | 5-Year Next Business Day On-site Service (after remote diagnosis) |
| Compliance | NDAA Compliant |
| Included Software | Video Insight Enterprise Server (preinstalled) with 1-Year VI HM+ Activation |
