Description

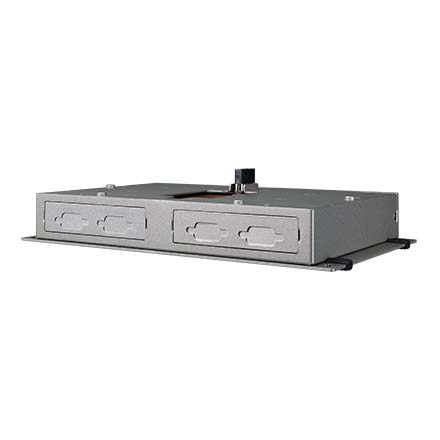

The Advantech UNO-2484G-6331BE is a rugged, fanless Industrial IoT gateway designed for reliable edge computing in demanding automation and industrial environments. Powered by a 6th Generation Intel® Core™ i3 processor with built-in DDR4 memory, this system delivers stable performance for data acquisition, equipment connectivity, and process visualization applications.

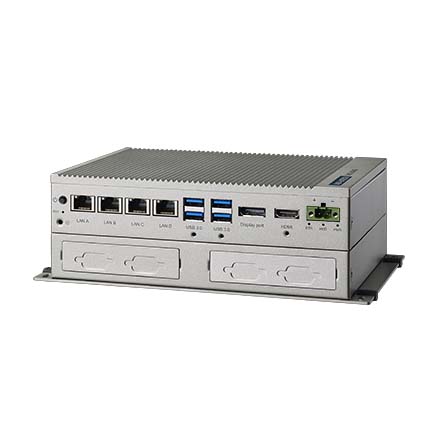

Built on Advantech’s modular box platform architecture, the UNO-2484G-6331BE features four Gigabit Ethernet ports, multiple serial interfaces, and flexible expansion via mPCIe and iDoor technology. Its stackable design enables scalable I/O and communication expansion, supporting industrial fieldbus, wireless connectivity, and digital I/O modules as system requirements evolve.
With a compact aluminum enclosure, wide operating temperature range, and support for Windows and Advantech Linux operating systems, the UNO-2484G-6331BE is well-suited for factory automation, smart manufacturing, and industrial networking deployments where reliability and flexibility are critical.
| Specification | Details |
|---|---|
| Product Type | Industrial IoT Gateway |
| Processor | Intel® Core™ i3-6100U (6th Gen) |
| Memory | 8GB DDR4 (built-in, expandable up to 16GB) |
| Ethernet Ports | 4 × Gigabit Ethernet (10/100/1000 Mbps) |

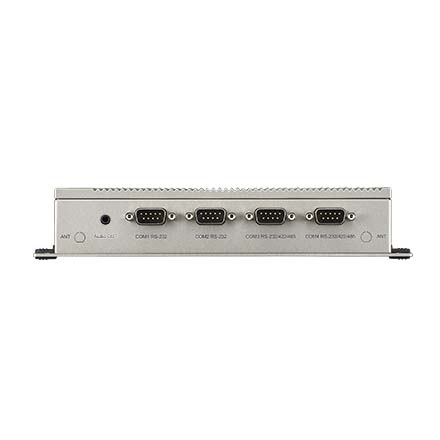

| Serial Ports | 4 × RS-232/422/485 |
| USB Ports | 4 × USB 3.0 |
| Display Outputs | 1 × HDMI, 1 × DisplayPort |
| Storage Support | mSATA (shared with mPCIe), 2 × 2.5" SATA SSD/HDD (RAID 0/1) |
| Expansion Slots | 1 × Full-size mPCIe (single stack, iDoor supported) |
| Audio | Line-out |
| Power Input | 10–36 VDC (terminal block) |
| Operating Temperature | -20°C to 60°C |
| Enclosure | Aluminum, fanless design |
| Mounting Options | Wall, Stand (DIN-rail and VESA optional) |
| Operating System Support | Windows 7, Windows 10, Advantech Linux |
| Form Factor | Regular-size modular box platform |
