Description

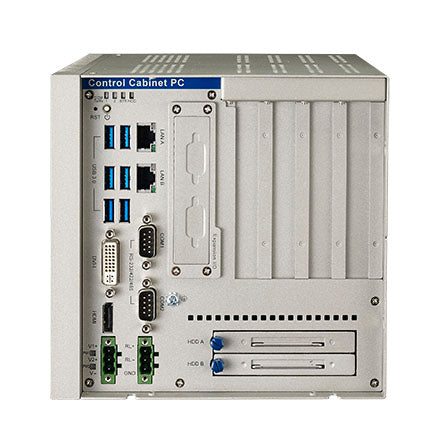

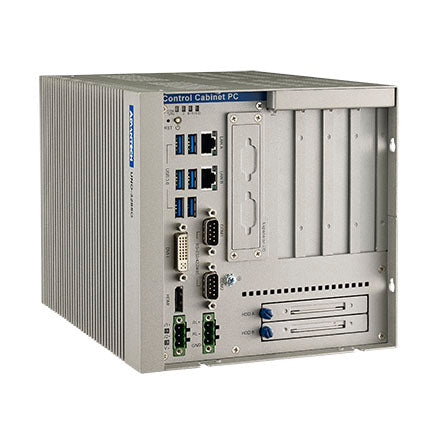

The Advantech UNO-3285G-634BE is a high-performance, fanless industrial automation computer designed for control cabinet and factory floor deployments. Powered by an Intel® Core™ i3-6102E processor and the Intel QM170 chipset, this system delivers reliable computing for automation, machine control, and industrial data acquisition applications.
This model supports extensive expansion with dual PCIe x8 and dual PCI slots, enabling seamless integration of motion cards, frame grabbers, and fieldbus modules. Rich I/O connectivity—including dual Gigabit Ethernet, six USB 3.0 ports, multiple serial interfaces, and dual display outputs—ensures flexible system integration across diverse industrial environments.
Built for harsh conditions, the UNO-3285G features a rugged fanless design, wide operating temperature range, dual power input for redundancy, and support for hot-swappable RAID storage. Its compact form factor and multiple mounting options make it ideal for space-constrained automation cabinets requiring dependable, long-term operation.
| Specification | Details |
|---|---|
| Processor | Intel® Core™ i3-6102E, 1.9 GHz (Dual Core) |
| Chipset | Intel® QM170 |
| Memory | 8 GB DDR4 (up to 32 GB supported) |
| Graphics | Intel® HD Graphics |
| Display Outputs | 1 × DVI-I, 1 × HDMI 1.4a |
| Ethernet | 2 × Gigabit LAN (10/100/1000 Mbps) |
| USB | 6 × USB 3.0 |
| Serial Ports | 2 × RS-232/422/485, 2 × RS-232 (pin header) |
| Expansion Slots | 2 × PCIe x8, 2 × PCI |
| Mini PCIe | 2 × Full-size mPCIe |
| Storage | 1 × CFast slot, 1 × mSATA slot, 2 × 2.5" SATA bays (RAID 0/1 support) |
| Cooling | Fanless |
| Power Input | 12–36 VDC, dual power input |
| Power Consumption | 44 W typical, up to 120 W max |
| Operating Temperature | -20 to 60 °C (with airflow) |
| Mounting Options | Wall, stand, enclosure mount |
| Dimensions (W × D × H) | 182 × 238 × 177 mm |
| Operating System Support | Windows 7/8, Windows 10 LTSC, AdvLinux |
