Description

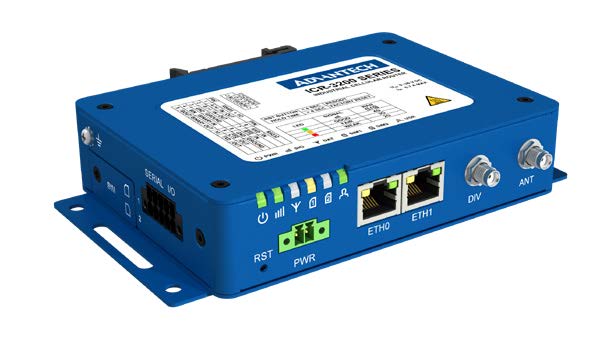

The Advantech ICR-3241W-1SWH is a rugged industrial-grade 4G LTE router and IoT gateway designed to deliver secure, reliable connectivity for mission-critical M2M and Industrial IoT applications. Built for demanding environments, it supports LTE Cat.4 performance with 3G/2G fallback, dual SIM redundancy, and carrier compatibility including Verizon, AT&T, T-Mobile, and FirstNet.
This model includes integrated Wi-Fi 802.11ac (2×2 MIMO) for flexible wireless networking, along with rich industrial interfaces such as dual Ethernet ports, RS232/RS485 serial connectivity, and digital I/O. Powered by a robust Linux-based platform (ICR-OS), it enables advanced edge computing, custom application hosting, VPN tunneling, and remote fleet management via WebAccess/DMP.
Ideal for SCADA, automation, traffic systems, kiosks, CCTV, and smart infrastructure deployments.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model | ICR-3241W Series |
| SKU | ICR-3241W-1SWH |
| Device Type | Industrial Cellular Router & IoT Gateway |
| Cellular Technology | 4G LTE Cat.4 with 3G/2G fallback |
| Max Data Speed | Up to 150 Mbps DL / 50 Mbps UL |
| SIM Support | Dual SIM (2× Mini SIM), eSIM-ready |
| Ethernet Ports | 2× RJ45 Ethernet (10/100 Mbps) |
| Serial Interfaces | 1× RS232, 1× RS485 |
| Digital I/O | 1× Digital Input, 1× Digital Output |
| Wi-Fi | Yes – 802.11ac/a/b/g/n, 2×2 MIMO |
| Bluetooth | Optional Bluetooth v5.1 |
| GNSS | Optional GPS/GLONASS/Galileo/BeiDou |
| Operating System | ICR-OS (Linux-based) |
| Application Support | Python, C/C++, Node-RED, Docker |
| VPN & Security | WireGuard, OpenVPN, IPsec, Firewall, SSH/SFTP |
| Power Input | 9–36 V DC (terminal block) |
| Operating Temperature | -40°C to +75°C |
| Enclosure Rating | IP30 Metal Housing |
| Mounting Options | DIN Rail or Wall Mount |
| Dimensions | 31.2 × 94 × 129 mm |
| Weight | Approx. 477 g |
