Description

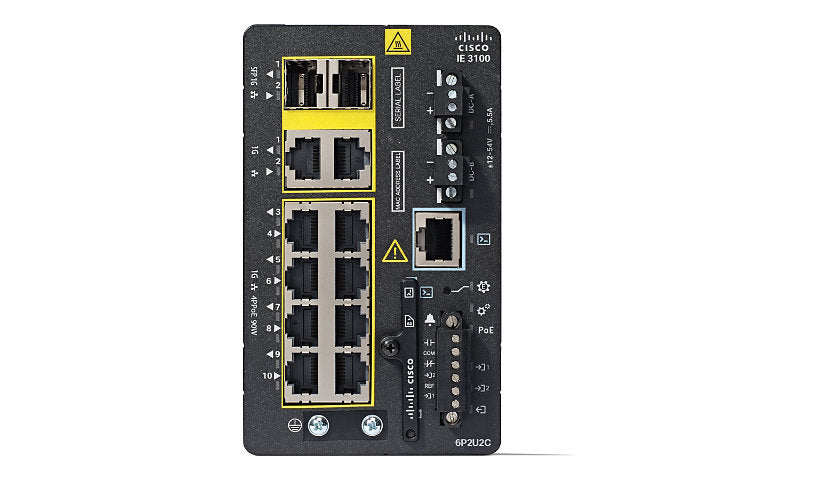

The Cisco Catalyst IE-3100-6P2U2C-E is a compact, ruggedized industrial Ethernet switch designed for harsh and space-constrained environments. Built for reliability in manufacturing, transportation, utilities, and outdoor deployments, it delivers secure Gigabit connectivity with advanced Power over Ethernet capabilities.
This model features six Gigabit Ethernet PoE/PoE+ ports and two high-power 4PPoE ports, supporting a total PoE budget of up to 240W to power demanding devices such as PTZ cameras, industrial access points, sensors, and controllers. Two Gigabit combo uplink ports provide flexible fiber or copper connectivity for resilient network design.
Running Cisco IOS XE with the Network Essentials feature set, the IE-3100-6P2U2C-E enables secure, scalable industrial networking with support for industrial protocols, redundancy mechanisms, and Zero Trust access. Its fanless, DIN-rail-mountable design ensures dependable operation across extreme temperatures and electrically noisy environments.
| Specification | Details |
|---|---|
| Model | Cisco Catalyst IE-3100-6P2U2C-E |
| Switch Type | Rugged Industrial Ethernet Switch |
| Total Ports | 10 |
| Downlink Ports | 6 × 1G PoE/PoE+ RJ-45, 2 × 1G 4PPoE RJ-45 |
| Uplink Ports | 2 × 1G Combo (RJ-45 or SFP) |
| PoE Standards | IEEE 802.3af / 802.3at / 802.3bt |
| Total PoE Budget | Up to 240W |
| Maximum 4PPoE Output | Up to 90W per port (2 ports) |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | Up to 29.76 Mpps |
| Installed Memory | 4 GB DRAM |
| Flash Storage | 1.5 GB |
| Removable Storage | Optional SD card |
| Power Input | Dual DC inputs |
| Operating System | Cisco IOS XE |
| Software License | Network Essentials (perpetual) |
| Management | WebUI, CLI, SNMP, NETCONF, RESTCONF |
| Redundancy Protocols | REP, MRP, G.8032 Ethernet Ring |
| Industrial Protocols | EtherNet/IP, Modbus, PROFINET |
| Mounting | DIN rail |
| Cooling | Fanless, convection-cooled |
| Operating Temperature | -40°C to +75°C |
| Form Factor | Compact rugged enclosure |
