Description

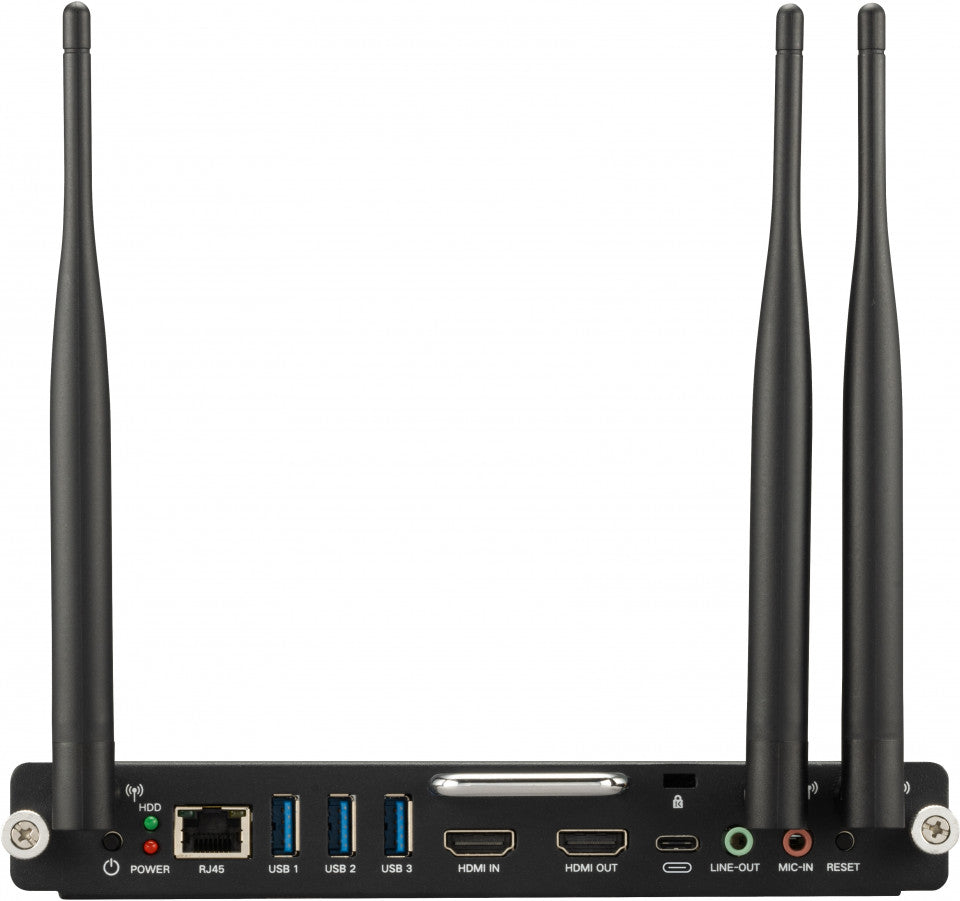

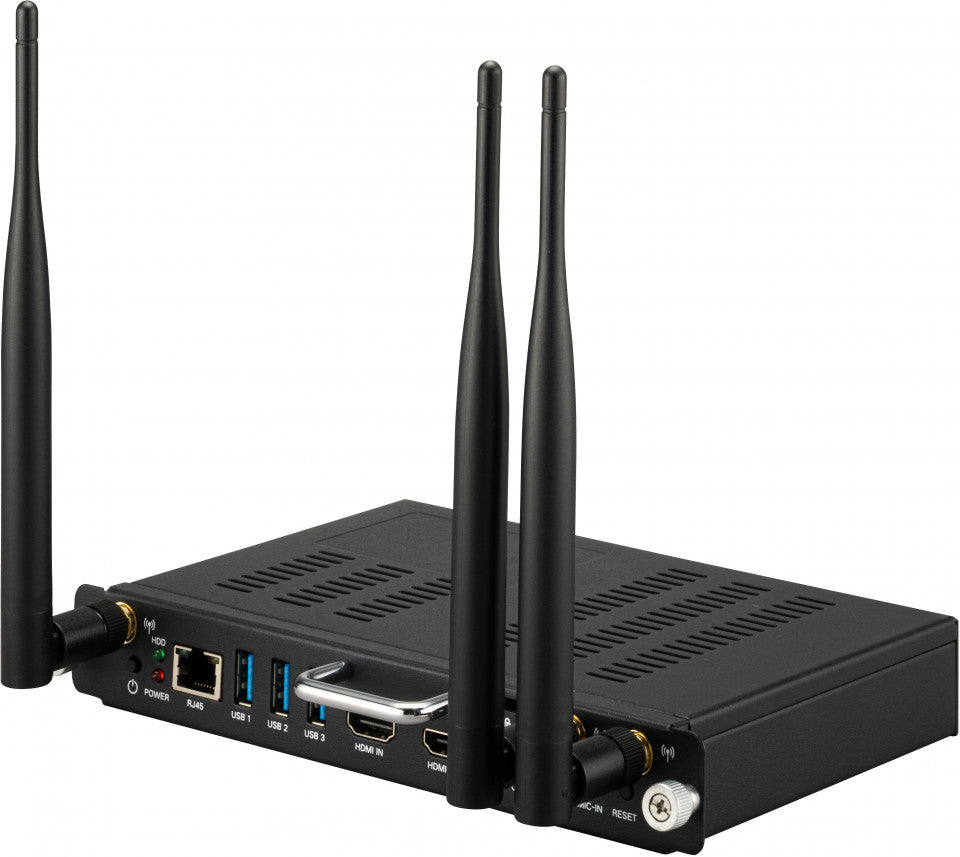

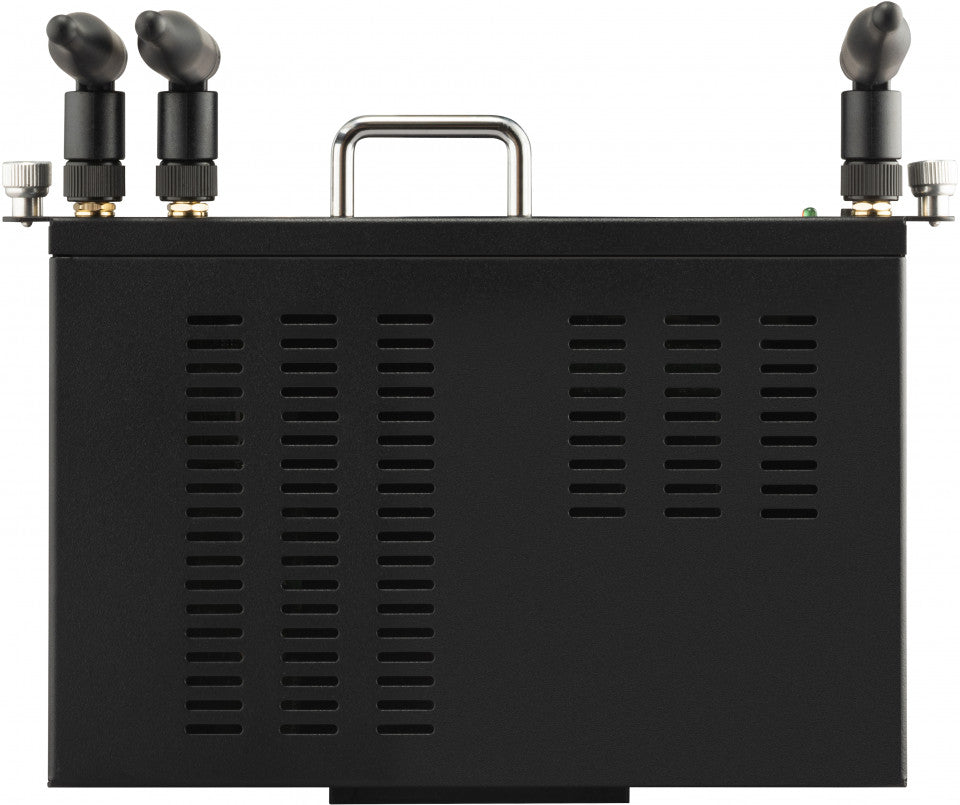

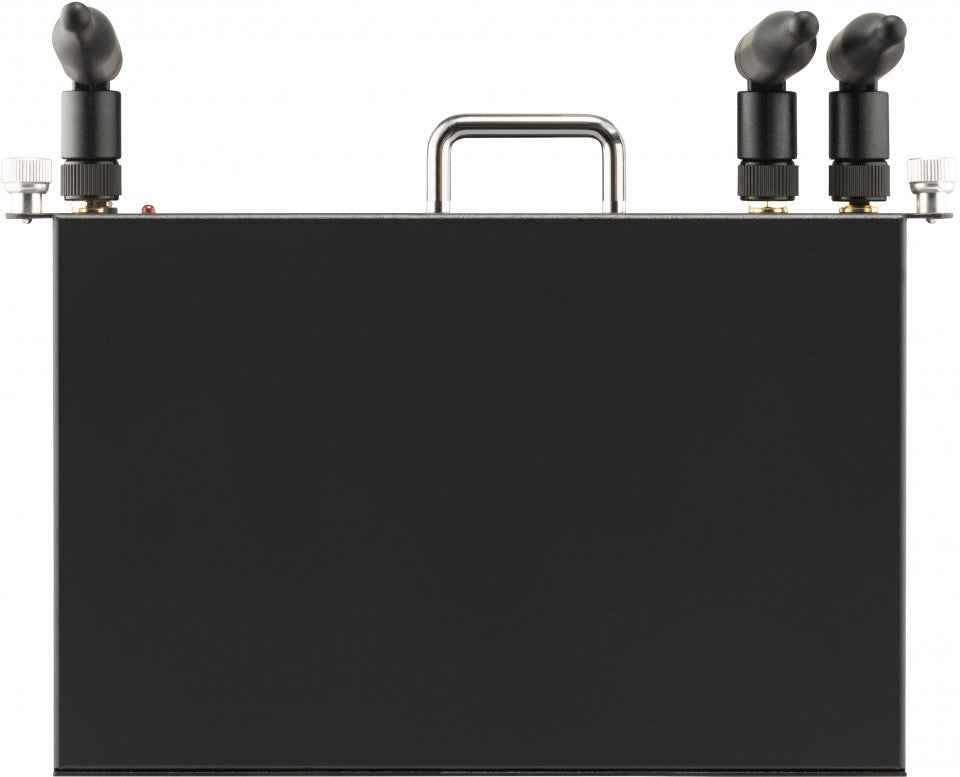

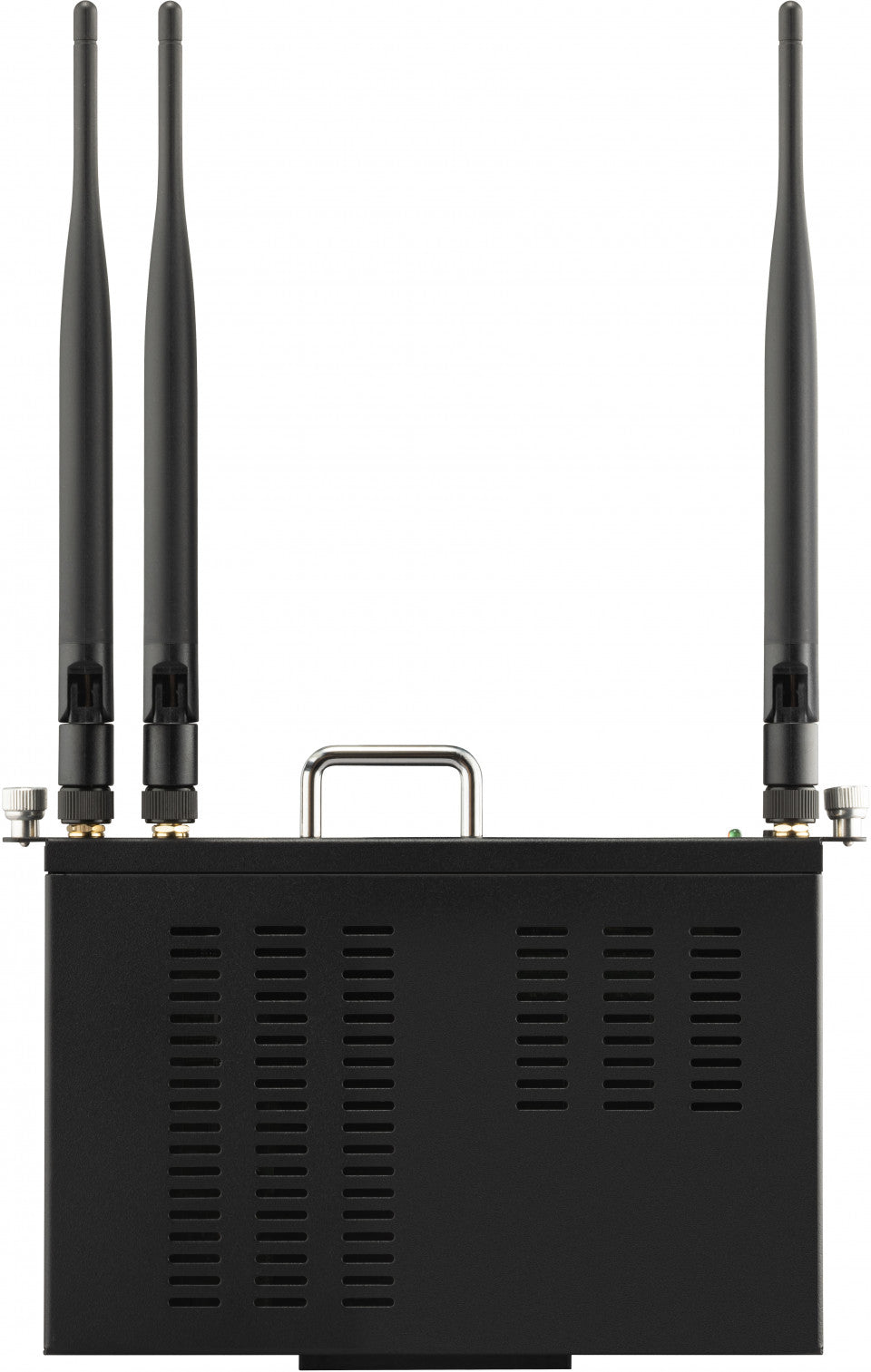

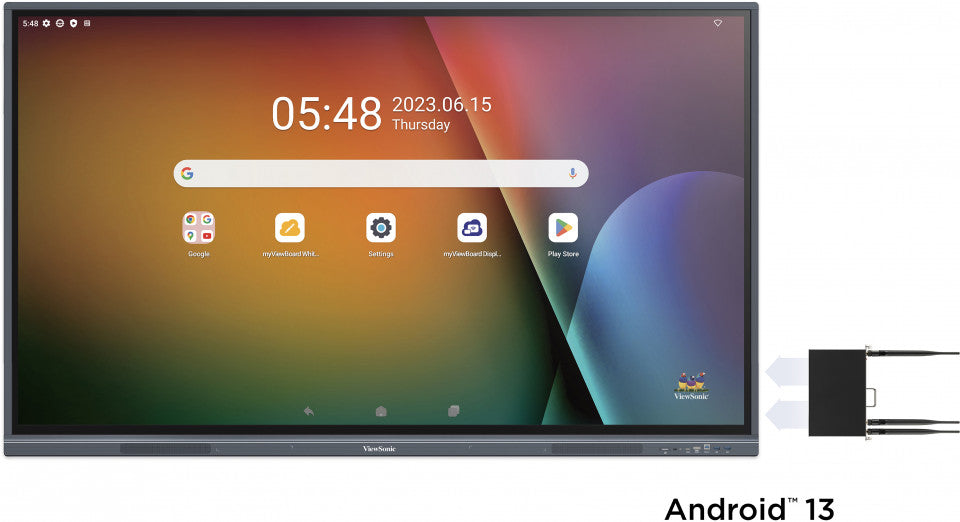

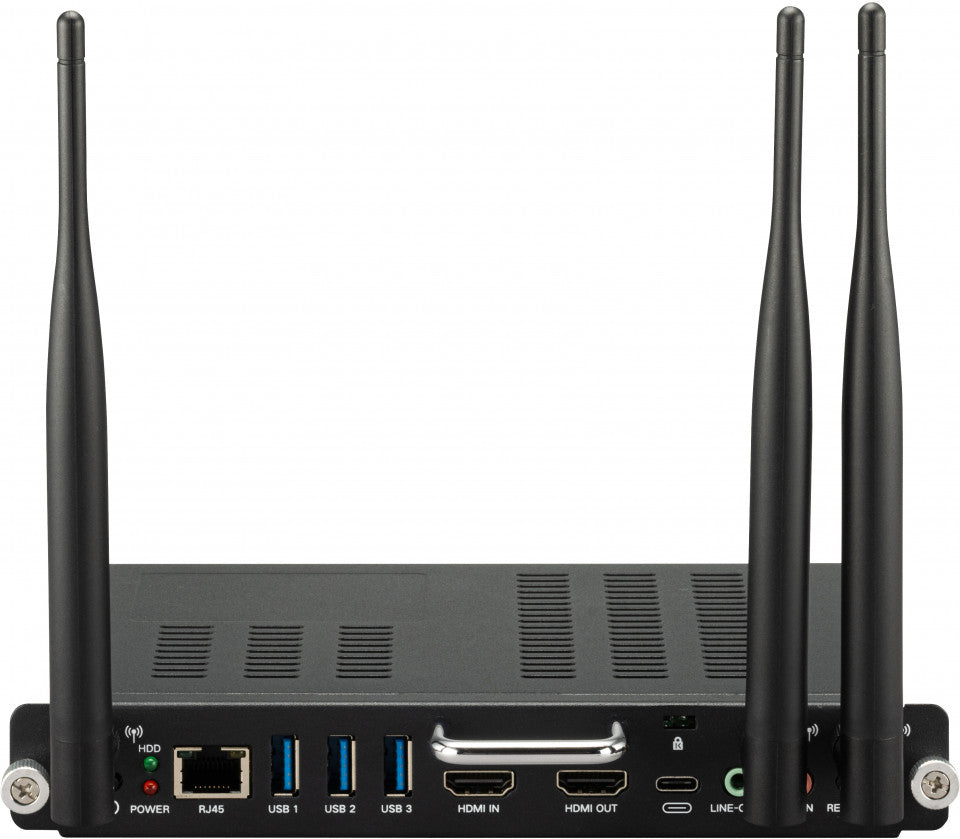

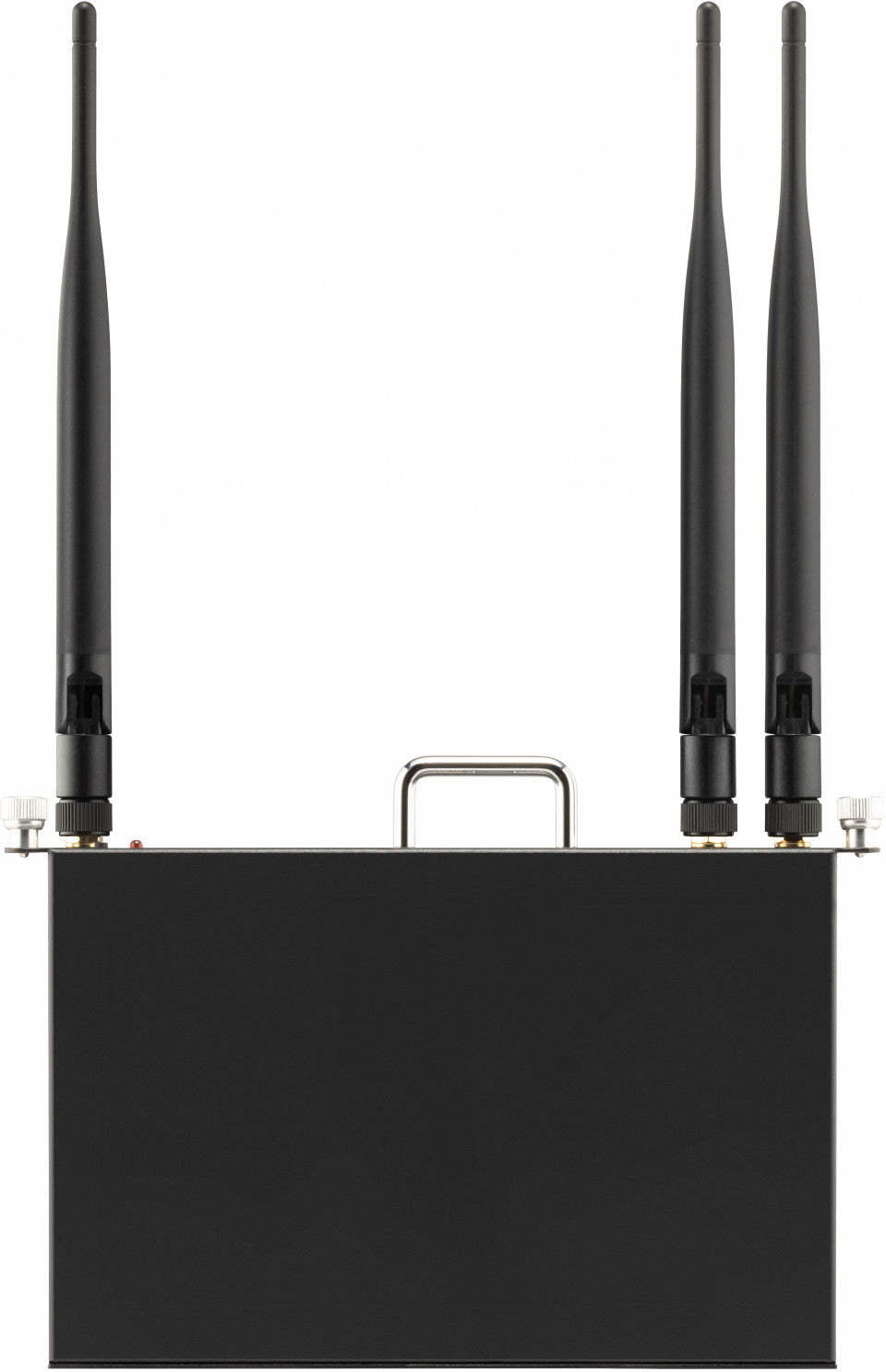

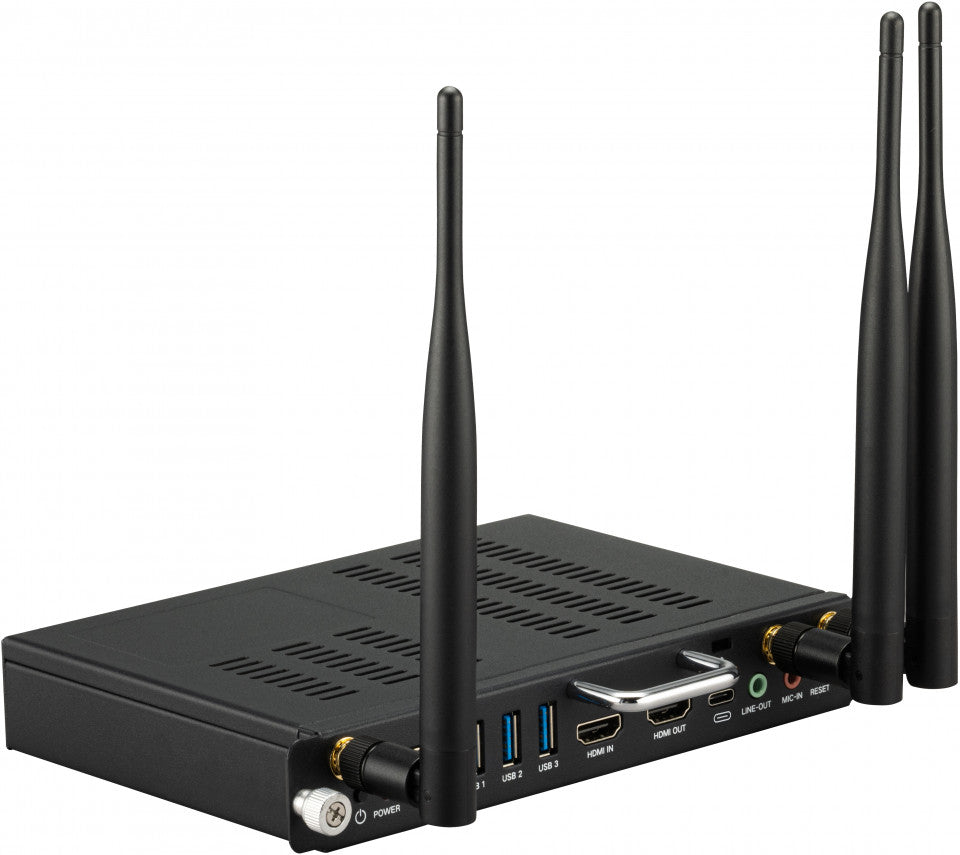

The ViewSonic® IFP55G1-PC-A is a 55-inch interactive display bundle featuring the ViewBoard® IFP55G1 and the VPC-A31-O1 slot-in PC, offering a complete Android-based collaboration solution for modern classrooms and meeting rooms. Built with an upgradable modular design, this Bring Your Own Device (BYOD) display delivers seamless integration across Windows, Linux, and EDLA platforms—ensuring adaptability for evolving digital workspaces.
Experience smooth, instant plug-and-play connectivity via USB-C with 65W power delivery, enabling quick sharing and presentations from any compatible device. The Ultra Fine Touch Technology with up to 40 points of touch provides intuitive, pen-on-paper responsiveness, while the slim-bezel 4K UHD display produces stunning visuals with lifelike color and clarity. Enhanced with SmartPort™ USB for unified access, LAN sharing, and an energy-efficient design, the IFP55G1-PC-A delivers security, flexibility, and performance for collaborative environments that demand reliability and simplicity.
| Category | Specification |
|---|---|
| Display | 55" TFT LCD with DLED Backlight |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 350 nits (typ.) |
| Contrast Ratio | 1200:1 (typ.), 6000:1 (DCR) |
| Response Time | 8 ms |
| Viewing Angles | 178° (H/V) |
| Color Depth | 1.07B colors (8-bit + FRC) |
| Surface | Anti-glare, 9H Hardness |
| Touch Technology | Ultra Fine IR Touch (40-Point for Windows, 20-Point for Android) |
| Touch Resolution | 32767 × 32767 |
| Connectivity – Input | HDMI 2.0 ×3 (CEC/ARC), VGA ×1, Audio In ×1, RS232 ×1, OPS Slot ×1 |
| Connectivity – Output | Audio Out ×1 |
| USB Ports | Type-A: Front ×3 (2×USB3.0, 1×USB2.0); Rear ×3 (2×USB3.0, 1×USB2.0 FW Update) |
| USB Type-B | 2 (USB3.0) |
| USB Type-C | 1 (DP 1.2, Touch, Data, 65W PD, Ethernet 10/100M) |
| LAN (RJ45) | 1 In / 1 Out |
| Speakers | 2 × 10W |
| Camera Plate | Included |
| Smart Features | SmartPort™ USB, Light Sensor, LAN Sharing (10/100/1000M) |
| Power Supply | 100–240V AC ±10% |
| Power Consumption | 90.23W (On), <0.5W (Off) |
| Mounting (VESA®) | 400 × 200 mm |
| Dimensions (W×H×D) | 1262.5 × 770 × 85.7 mm |
| Weight (Net/Gross) | 26.9 kg / 35.4 kg |
| Operating Conditions | 0°C–40°C, 20–80% RH (non-condensing) |
| Regulatory Compliance | FCC, CE, Energy Star, RoHS, EPEAT, REACH, WEEE |
| Included Accessories | Power cable, HDMI cable, Remote control, USB touch cable, 2× Passive pens, Quick Start Guide, RS232 adapter, Mount screws, Camera plate |
| Compatible Slot-In PCs | VPC-A31-O1, VPC33 Series, VPC35 Series, VPC37 Series |
| Orientation | Landscape |
