Description

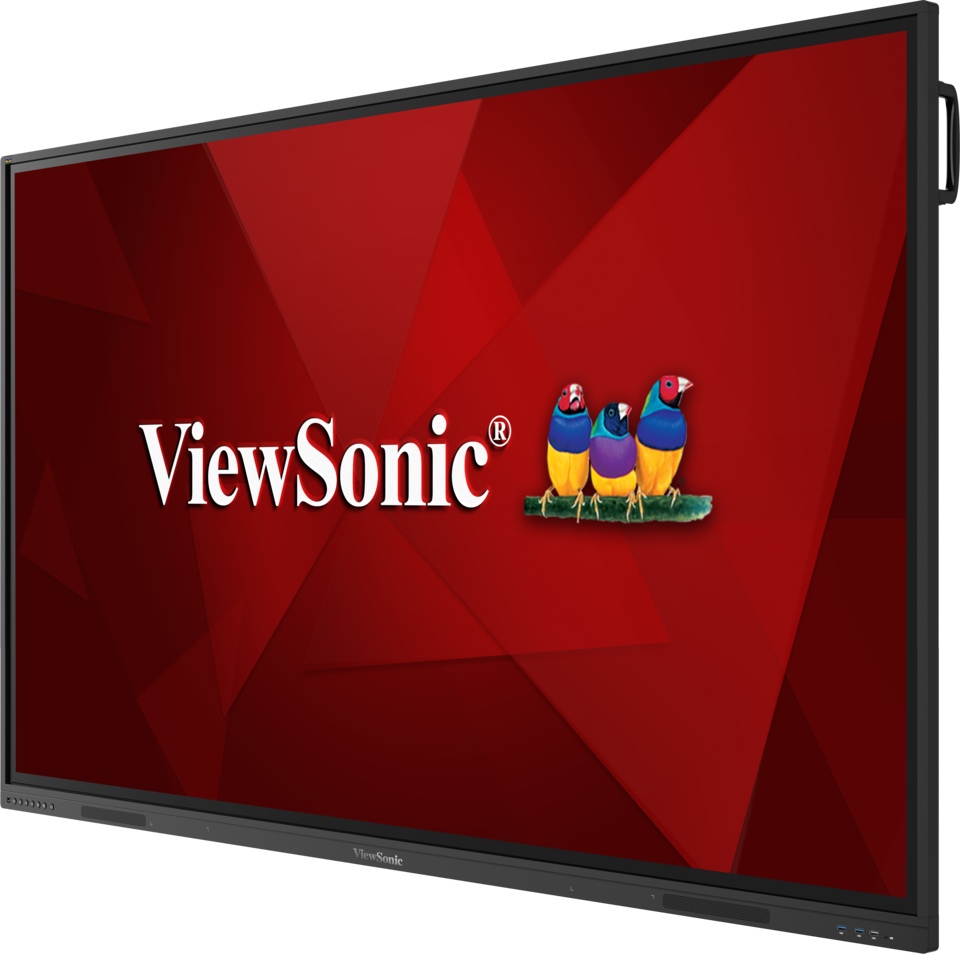

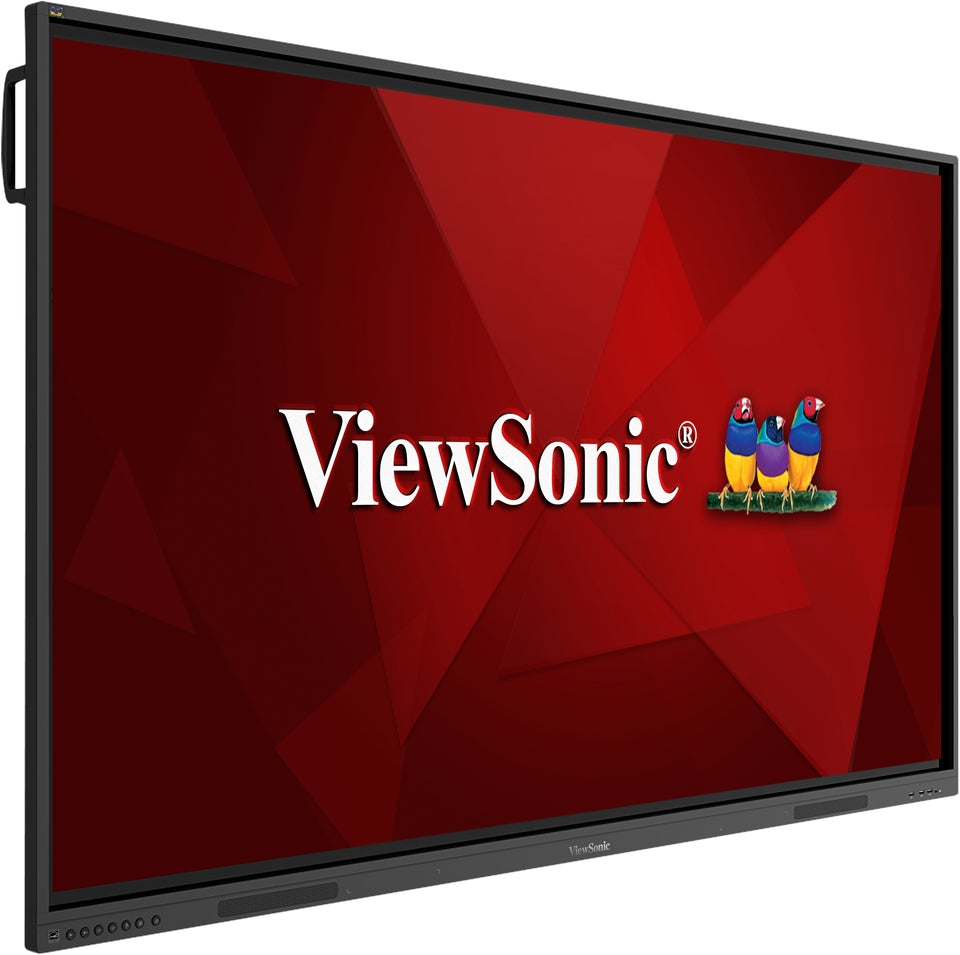

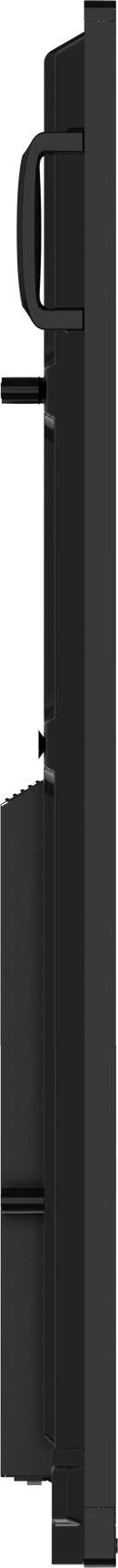

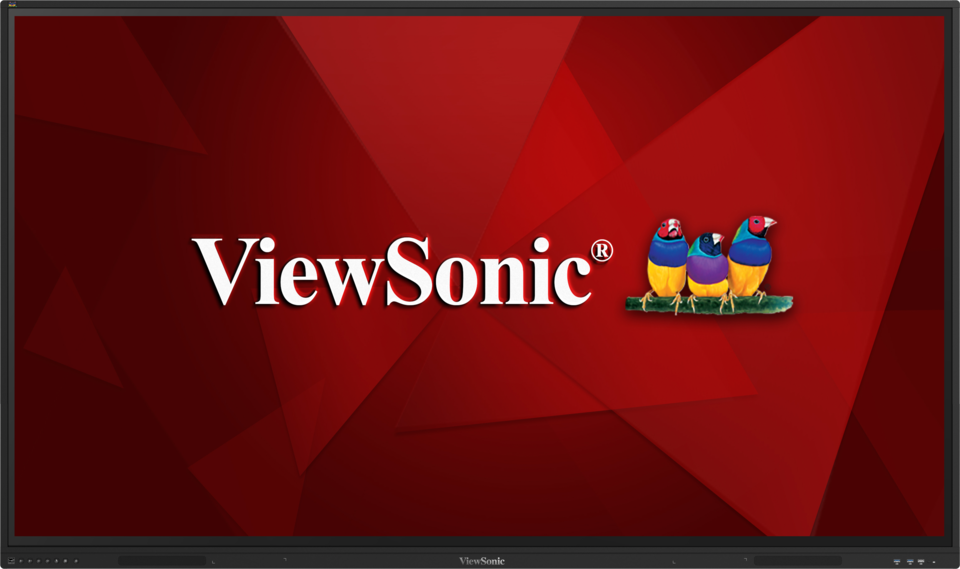

Empower your workspace with the ViewSonic IFP86G1-PC-C ChromeOS Soft Bundle, combining the powerful ViewBoard IFP86G1 86-inch 4K UHD interactive display with the VPC13-C33-G1 slot-in PC for seamless ChromeOS integration. Designed for collaboration and productivity, this Bring Your Own Device (BYOD) display features an upgradable framework, ultra-fine touch technology, and seamless USB-C connectivity with 65W power delivery. With its slim bezel, anti-glare coating, and durable 9H glass, it delivers vibrant visuals and responsive interaction across any environment.
Compatible with EDLA-certified ChromeOS, Windows, and Linux systems, the IFP86G1 enables secure access to Google Workspace and Microsoft 365 tools. Enhanced with SmartPort™ USB, LAN sharing, and energy-efficient Mini LED backlighting, it’s the ideal solution for interactive meetings, hybrid classrooms, and collaborative enterprise spaces.
| Category | Specification |
|---|---|
| Display | 86" TFT LCD with DLED Backlight |
| Display Area (mm) | 1895.04 (H) × 1065.96 (V) |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 400 nits (typ.) |
| Contrast Ratio | 4000:1 (typ.), 6000:1 (DCR) |
| Response Time | 8 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight Life | 50,000 hours (typ.) |
| Surface | 9H Hardness, Anti-glare |
| Touch Technology | Ultra Fine Touch (IR Recognition) |
| Touch Resolution | 32767 × 32767 |
| Touch Points | 40 (Windows), 20 (Android) |

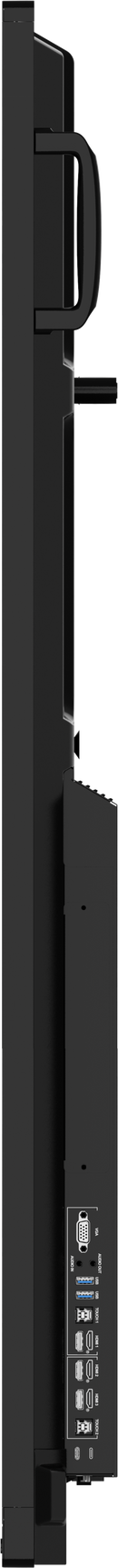

| Inputs | HDMI 2.0 ×3, VGA ×1, Audio In ×1, RS232 ×1, OPS ×1 |
| Outputs | Audio ×1, RJ45 LAN (1 In / 1 Out) |
| USB Ports | Front: 3 (USB 2.0 ×1, USB 3.0 ×2) Rear: 3 (USB 3.0 ×2, USB 2.0 ×1 for FW update) |
| USB Type-C | DP 1.2, Touch, Data Sharing, PD 65W, Ethernet 10/100M |
| Speakers | 10W ×2 |
| Camera Plate | Yes |
| Compatibility | HDMI up to 3840×2160 @ 60Hz |
| Special Features | SmartPort™ USB, LAN Sharing, Light Sensor |
| Power Supply | 100–240VAC ±10% |
| Power Consumption | 154.89W (typ.), <0.5W (off mode) |

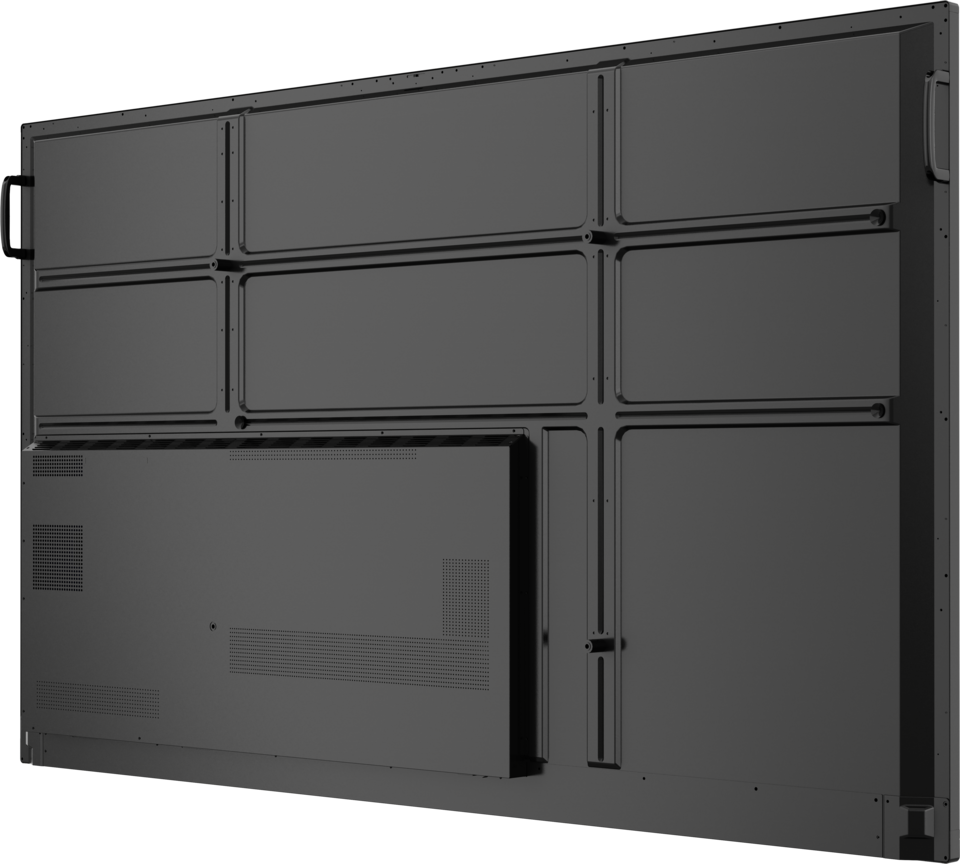

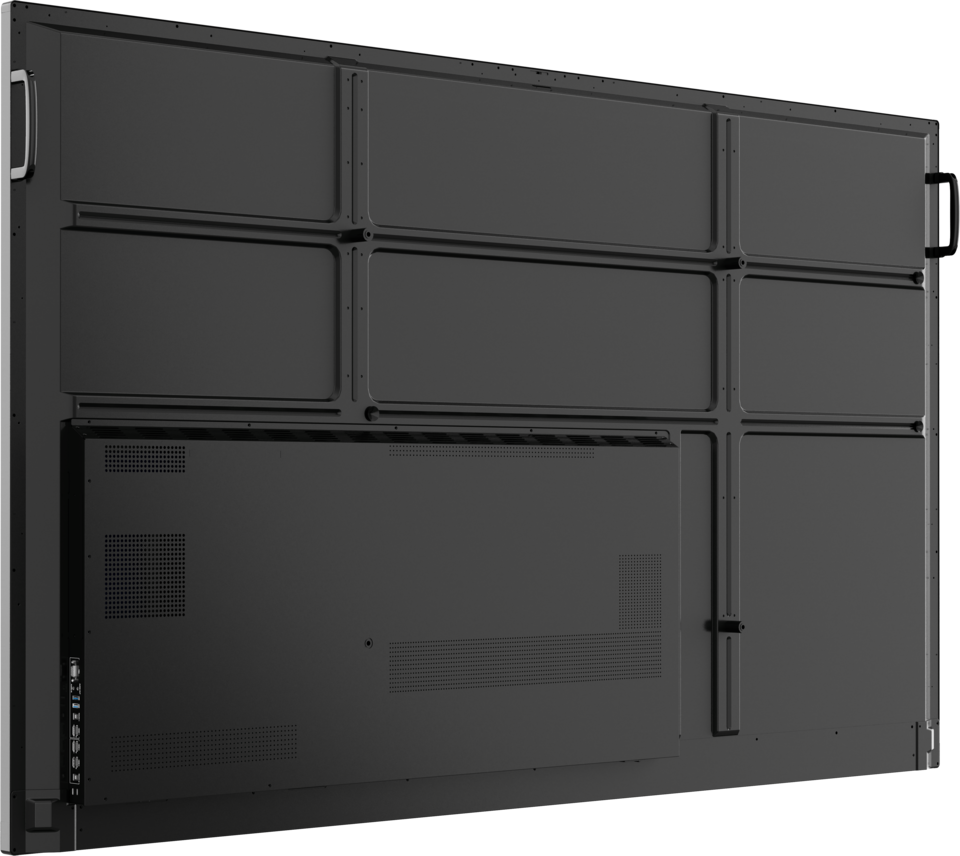

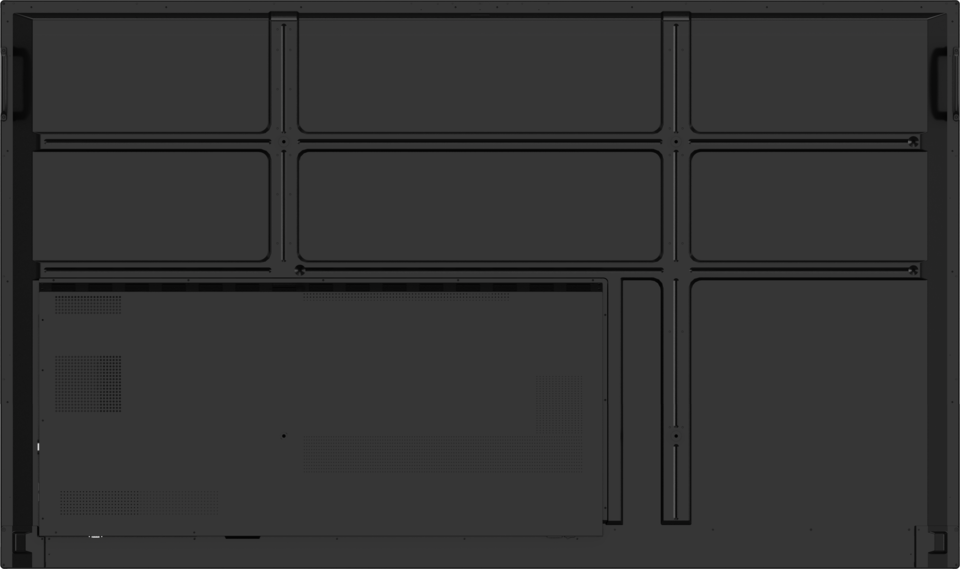

| VESA Mount | 800 × 600 mm |
| Operating Temperature | 0°C – 40°C |
| Humidity | 20% – 80% RH (non-condensing) |
| Dimensions (W × H × D) | 1957 × 1160 × 85.7 mm |
| Weight | Net: 62.35 kg / Gross: 74.65 kg |

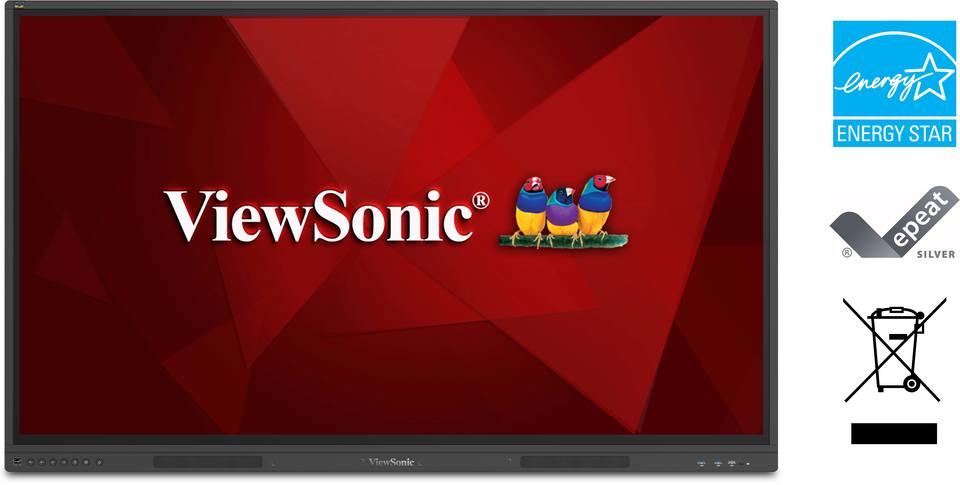

| Regulations | FCC, CE, RoHS, Energy Star, EPEAT, WEEE, REACH, ErP |
| Included Accessories | Power cable, HDMI 2.0 cable, Remote control, USB touch cable, 2× passive pens, Quick Start Guide, RS232 adapter, Wall-mount screws, Camera plate |
| Compatible Slot-in PCs | VPC13-C33-G1 (included), VPC-A31-O1, VPC33/35/37 Series |
| Orientation | Landscape |
