Description

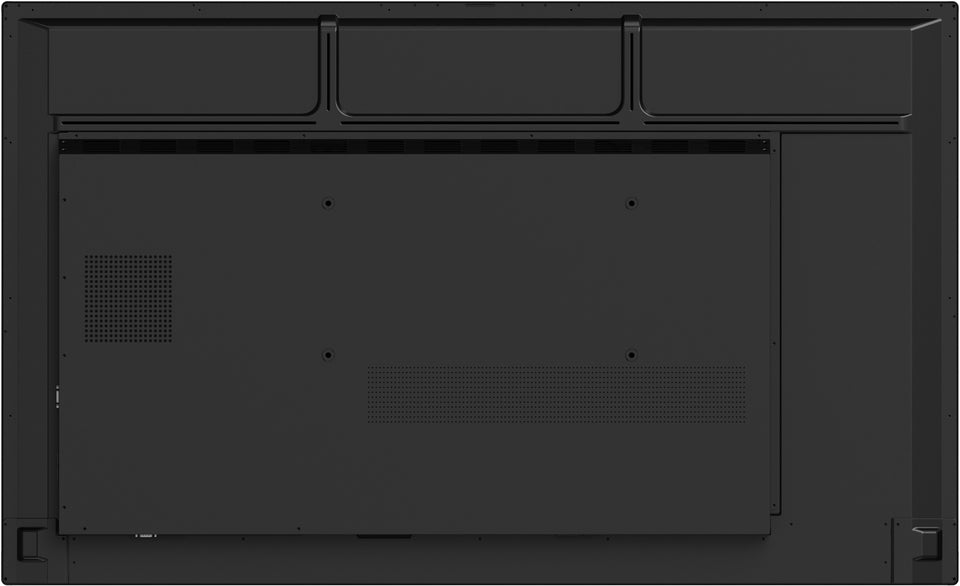

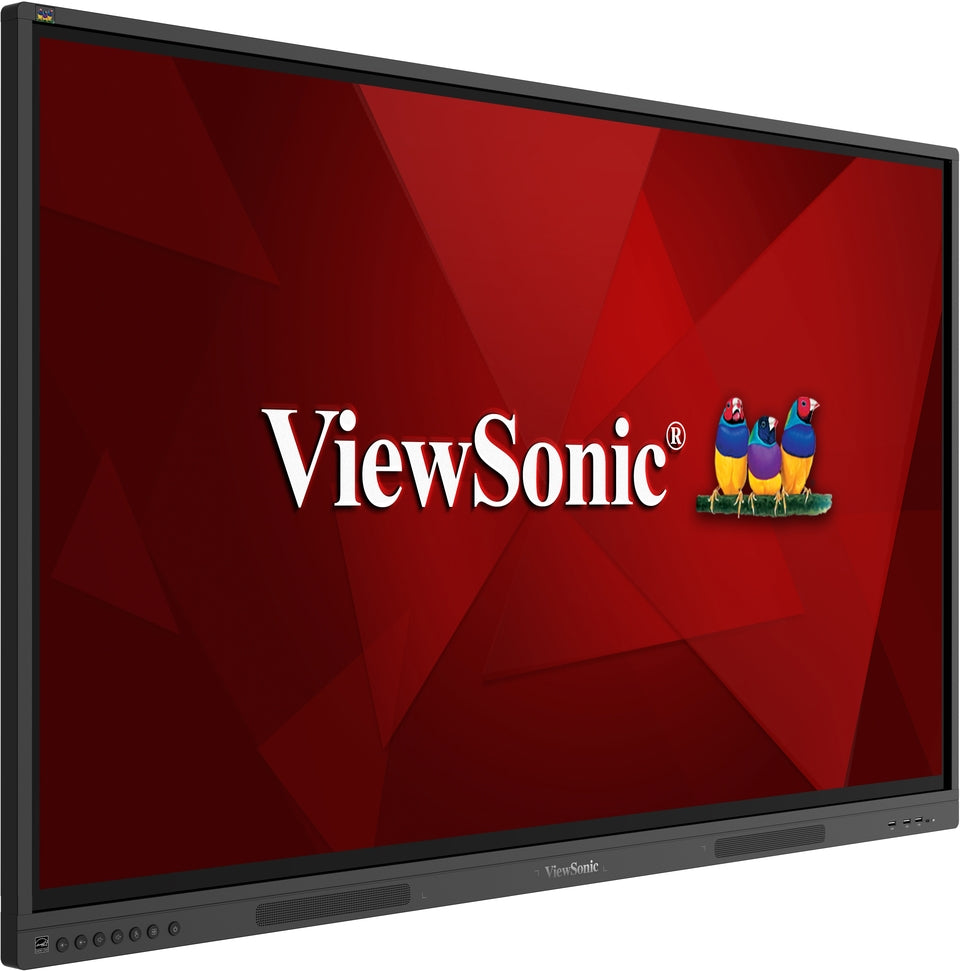

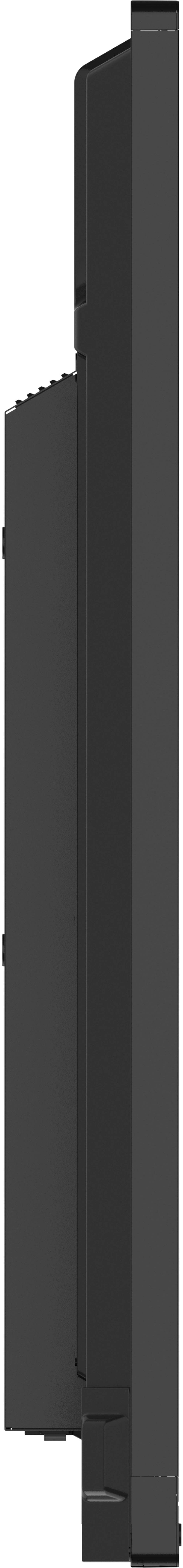

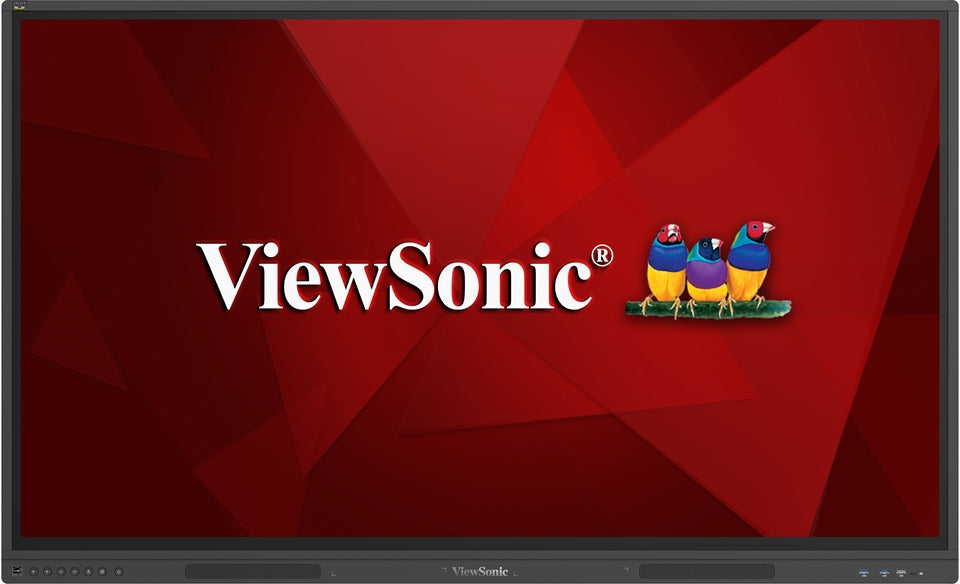

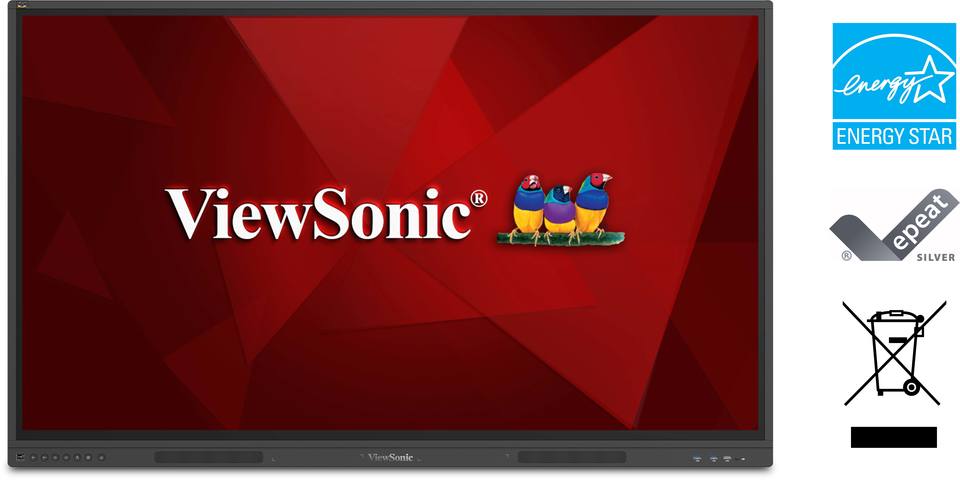

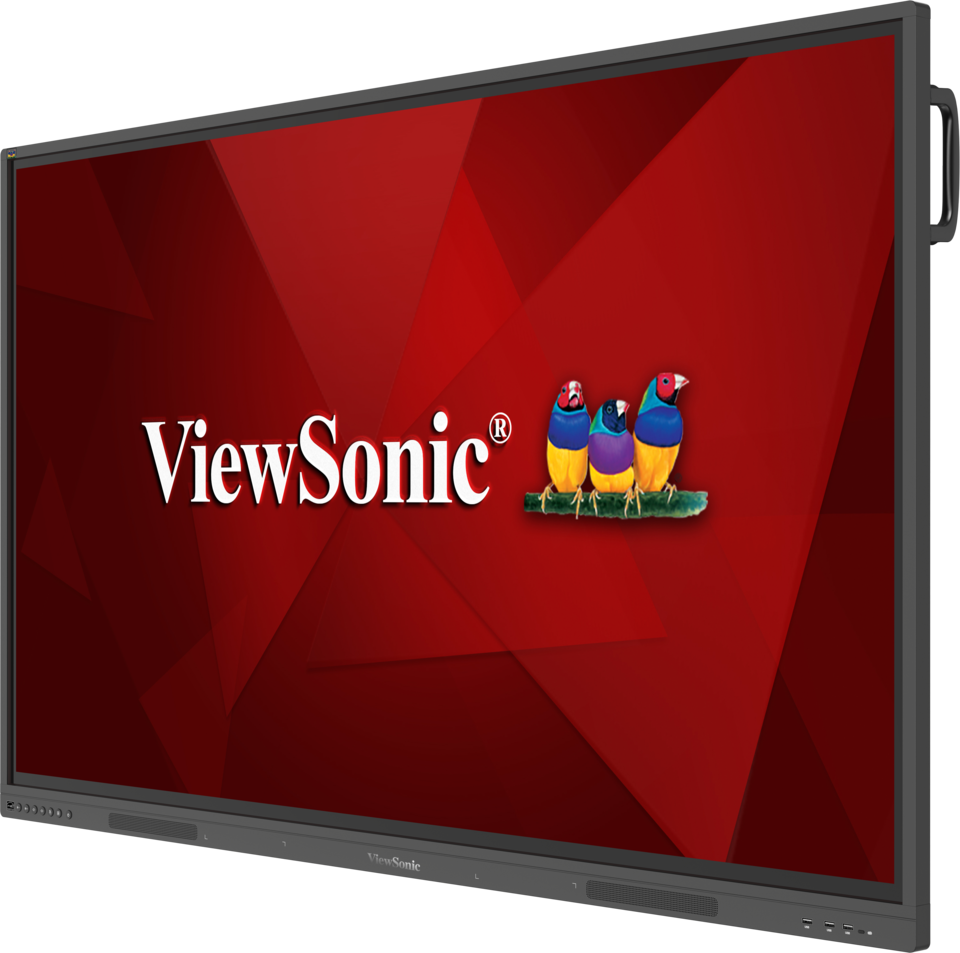

The ViewSonic® IFP55G1-PC-W is a 55-inch 4K UHD interactive display bundled with the powerful VPCF5-W55-G1 Windows slot-in PC—an ideal solution for flexible, future-ready collaboration. Designed for “Bring Your Own Device” environments, the ViewBoard® IFPG1 Series features an upgradable framework that supports Windows, Linux, and EDLA operating systems for seamless versatility. Its USB-C plug-and-play connection delivers 65W power charging, data, and touch control through a single cable—simplifying presentations and meetings.
With Ultra Fine Touch technology, 40-point multi-touch capability, and anti-glare 9H glass, it ensures smooth, accurate interaction while protecting against scratches. Advanced connectivity includes multiple HDMI ports, SmartPort™ USB, RS232, LAN sharing, and OPS integration, allowing effortless device connection and centralized control. Dual 10W speakers, integrated light sensor, and energy-efficient design further enhance performance for classrooms, meeting rooms, and corporate environments seeking reliable, all-in-one collaboration.
| Category | Details |
|---|---|
| Display | 55" TFT LCD with DLED Backlight |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 350 nits (typ.) |
| Contrast Ratio | 1200:1 (typ.), 6000:1 (DCR) |
| Colors | 1.07B (8-bit + FRC) |
| Response Time | 8 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight Life | 50,000 hours (min.) |
| Surface Treatment | 9H Hardness, Anti-glare |
| Orientation | Landscape |
| Touch Technology | Ultra Fine Touch (IR Recognition) |
| Touch Points | Windows: 40-point / Android: 20-point |
| Touch Resolution | 32767 × 32767 |

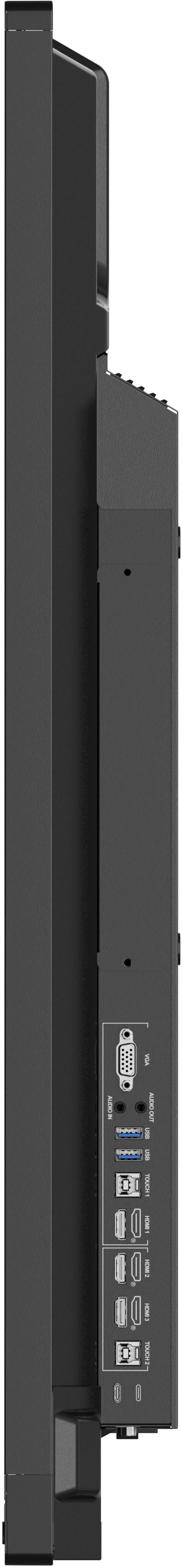

| Inputs | HDMI 2.0 × 3, VGA × 1, Audio In × 1, RS232 × 1, OPS × 1 |
| Outputs | Audio Out × 1, LAN (RJ45: 1 In / 1 Out) |
| USB Ports | Front: USB 2.0 ×1, USB 3.0 ×2; Rear: USB 3.0 ×2, USB 2.0 ×1 (FW update) |
| USB Type-C | DP 1.2, Touch, Data, PD 65W, Ethernet (10/100M) |
| Speakers | 10W × 2 |
| Compatibility | HDMI 3840 × 2160 @ 60Hz |
| Special Features | SmartPort™ USB, Light Sensor, LAN Sharing (10/100/1000M) |
| Power | 100–240V AC ±10%, On: 90.23W, Off: <0.5W |
| Mounting (VESA) | 400 × 200 mm |
| Operating Conditions | 0–40°C, 20–80% RH (non-condensing) |
| Dimensions (W×H×D) | 1262.5 × 770 × 85.7 mm |
| Weight | Net: 26.9 kg / Gross: 35.4 kg |
| Regulatory Compliance | FCC, CE, RoHS, EPEAT, Energy Star, REACH, WEEE, ErP, LVD, CA65 |
| Included Accessories | Power cable (3m), HDMI cable (3m), Remote control, USB touch cable, Touch pens ×2, RS232 adapter, Wall-mount screws, Camera plate, Quick Start Guide |

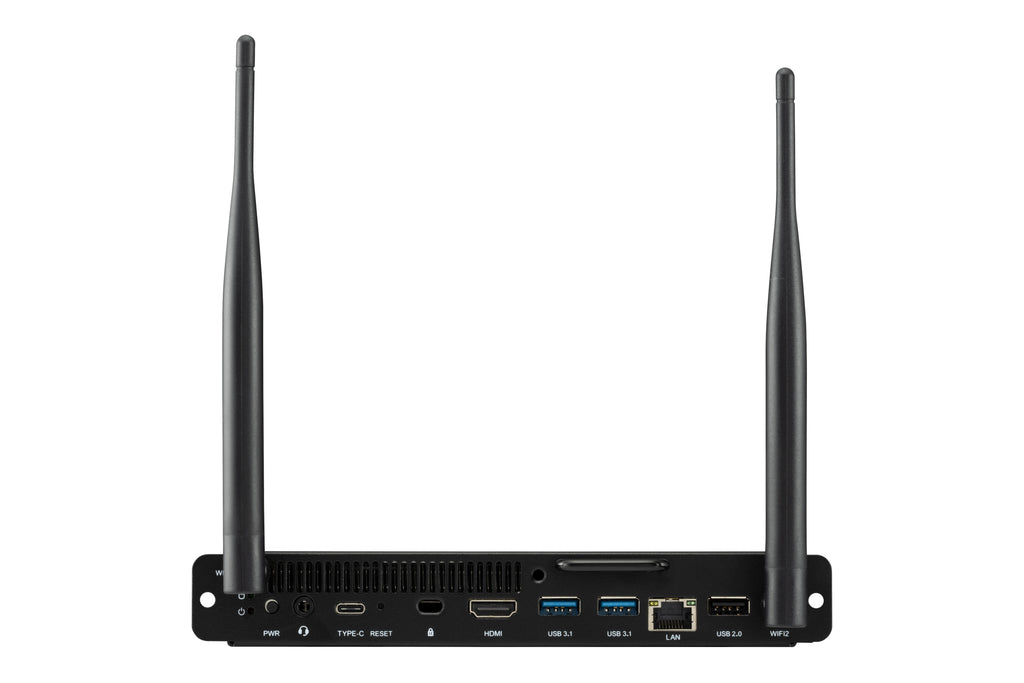

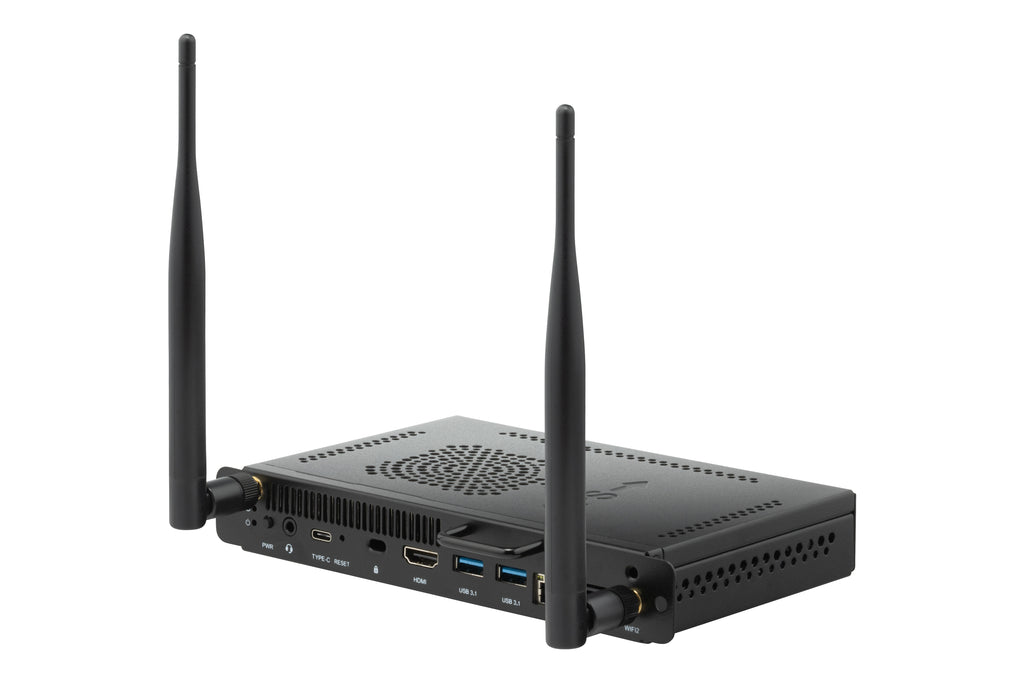

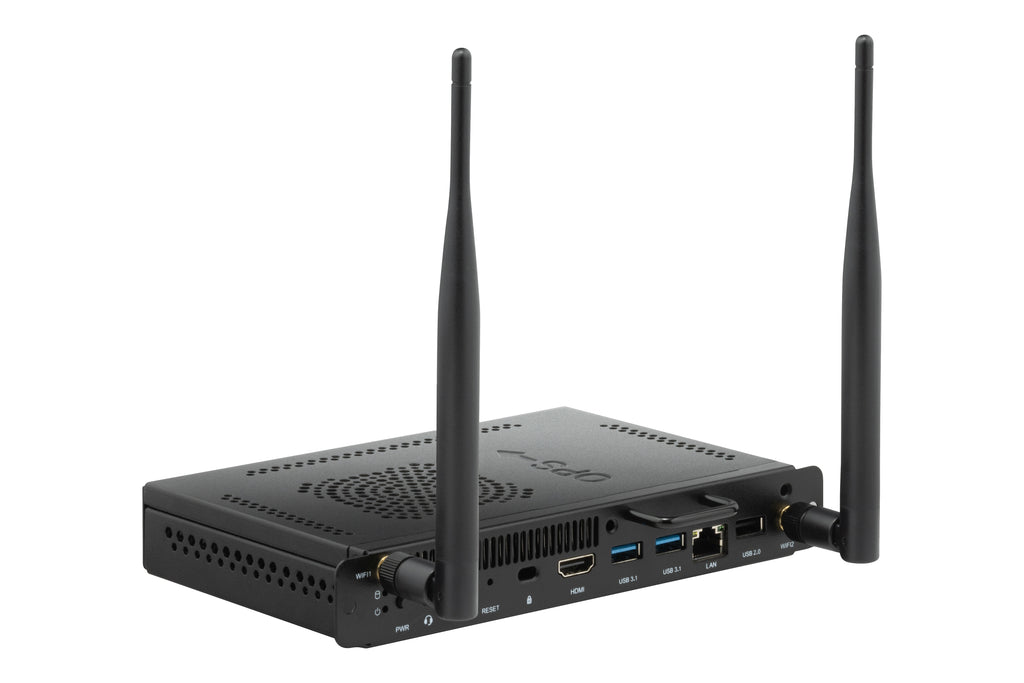

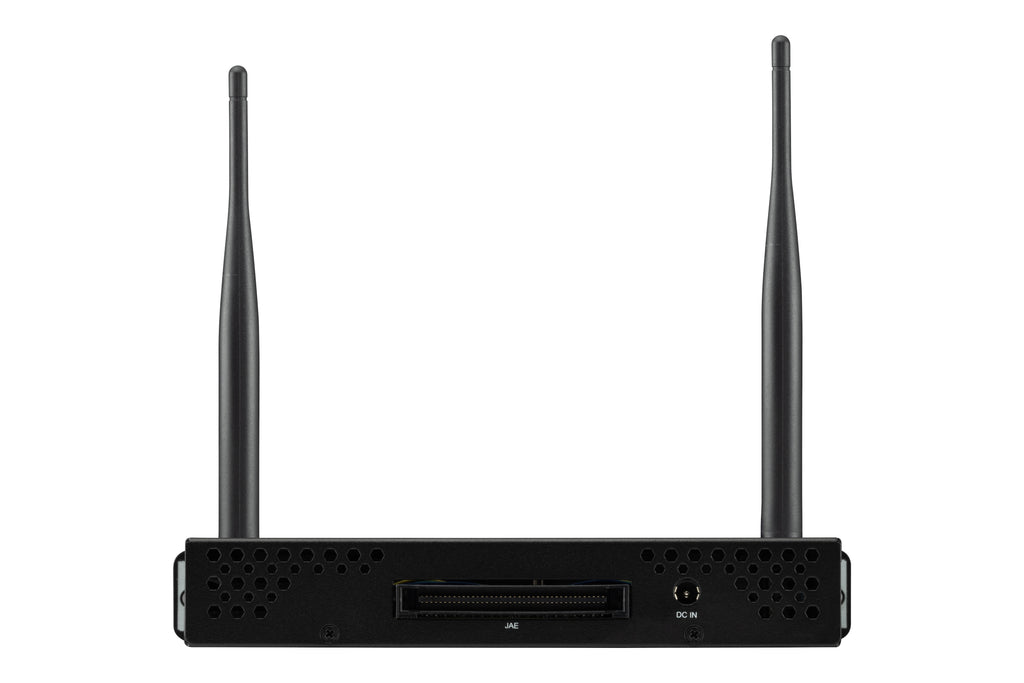

| Slot-in PC (VPCF5-W55-G1) | Integrated Windows-based PC for powerful performance and secure connectivity |
