Description

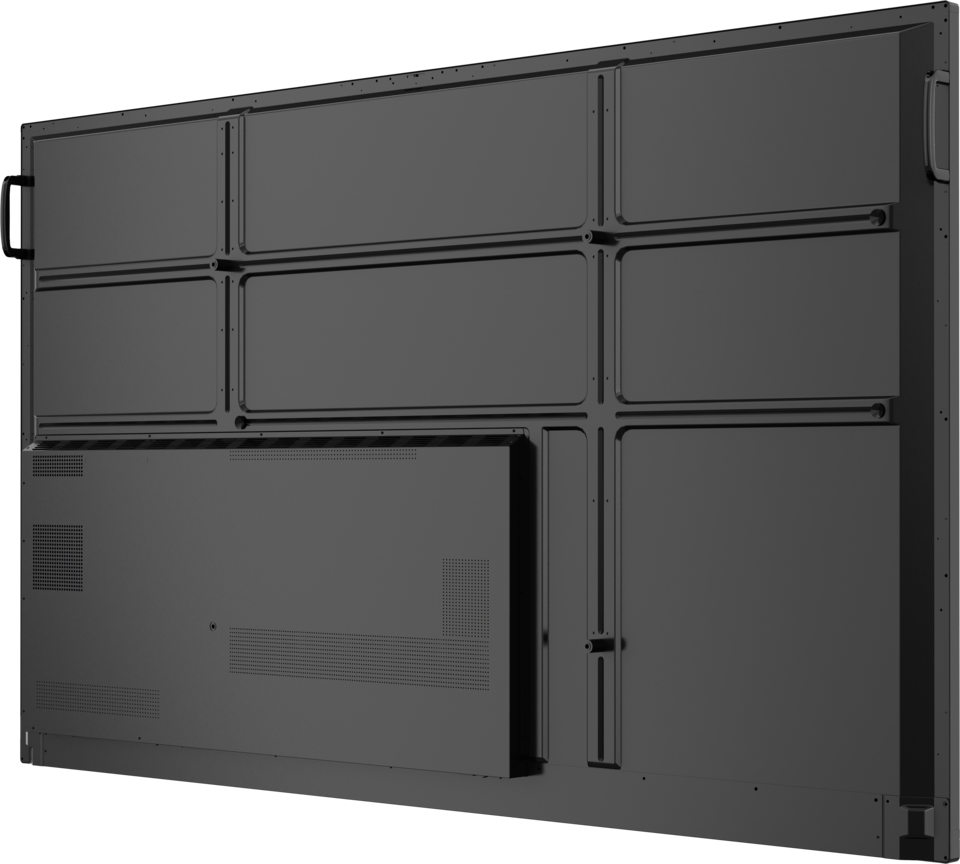

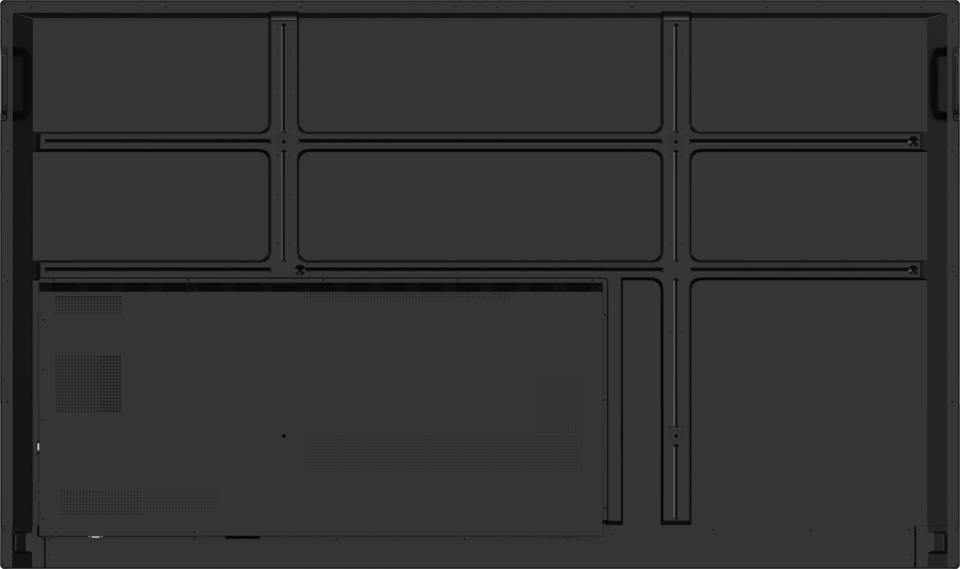

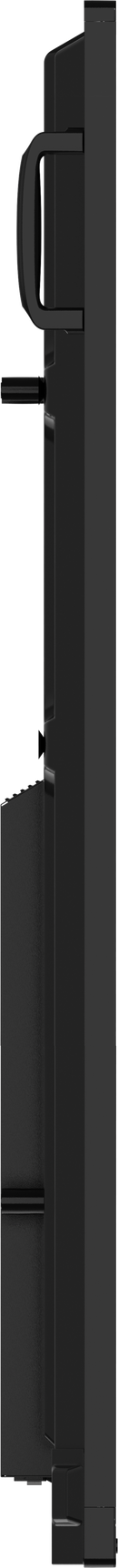

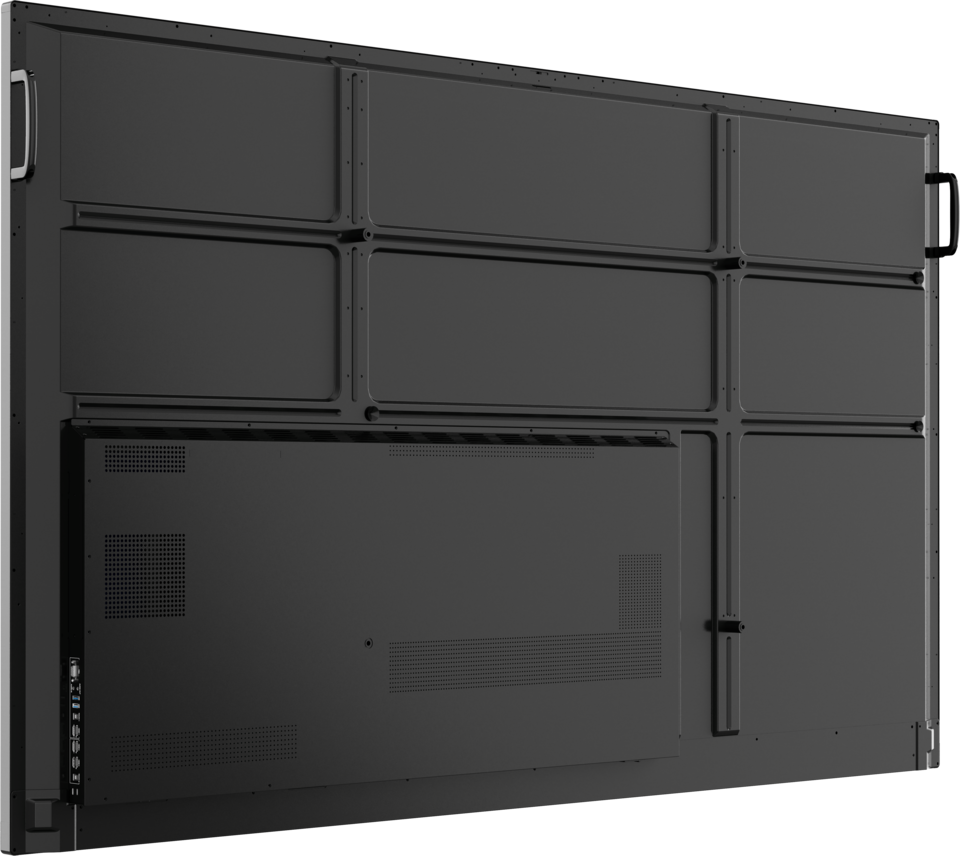

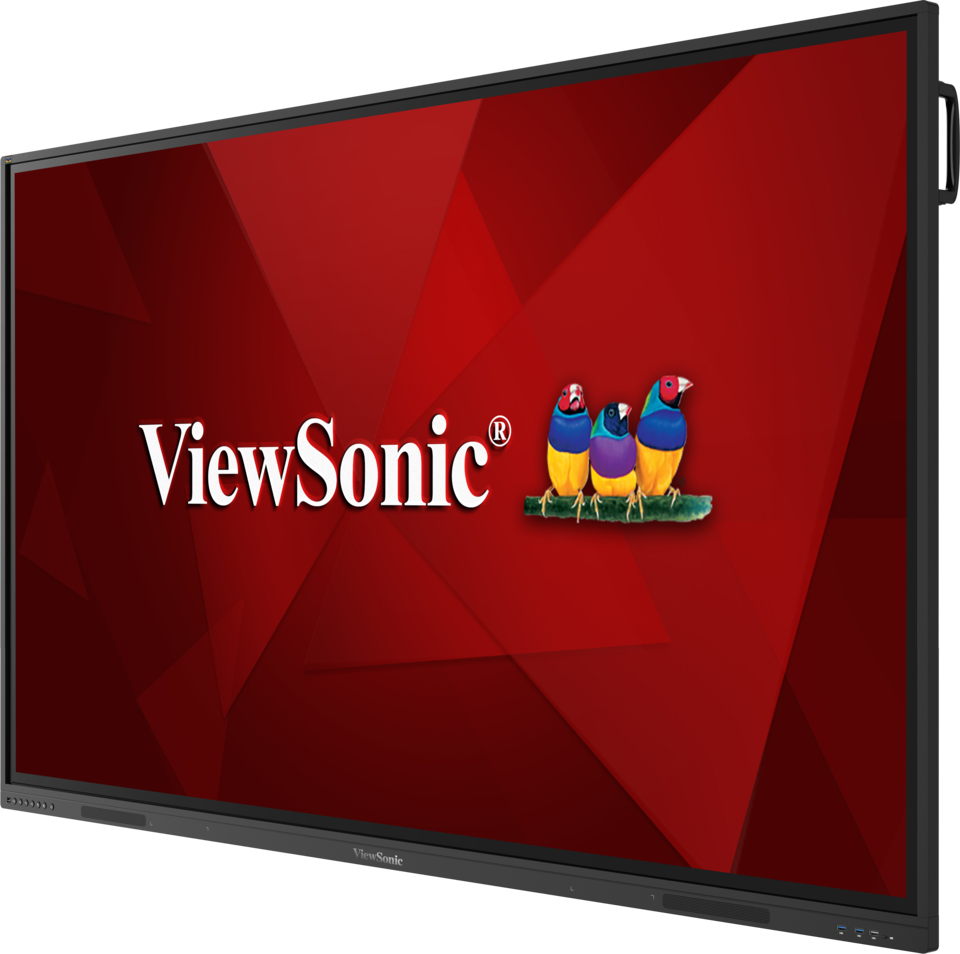

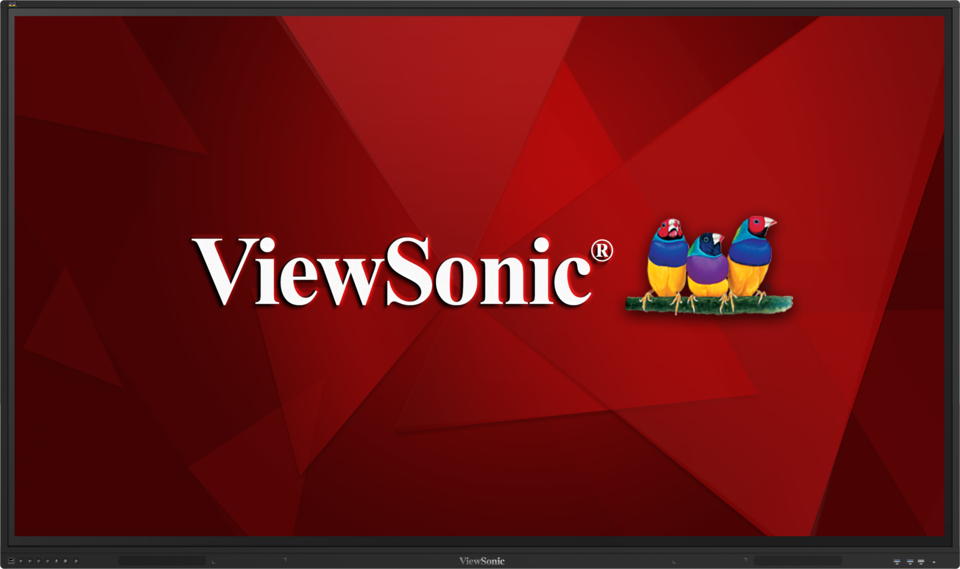

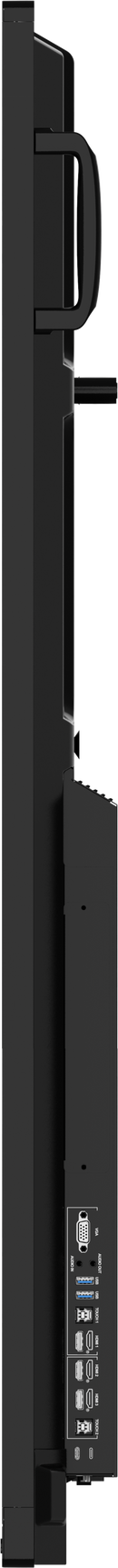

Empower collaborative learning and workplace efficiency with the ViewSonic® ViewBoard® IFP86G1-PC-W, an 86-inch 4K UHD interactive display designed for Bring-Your-Own-Device (BYOD) environments. Featuring an upgradable framework for long-term versatility, the IFPG1 Series supports slot-in PCs running Windows, Linux, or EDLA, offering seamless compatibility with Google Workspace and Microsoft 365 applications.
The built-in USB-C plug-and-play connectivity delivers power, data, and display through a single cable, enabling effortless device sharing and presentations with 65W charging support. Engineered with Ultra Fine Touch Technology, it ensures precise, natural writing and smooth multi-touch interactions. Enhanced security ensures that sensitive data remains protected on the connected device.
Whether in classrooms or corporate boardrooms, the IFP86G1-PC-W blends powerful performance, intuitive interactivity, and long-term scalability—making it the ideal solution for modern collaborative spaces.
| Category | Specification |
|---|---|
| Display | |
| Panel Size | 86" |
| Panel Type | TFT LCD Module with DLED Backlight |
| Display Area (mm) | 1895.04 (H) × 1065.96 (V) |
| Aspect Ratio | 16:9 |
| Resolution | 3840 × 2160 (4K UHD) |
| Colors | 1.07 Billion |
| Brightness | 400 nits (typ.) |
| Contrast Ratio | 4000:1 (typ.), 6000:1 (DCR) |
| Response Time | 8 ms |
| Viewing Angles | 178° (H/V) |
| Backlight Life | 50,000 hours (typ.) |
| Surface Treatment | 9H Hardness, Anti-glare Coating |
| Bezel | Slim |
| Orientation | Landscape |
| Touch | |
| Technology | Ultra Fine Touch Technology (IR Recognition) |
| Touch Resolution | 32767 × 32767 |
| Touch Points | Windows: 40-point, Android: 20-point |
| Input Ports | |
| HDMI | 3 × HDMI 2.0 (HDMI 1 & 3 with CEC; HDMI 2 with CEC & ARC) |
| VGA | 1 × RGB / VGA |
| Audio In | 1 × 3.5 mm |
| RS232 | 1 × DB9 |
| OPS Slot | 1 × Standard Slot |
| Output Ports | |
| Audio Out | 1 × 3.5 mm |
| LAN | 1 In / 1 Out (RJ45) |
| USB Type-A | Front ×3 (2 × USB 3.0, 1 × USB 2.0), Rear ×3 (2 × USB 3.0, 1 × USB 2.0 FW update) |
| USB Type-B | Rear ×2 (USB 3.0) |
| USB Type-C | 1 × (DP 1.2, Touch, Data, PD 65W, Ethernet 10/100M) |
| Speakers | 2 × 10W |
| Compatibility | HDMI 3840×2160 @ 60Hz |
| Special Features | SmartPort™ USB (Universal Access to All Channels), LAN Sharing (USB-C 10/100M, OPS 1000M), Light Sensor |
| Power | 100–240 VAC ±10%, 154.89W (On), <0.5W (Off) |
| Mounting (VESA®) | 800 × 600 mm |
| Operating Conditions | Temp: 0–40°C, Humidity: 20–80% RH (non-condensing) |
| Dimensions (W×H×D) | 77 × 45.7 × 3.4 in / 1957 × 1160 × 85.7 mm |
| Packaging Dimensions | 83.1 × 50.5 × 8.9 in / 2110 × 1283 × 225 mm |
| Weight | Net: 137.46 lb (62.35 kg) / Gross: 164.58 lb (74.65 kg) |
| Regulatory Compliance | FCC, CE, RoHS, Energy Star, EPEAT, REACH, WEEE, and more |
| Package Contents | Power Cable (3m), HDMI 2.0 Cable (3m), Remote Control (Opt.), USB Touch Cable (3m), 2 × Passive Pens, Quick Start Guide, RS232 Adapter, Wall Mount Screws, Camera Plate |
| Compatible Slot-in PC | Configurable OS: Windows, Google EDLA; VPC-A31-O1, VPC33, VPC35, VPC37 Series |
