Description

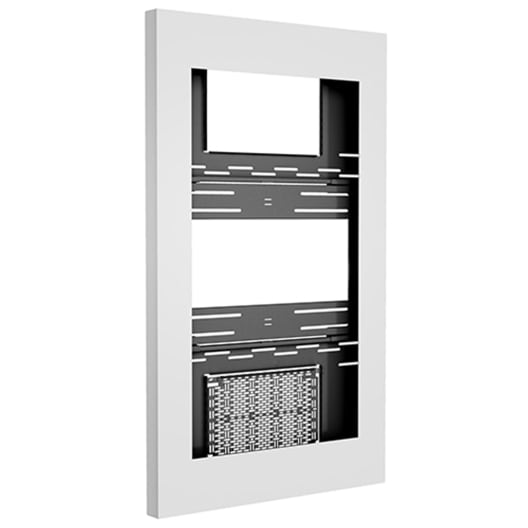

The Chief Impact™ On-Wall Kiosk Portrait 49" White (LW49UWP) delivers a refined, low-profile solution for enclosing digital signage displays in professional environments. Designed to balance sleek aesthetics with superior serviceability, this on-wall kiosk supports a wide range of portrait-oriented 49-inch displays while maintaining clean visual lines.

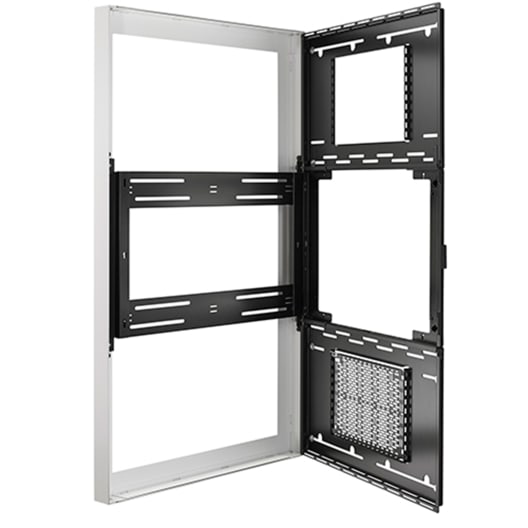

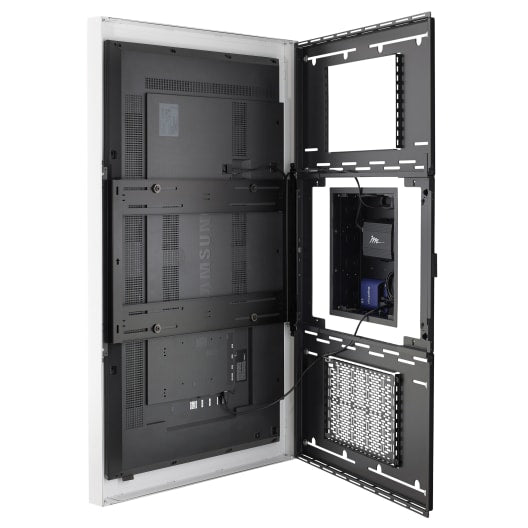

A depth-adjustable exterior frame accommodates displays with varying thicknesses, while reversible hinges help avoid installation and service obstructions. Chief’s exclusive design keeps the display mounted to the frame when opened, allowing technicians to perform maintenance without removing the screen. The enclosure’s clean white finish integrates seamlessly into corporate, retail, healthcare, and public-facing spaces.
Engineered for reliability and ease of access, the Impact™ On-Wall Kiosk provides secure mounting, straightforward servicing, and a polished presentation for high-visibility digital signage installations.
Note: Bezel size varies by display. Display compatibility should be confirmed prior to installation. Optional LL-VC21 Lever Lock™ component storage plates are available separately.
| Specification | Details |
|---|---|
| Typical Screen Size | 49 in (1245 mm) |
| Orientation | Portrait |
| Supported VESA Patterns | 300 × 300 mm, 400 × 400 mm |
| Weight Capacity | Supports displays up to 125 lb (56.7 kg) |
| Depth Range | Adjustable from 3–5 in (76–127 mm) |
| Maximum Screen Thickness | Up to 3.8 in (95.25 mm) |
| Mounting Application | Wall-mounted installation |
| Number of Displays Supported | Single display |
| Color | White |
| Enclosure Design | Closure door with secure access |
| Service Access | Display remains mounted during servicing |
| Thermal Management | Passive airflow design |
| Protective Glass | Not included |
| UL Listed | Yes |
| TAA Compliance | Not TAA compliant |
| Shipping Dimensions | 75 × 43 × 11 in (190.5 × 109.2 × 27.9 cm) |
| Shipping Weight | 111 lb (50.35 kg) |
| UPC | 841872172279 |
