Description

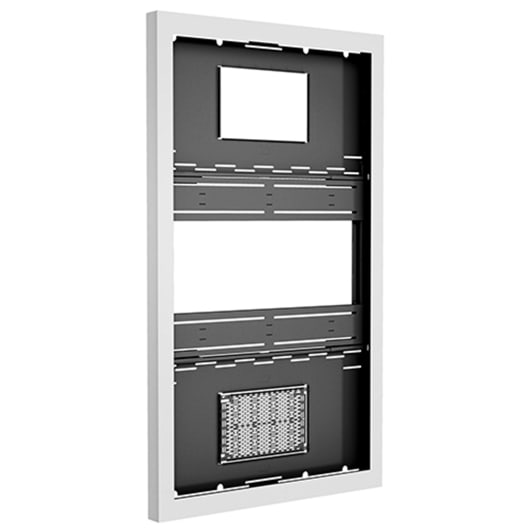

The Chief Impact™ On-Wall Kiosk in portrait orientation is designed to securely enclose 75-inch displays while maintaining a clean, modern appearance suited for high-visibility digital signage environments. Its depth-adjustable exterior frame supports a wide range of display models, accommodating varying screen thicknesses without compromising aesthetics or compliance requirements.

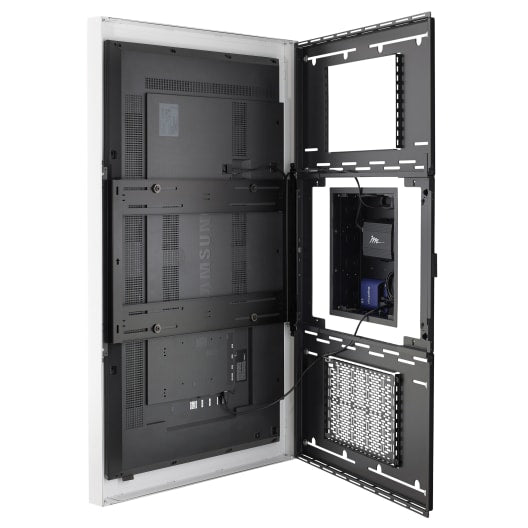

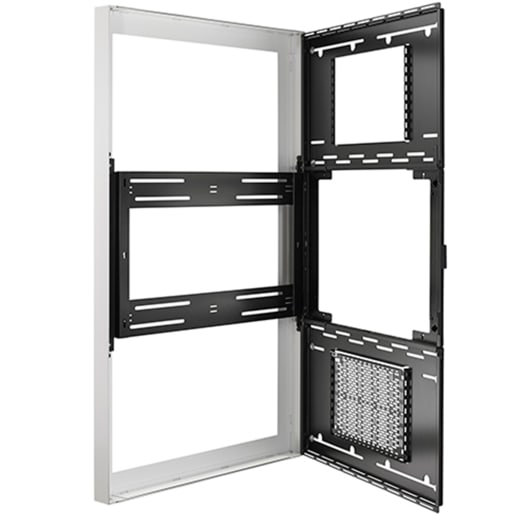

Reversible hinges eliminate installation and service obstructions, while Chief’s exclusive design keeps the display mounted to the frame when opened—delivering exceptional front-service and maintenance access. This enclosure is ideal for retail, corporate, healthcare, and public-facing installations where security, accessibility, and visual impact are equally important.
Note: Bezel size varies by display model. Display compatibility should be confirmed using technical drawings and specifications. Optional LL-VC21 Lever Lock™ component storage plates are available separately for expanded internal equipment support.
| Specification | Details |
|---|---|
| Product Type | On-wall digital signage display enclosure |
| Series | Impact™ Series Kiosks |
| Supported Screen Size | 75-inch displays |
| Orientation | Portrait |
| Mounting Application | Wall-mounted |
| Depth Range | 3–5 in (76–127 mm) |
| Maximum Screen Thickness | 3.8 in (95.25 mm) |
| Number of Displays Supported | Single display |
| Color Finish | White |
| Adjustability | Fixed-position enclosure |
| VESA Mounting Patterns Supported | 400 × 400 mm, 600 × 400 mm, 600 × 600 mm |
| Protective Glass | Not included; display remains uncovered |
| Security Features | Lockable closure door for controlled access |
| Thermal Management | Passive airflow design for heat dissipation |
| Shipping Dimensions | 75 × 44.5 × 10 in (190.5 × 113 × 25.4 cm) |
| Shipping Weight | 152 lb (68.95 kg) |
| TAA Compliance | Not TAA compliant |
| UPC | 841872172606 |
