Description

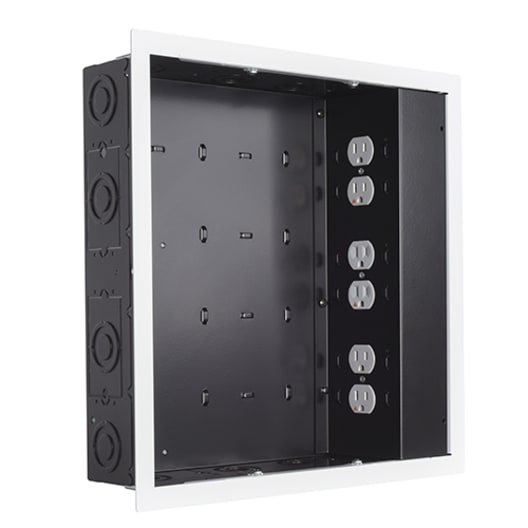

The PAC526FWP6 Proximity® In-Wall Storage Box from Chief provides a clean, professional solution for managing power and excess cabling behind flat-panel displays. Designed for recessed in-wall installation, it creates an organized equipment cavity while maintaining a low-profile, finished appearance.
This model includes a high-performance dual-gang power module with six surge- and filter-protected receptacles, featuring non-sacrificial multi-stage filtration to reduce high-frequency noise and protect connected equipment from power disturbances. An integrated flange allows for clean drywall mounting and a trimmed, polished look once installed.
Engineered for compatibility with a wide range of Chief wall mounts—including Proximity®, Fusion®, Thinstall™, and select professional mount series—the PAC526FWP6 is ideal for commercial AV, digital signage, corporate, and education environments where reliability and aesthetics are equally important.
| Specification | Details |
|---|---|
| Product Type | In-Wall Storage Box with Power |
| Mounting Application | Recessed In-Wall Installation |
| Compatible Mount Series | PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall™, Fusion® |
| Receptacle Configuration | Six receptacles with surge protection and filtering |
| Surge Protection Type | Type 3 Surge Protective Device (SPD) |
| Continuous Output Rating | 15A / 1875 W |
| Voltage Protection Rating (VPR) | 600V L-N |
| Maximum Continuous Operating Voltage | 240V |
| Nominal Discharge Current (In) | 3 kA |
| Short Circuit Current Rating (SCCR) | 5 kA |
| Power Consumption | Greater than 0.5 W |
| Ambient Operating Temperature | Up to 40°C |
| Depth | 3.9 in (9.86 cm) |
| Height | 15.5 in (39.4 cm) |
| Width | 15.4 in (39.12 cm) |
| Overall Dimensions (W × H × D) | 15.51 × 15.4 × 3.88 in (394 × 391 × 98 mm) |
| Weight Capacity | Supports up to 10 lb (4.5 kg) |
| Shipping Weight | 16 lb (7.26 kg) |
| Finish | Black enclosure with white flange |
| Special Features | Integrated flange, surge protection, power filtering |
| Certification | UL Listed |
| UPC | 841872167114 |
