Description

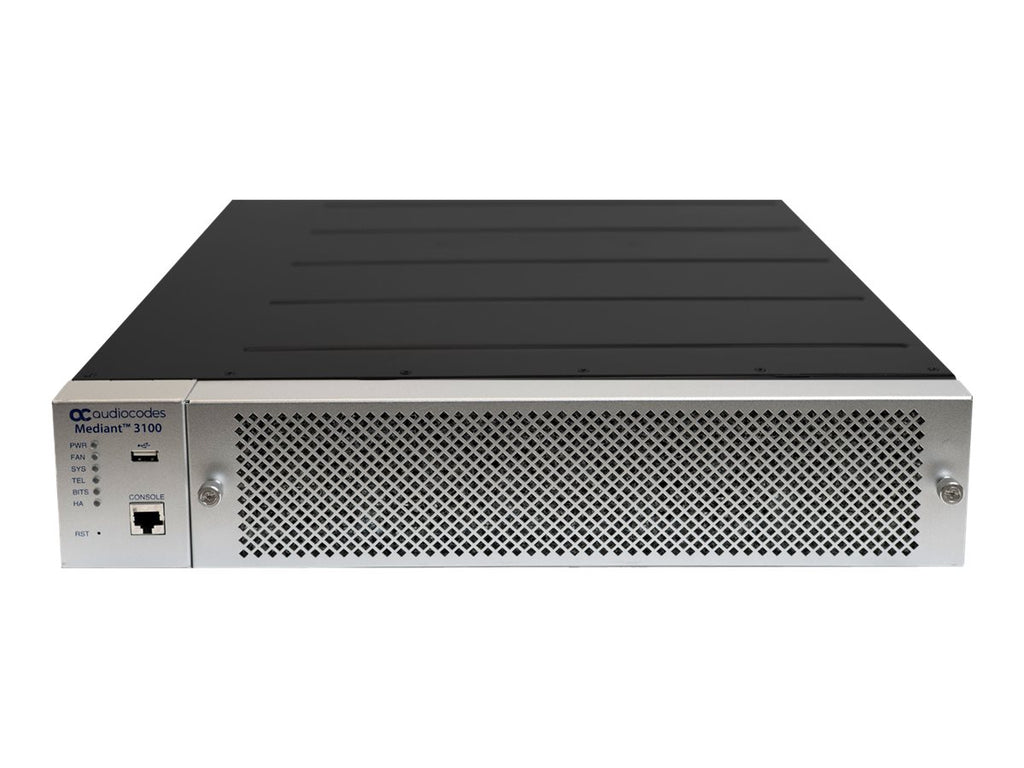

The AudioCodes Mediant 3100 (M3100-64ET-2DC) is a high-performance, carrier-grade VoIP gateway designed for large-scale enterprise and service provider environments that demand exceptional reliability, scalability, and SIP interoperability. Offering 64 T1/E1 digital interfaces, robust SIP protocol support, and advanced voice processing features, this gateway delivers seamless connectivity between legacy telephony systems and modern IP networks.
Equipped with dual DC power supplies for redundancy, 1GbE networking, and a 2U rack-mountable design, the Mediant 3100 ensures consistent uptime in mission-critical deployments. It supports a wide range of voice codecs—including Opus, SILK, AMR, G.711, and G.729—and provides powerful security features such as TLS/DTLS encryption, SRTP, firewall protection, IDS, and DDoS mitigation.
With capacity for up to 20,000 registered users, 5,000 signaling sessions, and 3,200 transcoded sessions, the Mediant 3100 delivers exceptional performance while maintaining high availability through advanced management tools, VLAN support, RADIUS authentication, and RESTful APIs. Ideal for large enterprises modernizing their voice infrastructure or service providers deploying dense VoIP solutions.
| Category | Details |
|---|---|
| Manufacturer | AudioCodes |
| SKU | M3100-64ET-2DC |
| Device Type | VoIP Gateway |
| Category | Telephones / IP Telephony |
| Form Factor | Rack-mountable (2U) |
| Color | Silver |
| Connectivity Technology | Wired |
| Network Interfaces | 8 × 1000Base-T RJ-45, 1 × Console, 1 × USB Type-A |
| Telephony Interfaces | 64 × T1/E1 digital ports |
| Supported Protocols | SIP, RTP, SRTP, TCP, UDP, IPv4, IPv6 |
| Voice Codecs | G.711, G.723.1, G.726, G.729A/B, GSM-FR, AMR-NB/WB, Opus (NB/WB), SILK (NB/WB), T.38 |
| IP Telephony Features | Echo cancellation, gain control, PLC, jitter buffer, silence suppression, CNG |
| Security Features | TLS/DTLS, SRTP, firewall protection, blacklisting, IDS, DoS/DDoS protection |
| Management Protocols | HTTPS, SSH, SNMP, HTTP, CLI, RESTful APIs |
| Capacity | 20,000 registered users; 5,000 signaling sessions; 5,000 SRTP/RTP sessions; 3,200 transcoded sessions |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p |
| Authentication | RADIUS |
| Additional Features | VLAN, DiffServ, NAT support, High Availability, LDAP support |
| Dimensions (W × D × H) | 43.8 cm × 49 cm × 8.8 cm |
| Rack Height | 2U |
| Weight | 11.5 kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% – 90% (non-condensing) |
| Power | Dual DC 48 V power supplies (redundant), Internal PSU |
| Packaged Quantity | 1 |
