Description

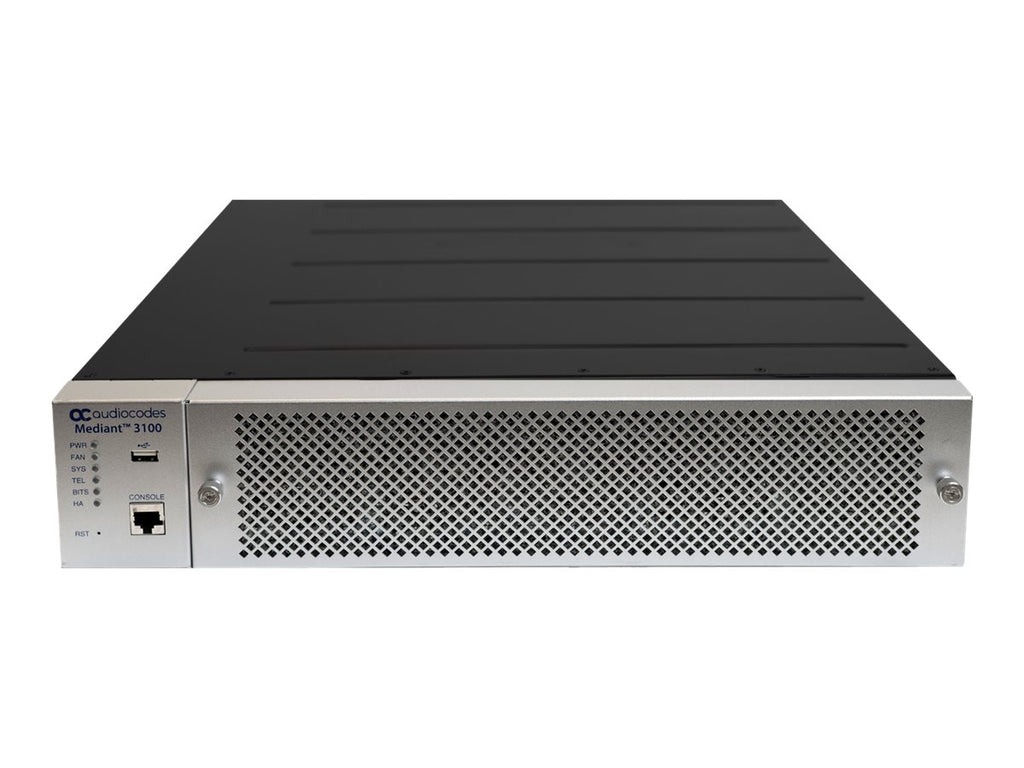

The AudioCodes M3100-64ET is a high-capacity hybrid Session Border Controller (SBC) and Media Gateway designed for medium-to-large enterprises, service providers, and contact centers requiring secure, reliable, and scalable voice services. Supporting up to 5,000 SBC sessions, 64 E1/T1 spans, and 20,000 registered users, it delivers exceptional performance for SIP trunking, IP-PBX connectivity, and large-scale VoIP deployments.
Built with robust perimeter security, advanced transcoding capabilities, and comprehensive SIP interoperability, the M3100-64ET ensures seamless integration between IP and TDM networks. Its high availability architecture, branch survivability, and versatile routing features make it ideal for mission-critical communication environments.
This 2U platform also includes multi-layer encryption, DoS/DDoS protection, extensive vocoder support, WebRTC-to-SIP interworking, and dual AC/DC power options—delivering carrier-grade reliability and future-proof performance for enterprise communications.
| Category | Details |
|---|---|
| Product Type | Hybrid SBC & Media Gateway |
| Max SBC Sessions | 5,000 |
| Max RTP/SRTP Sessions | 5,000 |
| Max Registered Users | 20,000 |
| Max Transcoding Sessions | 3,200 |
| TDM Interfaces | 8–64 E1/T1 spans supported; 64 spans for this model |
| Digital PSTN Protocols | EuroISDN, NI-2, Lucent 4/5ESS, Nortel DMS-100, others |
| Ethernet Interfaces | 8 × GE (1+1 redundancy or individual ports) |
| Security Features | DoS/DDoS protection, SIP firewall, TLS/DTLS/SRTP, HTTPS, SSH, SIP Digest Auth, topology hiding |
| Transcoding / Vocoders | G.711, G.723.1, G.726, G.729A/B, GSM-FR, AMR-NB/WB, Opus, SILK, and more |
| Signal Conversion | DTMF/RFC 2833/SIP, T.38 Fax, packet-time conversion |
| WebRTC Gateway | WebRTC-to-SIP interworking; Opus, VP8, DTLS, RTP multiplexing |
| NAT Traversal | ICE full/lite, local & far-end NAT support |
| Routing Features | DID-based routing, SIP header routing, ENUM/LDAP/HTTP queries, LCR, load balancing, forking, E911 detection |
| Voice Quality Features | Transrating, RTCP-XR, jitter buffer, echo cancellation, gain control, silence suppression |
| Survivability | Local call survivability + PSTN fallback |
| Management | GUI, CLI, SNMP, INI config, REST API, EMS |
| Dimensions (H×W×D) | 88 × 438 × 490 mm (3.5 × 17.24 × 19 in) |
| Weight | 11.5 kg (25.3 lbs) fully populated |
| Operating Temperature | 0°C to 40°C (41°F to 104°F) |
| Storage Temperature | –25°C to 70°C (–13°F to 158°F) |
| Humidity | 5%–90% non-condensing |
| Power Options | Redundant dual-feed 100–240V AC or 48V DC |
