Description

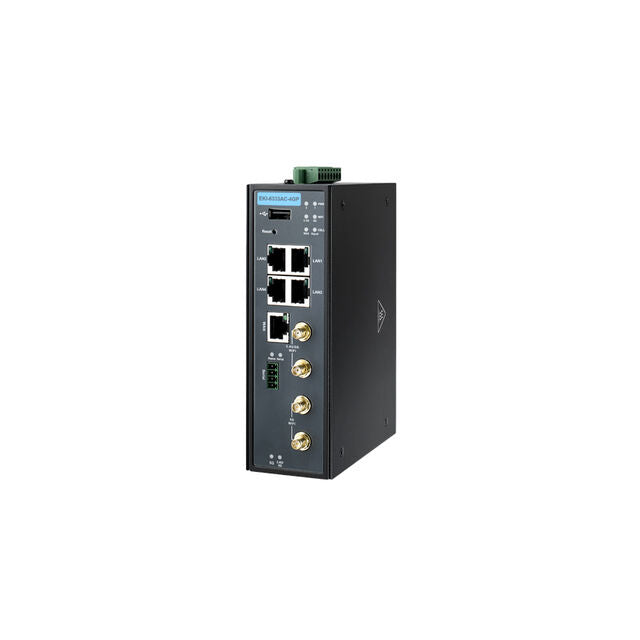

The Advantech EKI-6333AC-4GP-A is an industrial-grade dual-band wireless access point designed for reliable, high-throughput connectivity in demanding environments. Supporting IEEE 802.11a/b/g/n/ac with dual-radio operation, it delivers wireless transmission speeds of up to 867 Mbps while operating concurrently on both 2.4 GHz and 5 GHz bands.
Built for industrial networking deployments, this model features four Gigabit Ethernet ports with IEEE 802.3at PoE PSE support, enabling power and data delivery to connected devices such as IP cameras, sensors, and controllers. Advanced security protocols, VPN support, and firewall protection ensure secure network operations, while flexible network modes allow deployment as an access point, router, bridge, or station.
Housed in a rugged metal enclosure with DIN-rail mounting support and wide operating temperature tolerance, the EKI-6333AC-4GP-A is well suited for factory automation, transportation systems, energy infrastructure, and other mission-critical industrial wireless applications.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Product Type | Industrial Wireless Access Point |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Wireless Bands | Dual-band 2.4 GHz / 5 GHz (concurrent) |
| Maximum Wireless Speed | Up to 867 Mbps |
| Wireless Modes | Access Point, Router, Bridge, Station |
| Ethernet Ports | 4 × Gigabit Ethernet |
| PoE Support | IEEE 802.3at PoE PSE |
| Antenna Type | External, Reverse SMA |
| Antenna Configuration | 4 antennas, 2T2R per radio |
| Security | WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, 802.1X |
| Network Security | SPI firewall, IPS, packet filtering, URL blocking, MAC filtering |
| VPN Support | IPSec, OpenVPN, PPTP, L2TP, GRE |
| Management Interfaces | Web UI, Telnet CLI, SNMPv3 |
| Power Input | 24–56 VDC, redundant dual inputs |
| Mounting Options | DIN-rail, Wall (optional) |
| Enclosure | Metal industrial housing |
| Operating Temperature | -30°C to 70°C |
| Storage Temperature | -40°C to 80°C |
| Operating Humidity | 10–95% RH |
| Dimensions (W × H × D) | 62 × 160 × 125 mm |
| Weight | Approx. 1.5 kg |
