Description

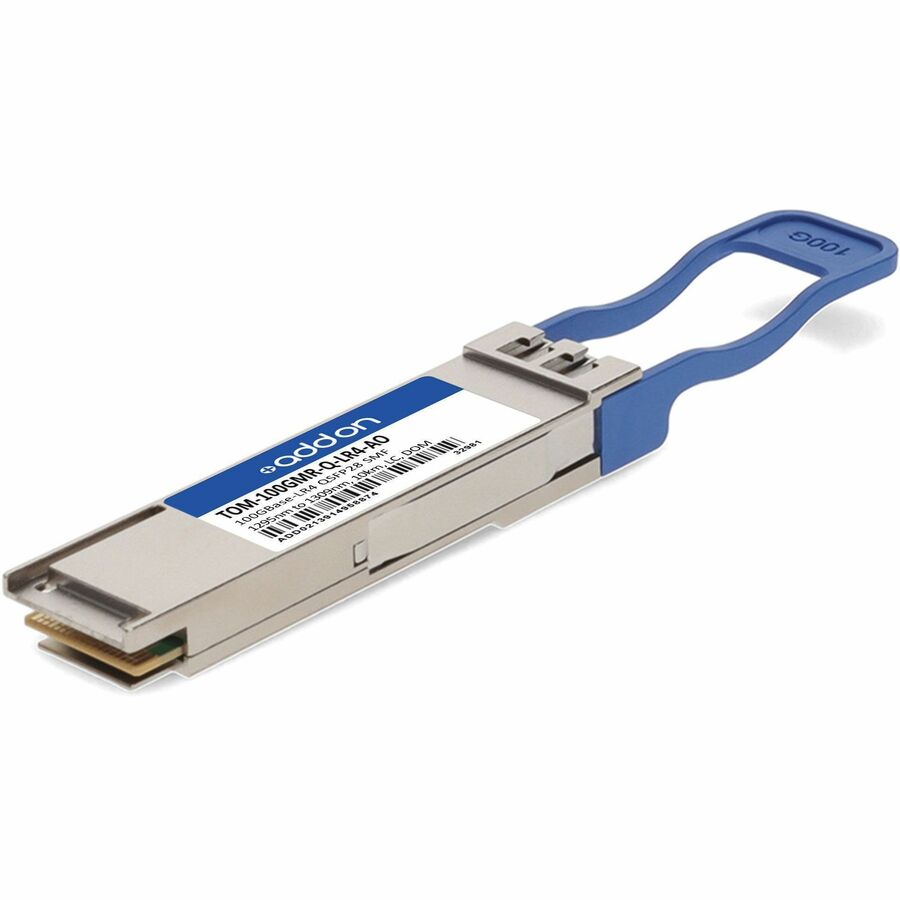

The AddOn Infinera® TOM-100GMR-Q-LR4 compatible QSFP28 transceiver delivers reliable 100GBase-LR4 throughput up to 10 km over single-mode fiber (SMF) using a wavelength range of 1295 nm to 1309 nm via a duplex LC connector. Engineered to meet or exceed OEM specifications, this hot-swappable transceiver is fully tested, uniquely serialized, and guaranteed to be 100% compatible with the original Infinera® component. Digital Optical Monitoring (DOM) provides real-time access to key operating parameters, ensuring optimal network performance.
With features such as SFF-8665 compliance, excellent ESD protection, and robust EMI shielding in a metal housing, this module is designed for enterprise, data center, and access network applications. It is TAA compliant, RoHS 2.0 certified, and backed by AddOn’s limited lifetime warranty for dependable long-term performance.
| Specification | Details |
|---|---|
| SKU | TOM-100GMR-Q-LR4-AO |
| Compatible OEM | Infinera® |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Interface | 100GBase-LR4 |
| Media Type | Single-Mode Fiber (SMF) |
| Wavelength Range | 1295 nm – 1309 nm |
| Connector Type | Duplex LC |
| Reach / Distance | Up to 10 km |
| DOM Support | Yes |
| Compliance Standards | SFF-8665, MSA, TAA |
| Operating Temperature | 0 °C to 70 °C |
| Power Dissipation | 4 W (typ.) |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Transmitter OMA (per lane) | –1.3 dBm to 4.5 dBm |
| Receiver Sensitivity (per lane) | –8.6 dBm |
| Receiver Damage Threshold | 5.5 dBm |
| Extinction Ratio | ≥ 4 dB |
| Hot-Swappable | Yes |
| RoHS Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
