Description

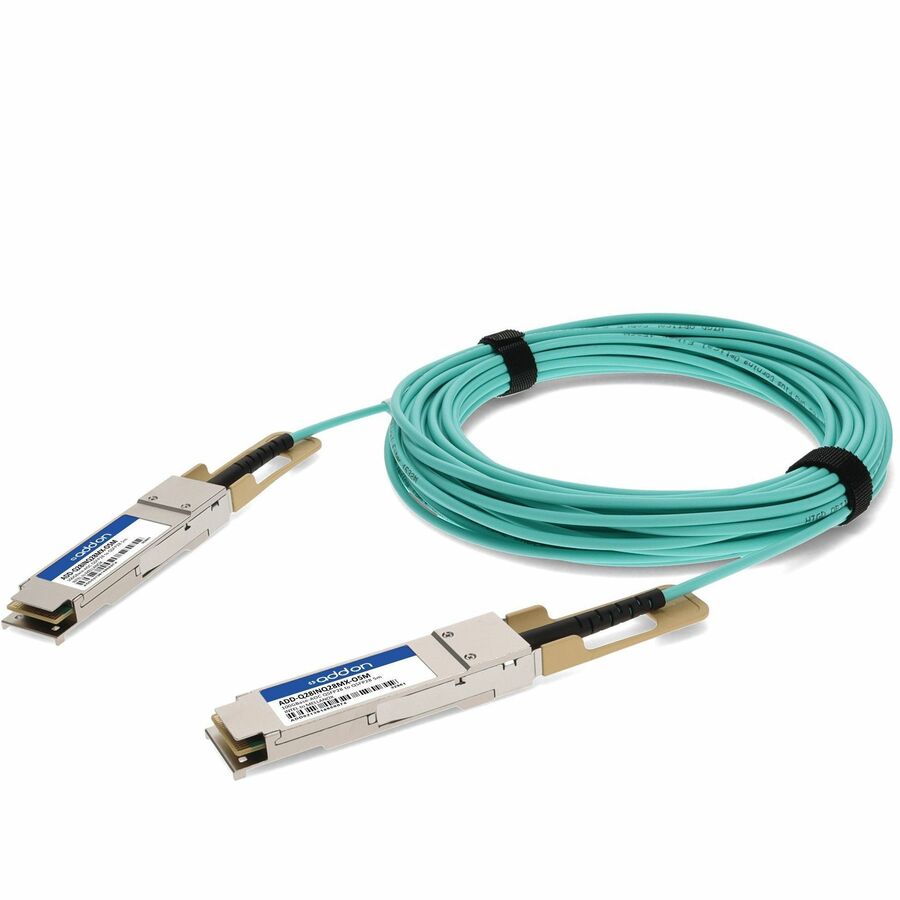

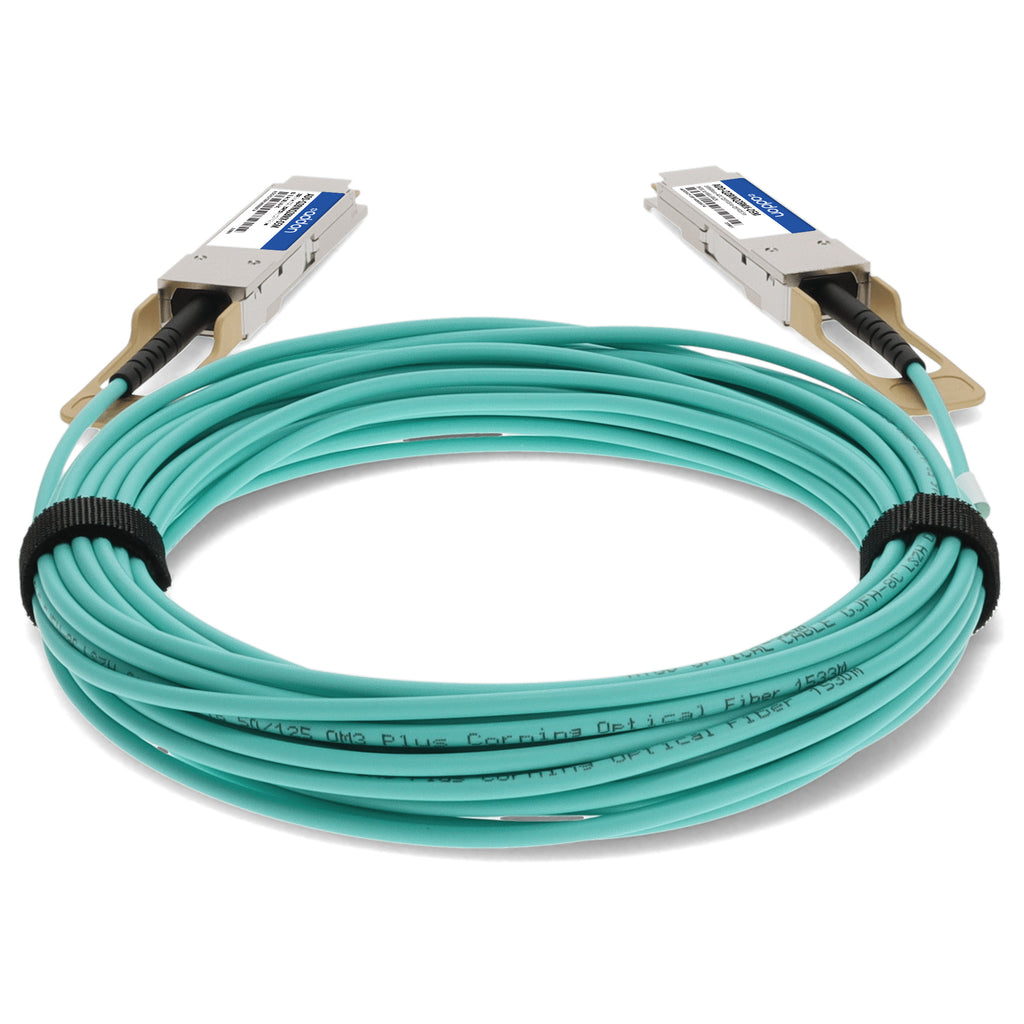

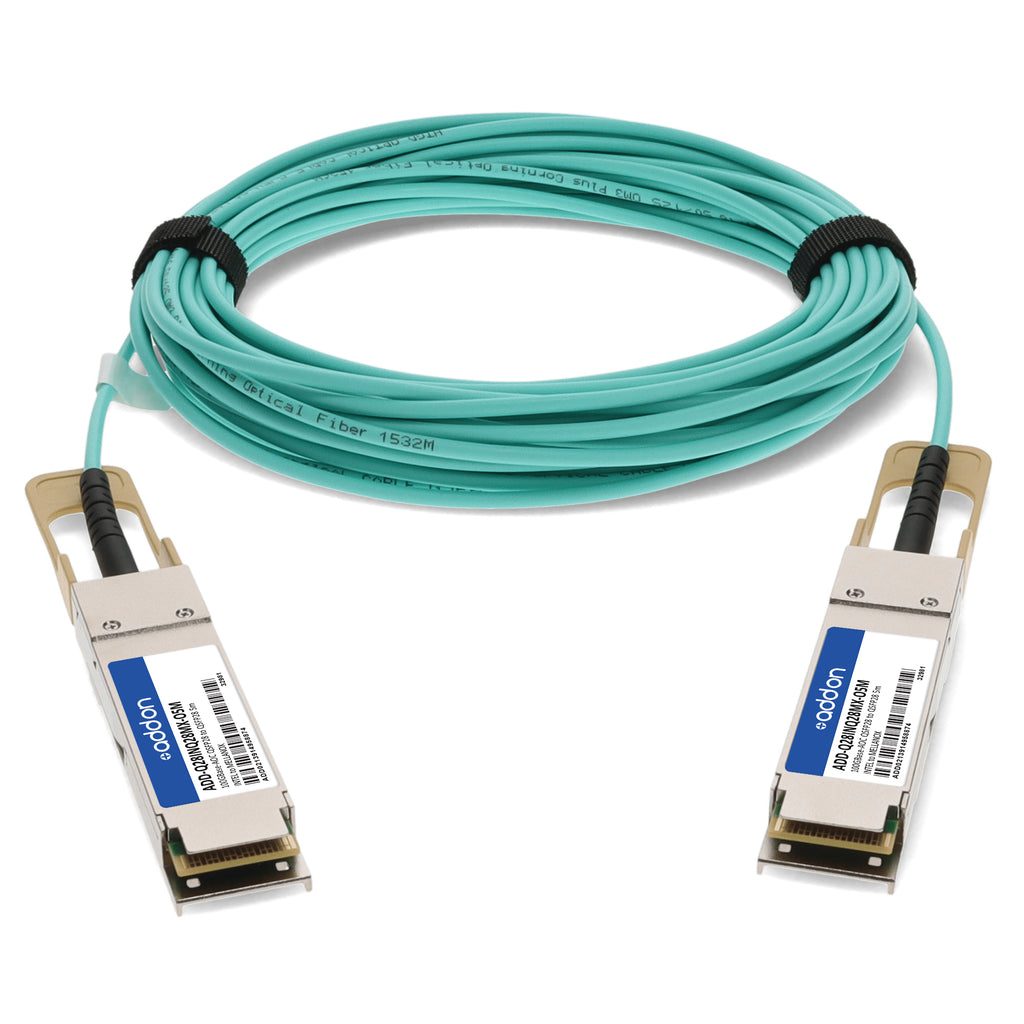

The AddOn Intel® 100FRRF0050 to Mellanox® MFA1A00-C005 Compatible TAA Compliant 100GBase-AOC QSFP28 to QSFP28 Active Optical Cable delivers reliable, high-speed data connectivity for next-generation networking environments. Designed for seamless interoperability, this active optical cable provides a maximum reach of 5 meters over multimode fiber at 850nm, supporting an aggregate data rate of 103.1Gbps across four independent full-duplex channels.
Built to meet or exceed OEM specifications, this cable is fully compatible with Intel® and Mellanox® equipment, initializing and performing identically to original components. It is compliant with QSFP28 MSA standards, TAA regulations, and RoHS requirements, ensuring outstanding performance, regulatory compliance, and environmental responsibility. Featuring low power consumption (2.5W per terminal) and robust construction, this AOC is ideal for high-bandwidth applications such as InfiniBand EDR and 100GBase Ethernet deployments. AddOn’s stringent testing and quality assurance guarantee industry-leading reliability backed by a limited lifetime warranty.
| Specification | Description |
|---|---|
| Compatible OEM | Intel®, Mellanox® |
| Compatible Part Number(s) | 100FRRF0050, MFA1A00-C005 |
| Form Factor | QSFP28 to QSFP28 |
| Cable Type | Active Optical Cable (AOC) |
| Wavelength | 850nm |
| Fiber Type | Multimode Fiber (MMF) |
| Maximum Reach | 5m (16.4ft) |
| Data Rate | 103.1Gbps aggregate |
| Channels | 4 independent full-duplex channels |
| Electrical Interface | 4x25G (OIF CEI-28G-VSR) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0 to 85% (non-condensing) |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Consumption | 2.5W per terminal |
| Supply Current | 757mA |
| Applications | 100GBase Ethernet, InfiniBand EDR |
| Compliance | QSFP28 MSA, TAA, RoHS, Lead-Free |
| Warranty | Limited Lifetime Warranty |
