Description

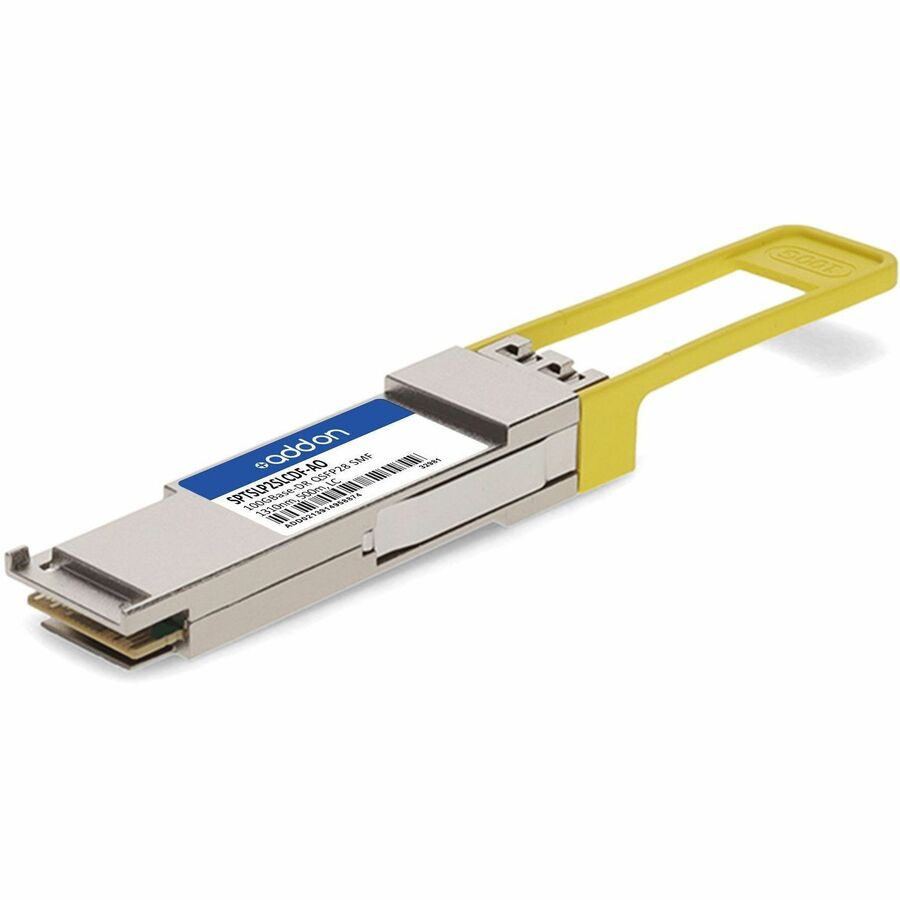

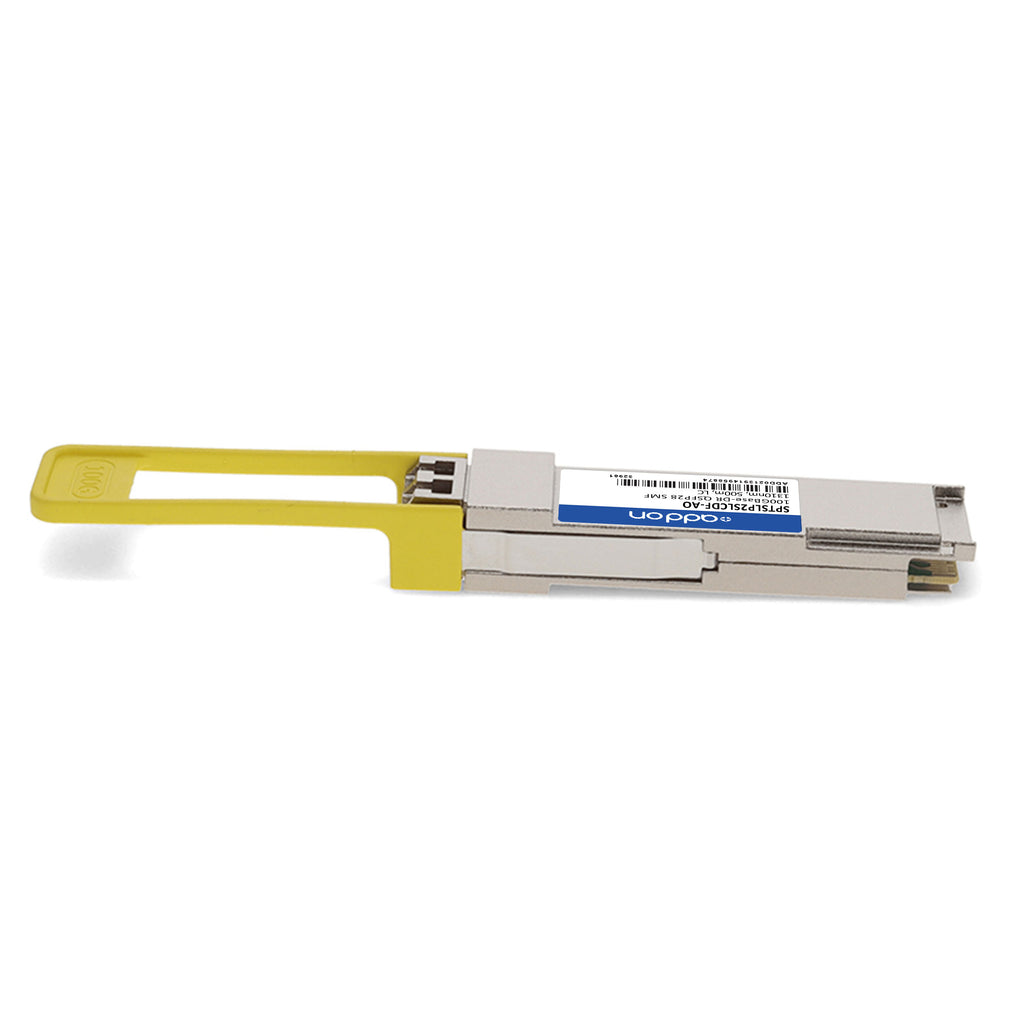

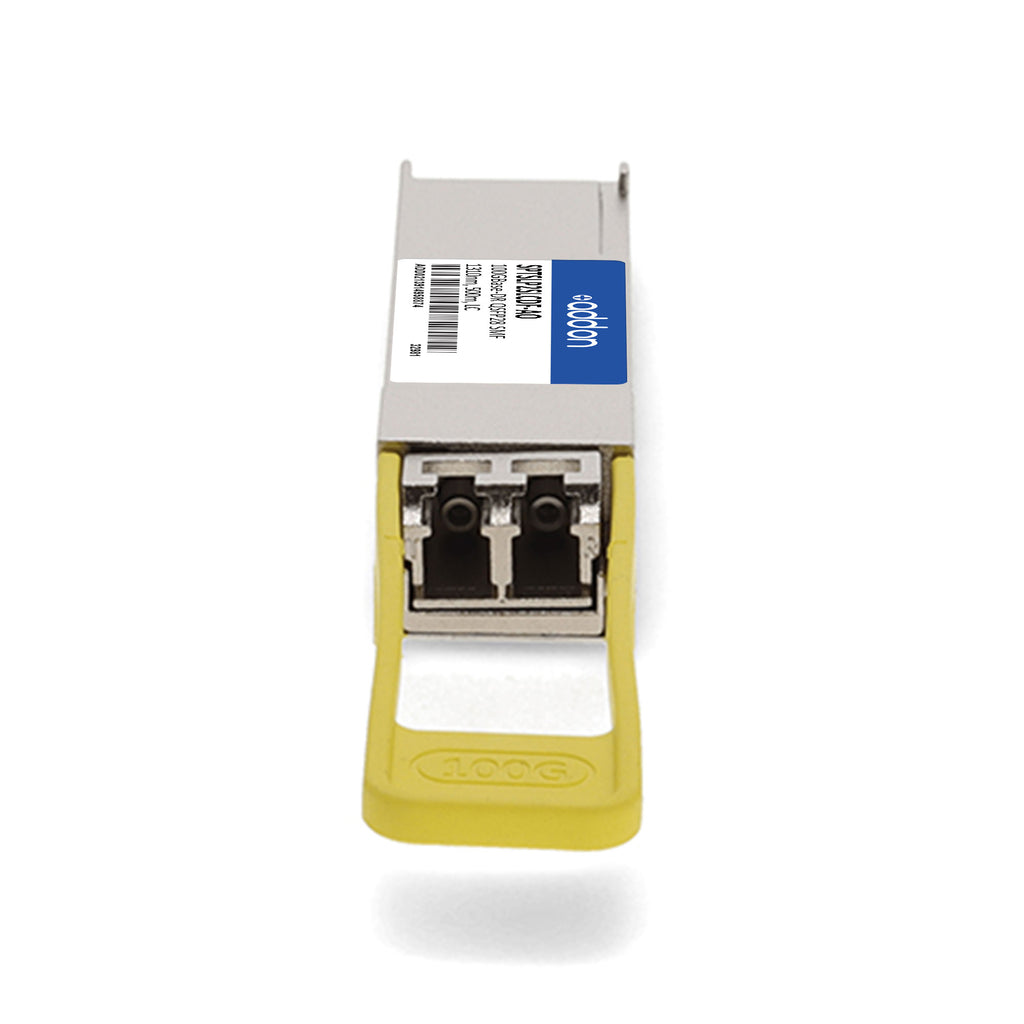

The AddOn Intel® SPTSLP2SLCDF-AO is a 100GBase-DR QSFP28 single lambda transceiver designed for high-performance, short-reach data center and enterprise network applications. It delivers up to 100Gbps throughput over single-mode fiber (SMF) with a reach of up to 500 meters using a 1310nm wavelength and duplex LC connector.
Engineered to meet or exceed OEM specifications, this hot-swappable transceiver is guaranteed to be 100% compatible with Intel® equipment, offering seamless integration and reliable performance. It features Digital Optical Monitoring (DOM) for real-time diagnostics, embedded FEC for enhanced signal integrity, and robust ESD and EMI protection for dependable operation in demanding environments.
TAA (Trade Agreements Act) compliance ensures suitability for U.S. government procurement, while RoHS compliance and lead-free construction support environmentally responsible deployments. Like all AddOn products, it undergoes rigorous testing and comes backed by a limited lifetime warranty, ensuring long-term reliability and peace of mind.
| Specification | Details |
|---|---|
| SKU | SPTSLP2SLCDF-AO |
| Form Factor | QSFP28 |
| Compatibility | Intel® SPTSLP2SLCDF |
| Data Rate | 100GBase-DR |
| Wavelength | 1310nm |
| Reach / Distance | Up to 500m |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Digital Optical Monitoring (DOM) | Supported |
| FEC | Embedded (required for max reach) |
| Hot Pluggable | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Consumption | 4.5W (typical) |
| Power Supply Voltage | 3.135V – 3.465V |
| Optical Modulation | PAM4 (53.125 GBd) |
| Average Launch Power | -2.9 to 4 dBm |
| Receiver Sensitivity (OMAouter) | As per IEEE Std 802.3-2018 |
| Regulatory Compliance | TAA, RoHS 2.0, FCC Part 15, EN55022, FDA 21CFR, IEC 60825 |
| Applications | 100G Ethernet, Access & Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
