Description

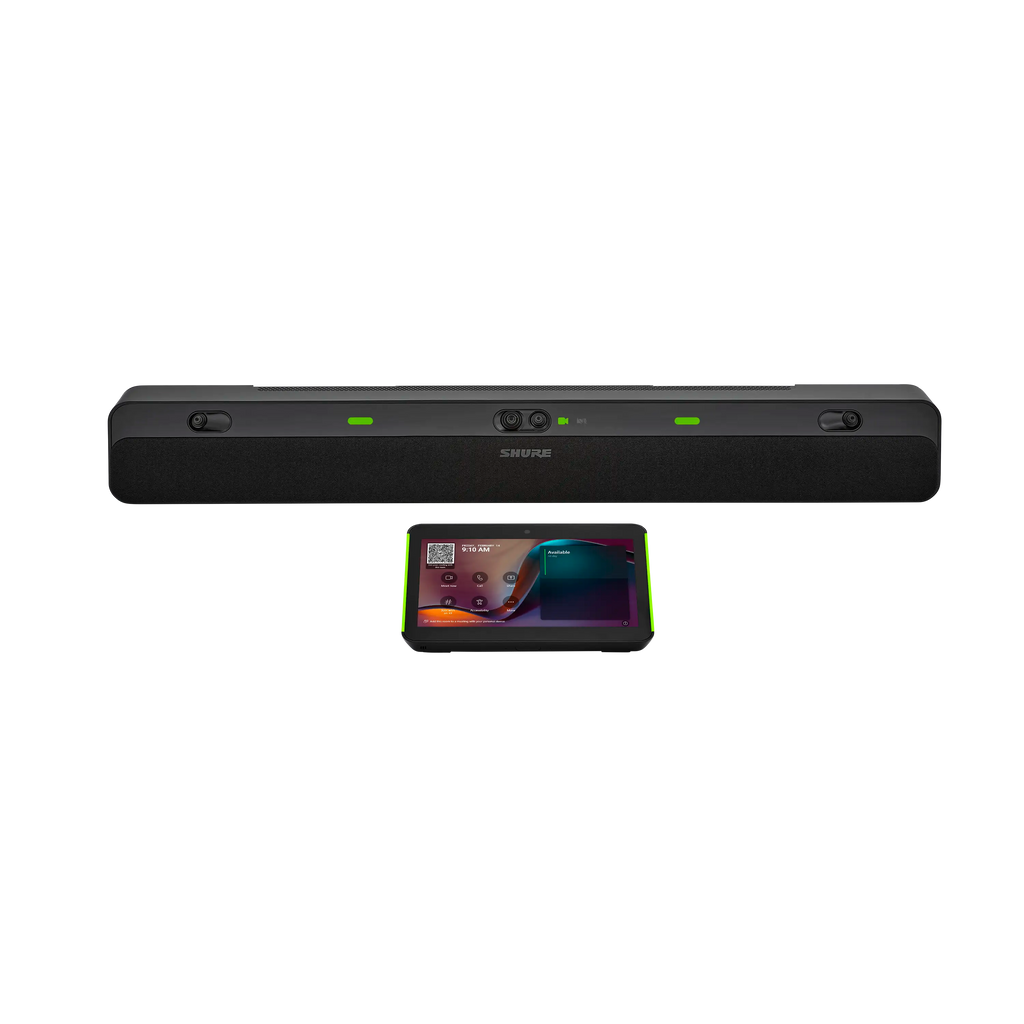

The Shure IntelliMix Bar Pro Kit is a premium all-in-one video conferencing solution designed for medium to large collaboration spaces. Combining advanced microphone array technology, AI-powered video intelligence, and integrated compute, this Android-based system delivers a seamless and highly intelligent meeting experience.
Engineered for enterprise environments, the IntelliMix Bar Pro captures crystal-clear audio with built-in IntelliMix DSP that eliminates echo, noise, and reverberation, ensuring every voice is heard with precision. The integrated 4K multi-camera system intelligently frames participants, automatically focuses on speakers, and enhances engagement with dynamic visual tracking.
With zero-touch provisioning, PoE+ connectivity, and centralized cloud-based management, deployment and maintenance are effortless for IT teams. The included 10-inch touch panel provides intuitive, one-touch meeting control, making collaboration simple and efficient.
Designed for scalability, security, and performance, the IntelliMix Bar Pro Kit is ideal for organizations seeking a powerful, all-in-one conferencing solution that enhances productivity and delivers consistent, high-quality meeting experiences.
| Specification Category | Details |
|---|---|
| System Type | All-in-one video conferencing bar with touch panel |
| Color | Black |
| Operating System | Android 13 (MDEP platform) |
| RAM | 12GB LPDDR5 |
| Camera System | Multi-camera array with AI-powered framing |
| Video Resolution | Up to 4K at 30 fps |
| Field of View | Up to 121° diagonal wide-angle coverage |
| Audio System | Integrated microphone array and stereo speakers |
| Microphone Configuration | 24 Shure array microphones |
| Frequency Response (Mic) | 27 Hz to 20 kHz |
| Audio Processing | Acoustic Echo Cancellation, Noise Reduction, Automatic Gain Control, Compressor, Delay, Equalizer |
| Pickup Range | Up to 7.5 meters under normal conditions |
| Loudspeakers | Dual left/right stereo speakers |
| Speaker Frequency Range | 120 Hz to 20 kHz |
| Maximum Output Level | 83 dB SPL at 1 meter |

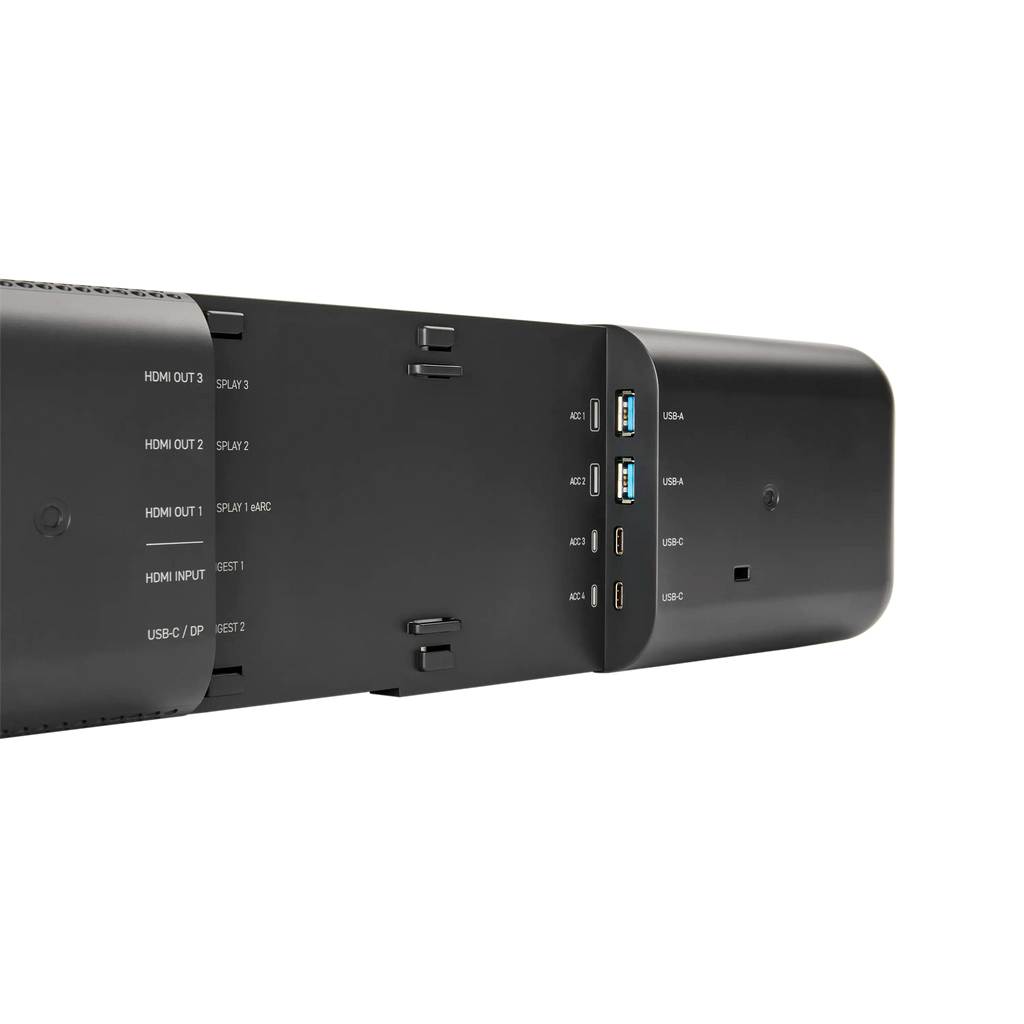

| HDMI Input | 1 x up to 4K |
| HDMI Output | 3 x up to 4K |
| USB Ports | 2 x USB-A, 2 x USB-C (USB 3.0) |

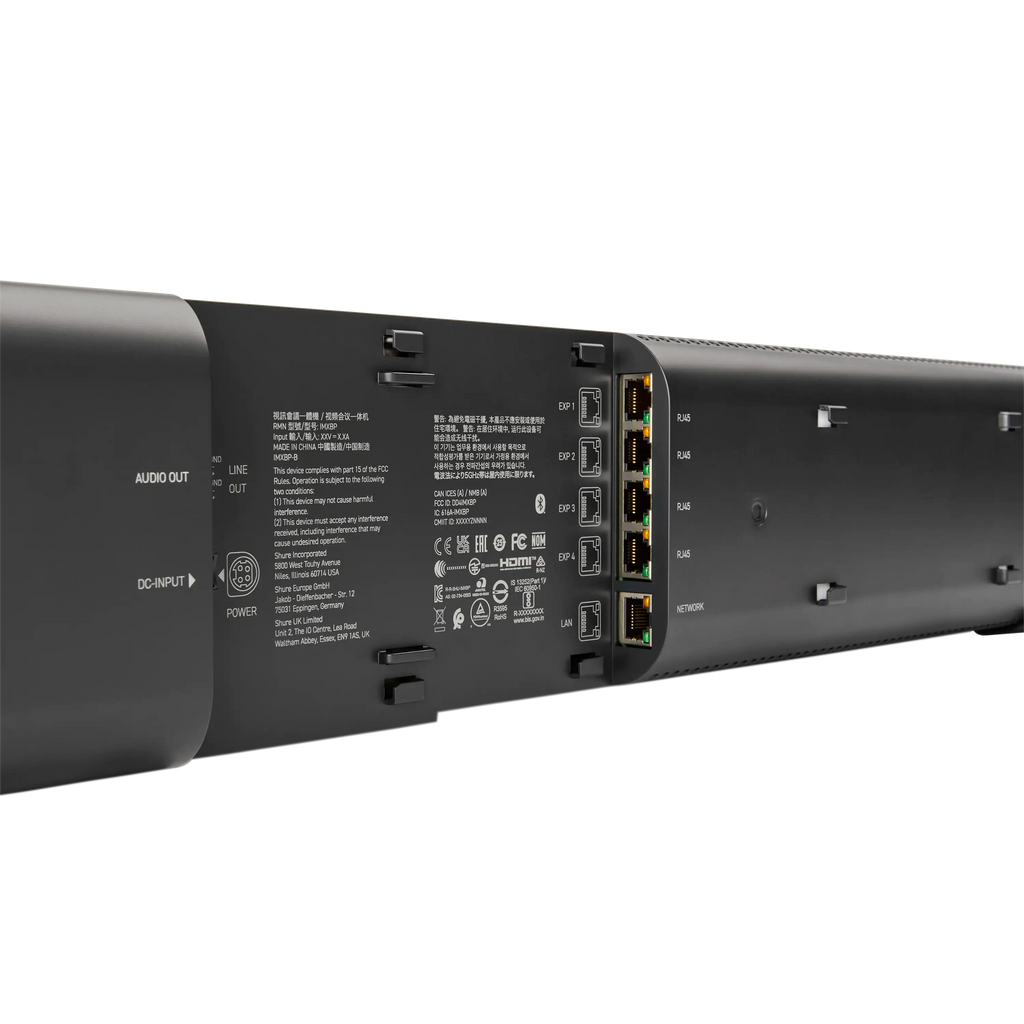

| Network Interface | 1 x RJ45 Gigabit Ethernet |
| Audio Expansion Ports | 4 x RJ45 with PoE+ support |
| Wireless Connectivity | Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 |
| Line Output | 2-channel balanced output |
| Power Supply | 100–240V AC input, 54V DC output |
| Power Consumption | Up to 110W (without expansion ports) |
| Dimensions (Bar) | 920 × 93.6 × 122.5 mm |
| Weight (Bar) | 5 kg |
| Operating Temperature | 0°C to 35°C |

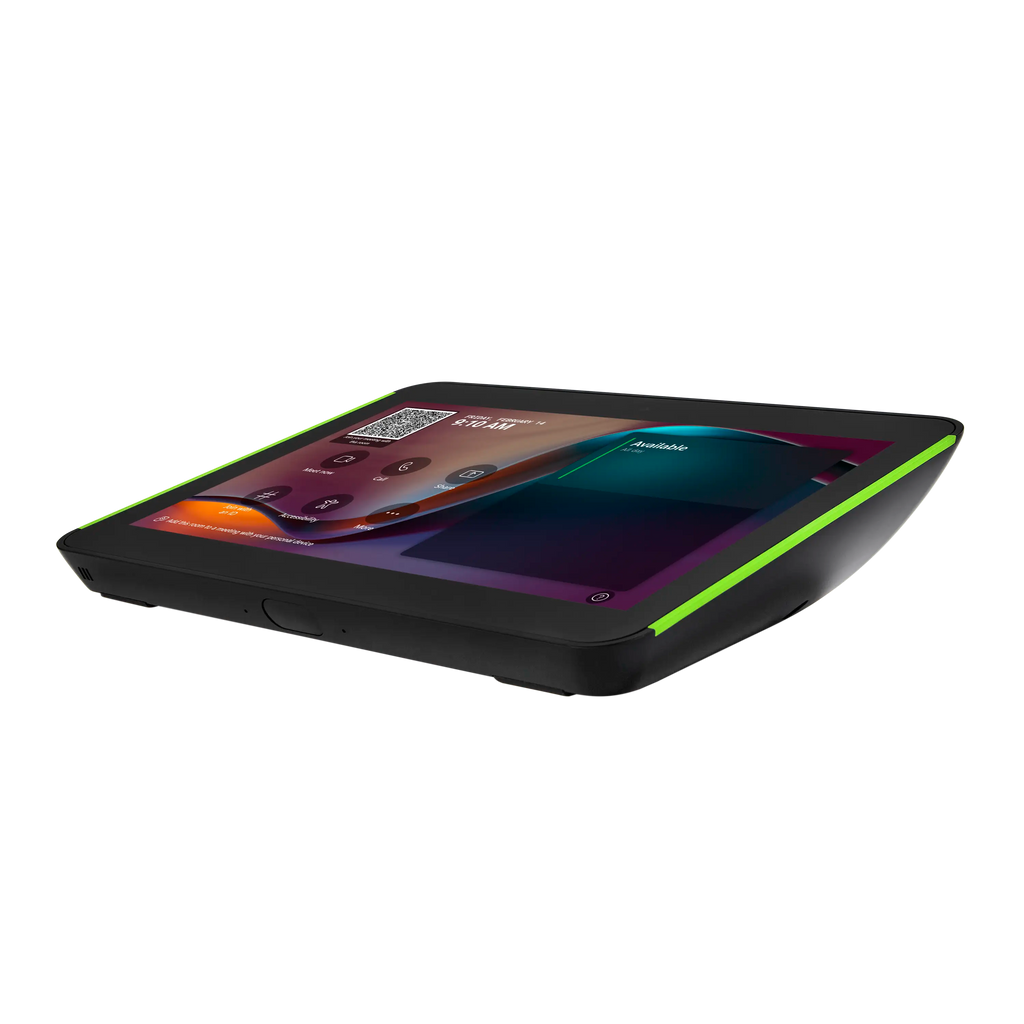

| Touch Panel Display | 10-inch capacitive touchscreen |
| Touch Panel Resolution | 1920 × 1200 |
| Touch Panel Power | PoE+ |
| Motion Sensor | PIR sensor for automatic wake |
| Included Components | Video bar, 10-inch touch panel, wall mount, power supply, HDMI cables, Ethernet cable, USB-C cable, camera covers, mounting accessories |
| Mounting Options | Wall mount included; optional display and credenza mounts available |
| Deployment | Zero-touch provisioning with centralized cloud management |
