Description

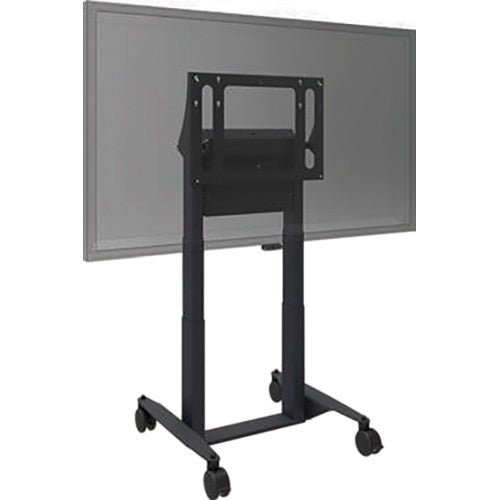

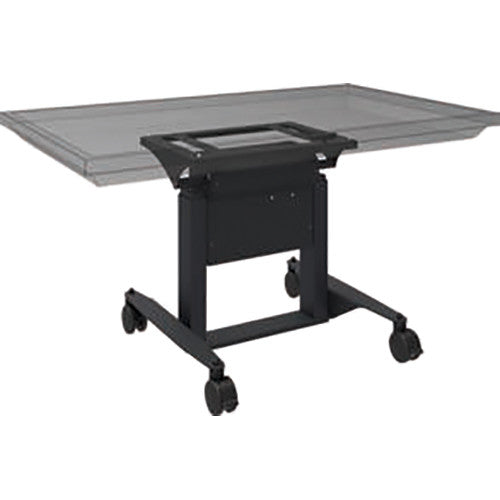

The Regout 487A03 Tilt & Table is a premium double-column motorized height-adjustable and tilting mobile stand designed for interactive flat-panel displays up to 75 inches (210 lbs / 95 kg). Its sturdy steel frame and electric lift system offer quiet, smooth motion with anti-collision protection, ensuring safe adjustments for all users.

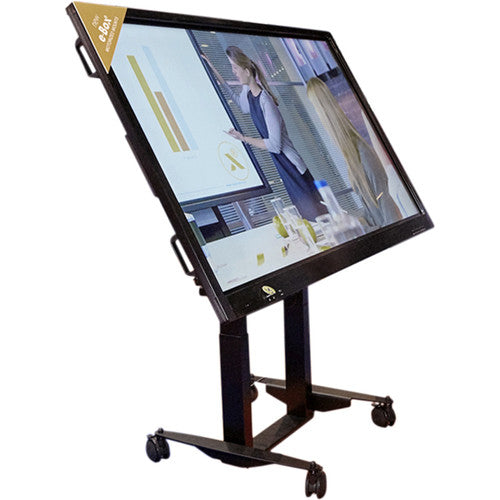

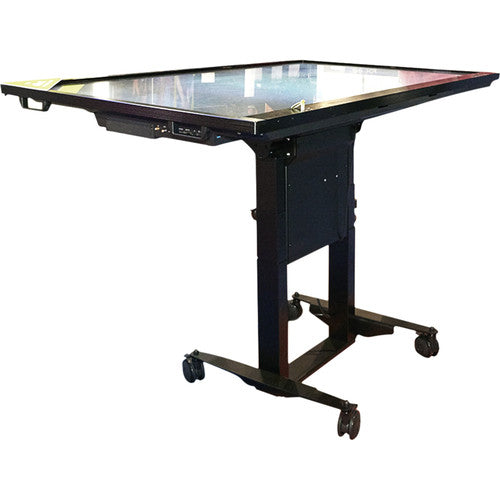

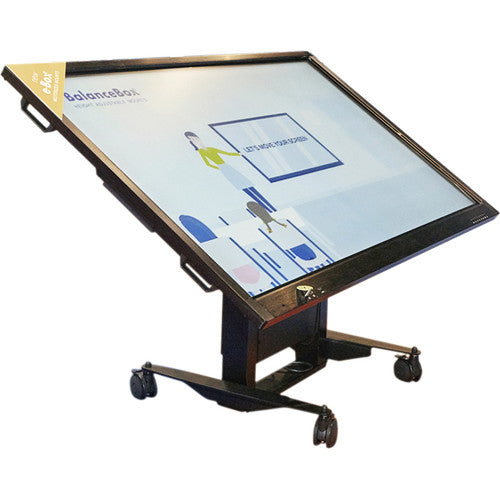

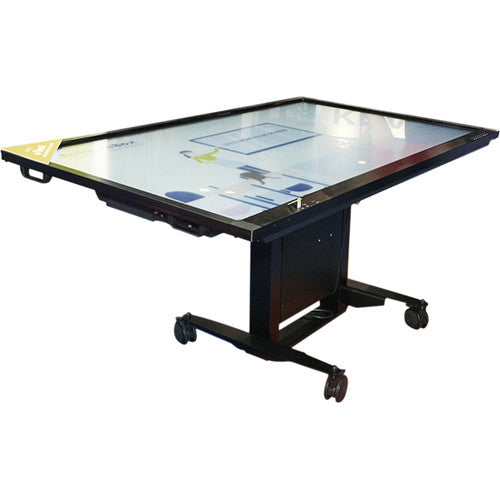

Featuring a 90-degree tilt from vertical to horizontal, this stand supports collaborative work and accessibility, making it ideal for classrooms, boardrooms, and wheelchair users. The integrated VESA mounting system (200×400 to 600×400) ensures universal compatibility, while the top-mounted enclosed electronics box provides a secure space for mini-PC or NUC installation.
With soft-start/soft-stop motion, 1.5 in/sec travel speed, and 26 in of lift range, the 487A03 E-BOX delivers unmatched precision and convenience in motorized display support.
| Specification | Details |
|---|---|
| Model / Part Number | 487A03 E-BOX |
| Product Type | Motorized height-adjustable and tilting mobile stand |
| Display Compatibility | Interactive flat-panel displays up to 75 in (210 lbs / 95 kg) |
| Lift Mechanism | Dual-column electric height adjustment (26 in / 660 mm travel) |
| Tilt Function | 0° – 90° tilt (vertical to horizontal) |
| Speed | 1.5 in / sec (38 mm / sec) |
| Construction | Steel structural parts – powder coated (RAL 9005 black) |
| VESA Mounting | 200×400, 400×400, 600×200, 600×400 |

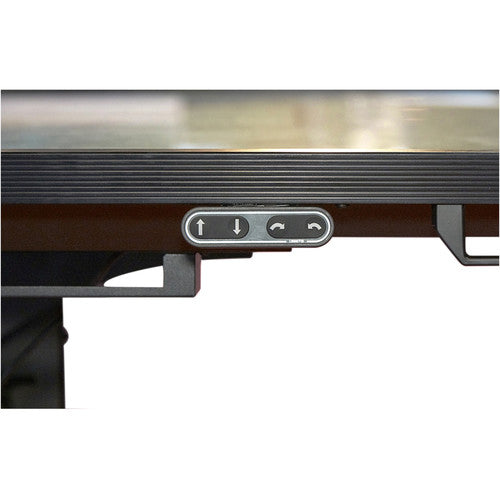

| Control | Wired remote (no batteries) with soft-start / soft-stop |
| Safety Features | Anti-collision on height adjust motors |
| Certifications | UL (UR listed), CE, ISO-EN 60950 |
| Electronics Box | Enclosed top compartment for mini-PC / NUC |
| Power Requirements | 120 V / 60 Hz, 200 W piezo motor, UL962 certified |
| Duty Cycle | 10 % (6 min per hour) |
| Mobility | 4 × non-marking 4″ wheels with locking brakes |
| Product Dimensions (W×D×H) | 30.6″ × 28.5″ × 28″ (777 × 725 × 710 mm) |
| Shipping Dimensions (W×D×H) | 44.8″ × 22.5″ × 13.8″ (1140 × 570 × 350 mm) |
| Product Weight | 121 lbs (55 kg) |
| Shipping Weight | 132 lbs (60 kg) |
| Color | Black (RAL 9005) |
| Ideal For | Classrooms, meeting rooms, training spaces, wheelchair access |
