Description

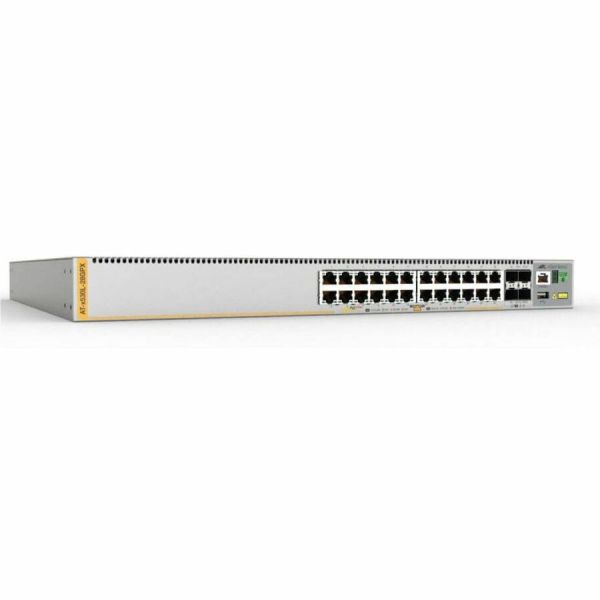

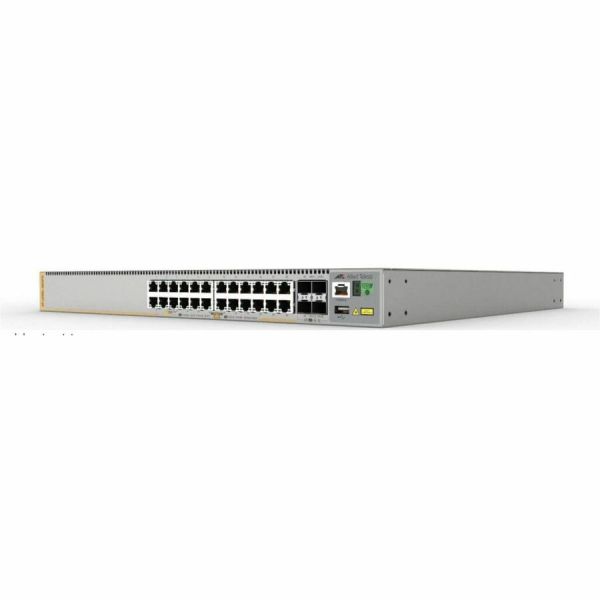

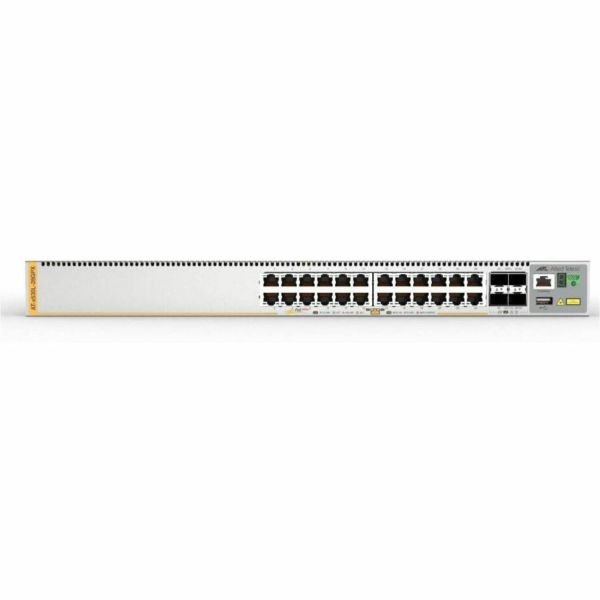

The Allied Telesis x530L-28GPX is a powerful and feature-rich Layer 3 switch designed for modern enterprise and edge networks. Featuring 24 x Gigabit PoE+ ports, 4 x 10G SFP+ uplinks, and support for VCStack™, this switch provides high-speed connectivity, enhanced resiliency, and robust security.
With 740W PoE+ budget, it powers access points, VoIP phones, and surveillance systems efficiently. Equipped with dual built-in power supplies, modular stacking capabilities, and AMF management, the x530L-28GPX ensures a scalable and reliable infrastructure with minimal downtime.
Whether it's powering edge devices or aggregating traffic across campuses, the x530L-28GPX delivers seamless integration, top-tier performance, and exceptional manageability.
| Specification | Details |
|---|---|
| Model | AT-X530L-28GPX-J90 |
| Ports | 24 x Gigabit Ethernet (PoE+) |
| Uplink Ports | 4 x 10 Gigabit SFP+ |
| Stacking Support | Yes (VCStack™, up to 8 units) |
| PoE Budget | 740W |
| Power Consumption | 70W |
| Network Standards | IEEE 802.3af/at/bt, 802.1x, 802.3ad, 802.1Q, and more |
| Layer Support | Layer 3 |
| Media Type | Twisted Pair, Optical Fiber |
| Expansion Slots | 4 x SFP+ |
| Manageability | AMF, Vista Manager EX |
| Form Factor | Rack-mountable |

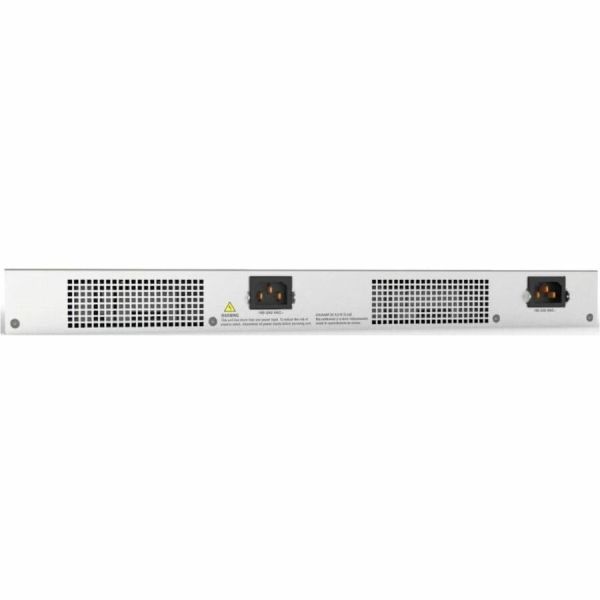

| Redundant PSU | Supported |
| Dimensions (H x W x D) | 1.7" x 17.4" x 16.6" |
| Weight | 13.67 lbs |
| Environment Compliance | RoHS |
| Shipping Weight | 19 lbs |
| Condition | New and Factory Fresh |
| Package Includes | x530L-28GPX switch, rack-mount brackets, AU power cord |
