Description

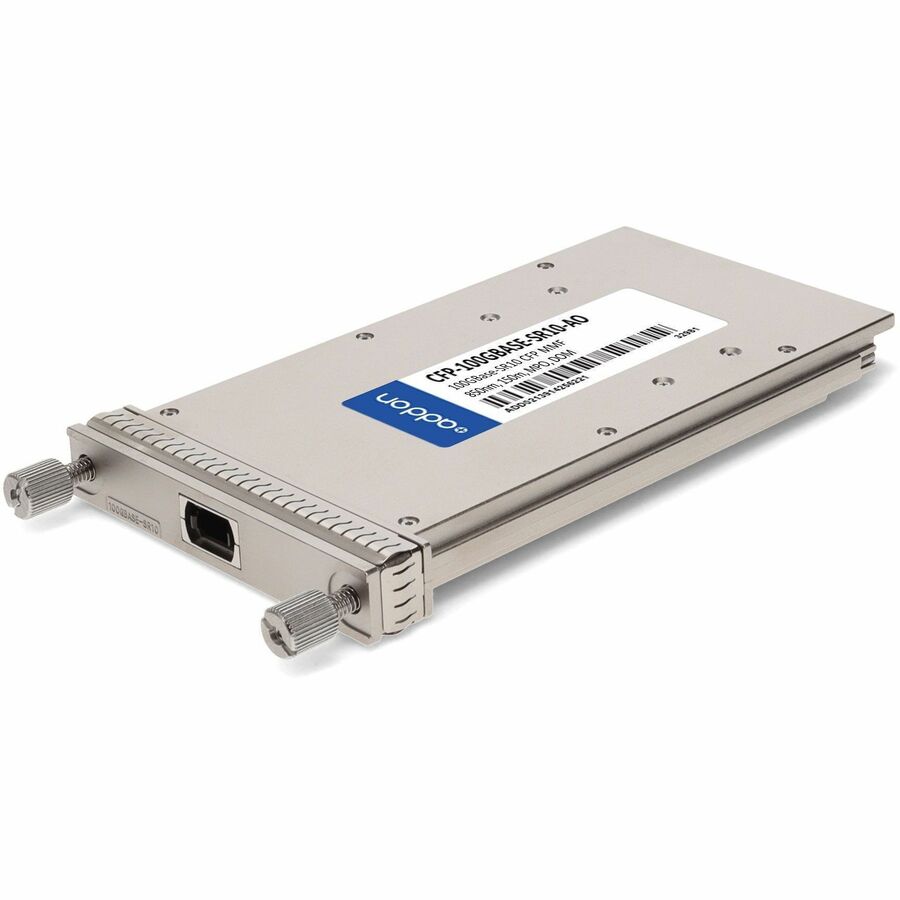

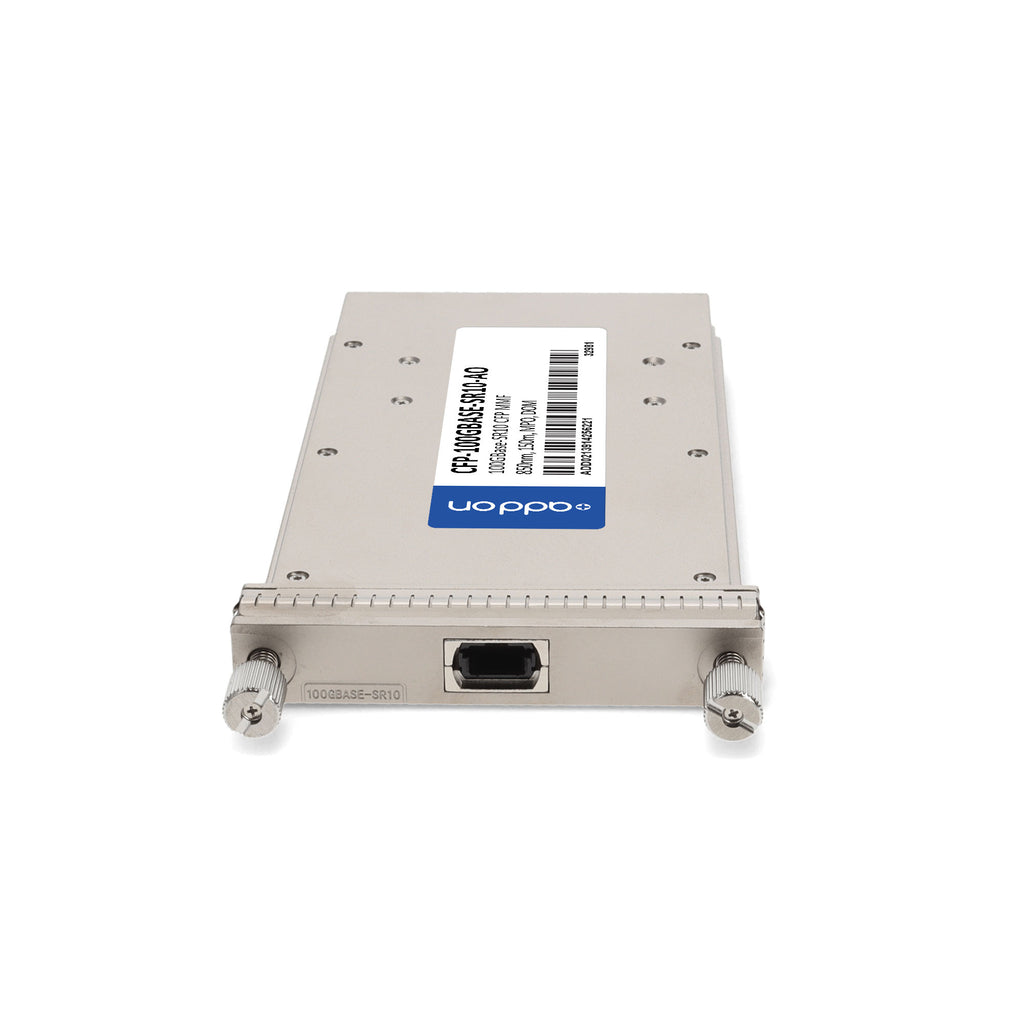

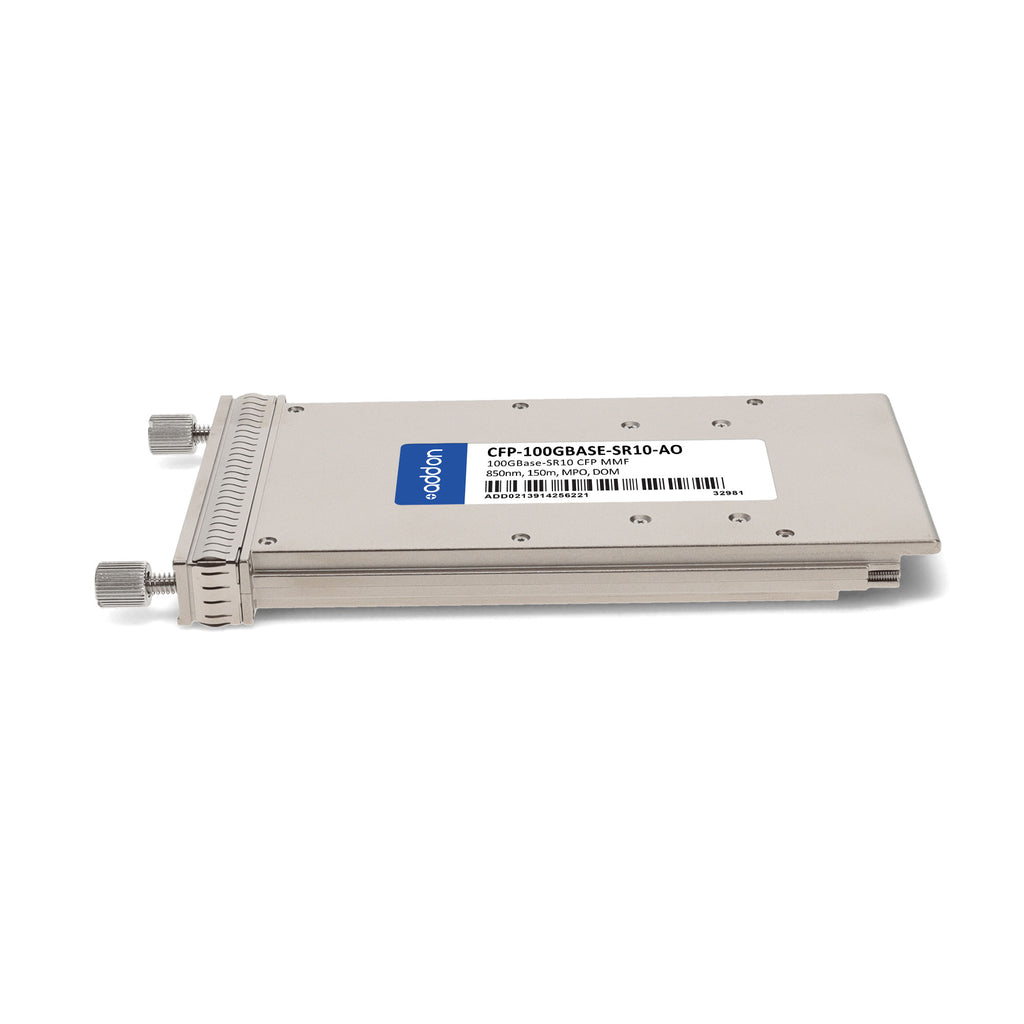

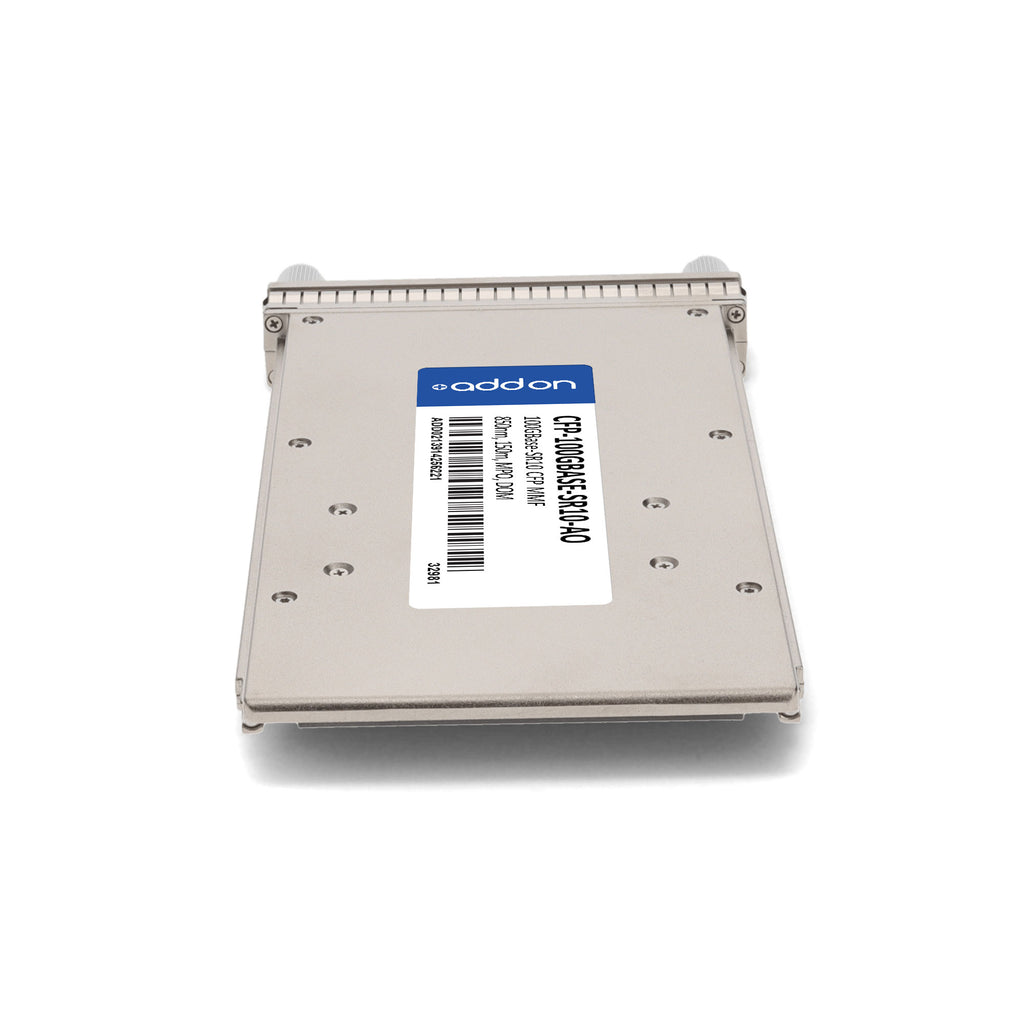

The AddOn Juniper® CFP-100GBASE-SR10 Compatible Transceiver delivers reliable 100GBase-SR10 throughput up to 150 meters over multi-mode fiber (MMF) using an MPO connector at an 850nm wavelength. Designed for access and enterprise applications, this hot-swappable CFP module complies with CFP MSA 1.4 standards, offering robust performance, low EMI, and RoHS compliance.
Each unit is uniquely serialized, fully programmed, and tested for seamless integration, ensuring identical performance to the Juniper® original. With Digital Optical Monitoring (DOM), users can monitor real-time operating parameters. TAA compliance makes it suitable for U.S. Government procurement. Backed by AddOn’s limited lifetime warranty, this transceiver provides dependable high-speed connectivity for mission-critical networks.
| Category | Details |
|---|---|
| Manufacturer | AddOn |
| Part Number | CFP-100GBASE-SR10-AO |
| Compatibility | Juniper Networks® CFP-100GBASE-SR10 |
| Form Factor | CFP |
| Data Rate | 100GBase-SR10 (11.2 Gbps per lane) |
| Wavelength | 850nm |
| Connector | MPO |
| Fiber Type | Multi-mode Fiber (MMF) |
| Max Distance | 150m |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -20°C to +85°C |
| Power Supply Voltage | 3.13V – 3.47V |
| Power Consumption | < 24W (programmable power interlock) |
| Optical Power (Tx) | -8 to +1 dBm (per channel) |
| Receiver Sensitivity | -9.9 dBm min (per channel) |
| DOM Support | Yes |
| Compliance | CFP MSA 1.4, TAA, RoHS |
| Warranty | Limited Lifetime Warranty |
