Description

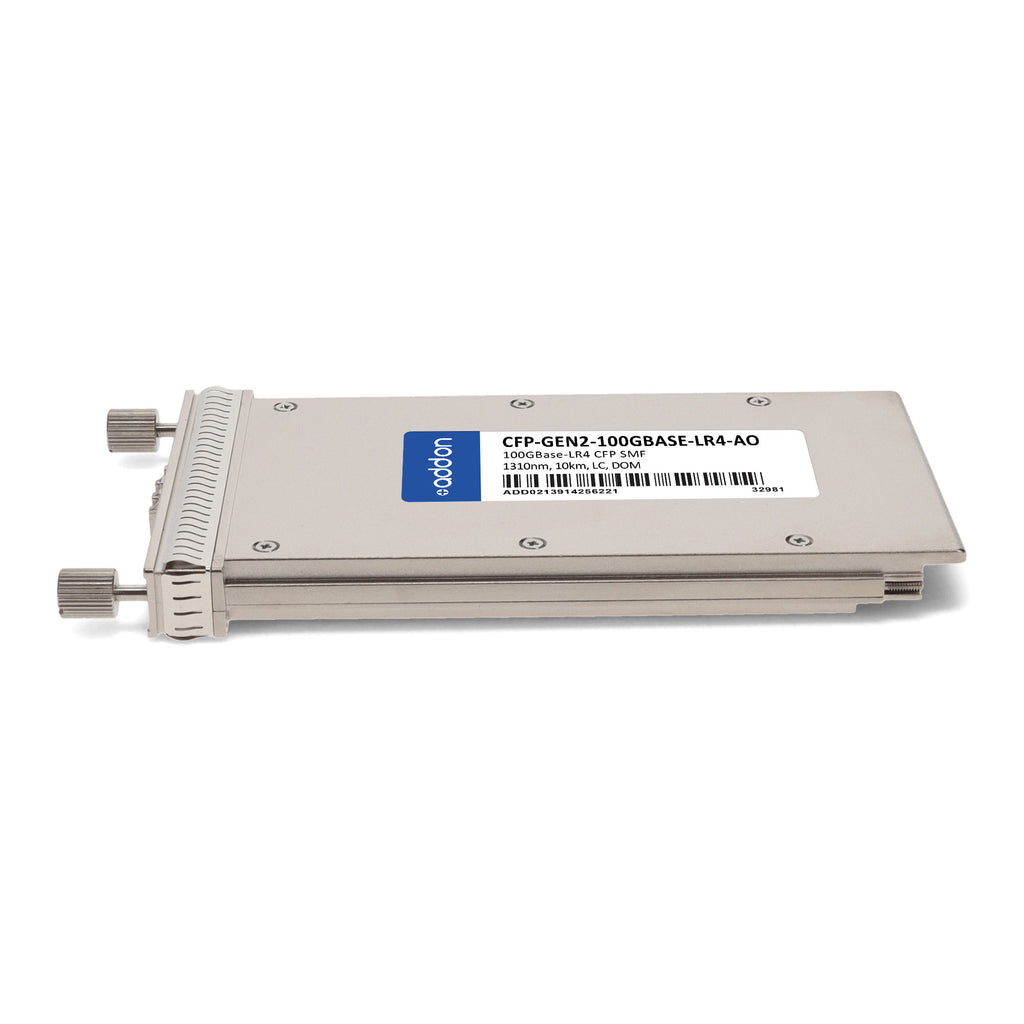

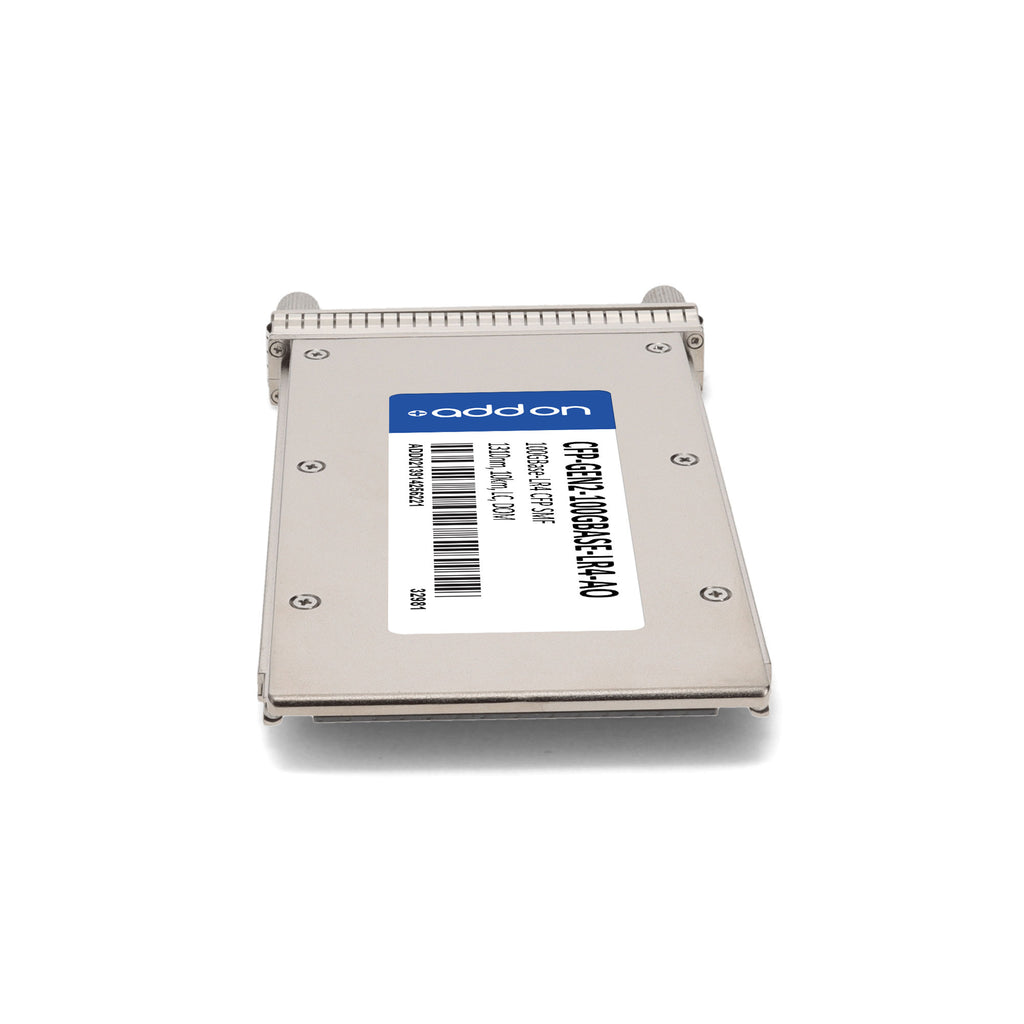

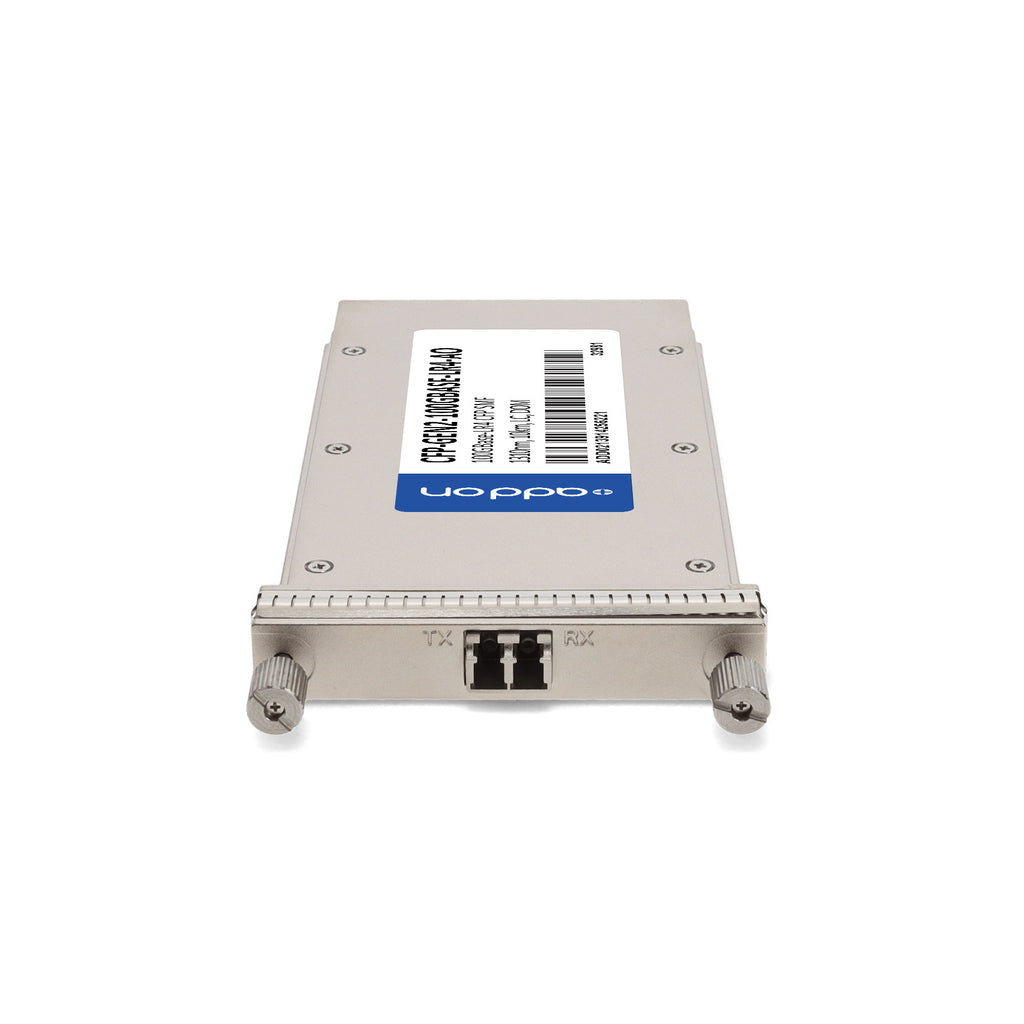

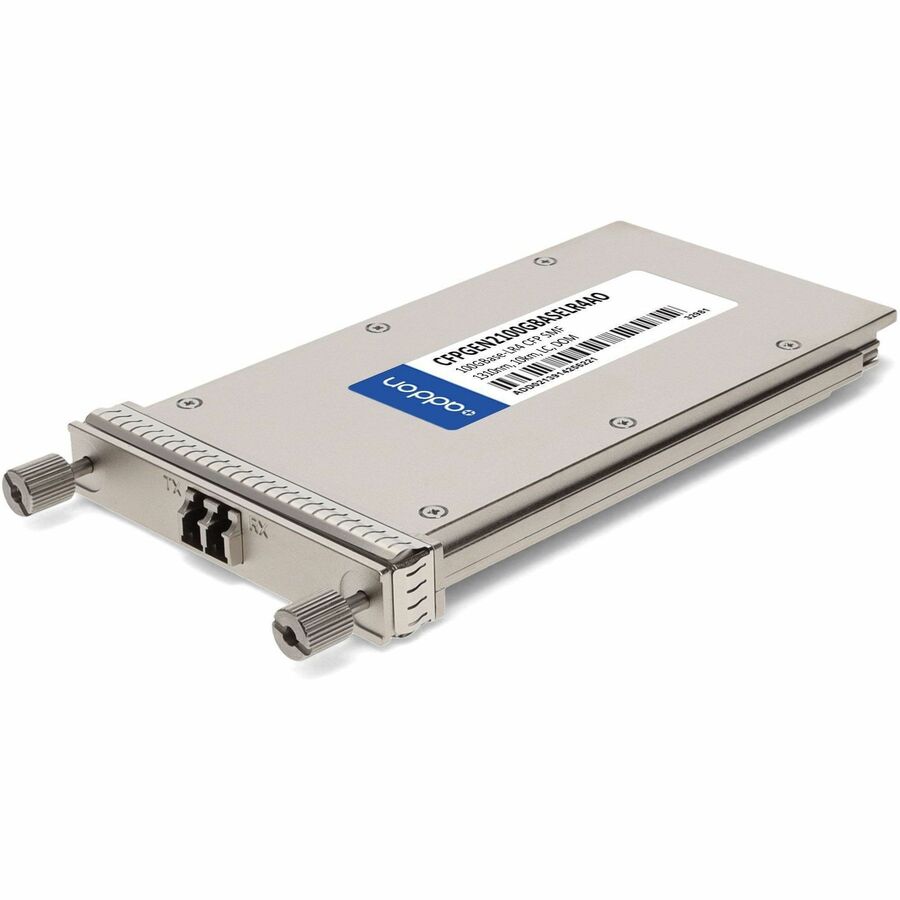

The AO CFP-GEN2-100GBASE-LR4-AO is a high-performance, hot-pluggable CFP2 optical transceiver module designed for 100 Gigabit Ethernet (100GBASE-LR4) applications. It provides up to 10 km transmission over single-mode fiber (SMF) using four CWDM wavelengths in the 1310 nm band, multiplexed into a duplex LC connector.
Engineered for seamless interoperability with major OEM platforms, this transceiver offers advanced features such as low power consumption, digital diagnostic monitoring (DDM/DOM), and high reliability for data center, enterprise, and service provider networks. Its compliance with IEEE 802.3ba 100GBASE-LR4 and CFP2 MSA standards ensures dependable performance across demanding high-speed networking environments.
| Specification | Details |
|---|---|
| Form Factor | CFP2 (Hot-Pluggable) |
| Data Rate | 100 Gbps |
| Transmission Distance | Up to 10 km |
| Wavelengths | 1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm (CWDM) |
| Connector Interface | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Standards Compliance | IEEE 802.3ba 100GBASE-LR4, CFP MSA, CFP2 MSA |
| Digital Diagnostics | DDM/DOM Supported |
| Power Supply Voltage | 3.3 V |
| Power Consumption | ≤ 8 W |
| Operating Temperature | 0°C to +70°C (Commercial) |
| Applications | Data Center, Enterprise Core, Metro/Carrier Networks |
