Description

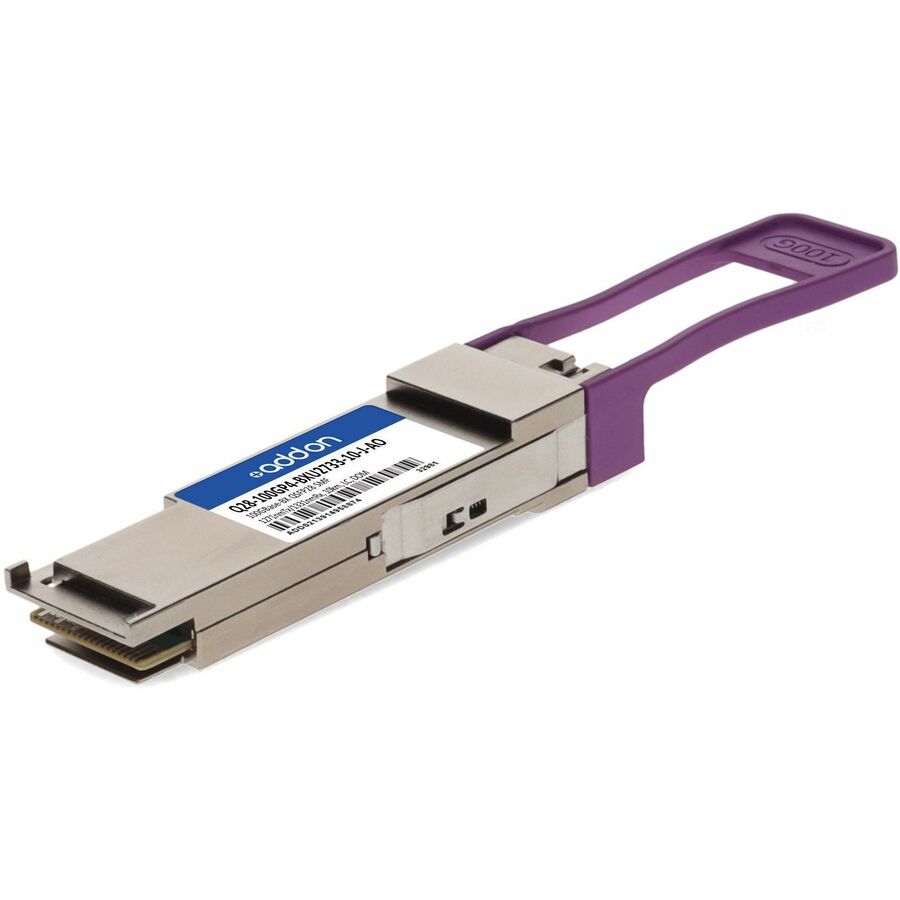

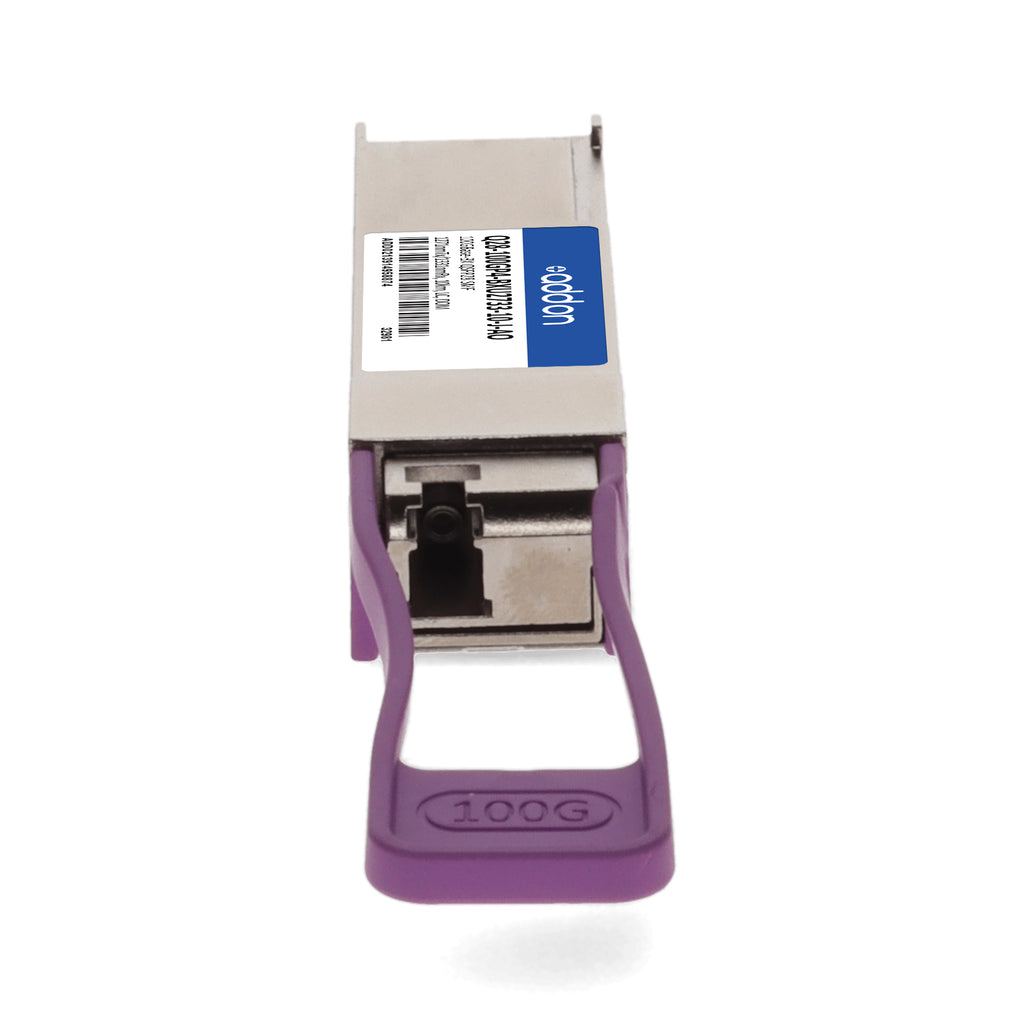

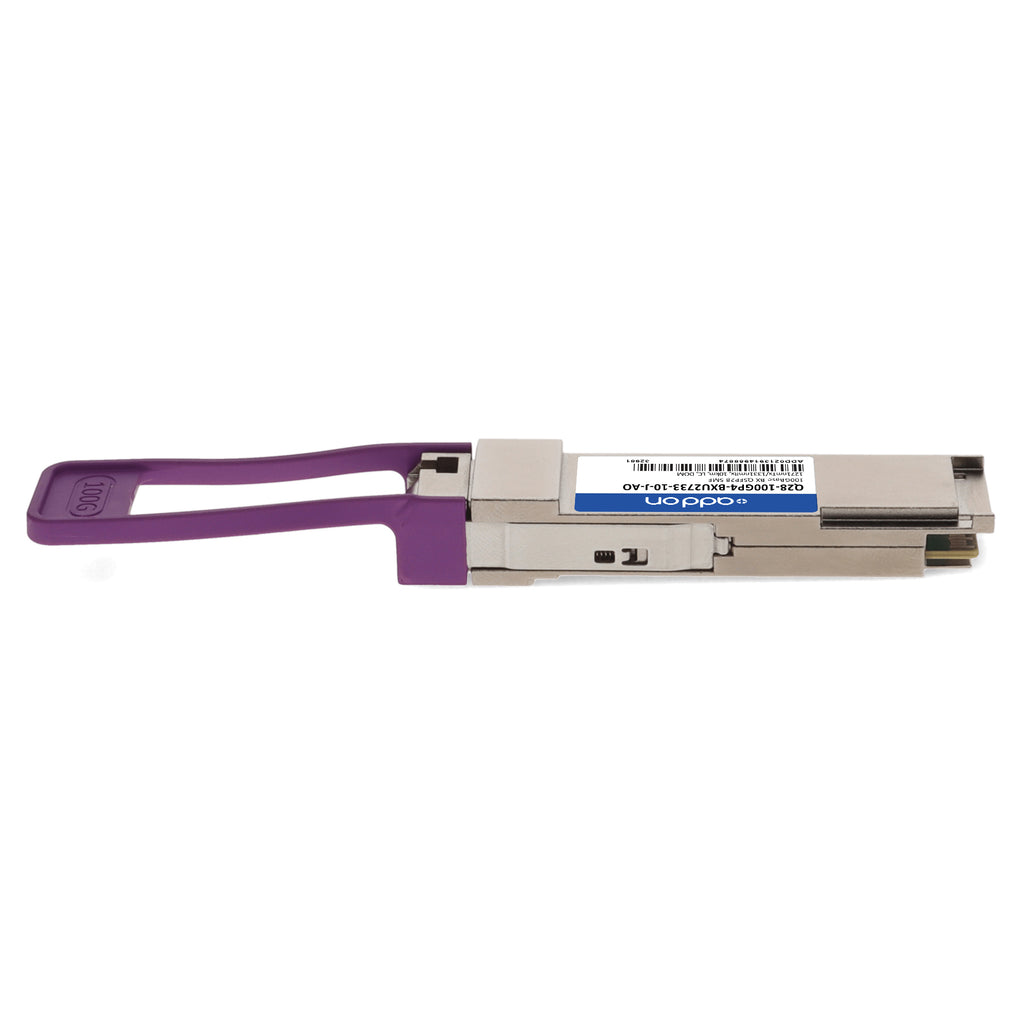

The AddOn Juniper Networks® Q28-100GP4-BXU2733-10-J Compatible 100GBase-BX QSFP28 Single Lambda Transceiver is engineered to deliver high-speed 100G Ethernet connectivity up to 10km over single-mode fiber (SMF). Operating on a wavelength of 1271nm transmit and 1331nm receive through a bidirectional LC connector, this transceiver ensures exceptional signal integrity and reliable performance.
Designed to comply with 100G Lambda MSA and SFF-8636 Rev 2.10a standards, it supports PAM4 modulation and offers advanced digital optical monitoring (DOM) for real-time performance metrics. With hot-swappable functionality, robust ESD protection, low EMI, and a commercial operating temperature range of 0°C to 70°C, this module is ideal for data center and enterprise networking environments. Each unit is uniquely serialized, thoroughly tested for data traffic and application compatibility, and fully guaranteed to perform identically to the original Juniper Networks® part. TAA compliant and backed by a limited lifetime warranty, this transceiver is a reliable and cost-effective solution for upgrading and expanding 100G network infrastructures.
| Parameter | Specification |
|---|---|
| SKU | Q28-100GP4-BXU2733-10-J-AO |
| Compatible OEM | Juniper Networks® |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-BX |
| Wavelength (Tx/Rx) | 1271nm / 1331nm |
| Transmission Distance | Up to 10km |
| Connector Type | LC Duplex (Bidirectional) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Modulation Format | PAM4 |
| Power Supply Voltage | 3.3V |
| Power Dissipation | ≤ 4.5W |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Digital Diagnostics (DOM) | Supported |
| FEC Support | Yes |
| Hot Pluggable | Yes |
| Compliance | 100G Lambda MSA, SFF-8636 Rev 2.10a, RoHS 2.0, TAA |
| Applications | 100G Ethernet, Data Centers, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
