Description

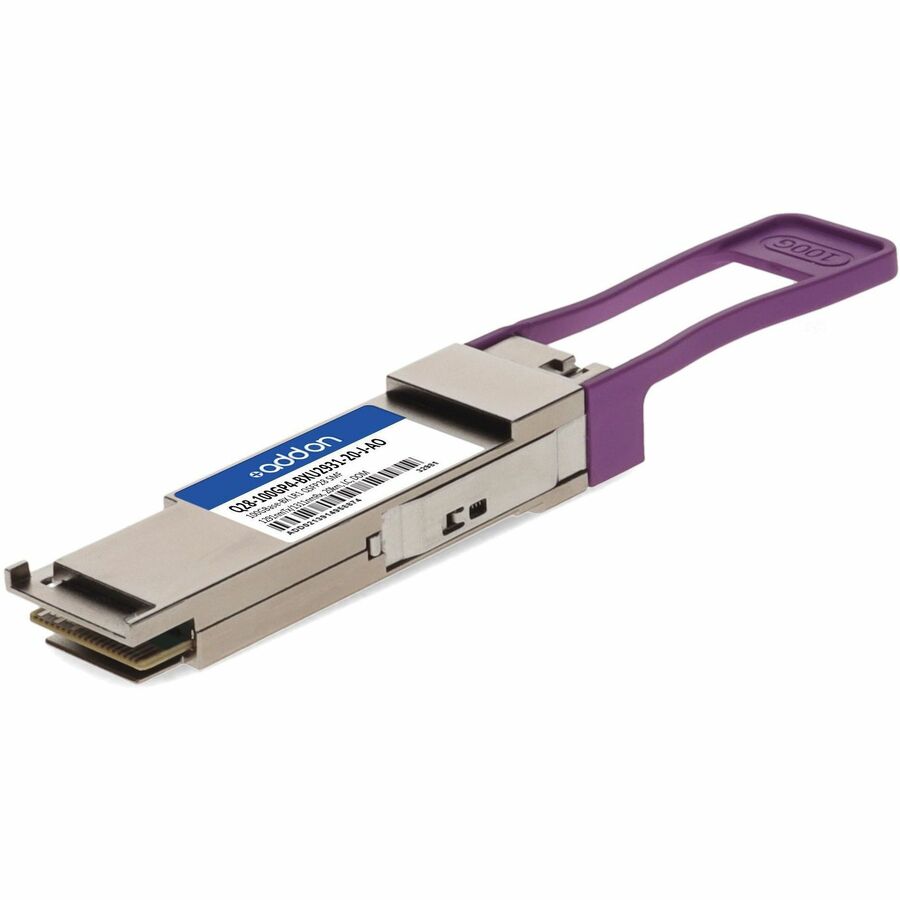

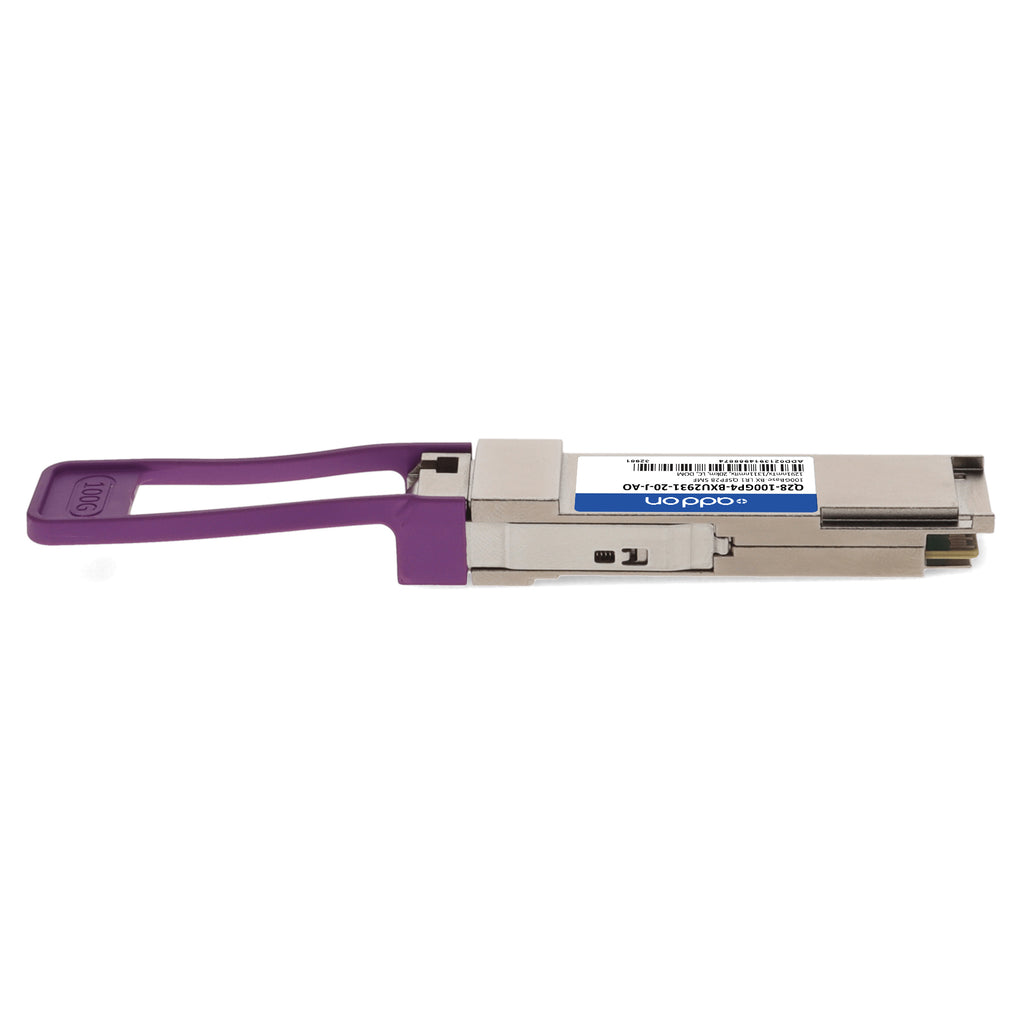

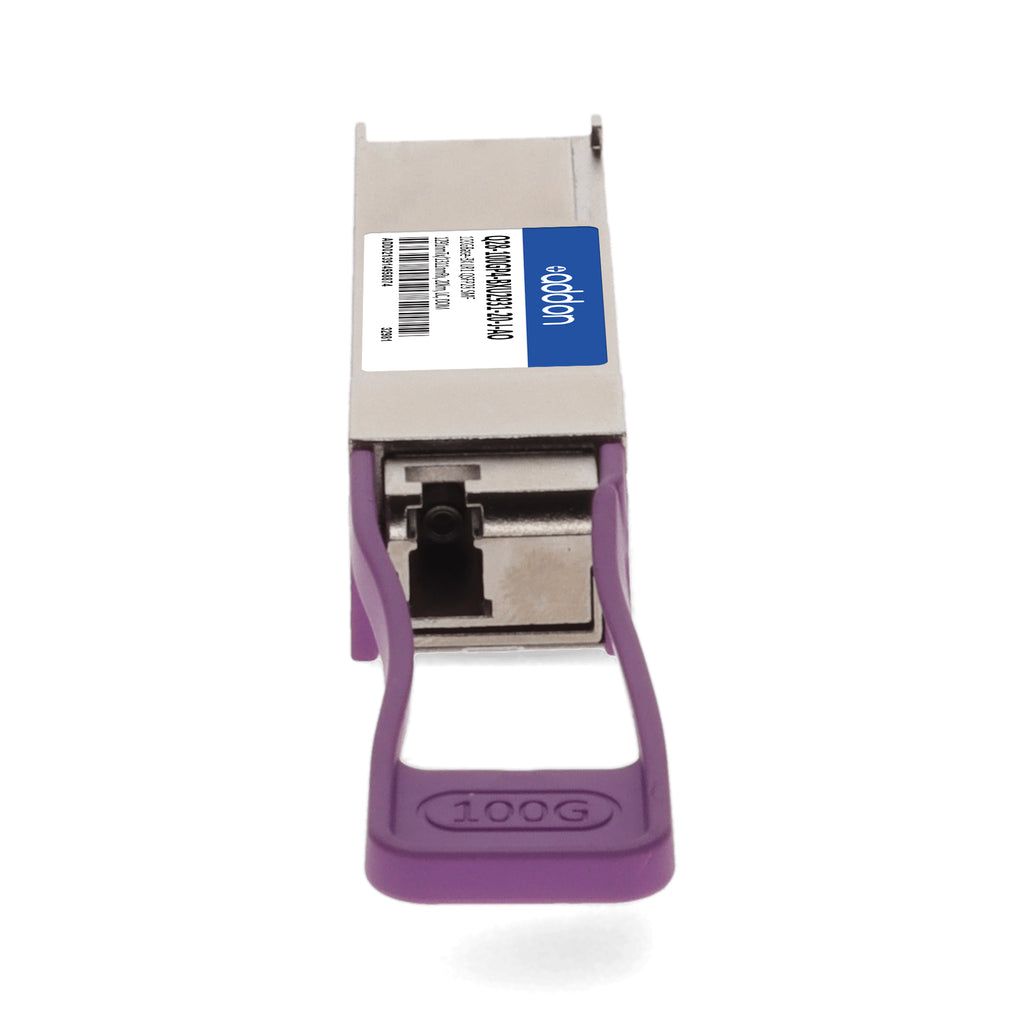

The AddOn Juniper Networks® Compatible Q28-100GP4-BXU2931-20-J-AO is a high-performance QSFP28 optical transceiver designed to deliver 100GBase-BX LR1 throughput up to 20 km over single-mode fiber (SMF). Operating on 1291nm transmit and 1311nm receive wavelengths, this single-lambda, bidirectional module uses an LC connector and is compliant with QSFP28 MSA and SFF-8636 Rev 2.10a standards.
This hot-swappable transceiver ensures seamless integration into Juniper® networking environments. Each unit is individually programmed, uniquely serialized, and extensively tested for data traffic and application performance. With Digital Optical Monitoring (DOM) support, you can monitor key parameters in real time to maintain network reliability. The module is TAA compliant, RoHS lead-free, and ideal for data center and 100G Ethernet applications requiring high bandwidth and long-distance optical links.
| Specification | Description |
|---|---|
| SKU | Q28-100GP4-BXU2931-20-J-AO |
| Brand | AddOn |
| Compatibility | Juniper Networks® |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Optical Standard | 100GBase-BX LR1 PAM4 |
| Wavelength | 1291nm Tx / 1311nm Rx |
| Reach / Distance | Up to 20 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | LC Duplex (BiDi) |
| Modulation Format | PAM4 |
| Electrical Interface | 4x25G OIF CEI-28G-VSR |
| Digital Diagnostics (DOM) | Supported |
| Hot-Swappable | Yes |
| Power Supply Voltage | 3.3V |
| Power Dissipation | 4.5 W (max) |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 85% |
| Compliance | QSFP28 MSA, SFF-8636 Rev 2.10a, RoHS, TAA |
| Warranty | Limited Lifetime Warranty |
| Applications | 100G Ethernet, Data Centers, High-Speed Interconnects |
