Description

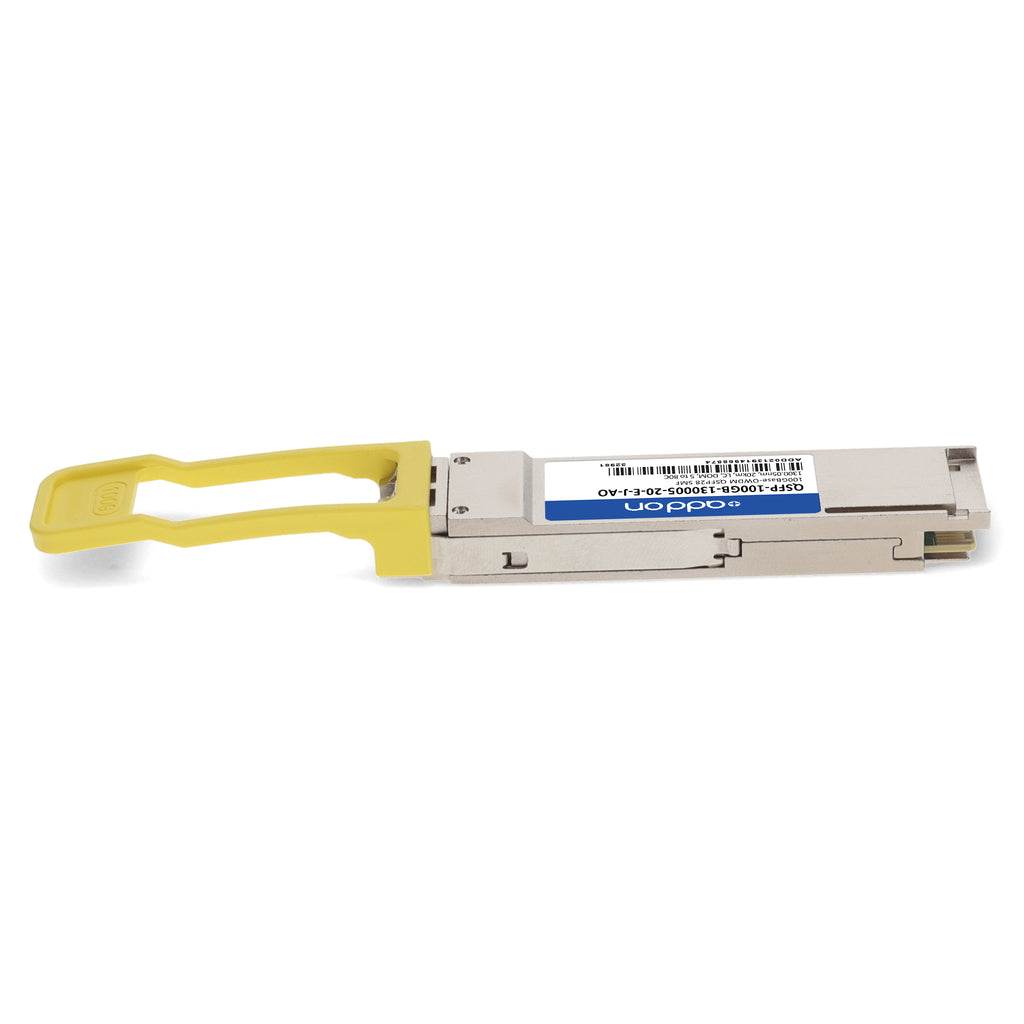

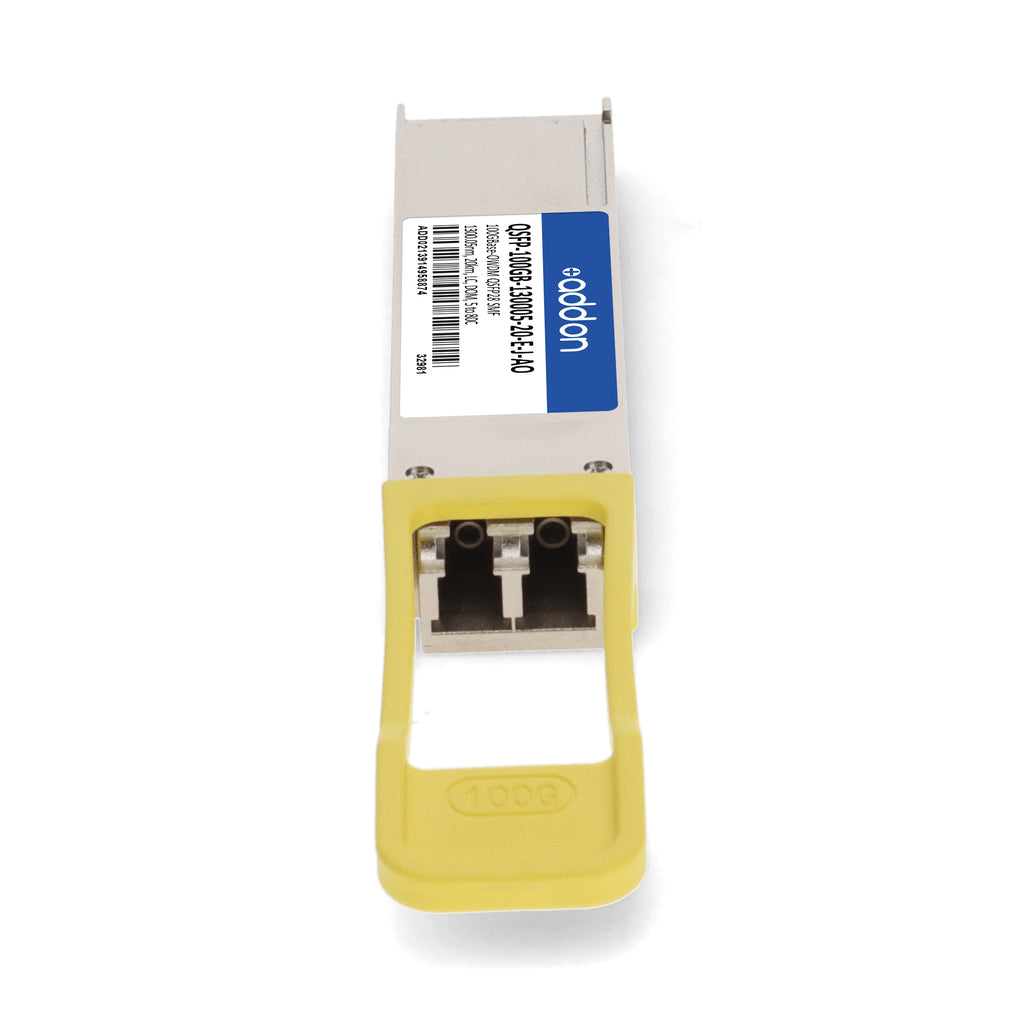

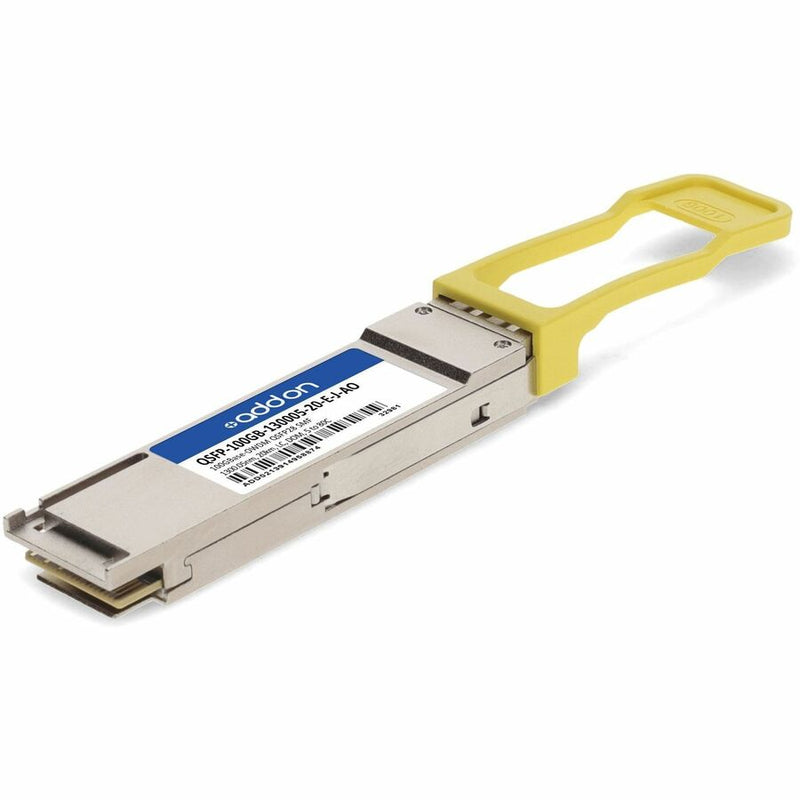

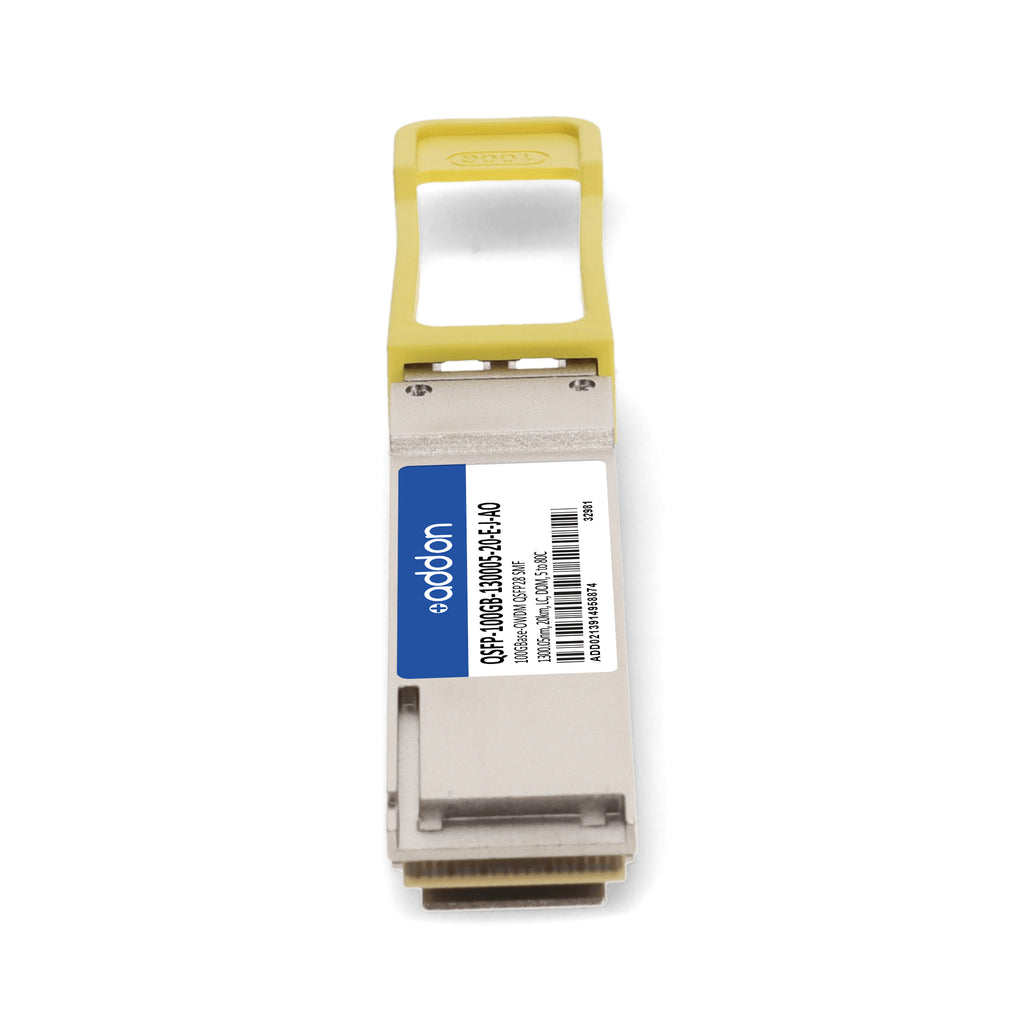

The AddOn Juniper Networks® QSFP-100GB-130005-20-E-J Compatible Transceiver is a TAA-compliant 100GBase-OWDM QSFP28 optical module designed for high-performance data center, access, and enterprise applications. Operating at a wavelength of 1300.05 nm over single-mode fiber (SMF), it delivers reliable 100 Gbps throughput up to 20 km via a duplex LC connector. Featuring PAM4 modulation, a high-sensitivity APD receiver, and support for digital optical monitoring (DOM), this hot-swappable transceiver ensures seamless integration, real-time parameter monitoring, and consistent compatibility with Juniper Networks® systems. Built to QSFP28 MSA, IEEE 802.3bs, and 100G Lambda MSA standards, it is engineered for maximum reliability, performance, and longevity.
| Specification | Details |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gbps (PAM4) |
| Application | 100GBase Ethernet, Access, Enterprise |
| Wavelength | 1300.05 nm (O-Band OWDM) |
| Transmission Distance | Up to 20 km over SMF |
| Connector Type | Duplex LC |
| Modulation Format | PAM4 |
| Receiver Type | High-Sensitivity APD |
| Power Supply Voltage | +3.3 V |
| Power Consumption | 4.4 W (typical at 25 °C) |
| Operating Temperature | -5 °C to +80 °C |
| Management Interface | I²C with DOM support |
| Compliance Standards | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA, RoHS, TAA |
| Hot-Swappable | Yes |
| Launch Power (Avg.) | 0 dBm to 3.4 dBm |
| Extinction Ratio | ≥ 5.0 dB |
| Receiver Sensitivity (OMAouter) | ≤ -11.6 dBm |
| Link Distance (Mux/Back-to-Back) | 20 km / 40 km |
| Digital Optical Monitoring (DOM) | Supported |
| Humidity (Non-Condensing) | 0 % – 85 % |
| Warranty | Limited Lifetime Warranty |
