Description

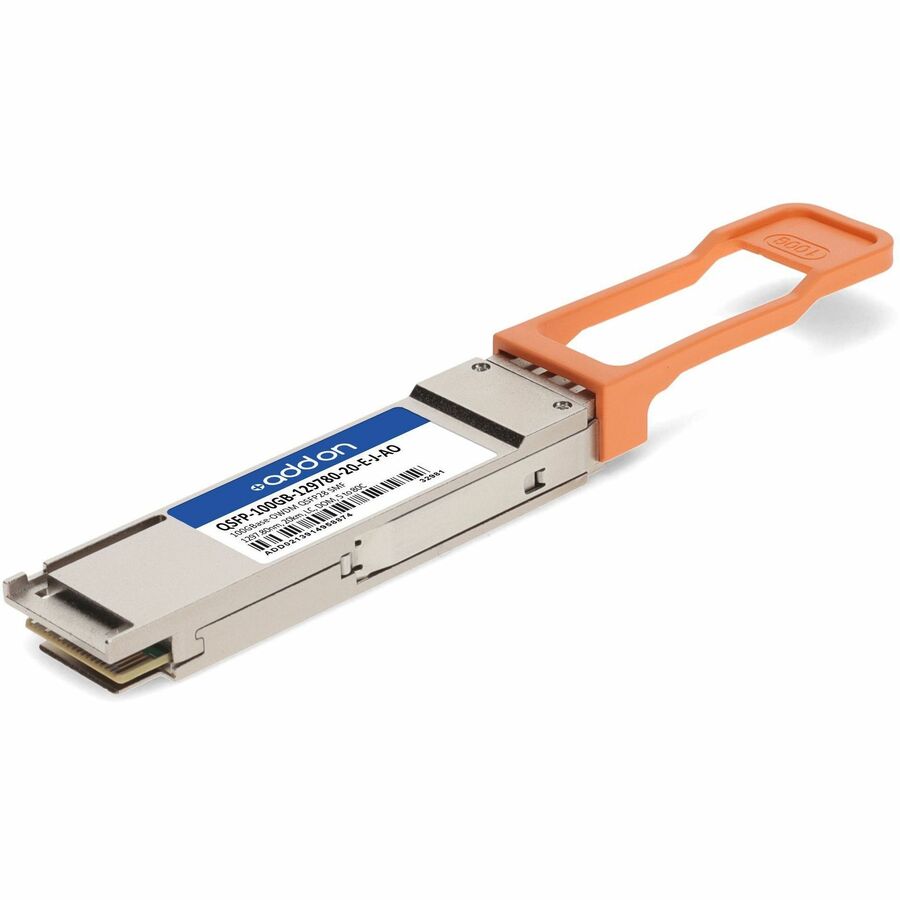

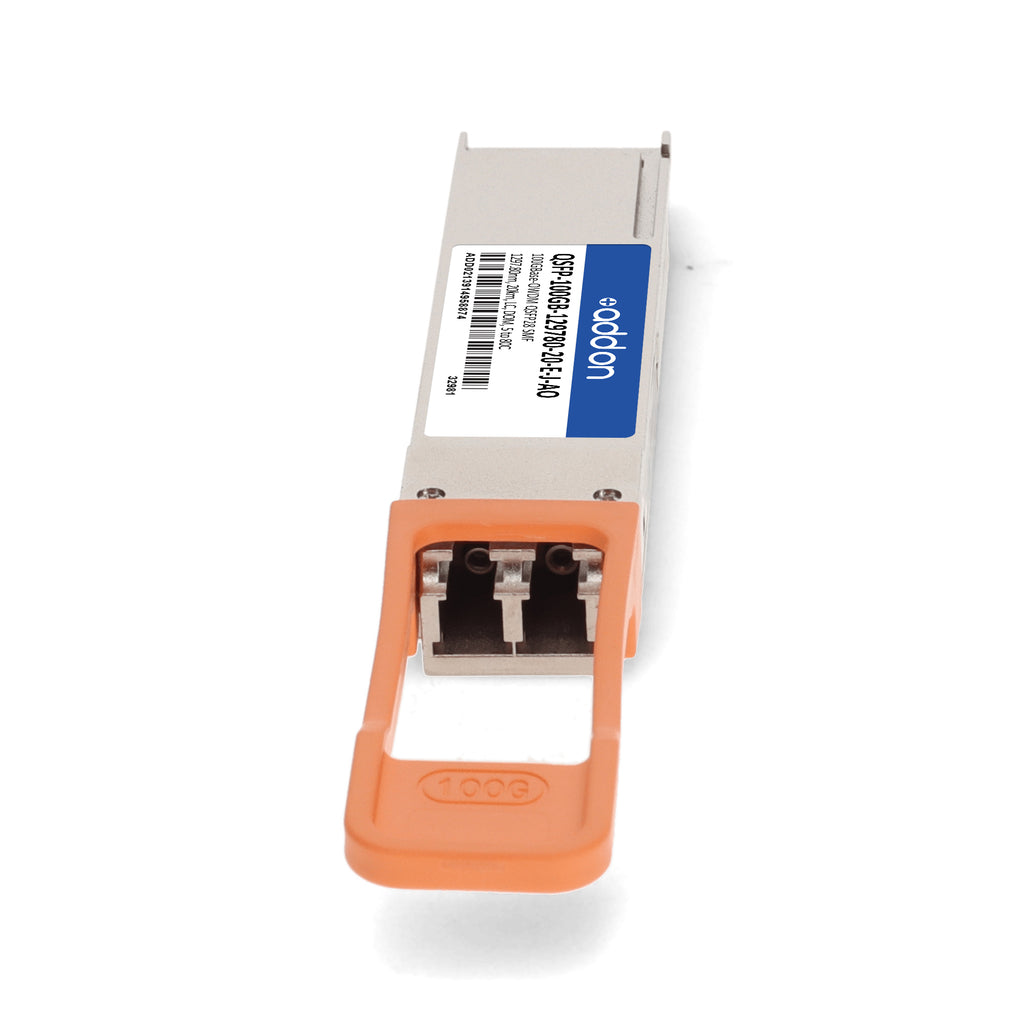

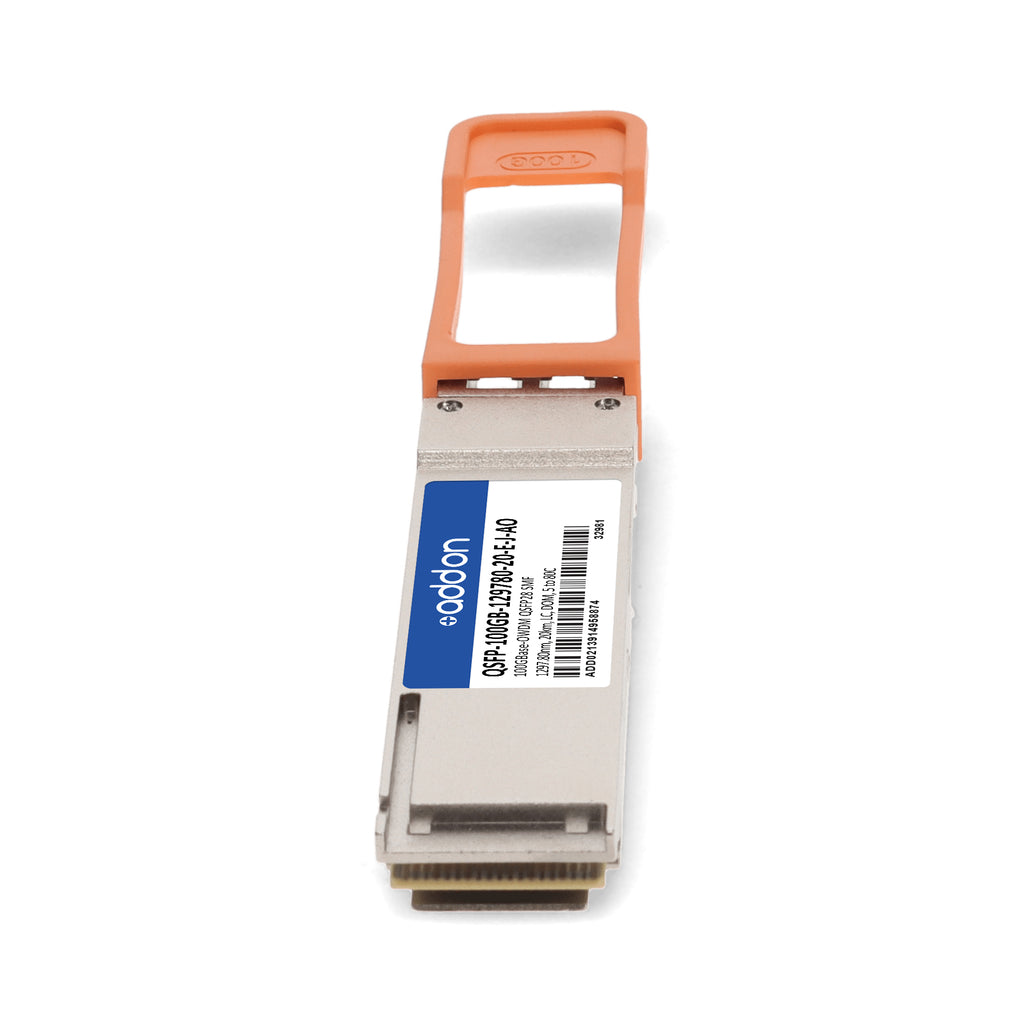

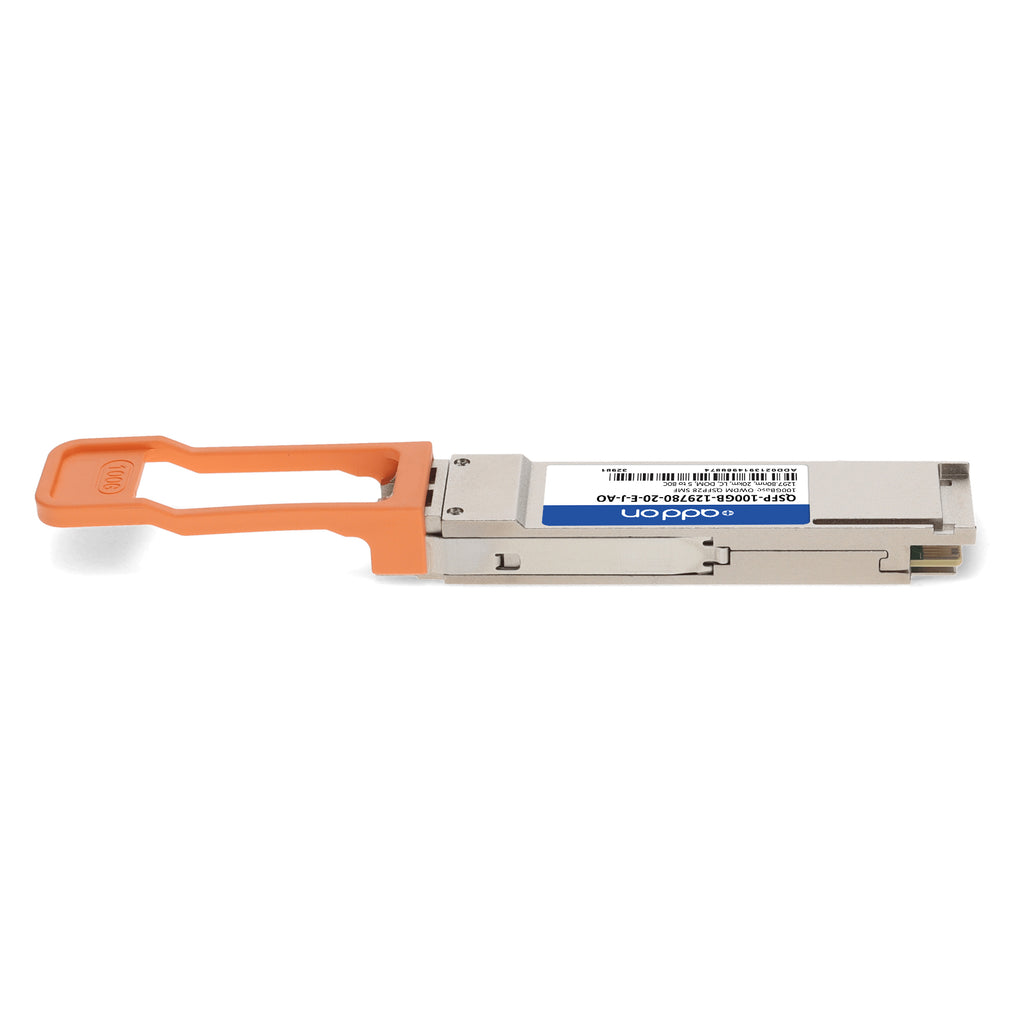

The AddOn Juniper Networks® QSFP-100GB-129780-20-E-J Compatible TAA 100GBase-OWDM QSFP28 Transceiver delivers high-performance 100G Ethernet connectivity over single-mode fiber (SMF) up to 20km using a 1297.80nm wavelength. Built with OWDM technology supporting 8 wavelengths on a 50GHz grid, this transceiver is designed for scalable, high-density networking in access and enterprise environments. It features a hot-pluggable QSFP28 form factor, a high-sensitivity APD receiver, duplex LC connectors, and digital optical monitoring (DOM) for real-time performance diagnostics. Fully compliant with QSFP28 MSA, IEEE 802.3bs, and 100G Lambda MSA standards, it is TAA-compliant and rigorously tested for seamless interoperability and reliability with Juniper Networks® equipment. Ideal for expanding network reach while maintaining superior signal integrity and performance.
| Specification | Details |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gb/s (PAM4) |
| Application | 100GBase Ethernet, Access and Enterprise |
| Wavelength | 1297.80 nm (OW297, O-Band) |
| Transmission Distance | Up to 20 km over SMF |
| Connector | Duplex LC |
| Optical Modulation | PAM4 |
| Wavelength Range | 1297.40 – 1298.20 nm |
| Average Launch Power | 0 to 3.4 dBm |
| OMAouter (TDP < 1.4 dB) | 3.0 to 6.4 dBm |
| Extinction Ratio | ≥ 5.0 dB |
| Receiver Sensitivity (OMAouter) | ≤ -11.6 dBm (Stressed) |
| Average Receive Power | -15.7 to -3 dBm |
| Receiver Damage Threshold | 0 dBm |
| Operating Temperature | -5°C to +80°C |
| Power Supply Voltage | +3.3 V |
| Power Consumption | 4.4 – 5.5 W (typical range) |
| Digital Diagnostics (DOM) | Supported |
| Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA |
| Compatibility | Juniper Networks® systems |
| Certifications | RoHS, Lead-Free, TAA Compliant |
| Warranty | Limited Lifetime Warranty |
