Description

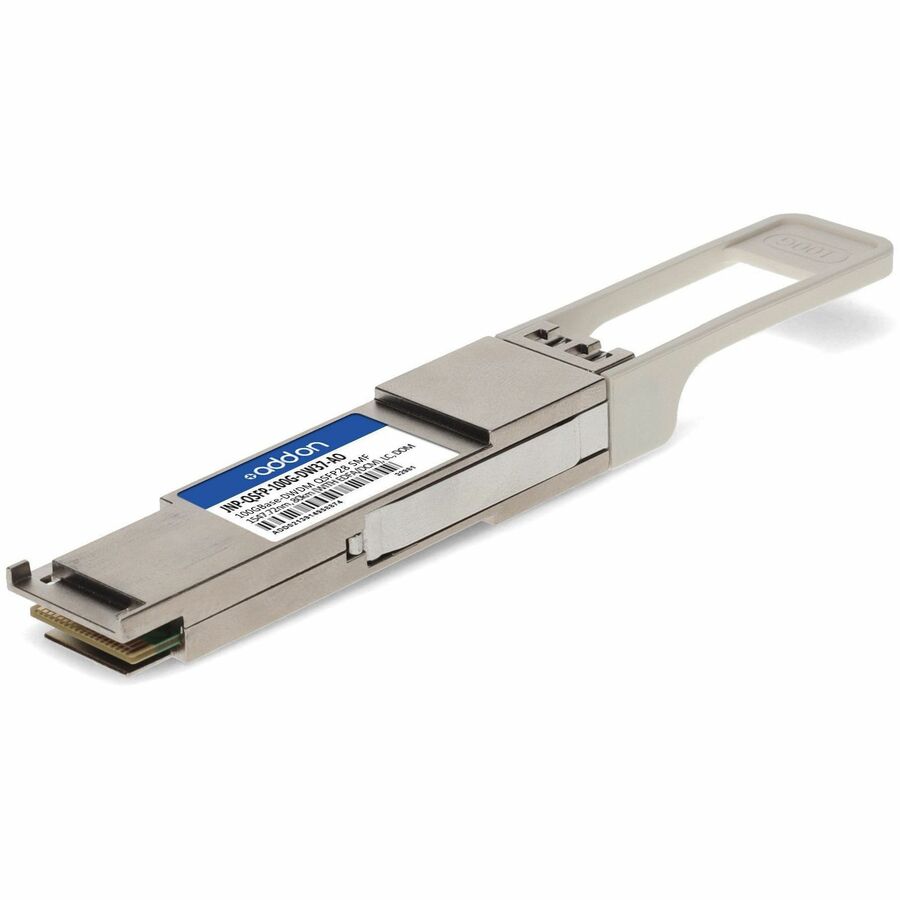

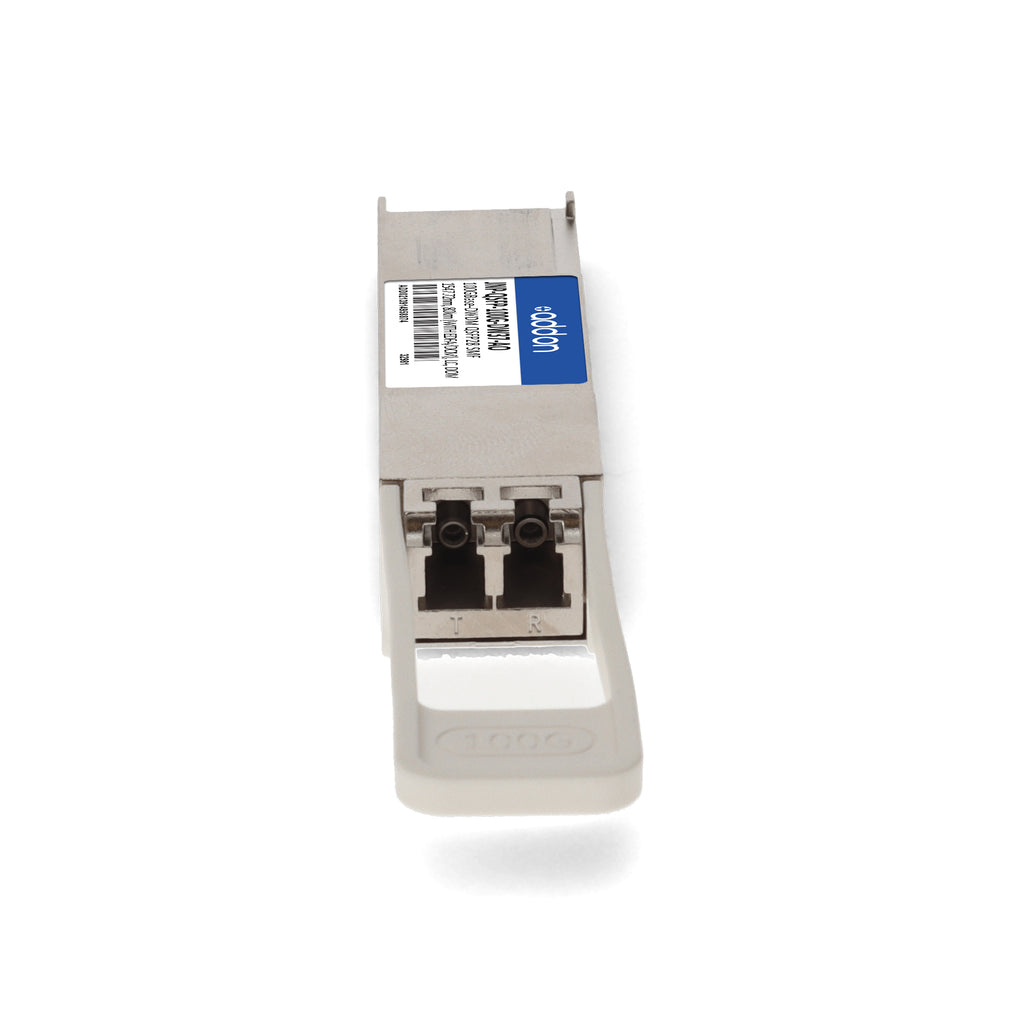

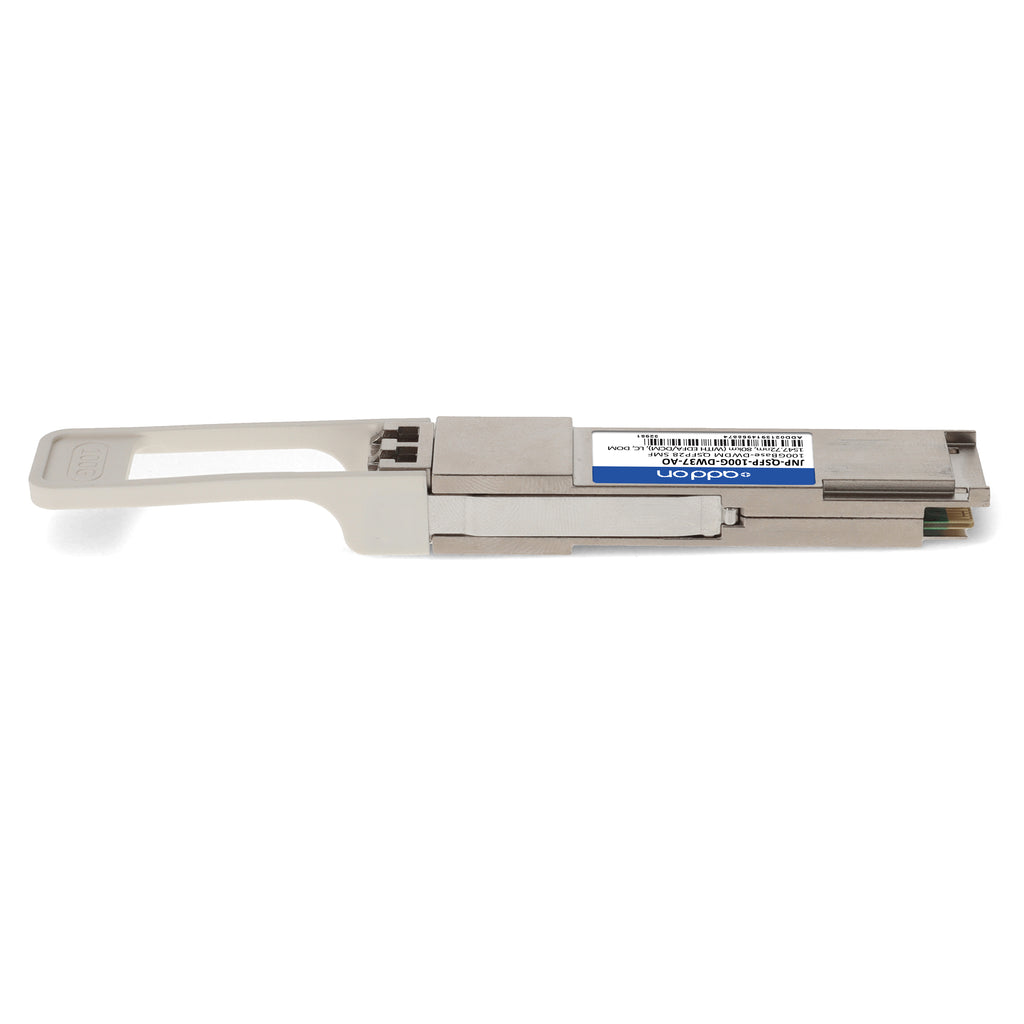

The AddOn Juniper Networks® JNP-QSFP-100G-DW37-AO is a 100GBase-DWDM QSFP28 transceiver designed for high-capacity optical networking applications. Engineered for reliability and performance, it supports data transmission up to 80 km over single-mode fiber (SMF) using a center wavelength of 1547.72 nm on the 100 GHz DWDM ITU grid. This hot-pluggable, PAM4-based module integrates forward error correction (FEC) for enhanced signal integrity and features a duplex LC connector for seamless integration into existing network infrastructures. Fully compliant with SFF-8636 MSA standards, it supports digital optical monitoring (DOM) for real-time parameter tracking and ensures 100% compatibility with Juniper Networks® hardware. The transceiver is TAA compliant, RoHS certified, and backed by AddOn’s limited lifetime warranty, making it a robust solution for metro, enterprise, and access network deployments.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Compatibility | Juniper Networks® JNP-QSFP-100G-DW37 |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-DWDM PAM4 |
| Wavelength | 1547.72 nm (Channel 37, 100 GHz ITU Grid) |
| Transmission Distance | Up to 80 km with EDFA/DCM |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Digital Optical Monitoring (DOM) | Supported |
| FEC | Integrated |
| Operating Temperature | 0 °C to 70 °C (Commercial) |
| Optical Output Power | -2 dBm to +2 dBm |
| Receiver Sensitivity | -9 dBm (Avg) |
| Receiver Overload | +4 dBm |
| Dispersion Tolerance | ±30 ps/nm |
| Power Consumption | 4.7 W – 5.5 W |
| Compliance Standards | SFF-8636, FCC Part 15 Subpart B, EN55022:2010, IEC 60825-1/2, RoHS 2.0 |
| Hot Pluggable | Yes |
| Applications | Metro, Access, and Enterprise 100G Ethernet Networks |
| Warranty | Limited Lifetime Warranty |
| TAA Compliant | Yes |
