Description

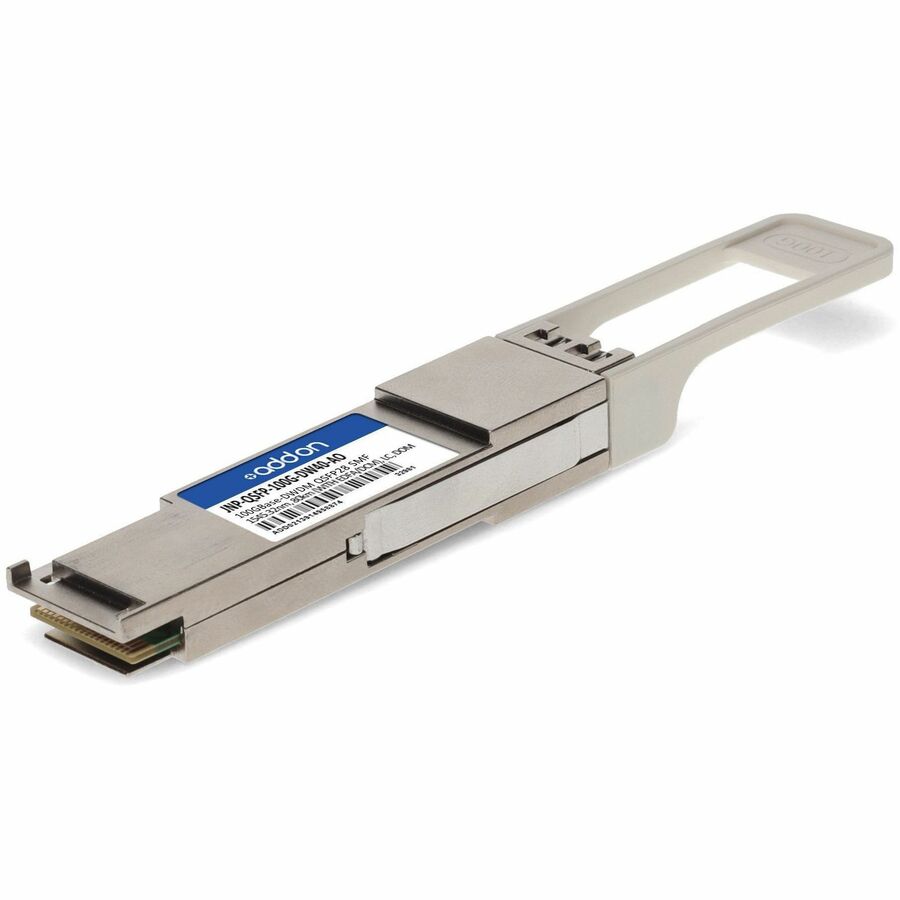

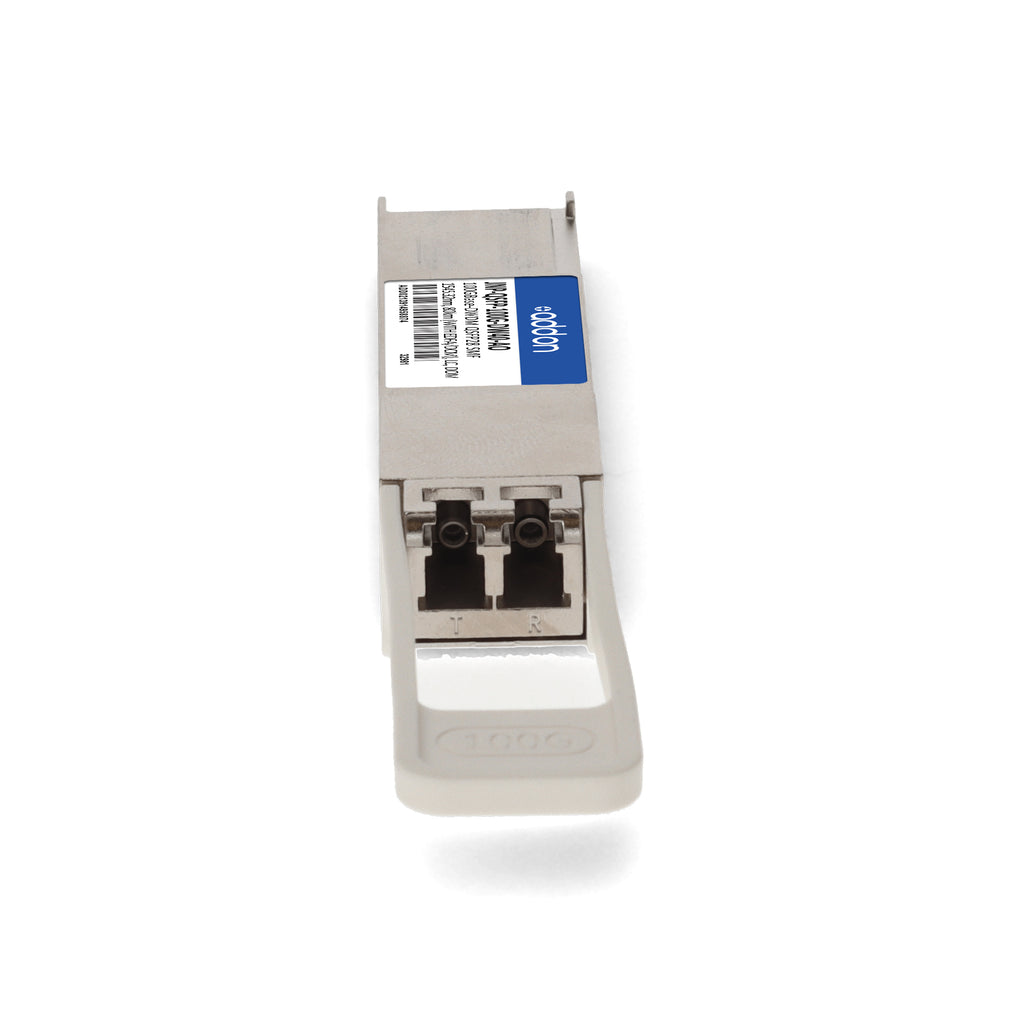

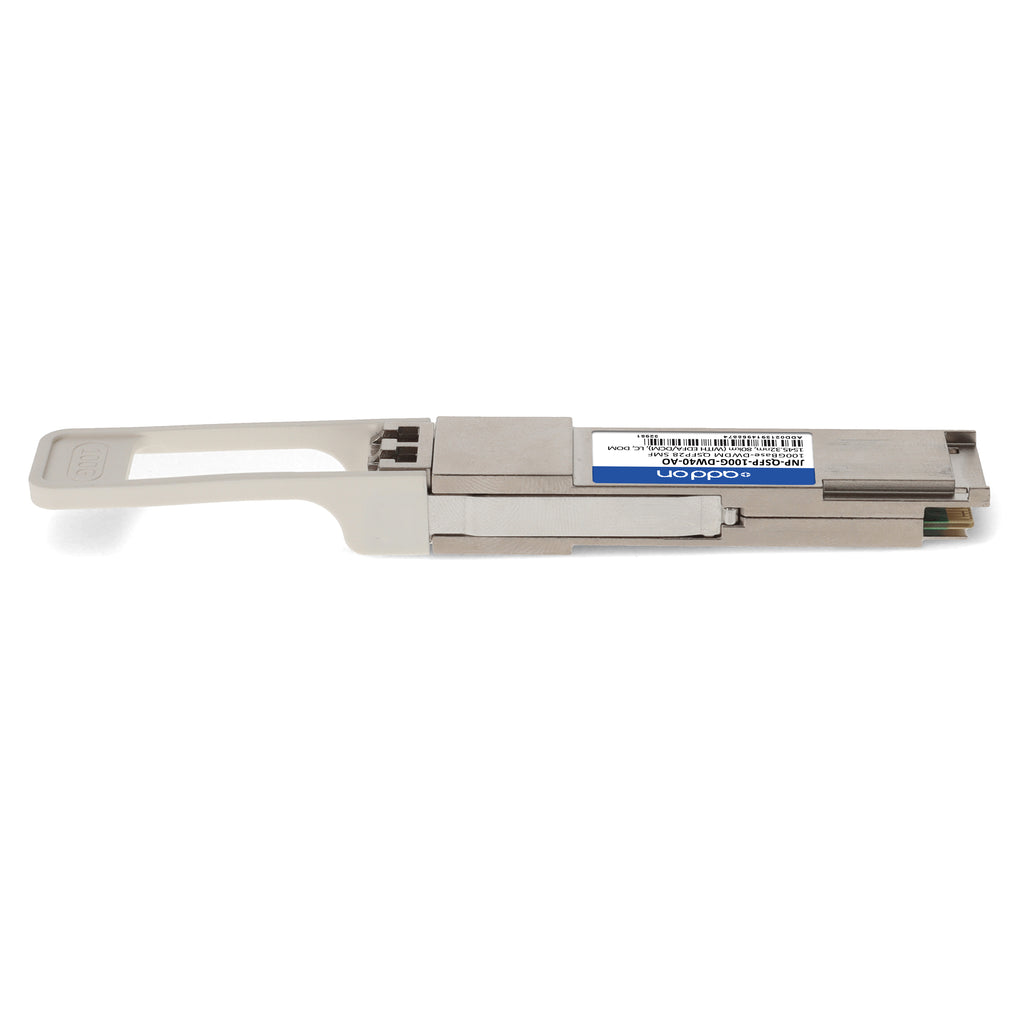

The AddOn Juniper Networks® JNP-QSFP-100G-DW40-AO is a high-performance, TAA-compliant 100GBase-DWDM QSFP28 optical transceiver designed for reliable long-haul data transmission in access, metro, and enterprise networks. Operating over single-mode fiber (SMF) using a 1545.32 nm wavelength in the C-Band, this transceiver supports distances up to 80 km with EDFA/DCM amplification.
Built to meet SFF-8636 MSA standards and leveraging PAM4 modulation with integrated FEC, it ensures superior data integrity and interoperability with Juniper Networks® equipment. The module is hot-pluggable, RoHS-compliant, and offers real-time Digital Optical Monitoring (DOM) for enhanced network visibility. Backed by rigorous testing and a limited lifetime warranty, it delivers the performance, reliability, and value expected from AddOn solutions.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Compatibility | Juniper Networks® JNP-QSFP-100G-DW40 |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps (PAM4 with FEC) |
| Optical Standard | 100GBase-DWDM |
| Wavelength | 1545.32 nm (C-Band, 100 GHz ITU Grid) |
| Transmission Distance | Up to 80 km (with EDFA/DCM) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Optical Output Power | –2 dBm to +2 dBm |
| Receiver Sensitivity | –9 dBm (avg.) |
| Dispersion Tolerance | –30 ps/nm to +30 ps/nm |
| Power Consumption | 4.7 W – 5.5 W |
| Operating Temperature | 0 °C to +70 °C |
| Compliance | SFF-8636 MSA, RoHS, FCC Part 15, IEC 60825-1/2 |
| Digital Diagnostics | DOM (Digital Optical Monitoring) |
| Hot-Swappable | Yes |
| Warranty | Limited Lifetime Warranty |
