Description

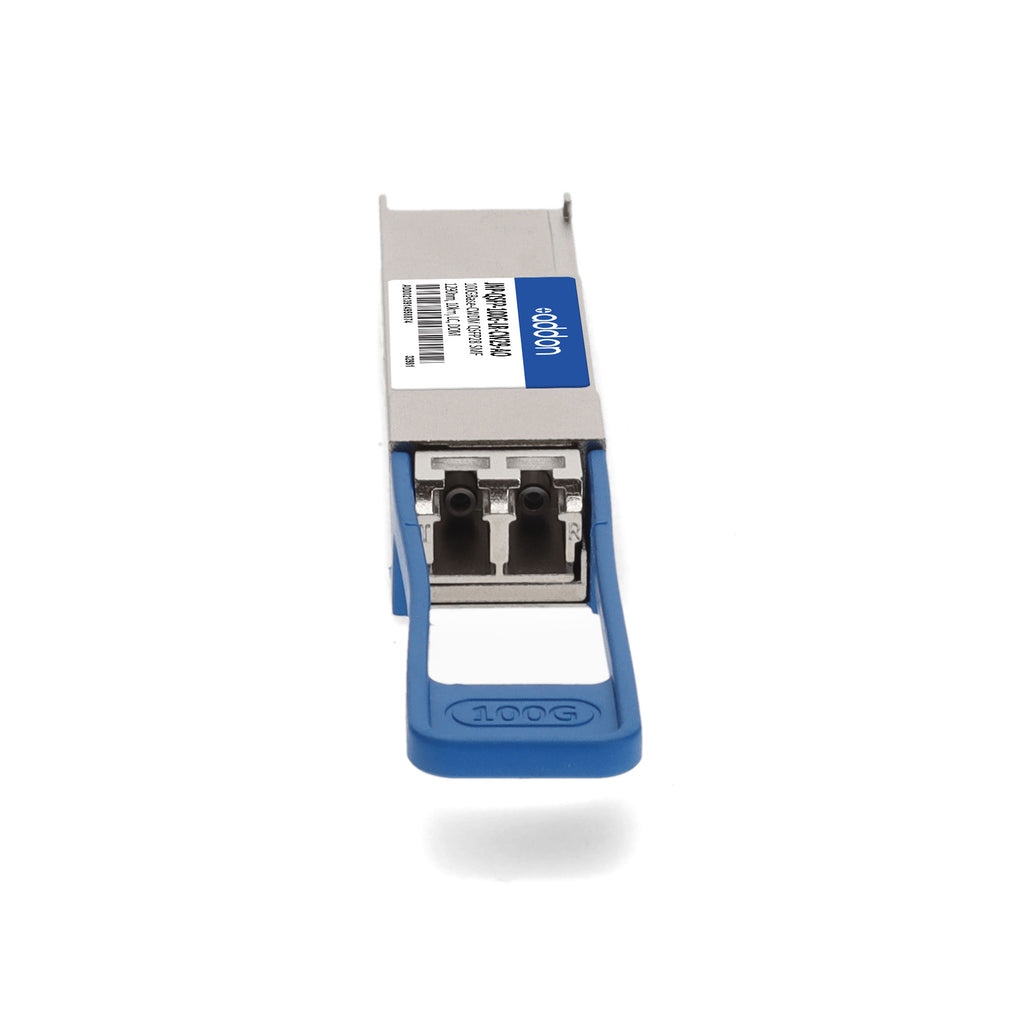

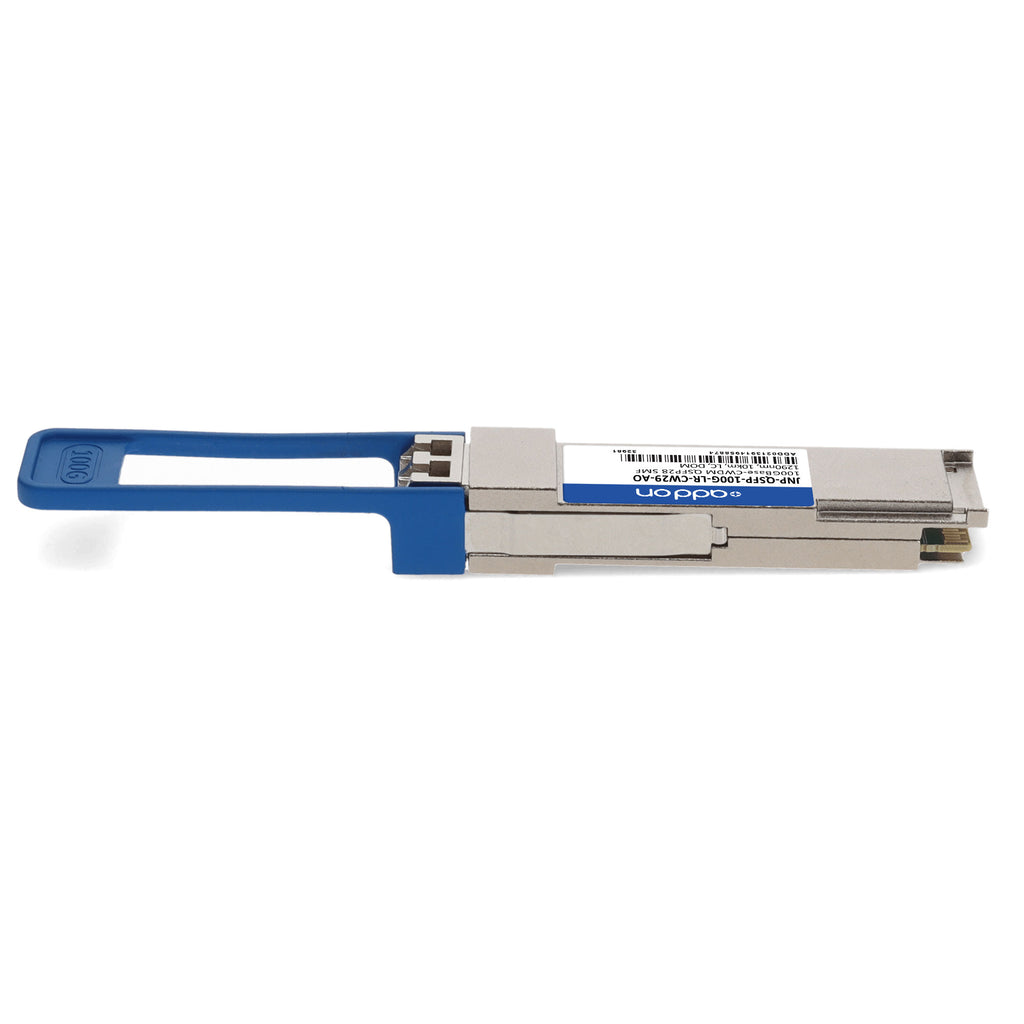

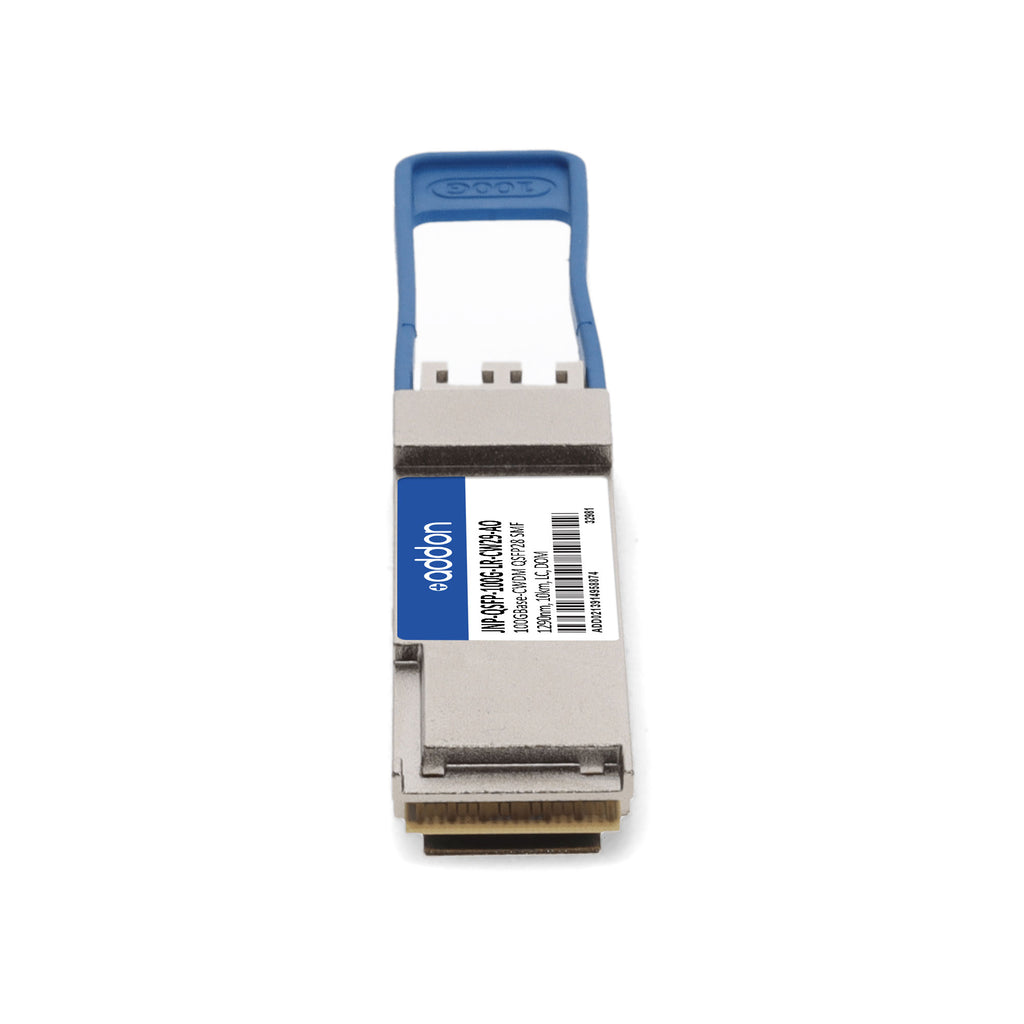

The AddOn Juniper Networks® JNP-QSFP-100G-LR-CW29 Compatible TAA 100GBase-CWDM QSFP28 Single Lambda Transceiver is a high-performance optical module designed to deliver reliable 100Gbps connectivity over single-mode fiber (SMF) up to 10km using a 1290nm wavelength. Fully compliant with 100G Lambda MSA 100G-LR and QSFP28 MSA standards, this transceiver features a 4x25G electrical interface, low power consumption under 4.5W, and an LC duplex connector for seamless deployment.
Engineered for high-density data center, metro, and enterprise networks, it supports digital optical monitoring (DOM) for real-time diagnostics and is hot-swappable for quick and simple installation. Each unit is uniquely serialized, rigorously tested for data traffic and application performance, and backed by a limited lifetime warranty. TAA and RoHS compliance ensure adherence to strict quality and trade standards, making this module a dependable choice for mission-critical optical networks.
| Specification | Details |
|---|---|
| Part Number | JNP-QSFP-100G-LR-CW29-AO |
| Form Factor | QSFP28 |
| Data Rate | 100Gbps |
| Wavelength | 1290nm (CWDM, Channel 29) |
| Transmission Distance | Up to 10km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | LC Duplex |
| Modulation Format | PAM4 |
| Power Supply Voltage | 3.3V |
| Power Dissipation | < 4.5W |
| Electrical Interface | 4x25G |
| Optical Center Wavelength Tolerance | ±6.5nm |
| Extinction Ratio | ≥ 3.5 dB |
| Transmit OMA | 0.7 to 4.7 dBm |
| Average Launch Power | -1.4 to 4.5 dBm |
| Receiver Sensitivity (OMAouter) | Max(-6.1 dBm, SECQ-7.5 dBm) |
| Average Receive Power | -7.7 to 4.5 dBm |
| Receiver Damage Threshold | 5.5 dBm |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Compliance | 100G Lambda MSA 100G-LR, QSFP28 MSA, SFF-8636 Rev 2.10a, RoHS, TAA |
| Applications | 100G Ethernet over CWDM, Access, Metro, and Enterprise Networks |
