Description

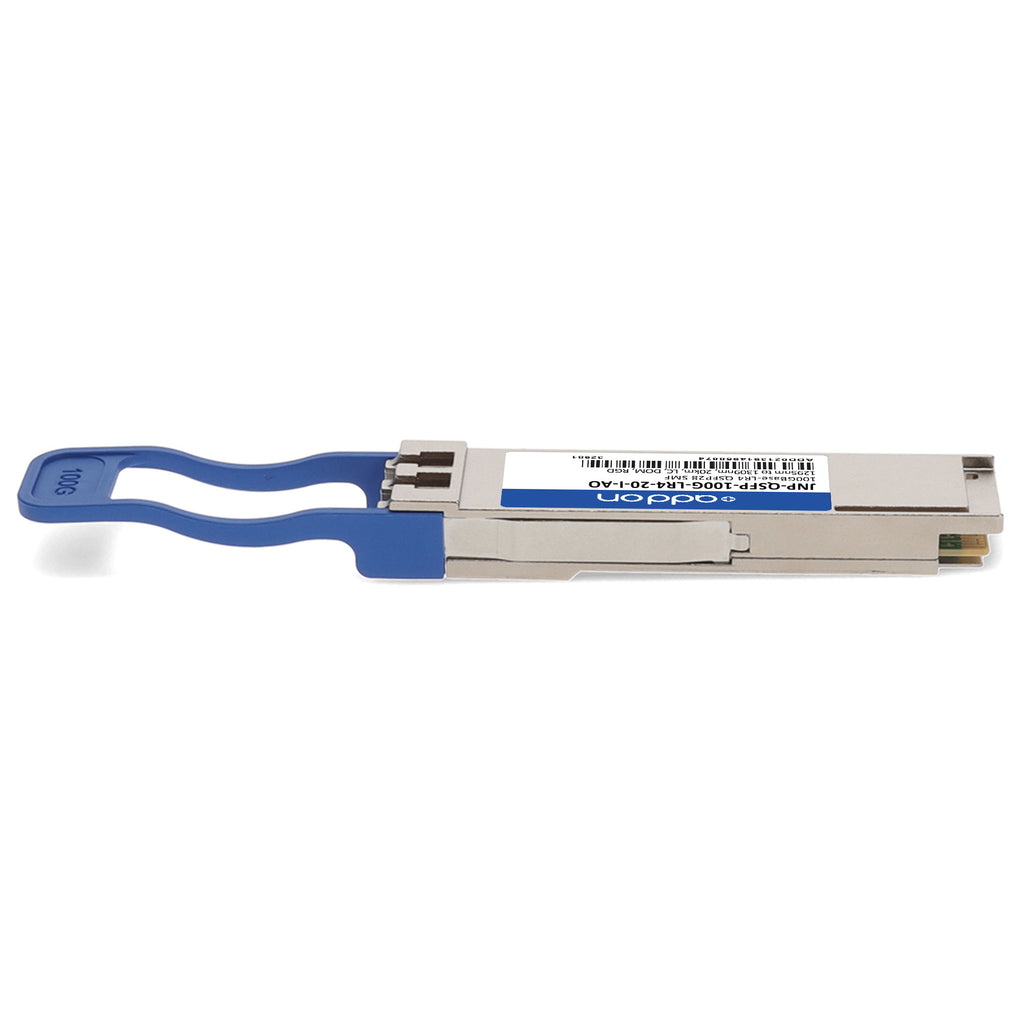

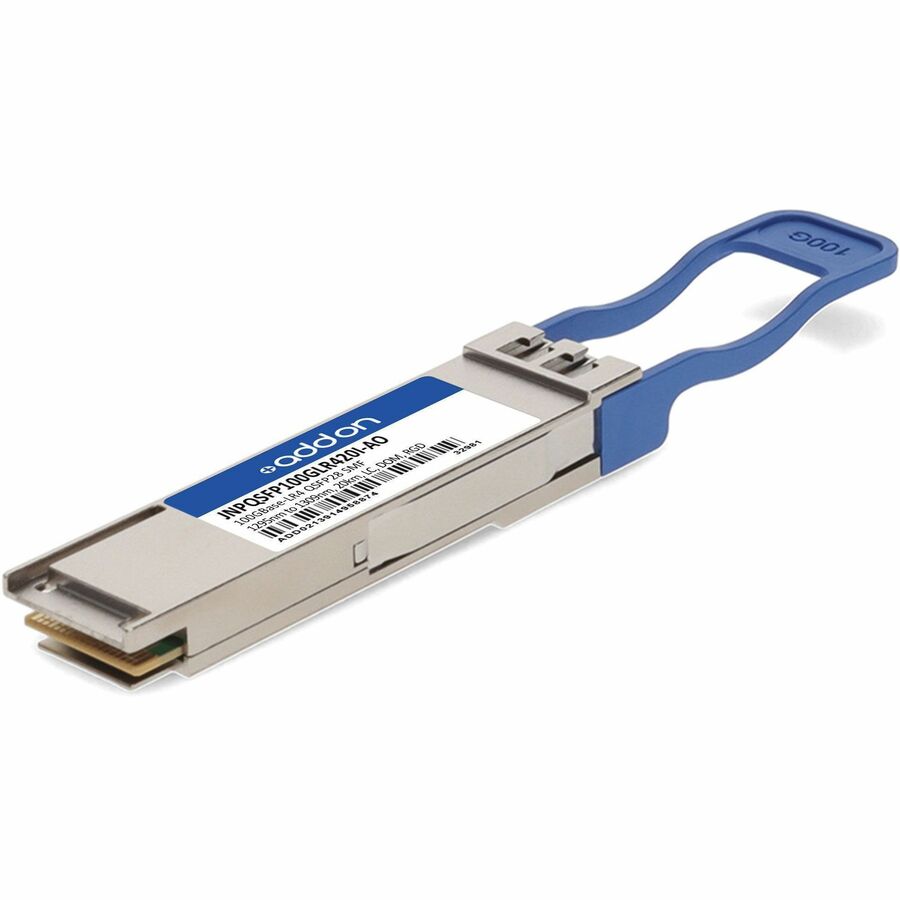

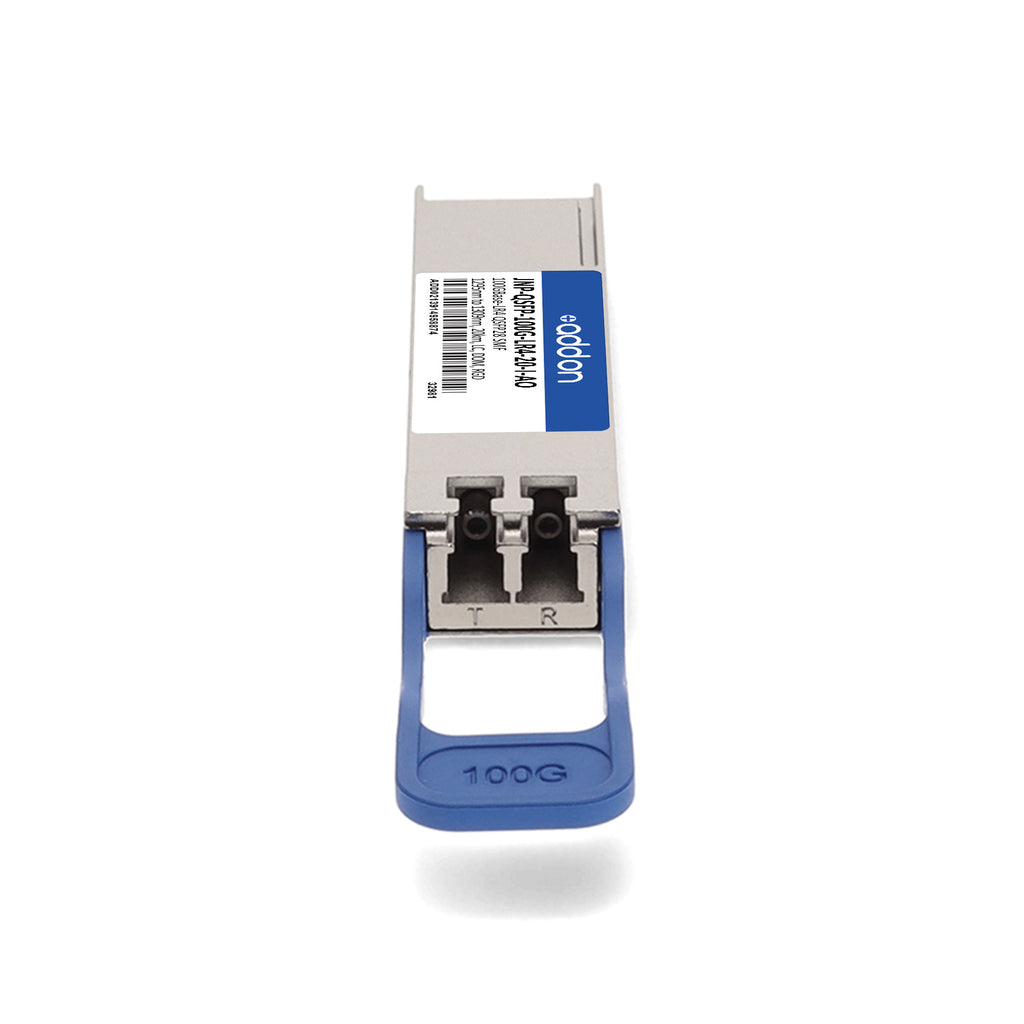

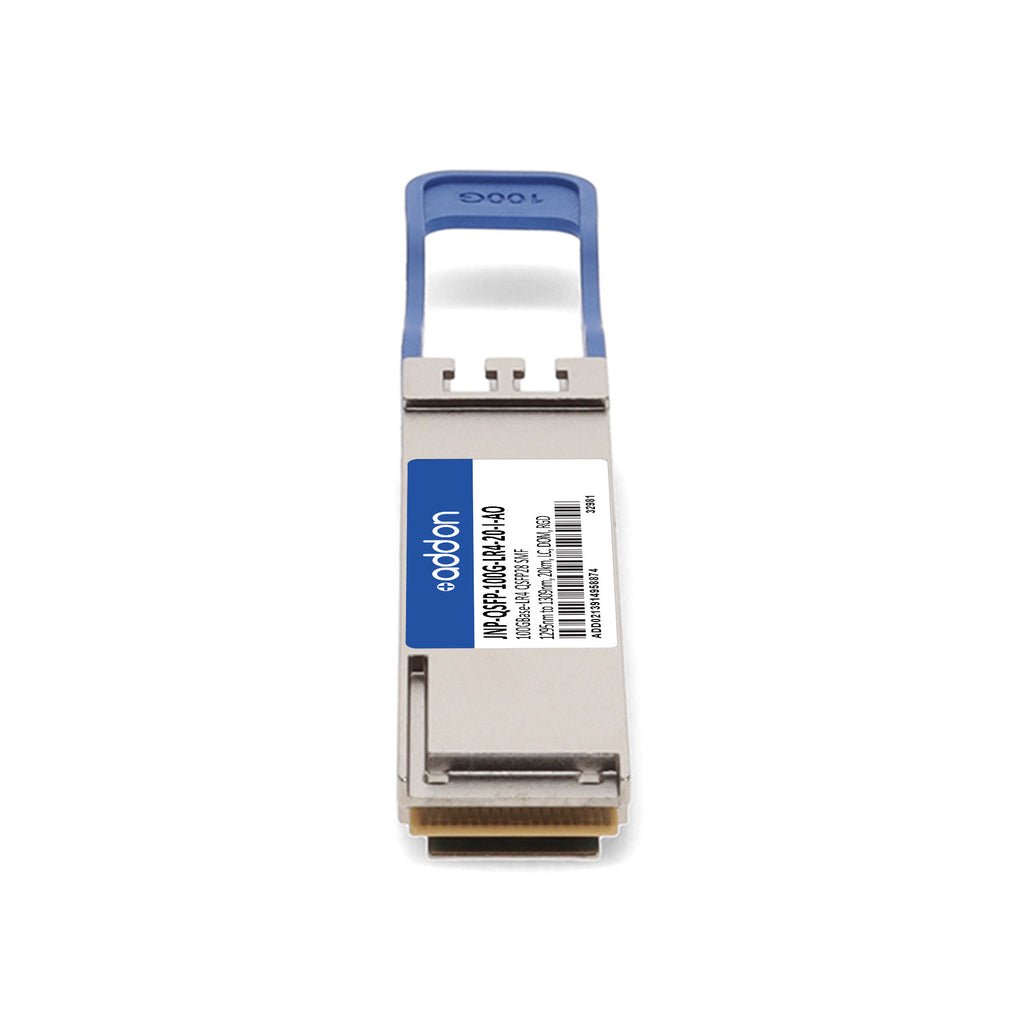

The AddOn Juniper Networks® JNP-QSFP-100G-LR4-20-I Compatible QSFP28 transceiver delivers high-performance 100GBase-LR4 Ethernet connectivity for data center, enterprise, and access network environments. Supporting transmission distances up to 20km over single-mode fiber (SMF), this transceiver operates on four wavelengths from 1295nm to 1309nm through a duplex LC connector.
Engineered for reliable performance in industrial temperature ranges (-40 to 85°C), it is hot-pluggable, fully compliant with SFF-8665 standards, and supports Digital Optical Monitoring (DOM) for real-time diagnostics. This module is rigorously tested, uniquely serialized, and programmed to ensure 100% compatibility with Juniper Networks® hardware. Additionally, it is TAA compliant, RoHS lead-free, and features excellent ESD protection for robust and secure deployments.
| Specification | Details |
|---|---|
| Compatible OEM | Juniper Networks® |
| Part Number | JNP-QSFP-100G-LR4-20-I-AO |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-LR4 (25.78125 Gb/s per channel) |
| Wavelength | 1295nm – 1309nm (4 lanes) |
| Distance / Reach | Up to 20 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Digital Optical Monitoring (DOM) | Supported |
| Temperature Range | -40°C to 85°C (Industrial) |
| Power Supply Voltage | 3.135 – 3.465 V |
| Power Dissipation | ≤ 5 W |
| Launch Optical Power (per lane) | 0 to +5 dBm |
| Total Launch Optical Power | Up to +10.5 dBm |
| Receiver Sensitivity (OMA) | ≤ -9.0 dBm |
| Receiver Overload | ≤ +5.0 dBm |
| Extinction Ratio | ≥ 4.0 dB |
| Compliance Standards | SFF-8665, FCC Part 15B, EN55022:2010, IEC 60825-1/2 |
| ESD / EMI Protection | MIL-STD-883E, IEC 61000-4-3 |
| RoHS Compliance | Yes (Lead-Free) |
| TAA Compliance | Yes |
| Hot Pluggable | Yes |
| Applications | 100G Ethernet, Access, Enterprise |
