Description

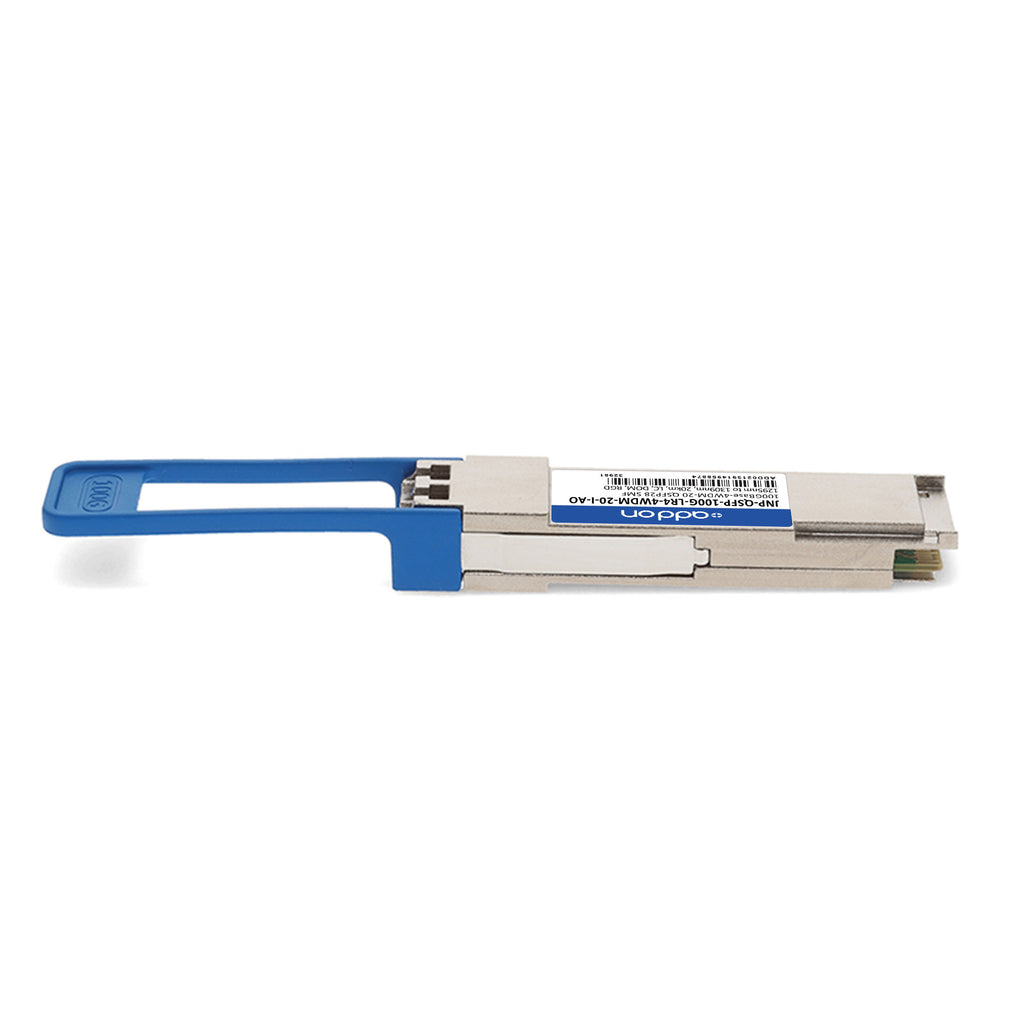

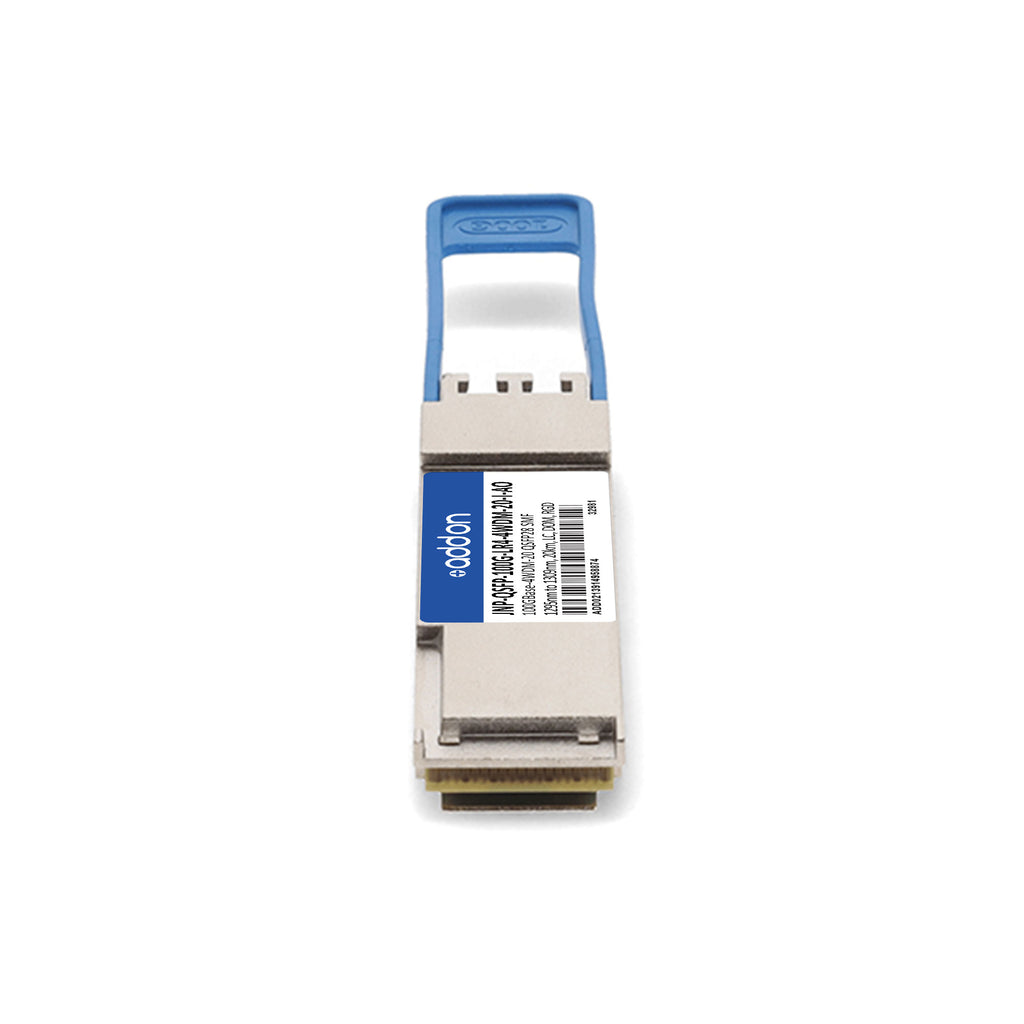

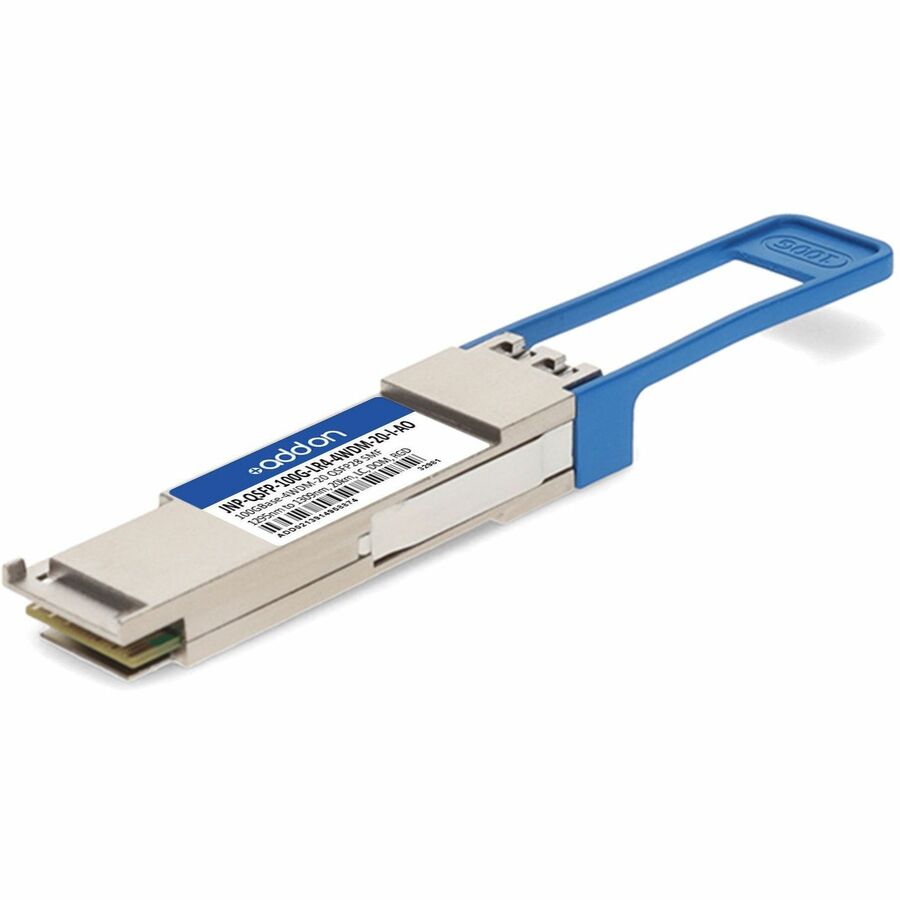

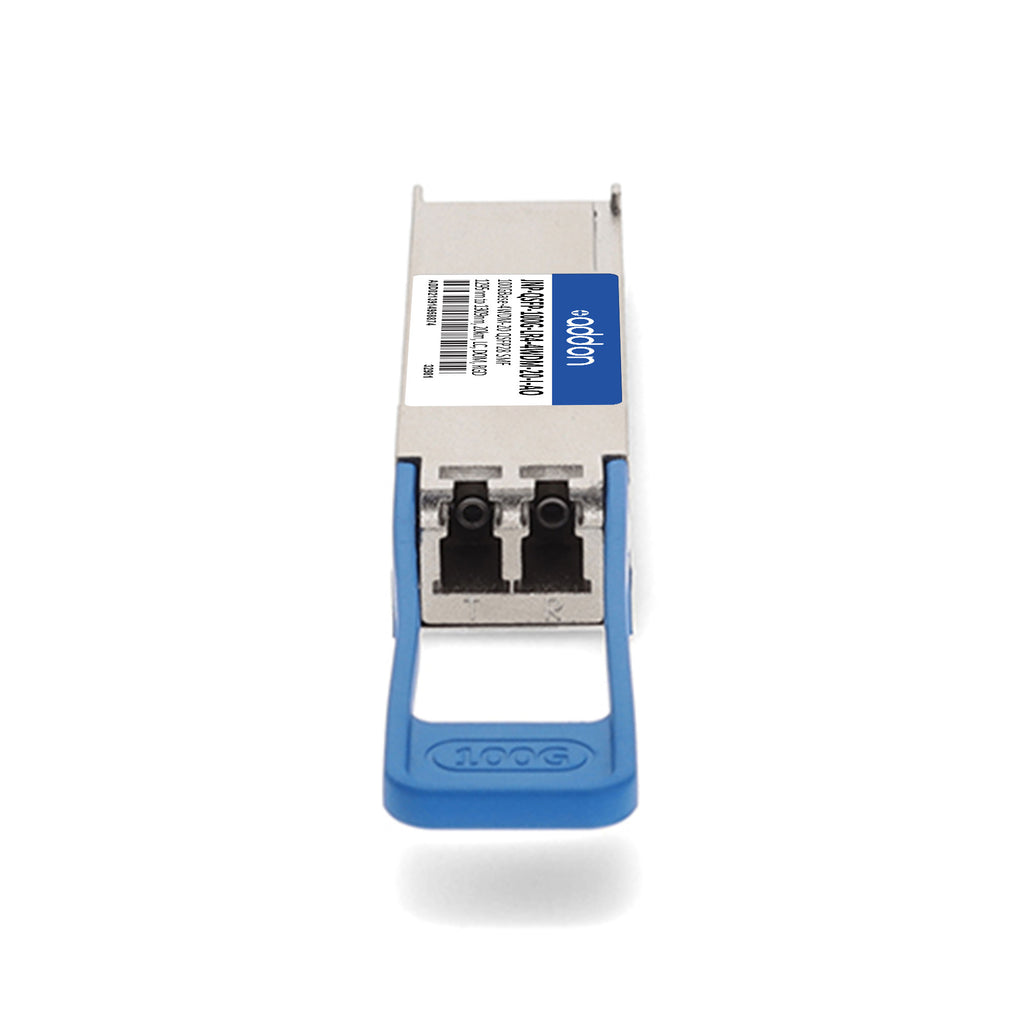

This Juniper Networks® JNP-QSFP-100G-LR4-4WDM-20-I compatible QSFP28 transceiver from AddOn provides reliable 100GBase-4WDM-20 Ethernet connectivity over single-mode fiber (SMF) for distances up to 20km, operating across wavelengths from 1295nm to 1309nm via an LC duplex connector. Fully compliant with QSFP28 MSA standards, this hot-swappable module is designed for high-performance data center, enterprise, and access network environments. It supports four 25Gbps LAN-WDM channels and a total data rate of 103Gbps, while the integrated Digital Optical Monitoring (DOM) allows for real-time diagnostics and performance monitoring.
This transceiver is TAA compliant, RoHS certified, and engineered to ensure seamless interoperability with Juniper Networks® equipment. Each unit is programmed, uniquely serialized, and rigorously tested for data traffic and application performance to guarantee identical initialization and operation. AddOn backs this product with a limited lifetime warranty, ensuring long-term reliability and network stability.
| Specification | Details |
|---|---|
| Part Number | JNP-QSFP-100G-LR4-4WDM-20-I-AO |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-4WDM-20 (103 Gbps aggregate) |
| Wavelength Range | 1295nm – 1309nm |
| Transmission Distance | Up to 20 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | 4x DFB-based LAN-WDM |
| Receiver Type | PIN + TIA Array |
| Interface | 4x 25G electrical |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Power Supply Voltage | 3.3V |
| Power Dissipation | < 4.8 W |
| Operating Case Temperature | -40°C to +85°C (Industrial) |
| Compliances | QSFP28 MSA, TAA, RoHS |
| Hot-Swappable | Yes |
| Applications | 100G Ethernet, Access, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
