Description

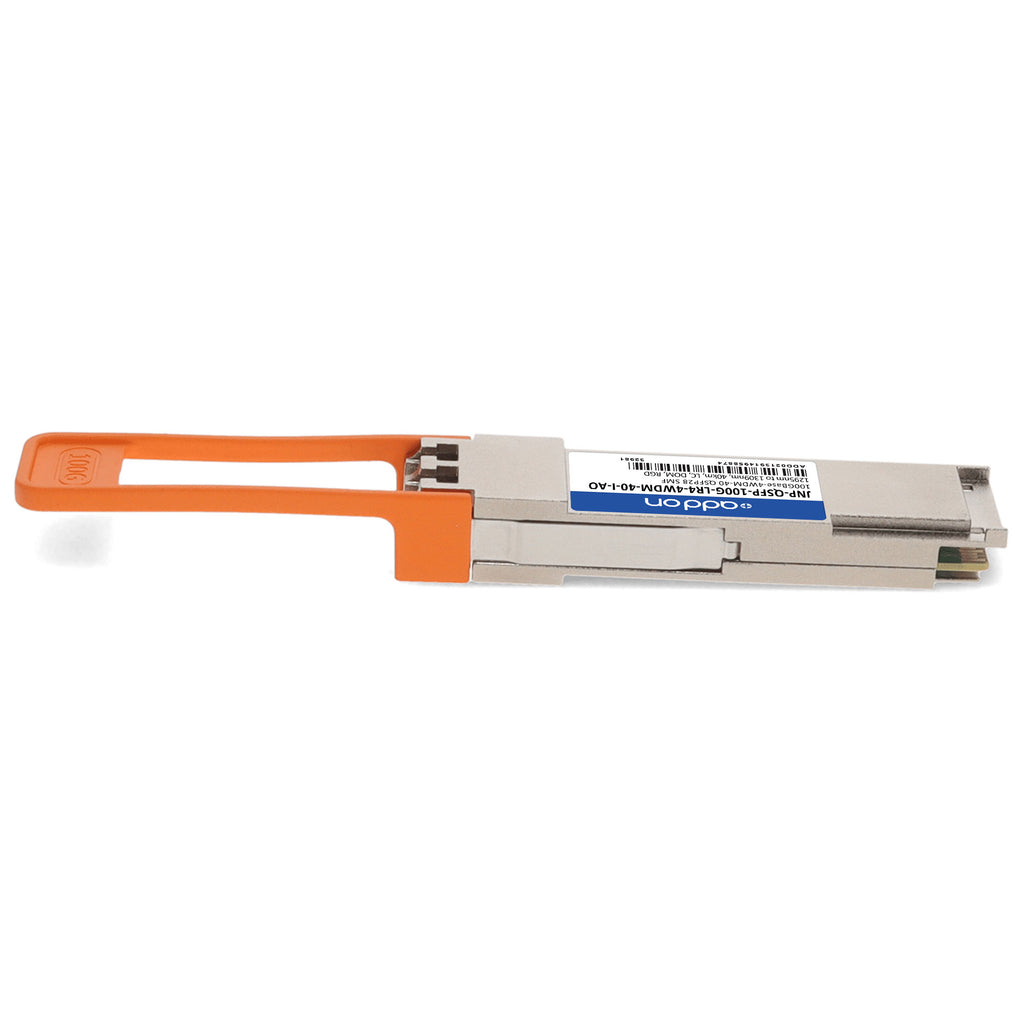

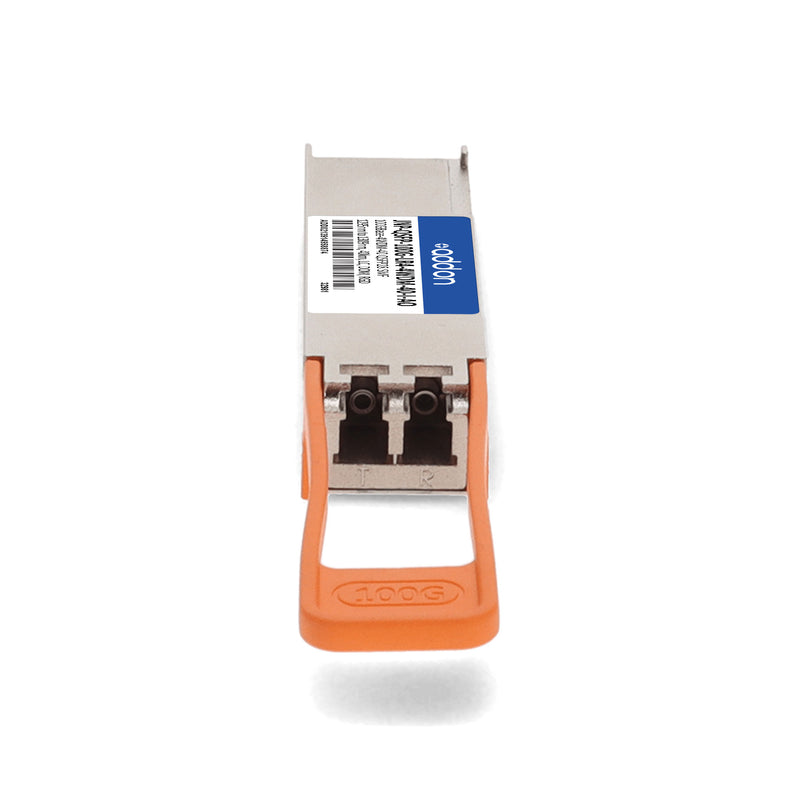

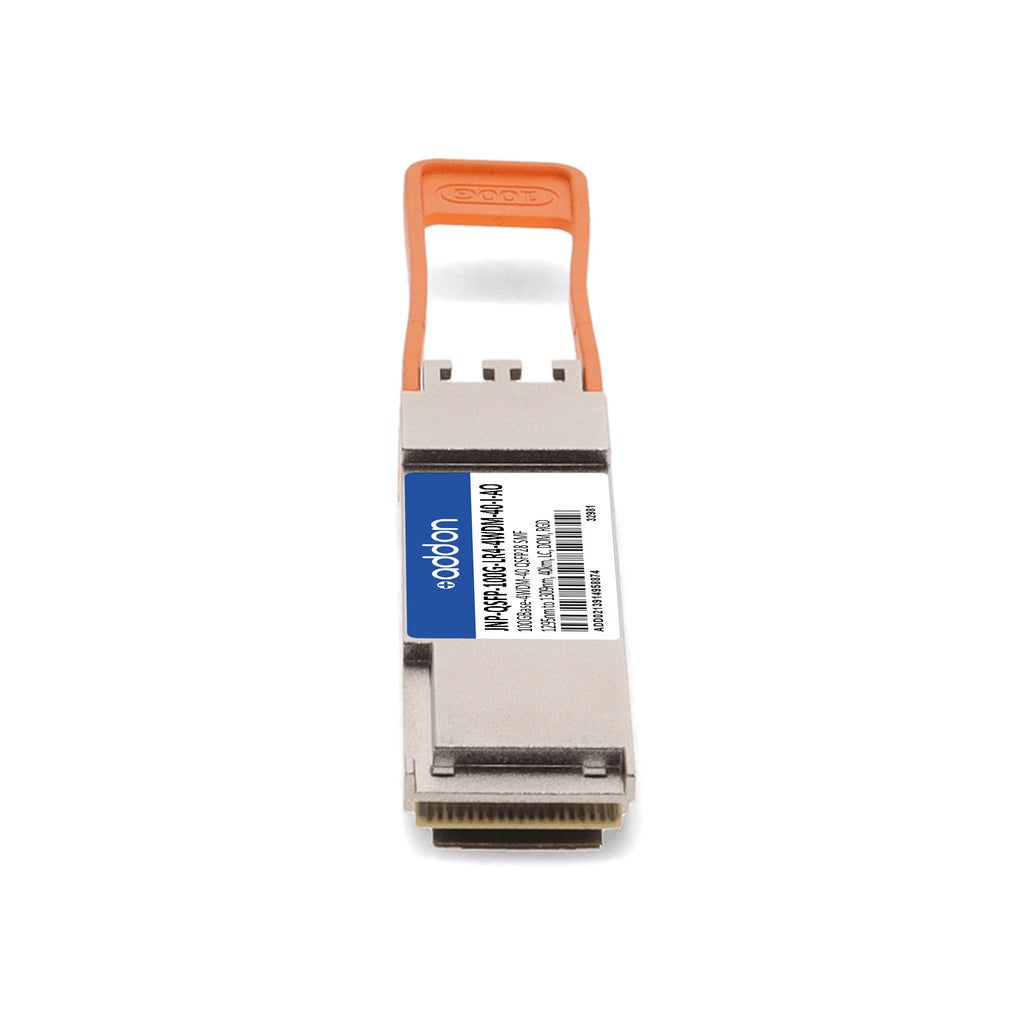

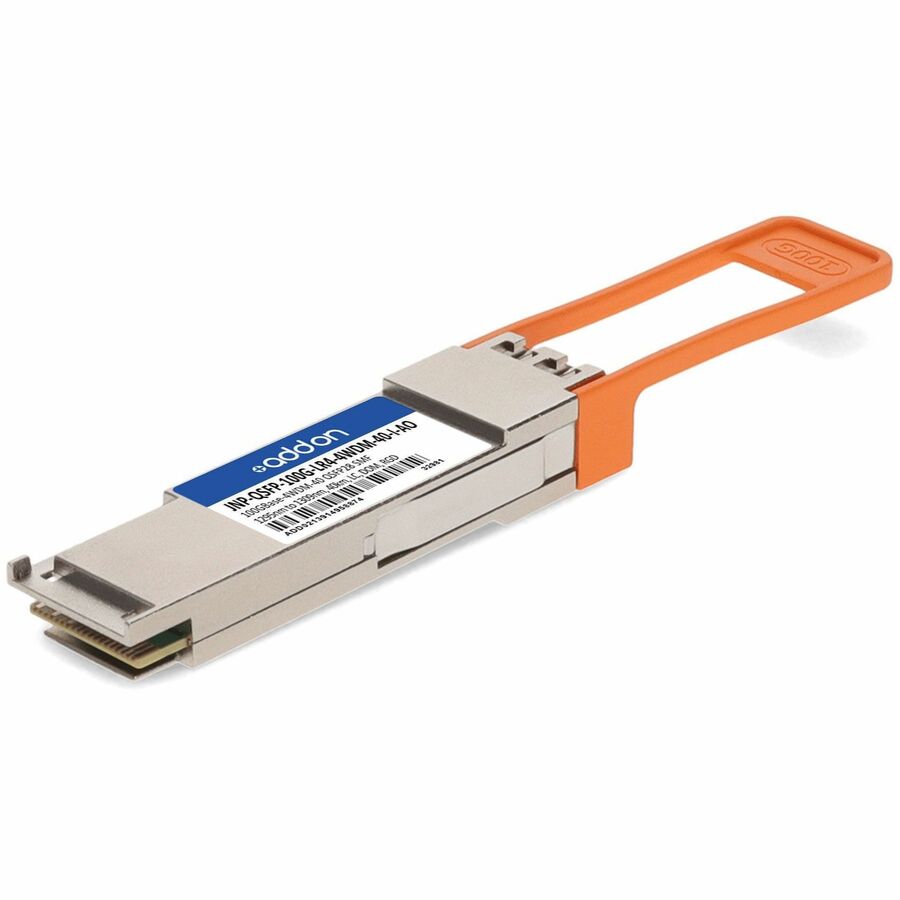

This Juniper Networks® JNP-QSFP-100G-LR4-4WDM-40-I compatible QSFP28 optical transceiver delivers reliable 100GBase-4WDM-40 connectivity up to 40km over single-mode fiber (SMF), utilizing LAN-WDM wavelengths from 1295nm to 1309nm via a duplex LC connector. Built for performance and efficiency, it supports four 25Gbps lanes with an aggregate throughput of 103Gbps, cooled DFB-based lasers, and an APD receiver array. The module is fully QSFP28 MSA compliant, hot-swappable, and includes Digital Optical Monitoring (DOM) for real-time parameter tracking. Operating across a wide industrial temperature range (-40°C to 85°C), this transceiver is ideal for data center, access, and enterprise network environments. It is TAA compliant and guaranteed 100% compatible with Juniper Networks® equipment.
| Specification | Details |
|---|---|
| SKU | JNP-QSFP-100G-LR4-4WDM-40-I-AO |
| Brand | AddOn |
| Compatibility | Juniper Networks® JNP-QSFP-100G-LR4-4WDM-40-I |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-4WDM-40 (103Gbps aggregate) |
| Wavelength Range | 1295nm – 1309nm (LAN-WDM) |
| Transmission Distance | Up to 40km (with FEC) |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Laser Type | 4×25Gbps Cooled DFB-based LAN-WDM Lasers |
| Receiver Type | APD with TIA array |
| Digital Diagnostics (DOM) | Supported (I2C interface) |
| Operating Case Temperature | -40°C to +85°C |
| Power Supply Voltage | 3.3V |
| Power Dissipation | < 5W |
| Optical Modulation Amplitude (OMA) | -0.5 dBm to 6.5 dBm per lane |
| Extinction Ratio | ≥ 4.5 dB |
| Receiver Sensitivity (OMA) | ≤ -18.5 dBm per lane |
| Receiver Overload | ≥ -3 dBm per lane |
| Compliance | QSFP28 MSA, RoHS, TAA |
| Hot-Swappable | Yes |
| Applications | 100G Ethernet, Access Networks, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
