Description

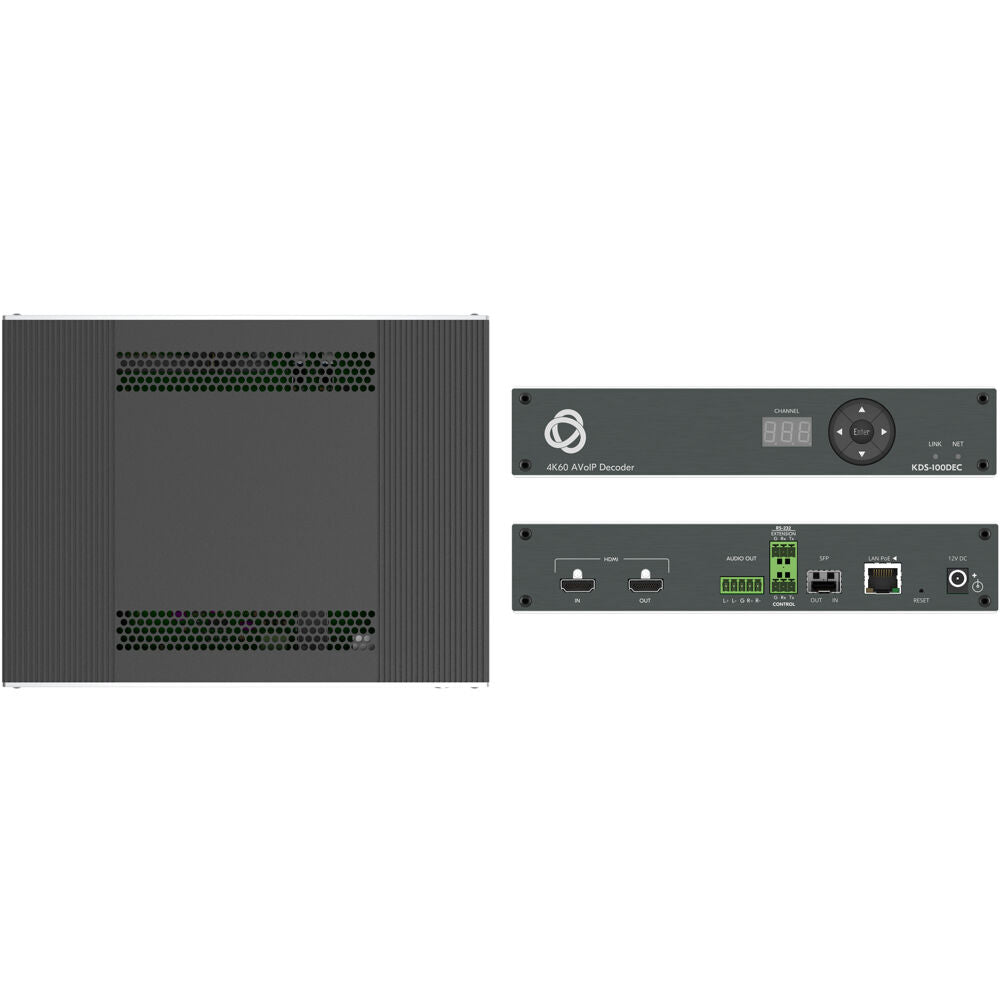

The Kramer KDS-100DEC is a professional-grade AVoIP decoder engineered to deliver exceptional 4K/60 (4:4:4) video quality over standard 1GbE networks. Designed around open-standard H.264/H.265 streaming, it provides ultra-low end-to-end latency—approximately 40ms when paired with KDS-100 encoders—making it ideal for mission-critical applications such as control rooms, monitoring walls, digital signage, and operator workstations.
This decoder supports dual streaming, flexible source routing, adjustable deployment profiles, and secure data handling with IT-grade standards including HTTPS/TLS, 802.1x, and OWASP-10 aligned practices. With HDMI, balanced audio, RS-232, USB HID, copper/fiber network support, and seamless integration with Kramer AVoIP Manager, the KDS-100DEC offers a powerful, scalable solution for modern AV-over-IP environments.
| Category | Details |
|---|---|
| Inputs | 1 HDMI (female); 1 Balanced Audio (5-pin terminal block) |
| Outputs | 1 HDMI (female); 1 Balanced Audio (5-pin terminal block) |
| Ports | 1 Media/Control LAN PoE (RJ-45); 1 Fiber (LC, 1000BASE-SX/LX); 2 USB-A for HID; 2 RS-232 (control + extension) |
| Network Protocols | Multicast IGMPv2; RTP/RTSP/SRT/RTMP/MPEG-TS |
| Video Support | Max Input/Output: 3840×2160@60Hz 4:4:4 |
| Streaming Formats | Open-standard H.264/H.265 |
| Max Streaming Resolution | 3840×2160@60Hz 4:2:2 |
| Secondary Stream | 1920×1080@60Hz 4:2:2 |
| Bit Rate Range | 1–60 Mbps |
| Latency | ~40 ms low-latency mode |
| Dual Streaming | Primary up to 4K@30Hz 4:2:2; Secondary up to 1080p@60Hz 4:2:2 |
| Security | HTTPS, 802.1x, OWASP-10 |
| Controls & UI | Embedded web UI; P3K API; front-panel channel selection; LINK/NET/ON indicators |
| Power | PoE+ IEEE 802.3at or optional 12V DC/5A (LPS/PS2) |
| Power Consumption | 13.6W |
| Operating Temp | 0° to +45°C (32° to 113°F), 10–90% RH non-condensing |
| Storage Temp | –20° to +70°C (–4° to +158°F), 10–90% RH non-condensing |
| Dimensions (Product) | 21.5 × 16.3 × 4.4 cm (8.5" × 6.4" × 1.72") |
| Weight (Product) | 0.9 kg (approx. 2 lb) |
| Shipping Dimensions | 34.5 × 16.5 × 5.2 cm (13.6" × 6.5" × 2.05") |
| Shipping Weight | 1.3–1.4 kg (approx. 2.8–3.1 lb) |
