Description

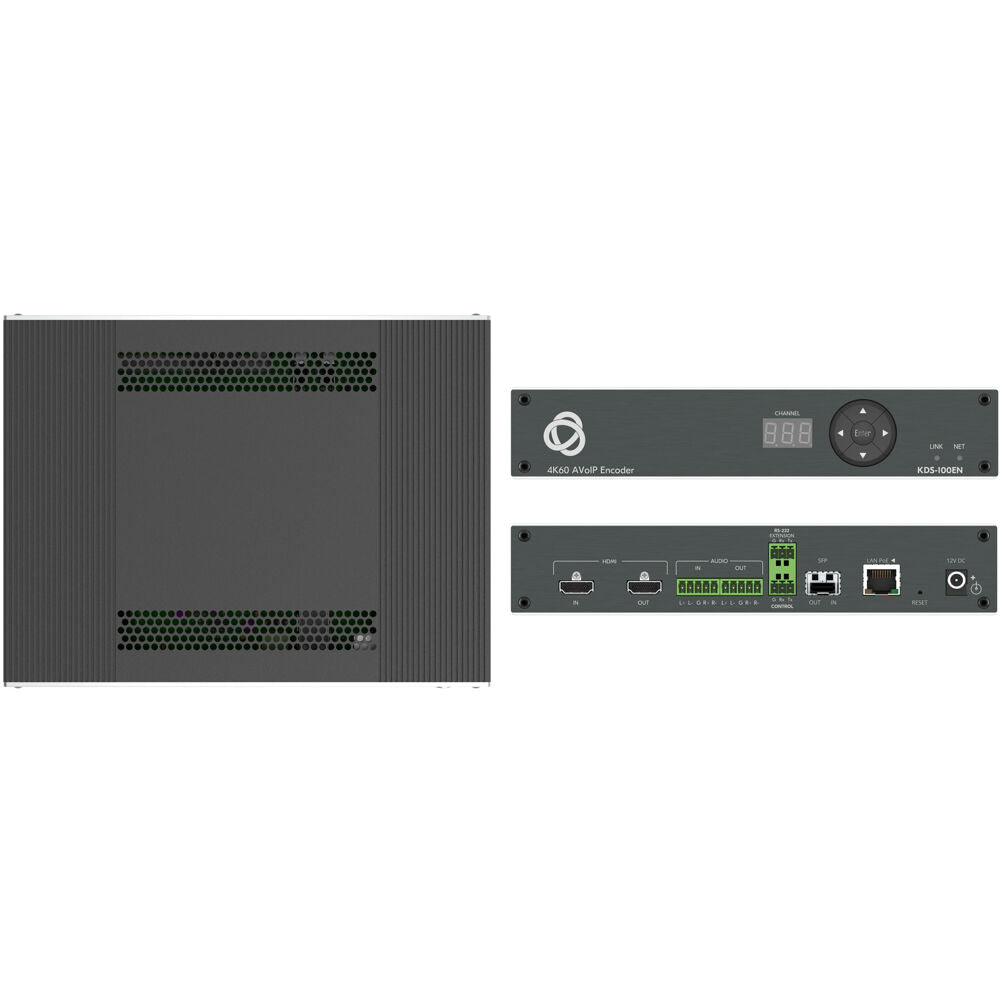

The Kramer KDS-100EN is a high-performance 4K AVoIP encoder designed for professional, scalable video distribution across standard 1GbE networks. Built on open-standard H.264/H.265 compression, it delivers exceptional image quality with seamless interoperability—ideal for enterprise AV, education, command centers, digital signage networks, and multi-room environments.
Engineered for real-time workflows, the KDS-100EN offers ultra-low ~40 ms latency, ensuring responsive interaction during live operations. Its dual-streaming architecture allows simultaneous primary and secondary feeds for monitoring, recording, overflow rooms, or collaboration setups. With built-in KVM over IP, operators can securely control remote hosts from any decoding point, enhancing productivity in distributed workspaces.
The device supports IGMP multicast, flexible streaming protocols (RTP/RTSP/SRT/RTMP/MPEG-TS), RS-232 pass-through, balanced audio, and easy channel-based routing. Integration with Kramer AVoIP Manager enables automatic device discovery, centralized configuration, and real-time system monitoring. Designed with IT-grade security—including HTTPS, 802.1X, and OWASP-10 aligned practices—this encoder is a robust and future-ready solution for modern IP-based AV ecosystems.
| Category | Details |
|---|---|
| Inputs | 1 HDMI (female); 1 Balanced Audio (5-pin terminal block) |
| Outputs | 1 HDMI (female); 1 Balanced Audio (5-pin terminal block) |
| Ports | 1 LAN (RJ-45, Media/Control, PoE+); 1 Fiber (LC, 1000BASE-SX/LX); 2× RS-232 (control & extension); 1 USB-B Host |
| Network | Multicast IGMPv2; RTP/RTSP/SRT/RTMP/MPEG-TS |
| Max Video Input/Output | 3840×2160 @ 60Hz 4:4:4 |
| Video Streaming Codec | H.264/H.265 (open standard) |
| Max Streaming Resolution | 3840×2160 @ 60Hz 4:2:2 |
| Secondary Stream Resolution | 1920×1080 @ 60Hz 4:2:2 |
| Latency | Approx. 40 ms (low latency) |
| Bitrate Range | 1–60 Mbps |
| Dual Streaming | Primary: up to 4K30 4:2:2; Secondary: up to 1080p60 4:2:2 |
| User Interface | LINK, NET, ON LEDs; front panel channel display |
| Controls | Web UI, P3K API, front-panel buttons, recessed reset |
| Power | PoE+ IEEE 802.3at; optional 12V DC/5A (LPS/PS2) |
| Power Consumption | 13.6W |
| Operating Temperature | 0°C to +45°C (32°F to 113°F), 10–90% non-condensing |
| Storage Temperature | –20°C to +70°C (–4°F to 158°F), 10–90% non-condensing |
| Product Dimensions | 21.5 × 16.3 × 4.4 cm (8.5 × 6.4 × 1.72 in) |
| Product Weight | 0.9 kg (2 lbs approx.) |
| Shipping Dimensions | 34.5 × 16.5 × 5.2 cm (13.6 × 6.5 × 2.05 in) |
| Shipping Weight | 1.3–1.4 kg (approx.) |
| Security | HTTPS, 802.1X, OWASP-10 aligned |
