Description

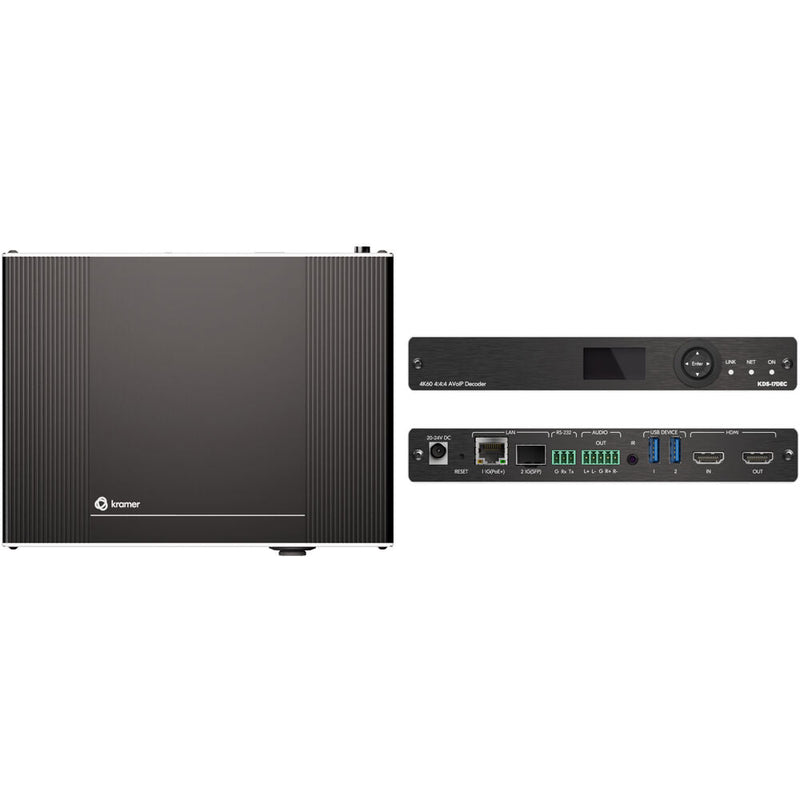

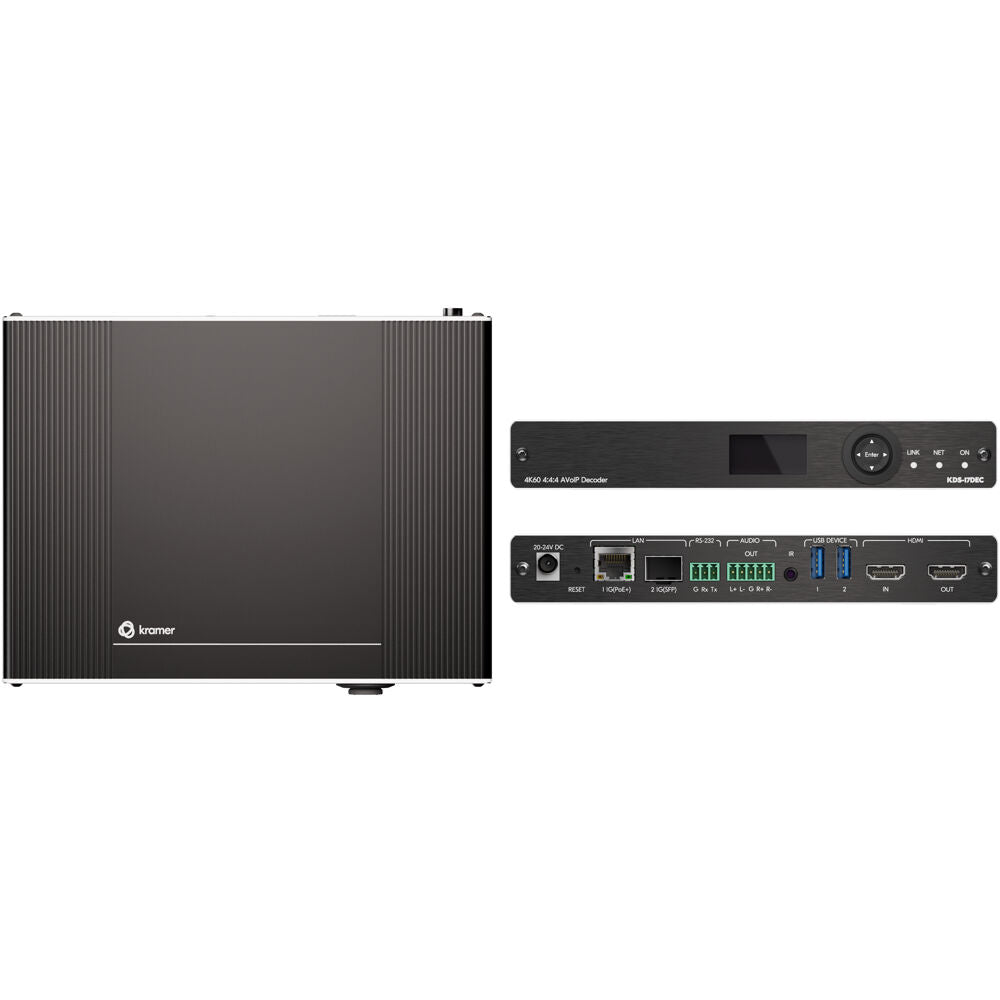

The Kramer KDS-17DEC is a high-performance 4K60 4:4:4 AVoIP decoder designed for enterprise-grade video distribution, digital signage networks, command centers, education environments, and government installations. It delivers visually lossless 4K streaming over standard Ethernet networks and supports both unicast and multicast configurations, enabling flexible and scalable deployments.
With integrated Dante digital audio, USB routing, IR, RS-232, and CEC control, the KDS-17DEC provides seamless interoperability with modern AV infrastructures. Its bandwidth-efficient streaming engine, advanced EDID handling, robust security protocols, and comprehensive management interface ensure reliable performance even in large-scale AV-over-IP deployments.
Engineered for easy integration, the decoder operates over copper or fiber, simplifying system design while ensuring exceptional video clarity, low latency, and dependable audio delivery.
| Category | Details |
|---|---|
| Video Resolution | Up to 4K@60Hz (4:4:4); HDR10 up to 4K30 4:2:2 12-bit |
| Video Compression | Visually lossless proprietary codec |
| HDCP Support | Versions 1.4 and 2.3 |
| Bitrate | Peak: 850 Mbps; 4K avg: 350 Mbps; 1080p avg: 250 Mbps |
| Inputs | 1 HDMI (female) |
| Outputs | 1 HDMI (female) |
| Network Ports | 1x RJ-45 Ethernet; 1x SFP optical/copper transceiver |
| Audio I/O | Balanced audio (5-pin terminal block) |
| Audio Formats | LPCM up to 7.1/24-bit/192 kHz; Dolby Atmos, Dolby TrueHD, Dolby Digital+, DTS-HD MA, DTS-ES, DTS 5.1 |
| Dante Audio | 2-in / 2-out audio mono channels |
| USB | 2x USB-A for USB 2.0 devices; USB hub support when paired with KDS-17EN |
| Control Ports | RS-232 (3-pin), IR (3.5 mm TRS), CEC, embedded web UI, P3K API |
| Networking | UDP multicast/unicast, IGMP snooping, Layer-2 switching |
| Security | HTTPS, 802.1x, OWASP-10, AES256 AV streaming encryption |
| Indicators | LINK, NET, ON LEDs; front panel LCD |
| Power | PoE+ (37–57V); Optional 20V DC, 6A LPS/PS2 power supply |
| Power Consumption | Typical: 10.32W; AV + USB: 20.88W |
| Operating Temperature | 0°C to +45°C (32°F to 113°F) |
| Storage Temperature | –20°C to +70°C (–4°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Regulatory Compliance | Safety: CE, FCC; Environmental: RoHS, WEEE |
| Enclosure | Mega Tool Deep, aluminum, convection-cooled |
| Product Dimensions (W x D x H) | 18.90 × 14.50 × 2.76 cm (7.44" × 5.71" × 1.09") |
| Product Weight | 0.7 kg (1.5 lb) |
| Shipping Dimensions | 31.20 × 17.90 × 7.60 cm (12.28" × 7.05" × 2.99") |
| Shipping Weight | 0.9 kg (2.1 lb) |
