Description

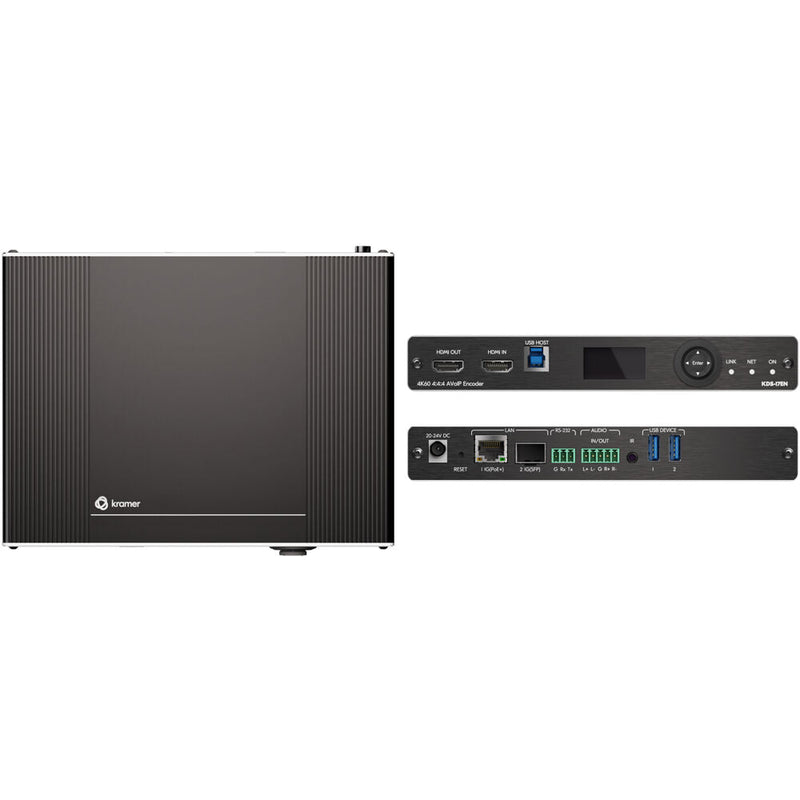

The Kramer KDS-17EN is a high-performance 4K60 4:4:4 AVoIP encoder engineered for enterprise, education, and government environments that demand uncompromising video quality and flexible deployment. Delivering visually lossless 4K content over standard Ethernet networks, it supports both unicast and multicast configurations using copper or fiber—making it ideal for scalable installations that require efficient bandwidth usage.

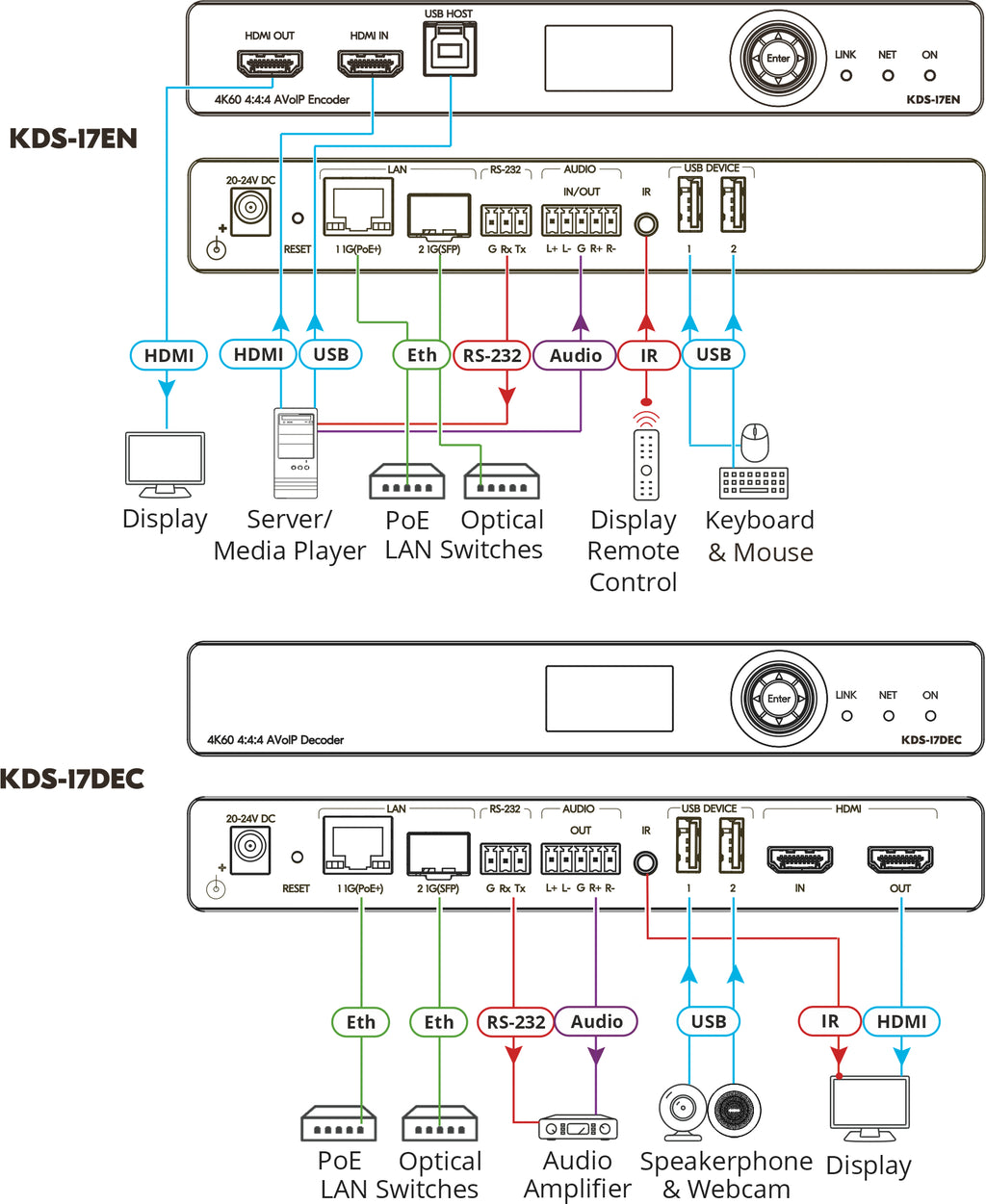

Designed to work seamlessly in modern AV infrastructures, the KDS-17EN integrates Dante audio, USB, IR, RS-232, and CEC signal transport, providing true end-to-end connectivity. Built-in management tools and intuitive control interfaces enable effortless configuration of streams, video walls, EDID, and security settings. With PoE+ support, robust aluminum construction, and advanced encryption, this encoder ensures reliable, secure, and professional AV distribution across your entire network.
| Category | Details |
|---|---|
| Input | 1 HDMI (female) |
| Output | 1 HDMI (female) |
| Ports | 1 RJ-45 Ethernet; 1 SFP optical/copper port; 1 balanced audio (5-pin); 1 RS-232 (3-pin); 1 IR (3.5mm TRS) |
| USB | 1 USB-B host (USB 3.0); 2 USB-A device ports; 1 USB hub level when paired with KDS-17DEC |
| Networking | Multicast UDP, IGMP snooping, Layer 2; Unicast UDP |
| Bitrate | Peak 850 Mbps; 4K avg 350 Mbps; 1080p avg 250 Mbps |
| Video Compression | Visually lossless proprietary codec |
| Max Resolution | 4K @ 60Hz (4:4:4) |
| HDR Support | HDR10 up to 4K30 4:2:2 12-bit |
| HDCP | HDCP 1.4 & 2.3 |
| EDID | Passthrough, output resolution, default or custom EDID |
| Audio Formats | LPCM up to 7.1/24-bit/192kHz; Dolby Atmos, TrueHD, Digital Plus, Digital EX, 5.1, 2.0; DTS-HD MA, DTS-HD, DTS-ES, DTS 5.1 |
| Dante Audio | 2 IN / 2 OUT mono channels |
| Security | HTTPS, 802.1x, OWASP-10, AES-256 streaming encryption |
| Control & UI | Web pages, P3K API, front panel navigation; LED indicators; restart & factory reset buttons |
| Power | PoE+ (37–57V); optional 20V DC 6A PSU |
| Power Consumption | Typical 9.36W; AV+USB 19.68W |
| Environmental | Operating: 0–45°C; Storage: –20–70°C; Humidity 10–90% non-condensing |
| Certifications | CE, FCC; RoHS, WEEE, UKCA |
| Enclosure | Mega Tool Deep; Aluminum; Convection-cooled |
| Dimensions (W×D×H) | 18.90 × 14.50 × 2.76 cm (7.44" × 5.71" × 1.09") |
| Weight | 0.7 kg (1.5 lbs) approx |
| Shipping Dimensions | 31.20 × 17.90 × 7.60 cm |
| Shipping Weight | 0.9 kg (2.1 lbs) approx |
