Description

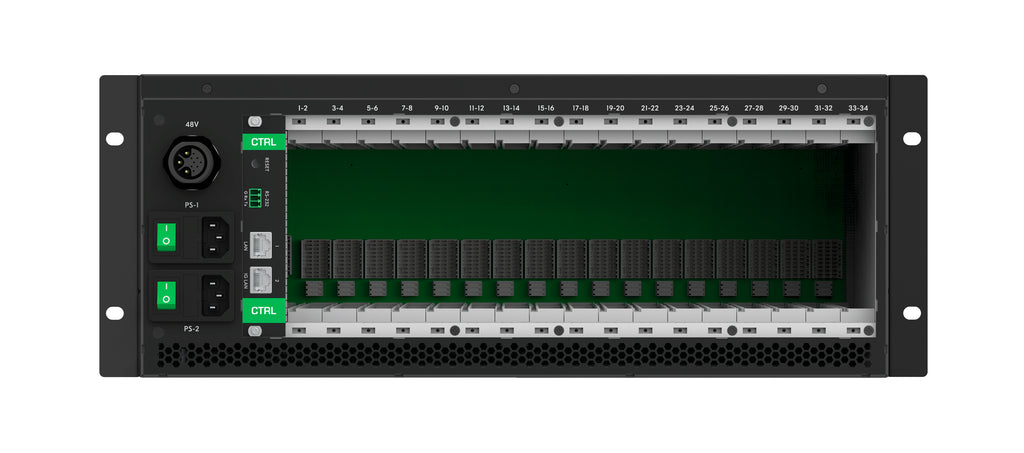

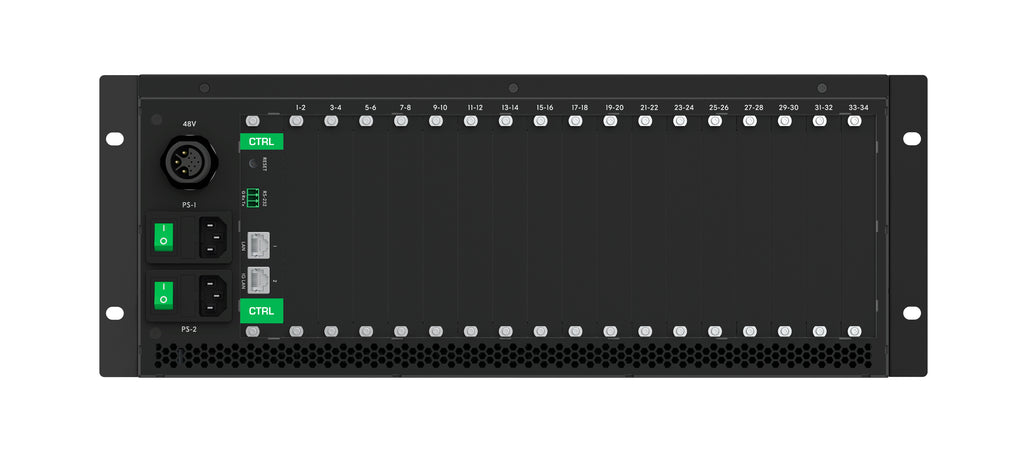

The Kramer MTX3-34-M is a high-performance 34×34 modular matrix switcher engineered for professional AV distribution in large-scale, mission-critical environments. Designed with 8K-ready architecture, it supports multi-format inputs and outputs, delivering exceptional 4K60 4:4:4 signal switching today while preparing your infrastructure for future 8K upgrades.
With seventeen flexible I/O card slots, a secure central control card, and support for HDMI™, VGA, SDI, HDBaseT, and fiber-optic interfaces, the MTX3-34-M ensures unmatched interoperability and system scalability. Its I-EDIDPro™ intelligent EDID processing, equalization and re-Klocking™ technology, and robust signal integrity preservation enable reliable long-distance distribution across copper and fiber networks.
Engineered for enterprise-grade management, the unit supports remote control via Kramer Control, web-UI access, RS-232, and front-panel touch operation, including preset recall and configuration switching. With built-in OWASP-10 security compliance, optional redundant power supplies, and a low-noise, field-serviceable fan module, the MTX3-34-M delivers secure and continuous performance for AV deployments that cannot afford downtime.
Ideal for corporate command centers, broadcast facilities, education, defense applications, and high-demand matrix routing environments, the MTX3-34-M offers the flexibility, reliability, and future-proofing required for modern AV infrastructures.
| Category | Specification |
|---|---|
| Matrix Size | 34×34 modular AV matrix |
| Supported Formats | HDMI™, VGA, SDI, analog & digital audio, HDBaseT, fiber optic |
| Max Video Resolution | 4K60 4:4:4; 8K-ready architecture |
| Signal Standards | HDMI 2.0, HDCP 2.2 compliant |
| EDID Handling | I-EDIDPro™ Intelligent EDID Processing |
| Signal Integrity | Kramer Equalization & re-Klocking™ technology |
| Control Interfaces | 1G Ethernet (LAN), 100Mbps Ethernet (service), RS-232, front panel with LCD, web-UI, Kramer Control |
| RS-232 Specs | 9600–115200 baud, 8-N-1, ASCII |
| Backplane Data Rate | AV: 50Gbps per port; Ethernet: 1Gbps |
| Card Slots | 1 control card, 17 I/O card slots |
| Cooling | Forced-air cooling with 3 fans |
| Power | 100–240V AC, 50/60Hz, 2.2A max |
| Environmental | Operating: 0° to +40°C; Storage: –40° to +70°C; Humidity: 10–90% non-condensing |
| Compliance | CE, FCC, UKCA, RoHS, WEEE |
| Dimensions (W × D × H) | 19" × 14.17" × 4U (43.6cm × 36.0cm × 17.7cm) |
| Weight | Approx. 6.7kg (14.8lbs) |
| Accessories Included | 2× power cords |
