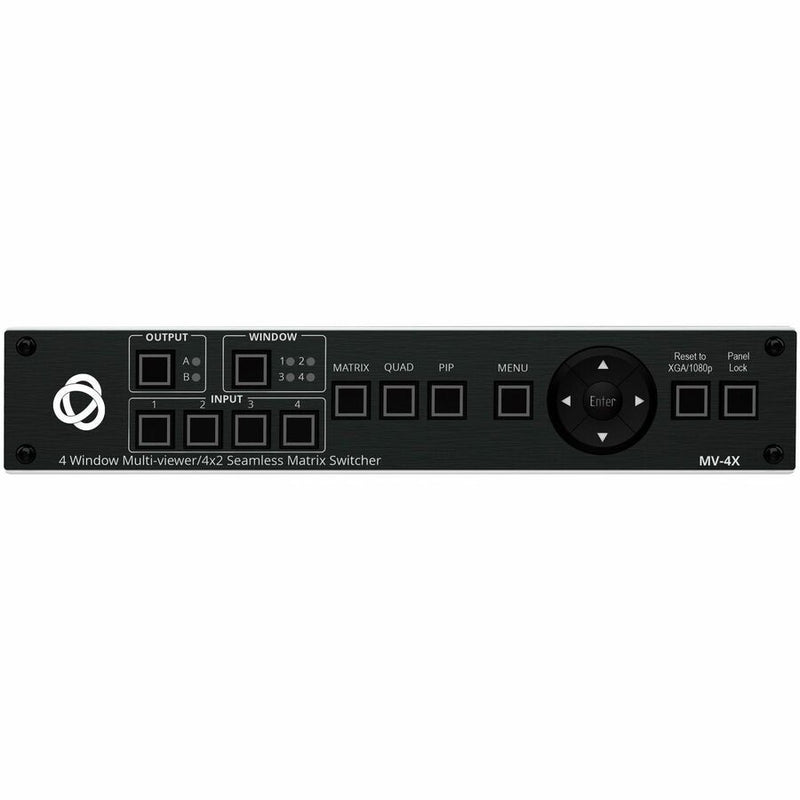

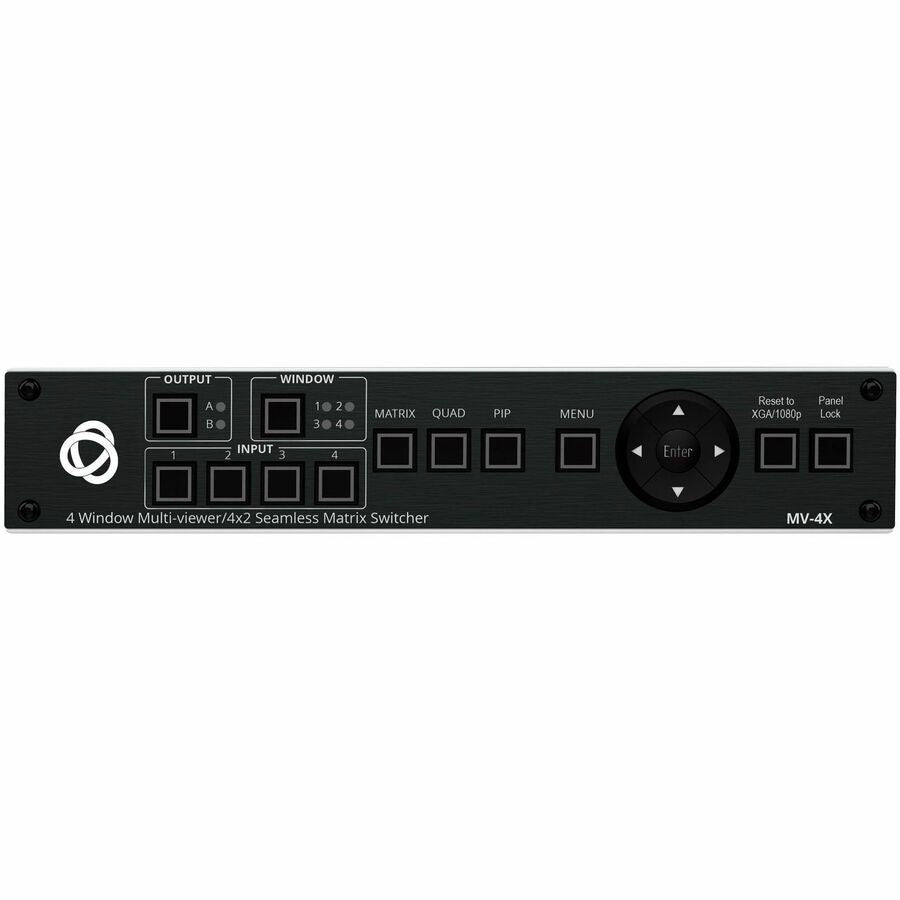

Kramer 4 Window Multi-viewer/4x2 Seamless Matrix Switcher

MV-4X is a high-performance HDMI matrix switcher with integrated scaling technology and multi-windowing options. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@60Hz 4:4:4 and LPCM audio up to 7.1 channels and 192kHz are supported on both inputs and outputs. In addition, MV-4X is fully compatible with the HDCP 1.x and 2.3 standards.

The product offers 2 outputs - HDMI and HDBT. Users can choose to display any of the four HDMI sources individually, in full screen, or in a variety of multi-window modes that include quad mode, PiP, and PoP on both outputs. Alternatively, MV-4X offers a seamless (zero-time video cut) 4x2 matrix switcher option. The product also supports chroma-keying and includes a logo overlay feature.

You can control and manage the MV-4X, including the input/window routing, position, and size via the front panel OSD buttons, Ethernet (with embedded webpages), and RS-232.

• High Performance Multi-Viewer - 18G 4K HDMI product with 4 HDMI inputs and HDBT and HDMI outputs that supports HDMI up to 4K@50/60Hz 4:4:4 and HDBT up to 4K@50/60Hz 4:2:0.


• Zero-Time Video Cuts - Connect up to four HDMI sources, an HDMI and an HDBT sink, and seamlessly switch between them.


• HDMI Support - HDR10, CEC (for outputs only), 4K@60Hz, Y420, BT.2020, Deep Color (for inputs only), x.v.Color™, 7.1 PCM, Dolby TrueHD, DTS-HD, as specified in HDMI 2.0.


• Content Protection - Supports HDCP 2.3.


• Chroma Keying Support - select to key the video input using a uniform-colored background.


• Includes numerous filters and algorithms that eliminate picture artifacts.


• Matrix Switching - Truly seamless zero time 4x2 switching in Matrix mode.


• Multiple Display Options - Display any of 4 HDMI sources individually, full screen, with seamless switching in Matrix mode. Or choose to display the sources using multi-window modes such as fully customizable standard views like PiP (Picture in Picture) and PoP (Picture outside of Picture) as well as Quad-window modes.


• 4 Preset Memory Locations - Supports storage of multi-window arrangements as a preset for later use.


• Auto Layout Support - Auto-window mode that automatically changes the number of visible windows based on the number of live sources.


• Independent audio source selection in all modes.


• Image Rotation - 90, 180 and 270-degree rotation support for 4K output resolutions on input 1 in matrix mode.


• Selectable Border Design - Each window can have a border with a selectable color.


• Logo Support - Upload and freely position graphic logo overlay as well as a boot screen logo.


• Multi-view window Setup - Intuitive and easy adjustment of window size, position, and settings.


• User-friendly Control - Via the built-in WebGUI, as well via the OSD-driven front-panel switches.


• EDID Management - Per-input EDID management with internal or external EDID options.


• Local Monitor View - Matrix mode is ideal for applications where the user requires a local monitor to view the image on the display before switching it to the remote display.

APPLICATIONS

• Meeting rooms - Allows users to show multiple presentations simultaneously.


• Distance learning classrooms - Enables to show the main picture content, while the teacher shows in the Picture-in-picture (PiP) window.


• Medical - Quad view for operating theatres.


• Shopping malls and residential - Shows multiple images at the same time.


• Video editing, post production and applications that require chroma keying.


  • Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources


  • Trouble free connection with display


  • Enjoy watching any class of content on 3840 x 2160 resolution
