Description

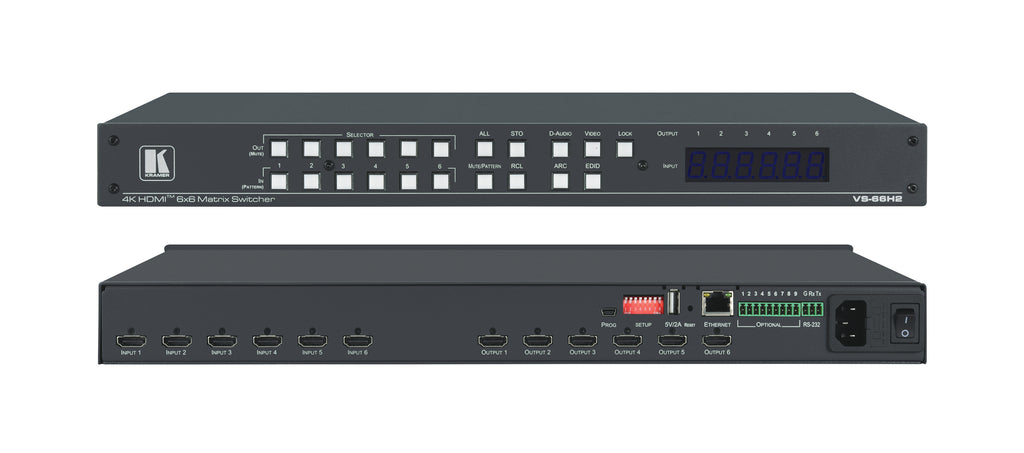

The Kramer VS-66H2 is a professional-grade 6×6 HDMI matrix switcher built for high-performance 4K AV routing in conference rooms, control centers, classrooms, digital signage networks, and multi-display environments. It allows six independent HDMI sources to be routed to six HDMI displays with clean, seamless switching and advanced EDID management for fully optimized interoperability.
Engineered for stability and flexibility, the VS-66H2 supports 4K@60Hz (4:4:4) video, HDCP 2.2, deep color, 3D, ARC, and up to 7.1-channel uncompressed audio. Its integrated 16×16 audio matrix enables audio breakaway, extraction, and routing—including ARC return from displays—giving you complete control over both video and audio distribution.
With intuitive front-panel controls, secure browser-based management, IP/RS-232 control, and built-in diagnostic tools, the VS-66H2 provides a robust, scalable switching solution ready for any professional AV deployment. Designed for easy installation, it fits a standard 19” rack in 1U height and operates reliably with fan-cooled ventilation.
| Category | Details |
|---|---|
| Inputs | 6 HDMI (female) |
| Outputs | 6 HDMI (female) |
| Control Ports | 1 Ethernet (RJ-45), 1 RS-232 (3-pin terminal block), 1 USB mini-B (firmware), 1 USB-A 5V/2A |
| Max Video Resolution | 4K@60Hz (4:4:4) |
| Max Data Rate | 18Gbps (6Gbps per channel) |
| Compliance & Features | HDMI 2.0, HDCP 2.2, Deep Color, 3D, ARC, up to 7.1-channel audio |
| Switching Time | 3 sec (standard), 4 sec (safe mode) |
| Audio Matrix | 16×16 with breakaway & ARC routing |
| Control Options | Front-panel buttons, browser-based UI, IP/RS-232 commands |
| Indicators | 7-segment display |
| Power | 100–240V AC, 50/60Hz; 66VA consumption |
| Enclosure | 19" rackmount, 1U aluminum; fan-ventilated (46 dBA max) |
| Operating Conditions | 0° to +40°C; 10–90% RH non-condensing |
| Dimensions (W×D×H) | 43.6 × 18.3 × 4.4 cm (17.18" × 7.20" × 1.72") |
| Weight | 2.4–2.5 kg (approx.) |
| Included Accessories | Rack ears, power cord |
