Description

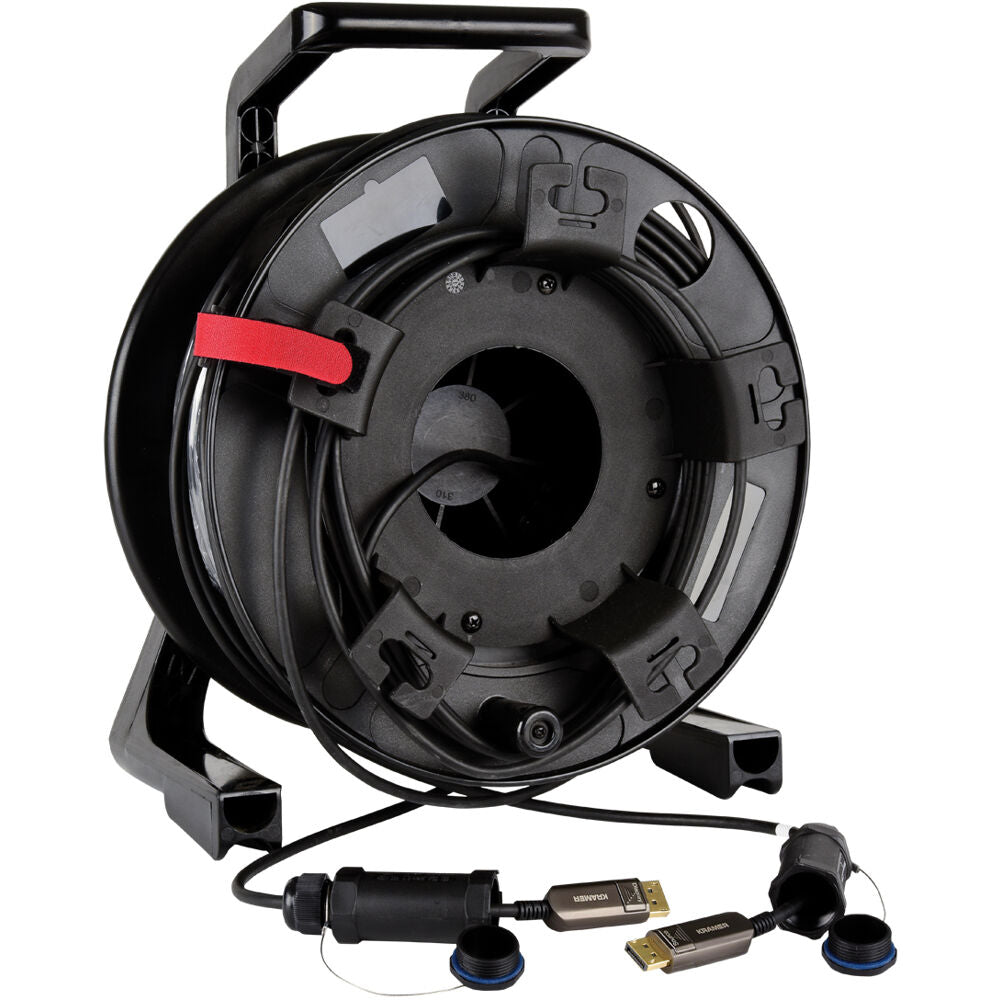

The Kramer CRS-PlugNView-DP-262 is a premium Active Optical Armored DisplayPort cable engineered for long-distance 4K signal extension in demanding commercial, rental, and touring environments. Designed with hybrid optical fiber and a reinforced stainless-steel/Kevlar® armored structure, this cable delivers uncompromising durability while maintaining exceptional signal integrity over its full 262 ft (80 m) length.
Supporting 4K@60Hz, 18 Gbps bandwidth, HDR formats, deep color, and advanced EDID/CEC signaling, the CRS-PlugNView-DP-262 ensures high-performance connectivity for mission-critical AV systems. No external power supply is required—the active units draw minimal power directly from the DisplayPort interface. Heavy-duty connector housings, impact-resistant covers, and a rugged TPU LSHF jacket make this cable ideal for installations, staging, and large-scale AV deployments that demand reliability under extreme conditions.
| Category | Specification |
|---|---|
| Video Performance | Up to 4K @ 60Hz (4:4:4), 18 Gbps throughput |
| Supported Color Spaces | RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020 |
| DisplayPort Support | HDR-10, HLG, Dolby Vision™, EDID, CEC |
| Audio Support | Dolby® Digital Plus, TrueHD, DTS-HD Master Audio®, DVD-Audio, SA-CD |
| Connector Type | Male DisplayPort (source) to Male DisplayPort (display), gold-plated |
| Cable Type | Hybrid Active Optical Cable (AOC) |
| Fiber / Armor Structure | OM3 50/125µm fiber, stainless-steel armor, Kevlar® reinforcement |
| Durability Ratings | Long-term crush: 1000N; Short-term crush: 2000N |
| Tensile Strength | Long-term: 400N; Short-term: 800N |
| Bending Radius | 10D dynamic / 20D static |
| Jacket Material | TPU, LSHF, black |
| Cable Diameter | 5.8 mm |
| Power Requirement | No external power; 0.25W max from DisplayPort source |
| Environmental (Operation) | +32°F to +122°F (0°C to +50°C); Humidity 10–80% |
| Environmental (Storage) | −40°F to +158°F (−40°C to +70°C) |
| Regulatory Compliance | CE, FCC, RoHS 2011/65/EU |
| Product Weight | Approx. 11.5 lbs (based on spool design) |
| Length | 262 ft (80 m) |
