Description

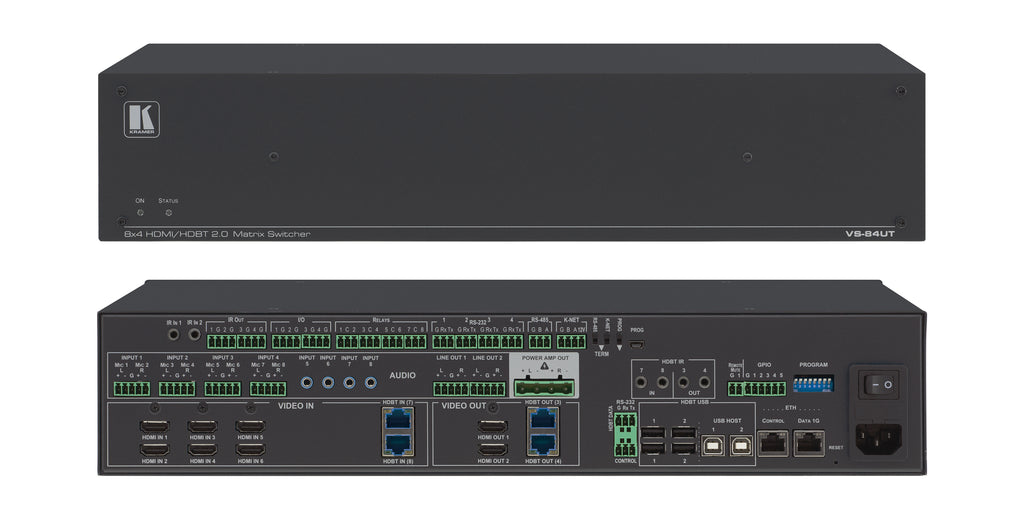

The Kramer VS-84UT/110V is an all-in-one 8x4 presentation system engineered for classrooms, conference rooms, and enterprise AV environments requiring seamless switching, advanced control, and long-reach signal extension. Delivering 4K60 (4:2:0) HDMI and HDBaseT 2.0 matrix switching, it integrates video routing, audio embedding/extraction, USB extension, device control, PoE power delivery, and a built-in power amplifier—streamlining system design into a single, powerful chassis.
This versatile matrix features 6 HDMI inputs, 2 HDBaseT inputs, 2 HDMI outputs, and 2 HDBaseT outputs that extend 4K/60 up to 100 meters and Full HD even farther. It supports audio breakaway, balanced/unbalanced I/O, microphone inputs, and a 50W x2 power-amplified output for direct speaker connection.

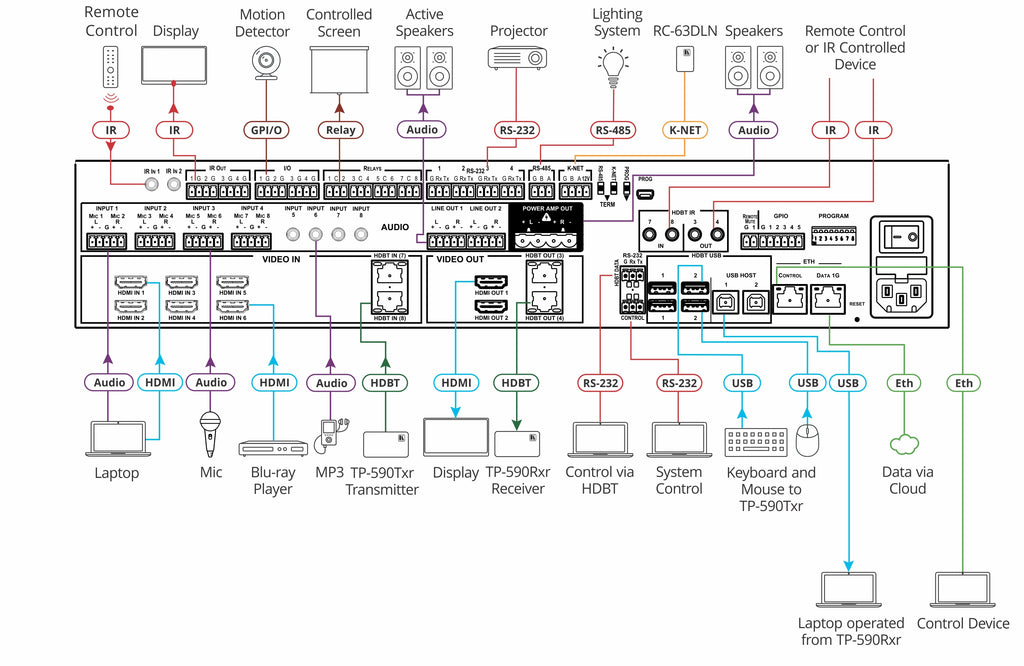

The integrated master room controller provides extensive automation and control with RS-232, RS-485, IR, relays, GPI/O, K-NET, and Ethernet—allowing you to manage displays, screens, lighting, sensors, AV devices, and more from one centralized system. USB 1.1/2.0 extension and PoE on HDBaseT outputs add further deployment flexibility.
Designed for large, demanding installations, the VS-84UT/110V is a complete AV routing, distribution, audio handling, and control solution in a single 19″ rack-mountable unit.
| Category | Details |
|---|---|
| Inputs | 6 HDMI; 2 HDBaseT; 4 unbalanced stereo audio; 4 balanced stereo / 8 mic (selectable); IR ports |
| Outputs | 2 HDMI; 2 HDBaseT; 2 balanced stereo audio; 1 amplified stereo speaker output (2×50W @ 4Ω); IR ports |
| Control Ports | RS-232 (tunneling & device control), RS-485, 4× RS-232 (room controller), 4× GPI/O, 8 relays, K-NET, Ethernet (control & tunneling), USB-A ×4, USB-B ×2 |
| Video Performance | Max resolution: 4K60 (4:2:0); Max data rate: 10.2Gbps; HDCP 1.4 compliant; Deep Color, 3D |
| Signal Extension | 100m @ 4K60 (4:2:0); 130m @ 1080p (36bpp); 180m @ 1080p (24bpp, Ultra Mode) |
| USB Extension | USB 1.1 & 2.0, up to 127Mbps; max 7 devices, 2 hubs |
| Ethernet Extension | Up to 100Mbps |
| Audio Specs | Max Vrms: 1; THD+N: 0.03% @ 1kHz |
| Power | 100–240V AC, 50/60Hz; 200VA consumption |
| Enclosure | 19" rack-mount, 2U; aluminum; fan-cooled |
| Dimensions (W × D × H) | 17.20" × 12.05" × 3.46" (43.69 × 30.60 × 8.80 cm) |
| Weight | 3.9kg (8.6 lbs) approx |
| Operating Conditions | 0°C to +40°C; 10–90% RH (non-condensing) |
| Regulatory | CE, UL; RoHS, WEEE |
| Included Accessories | Power cord |
