Description

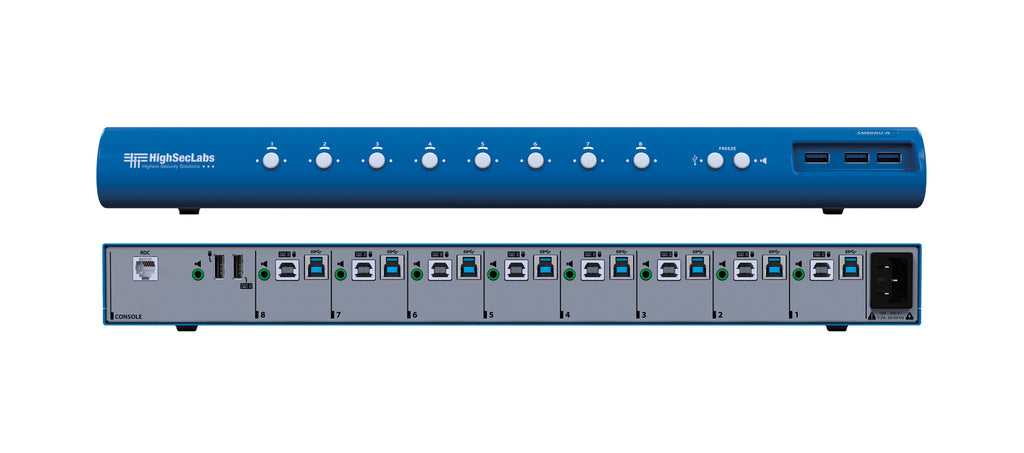

The Kramer HighSecLabs SM80NU-N is an advanced 8-port KM (Keyboard–Mouse) switch designed for secure, efficient, and seamless control across multiple isolated computers or networks. Ideal for high-security, multi-system workflows, it enables users to move between up to eight computers simply by dragging the mouse cursor across displays—delivering intuitive, smooth, and latency-free switching.
Built with Virtual Display Technology, the SM80NU-N supports flexible multi-monitor layouts, allowing operators to align switching logic with the physical arrangement of displays. Productivity is enhanced with secure copy-and-paste functionality for text and files between connected systems, without requiring network connectivity between them.
SuperSpeed USB 3.0 ports provide rapid data transfer and peripheral sharing, while the high-power USB port supports fast charging for connected devices. With robust construction, wide OS compatibility, and strict security certification, the SM80NU-N is engineered for demanding government, defense, command-and-control, and enterprise environments requiring uncompromising workflow security.
| Category | Details |
|---|---|
| Product Type | 8-Port Secure KM Switch |
| Console Ports | 2 × USB-A (keyboard/mouse); 3 × USB-A 3.0 (USB devices); 1 × 3.5mm stereo audio; 1 × RJ45 (RDC control) |
| Computer Ports | 8 × USB-B (keyboard/mouse); 8 × USB-B 3.0 (USB devices); 8 × 3.5mm stereo audio |
| Features | Virtual Display Technology cursor-based switching; copy & paste between computers; USB 3.0 SuperSpeed transfer; high-power USB charging |
| Power Consumption | 35W max |
| AC Input | 100–240V AC |
| Power Type | Internal |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −20°C to +60°C (−4°F to 140°F) |
| Humidity | 0%–80%, non-condensing |
| Supported OS | Windows, Linux, Mac |
| Certifications | CE, RCM, FCC Class B, VCCI, TUV US, TUV Canada |
| Product Life-Cycle | 10 years |
| Dimensions (W × D × H) | 44.00 × 19.20 × 4.80 cm (17.32" × 7.56" × 1.89") |
| Weight | 2.4 kg (5.3 lbs) approx |
| Shipping Dimensions | 52.50 × 27.50 × 11.00 cm (20.67" × 10.83" × 4.33") |
| Shipping Weight | 3.1 kg (6.8 lbs) approx |
