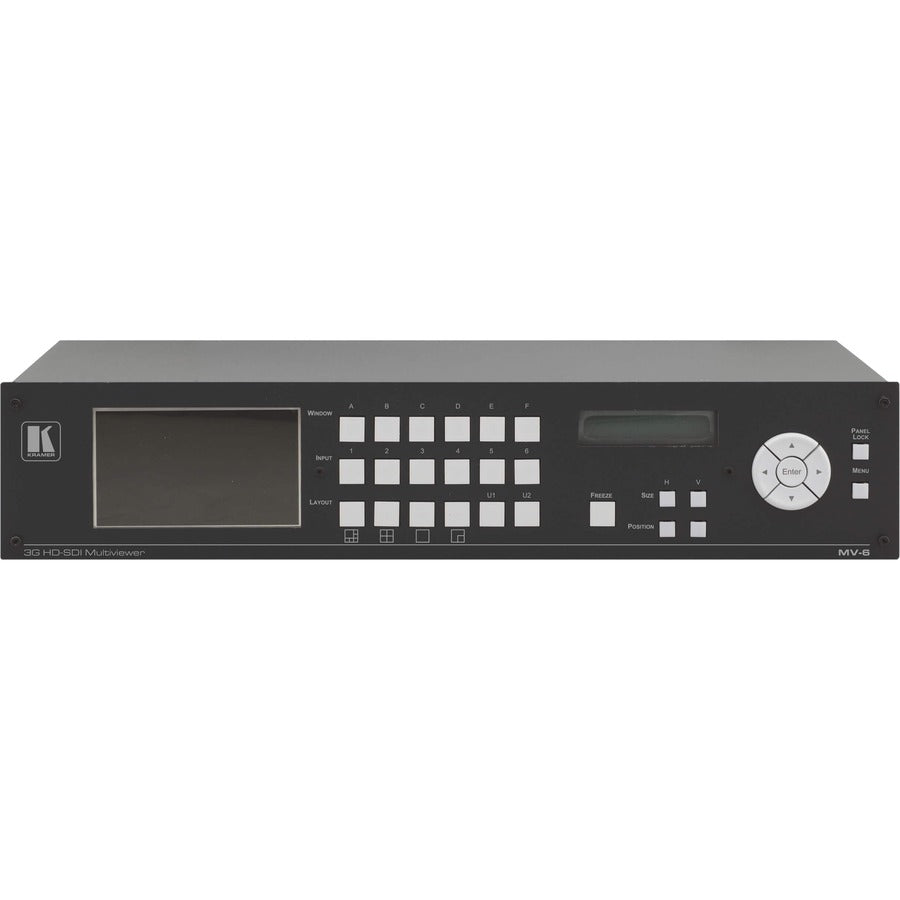

Kramer MV-6 3G HD-SDI Multiviewer

Kramer MV-6 3G HD-SDI Multiviewer

The MV-6 is a versatile, high-performance multiviewer for 3G HD-SDI video signals. The device can display up to six inputs in any combination and output the image in SDI, HDMI and CV formats. Both pre-programmed and customizable screen divisions are supported. The MV-6-MD is certified for medical applications.

• Max. Data Rate - 3Gbps.
• HDTV Compatible.
• Standards Compliance - Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility).
• Kramer re-Klocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
• Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
• Re-Clocking Looping Inputs.
• Multi-Video Output Formats - 3G HD-SDI (SMPTE 424M), HDMI and composite, scaling, refresh rate and video standard conversion.
• Front Panel Preview Screen - 16:9 4.3in color LCD displaying the output of the unit.
• Text Overlay - A text label/icon can be added inside each window. Each label has text/background color, alignment, size, etc settings.
• Screen Handling Buttons - Freeze, size, position, and 4 pre-programmed and 2 user-definable layouts.
• Flexible Control Options - Front panel with 2-row LCD, OSD, Ethernet & RS-232 (supplied with PC control software).
• Worldwide Power Supply - 100-240V AC.

APPLICATIONS

• Professional broadcasting and production studios.
• Presentation applications.

• Use this audio video switchbox and eliminate the need to manually switch cables between sources


• Quickly and easily connect with the display


• Enjoy watching any class of content on 1920 x 1080 resolution
