KVM MANAGER IPATH CONTROLLER - (24) ENDPOINTS, TAA

Save $33.01
BLACK BOXSKU: ACR1000A-CTLR2-24
LG Authorized exclamation What makes this a Top Quality Store?

Stores earn Googleā€™s Top Quality Store badge by offering a positive experience for customers. This may include the offer of fast shipping and easy returns, positive user ratings, and other factors. Learn more


Price:
Sale price$6,392.99 Regular price$6,426.00

Shipping calculated at checkout

Stock:
Only 0 units left

Estimate shipping

Description

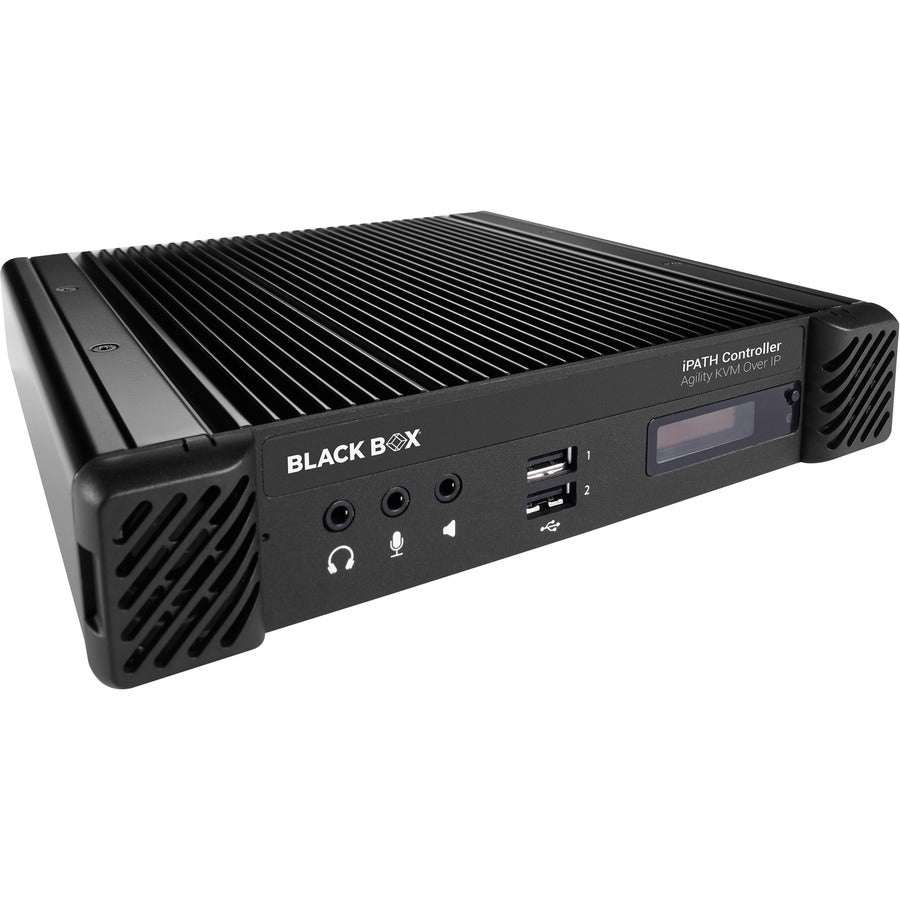

Black Box KVM Manager iPATH Controller

The iPath Controller helps to build and manage an Agility IP-Based KVM Switching and Extension Network. The controller connects multiple Agility extender units and allows to combine cross-point switching and point-to-point extension to build a KVM matrix system that works over a local area network (LAN). The iPATH management system controls transmitters, receivers, users, passwords, and access rights over a single IP network.

If combined and managed by iPath, Agility transmitter and receiver units allow multiple users to access multiple host computers hosted in a secure, central location. The iPATH Agility Controller centrally manages these connections. Using the intuitive iPATH web-based interface, one or more administrators can manage potentially thousands of users who are interacting with an almost unlimited number of devices.

With support for pixel-perfect HD video, audio, USB, and serial signals, the IP-based Agility KVM matrix switching system is extremely flexible in terms of adding additional user stations and computers as the need arises. Since it uses standard Ethernet protocol (i.e. a managed IP switch) to operate, no proprietary technology is used to enable switching. This facilitates both the implementation and future management of the KVM network.

Easy to Configure, Deploy, and Operate
iPATH operates as a self-contained compact server (including its own DHCP server) unit that can be situated anywhere within your network of Agility devices. It is supplied pre-loaded and is straightforward to deploy, requiring only a network connection and a power input to begin operation. All configuration of your Agility local units (channels), remote units, and users are performed using the intuitive iPATH browser interface via a network-connected computer.

Each Channel is a Virtual Transmitter
In most cases, video, audio, and USB streams will originate from a single transmitter. However, with iPATH, you can arrange for the video and USB streams to come from one source, and audio to stream from another source. You could also have two channels coming from a host computer with different access rights.

Groups Facilitate Administration
To accommodate potentially large numbers of users and devices, iPATH uses a system of groups: User Groups, Receiver Groups, and Channel Groups. Groups enable the system administrators to apply collective settings to all members, and for those members to benefit from settings and permissions in other groups where appropriate. This saves administrators time.

Active Directory Support
To streamline administration further, iPATH supports Active Directory. By synchronizing with an LDAP/Active Directory server, users' details (including usernames, passwords, and group memberships) can be securely synchronized from existing databases. This minimizes initial configurations and streamlines ongoing updates.

Administration Rights
System administrators are able to add, edit, and remove users, passwords, and access rights via the Agility iPATH Controller. Also, the admin can designate a hotkey sequence that users use to log in to the system. Once users are logged in, they are able to see a list of target computers that are available to them. The admin can see who is actively logged into the system, and also force a user to switch to a specific target.


  • Manage and control multiple Agility transmitters, receivers, users, passwords, and access rights over a single IP network

  • Software is pre-loaded for easy setup

  • Configure and operate via an intuitive web interface

  • Uses standard Ethernet protocol

  • Place the self-contained DHCP server anywhere on the network for convenient access
