Description

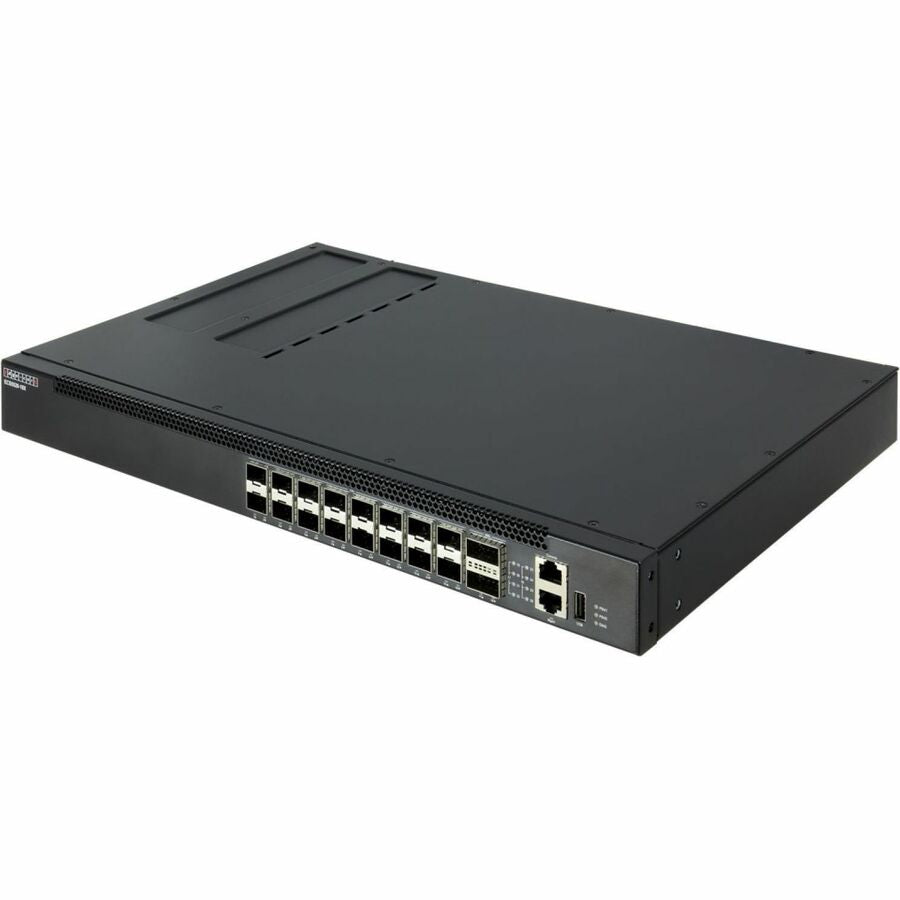

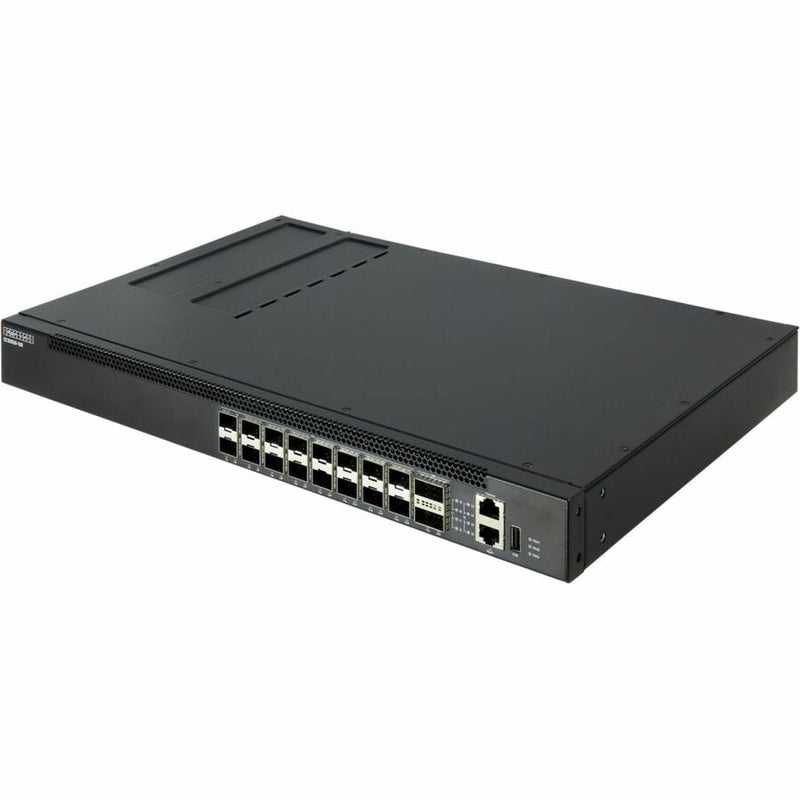

The Edgecore ECS5520-18X is a high-performance Layer 2+/Lite Layer 3 managed 10 Gigabit Ethernet aggregation switch designed for carrier, enterprise, and small data center environments. Equipped with 16× 10G SFP+ ports and 2× 40G QSFP+ uplinks, it delivers a powerful 480 Gbps switching capacity and 357 Mpps forwarding rate for exceptional network performance.
Perfect for top-of-rack or aggregation deployments, the ECS5520-18X offers wire-speed switching, advanced IPv6 capabilities, robust security, and comprehensive QoS for voice, video, and data applications. Dual hot-swappable power supplies and intelligent fan control ensure high availability and stable operation in mission-critical environments.
With advanced Layer 2+ features such as VLAN segmentation, link aggregation (LACP), Ethernet Ring Protection (G.8032), and multicast control, this switch provides enterprise-grade reliability and scalability. Administrators benefit from intuitive web-based management, CLI access, and SNMPv3 support for seamless network configuration and monitoring.
| Specification | Details |
|---|---|
| Model | Edgecore ECS5520-18X |
| Switching Capacity | 480 Gbps |
| Forwarding Rate | 357.12 Mpps |

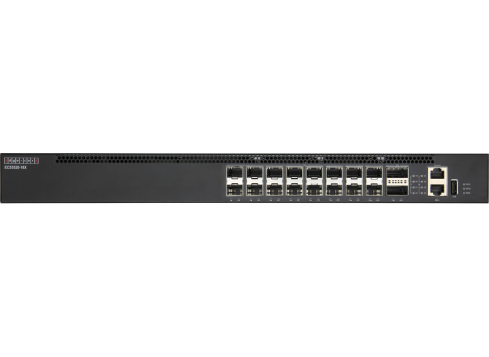

| Ports | 16 × 10G SFP+ ports, 2 × 40G QSFP+ uplink ports |
| Management Ports | 1 × RJ-45 console, 1 × GE out-of-band, 1 × USB |
| Memory | 2 GB DRAM, 1 GB NAND + 32 MB SPI NOR flash |
| MAC Address Table | 64K entries (shared L2/L3) |
| Jumbo Frame Size | Up to 10 KB |
| Performance Features | IEEE 802.3ad LACP, RSTP/MSTP, MLAG, Q-in-Q, IGMP snooping v1/v2/v3 |
| QoS Features | 8 queues per port, 802.1p/DSCP classification, WRR and strict priority scheduling |
| Security Features | 802.1X authentication, DHCP snooping, IP Source Guard, Dynamic ARP Inspection, ACLs, RADIUS and TACACS+ support |
| IPv6 Support | IPv4/IPv6 dual stack, DHCPv6 snooping, RA Guard, MLD snooping v1/v2 |
| Power Supply | 1× AC (100–240 VAC, 50/60 Hz), optional 2nd for redundancy; optional DC module (–36 to –72 VDC) |
| Max Power Consumption | 132 W |

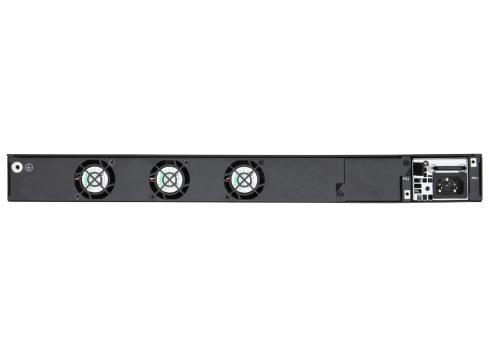

| Airflow | Front-to-back with automatic fan speed control |
| Dimensions (W×D×H) | 43.84 × 28 × 4.34 cm |
| Weight | 3.9 kg (8.6 lb) with 1 PSU |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | –40 °C to 70 °C |
| Humidity (non-condensing) | 5 % to 95 % |
| Certifications | FCC Class A, CE, UL, CB, RoHS, WEEE |
| Warranty | 3-year hardware warranty |
