Description

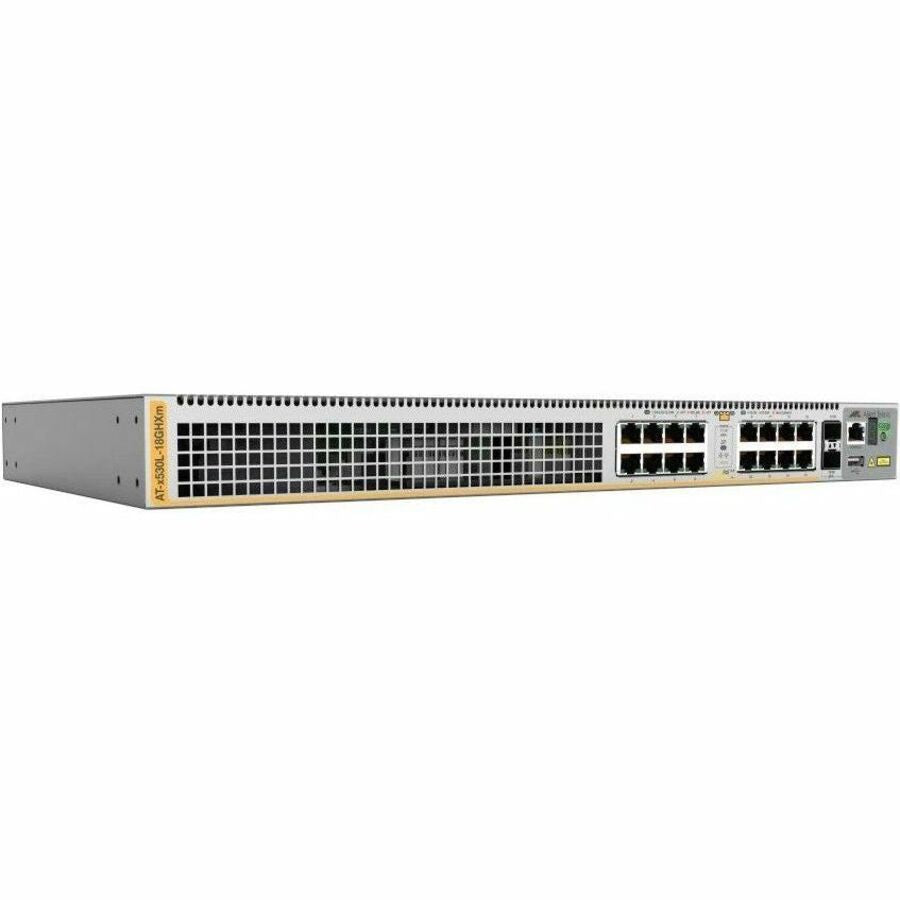

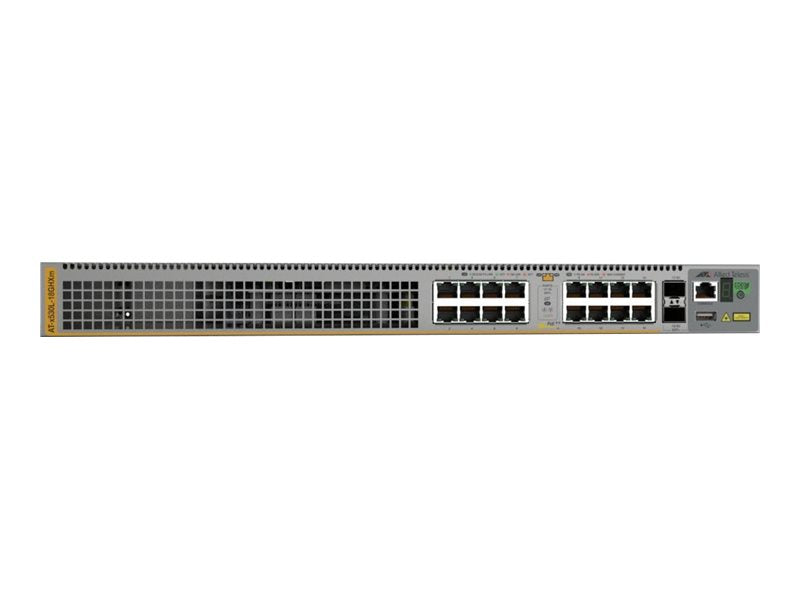

The Allied Telesis x530L-18GHXm is a high-performance Layer 3 managed switch designed for high-speed enterprise access, distribution, or small-core network applications. Featuring 16 Multi-Gigabit RJ-45 ports (100M/1G/2.5G/5G) with PoE++ support (up to 720W) and 2 x 1/10 Gigabit SFP+ uplink ports, this switch ensures flexible connectivity and power delivery for next-generation devices.
Housed in a 1U rack-mountable form factor, it supports a rich feature set including VCStack™, EPSRing™, SDN, comprehensive routing protocols, and enhanced security options. With AlliedWare Plus™ at its core, the x530L-18GHXm is a future-proof and scalable networking solution ideal for enterprise and industrial environments.
| Specification | Details |
|---|---|
| Model | AT x530L-18GHXm |
| Device Type | Managed Layer 3 Switch |
| Ports | 16 x 100/1000/2.5G/5G (PoE++) RJ-45 + 2 x 1G/10G SFP+ uplinks |
| PoE Budget | 720 W (PoE++) |
| Switching Capacity | 200 Gbps |
| Forwarding Rate | 148.8 Mpps |
| Stacking Support | Up to 8 units, 40 Gbps stacking bandwidth |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | Up to 10 KB |
| Dimensions (W x D x H) | 44.1 cm x 25.6 cm x 4.4 cm |
| Weight | 4.3 kg (shipping: 5.98 kg) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Humidity (operating/storage) | 5%–90% / 5%–95% non-condensing |
| Power Input | Internal PSU, 100–240V AC, 50/60 Hz |
| Remote Management | CLI, SNMP v1/2c/3, SSH, Telnet, HTTP(S), RMON, SFTP, TACACS+, etc. |
| Routing Protocols | BGP, OSPF, RIP, VRRP, static, policy-based routing, IPv6 supported |
| Security | IEEE 802.1x, MAC authentication, DoS prevention, DHCP snooping, NAC |
| Compliance & Standards | IEEE 802.x, FIPS 140-2, FCC Class A, UL, RoHS, EN, VCCI, ICES, etc. |
| Software | AlliedWare Plus |
| Warranty | 5-year limited warranty |
