Description

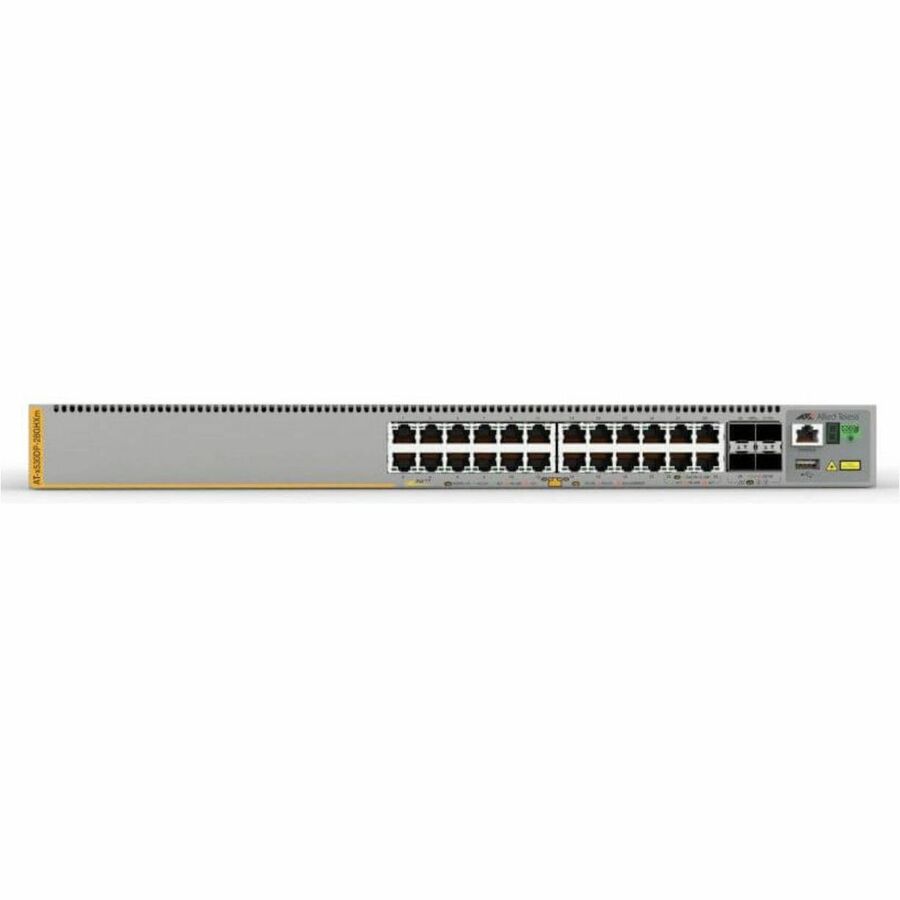

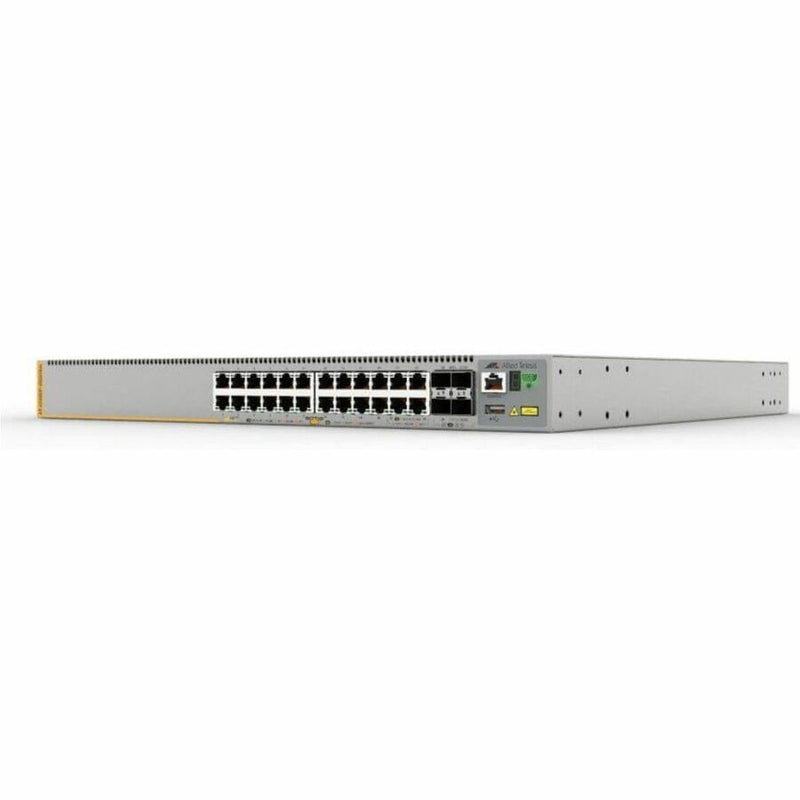

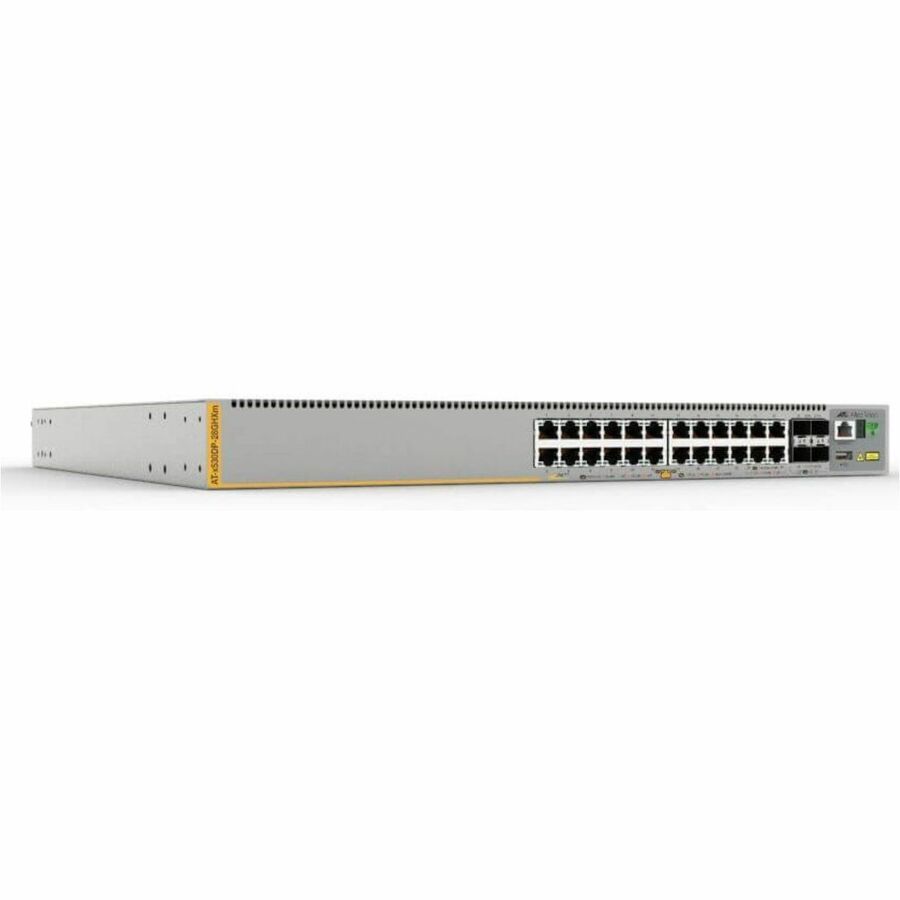

The Allied Telesis x530DP-28GHXm is a high-performance, stackable Layer 3 switch built for modern enterprise, campus, and distribution networks. It features 20 x 10/100/1000Base-T PoE++ ports, 4 x 5GBase-T PoE++ ports, and 4 x 10G SFP+ uplink slots, delivering exceptional speed, resiliency, and power flexibility with a massive 1480W PoE budget.
The x530DP-28GHXm supports advanced features like VCStack™, AWC Smart Connect, and Vista Manager EX, offering seamless network automation, monitoring, and resiliency. Dual hot-swappable power supplies and long-distance stacking support ensure maximum uptime, while its compact, rack-mountable design fits right into demanding environments.
Ideal for high-speed wired and wireless edge, access layer, or high-availability distribution switching.
| Specification | Details |
|---|---|
| Manufacturer | Allied Telesis, Inc. |
| Part Number | AT-X530DP-28GHXm |
| Product Series | x530 |
| Switch Type | Layer 3, Stackable, Modular |
| Network Ports | 20 x 10/100/1000 Mbps PoE++, 4 x 5GbE PoE++ |
| Uplink Ports | 4 x 10G SFP+ |
| Expansion Slots | 4 x SFP+ |
| PoE Capability | Yes (PoE++), 1480W Budget |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Ethernet Standards | 10/100/1000Base-T, 5GBase-T, 10GBase-X |
| Network Standards | IEEE 802.3, 802.3bz, 802.3bt, 802.1Q, 802.1x, etc. |
| Layer Supported | Layer 3 |

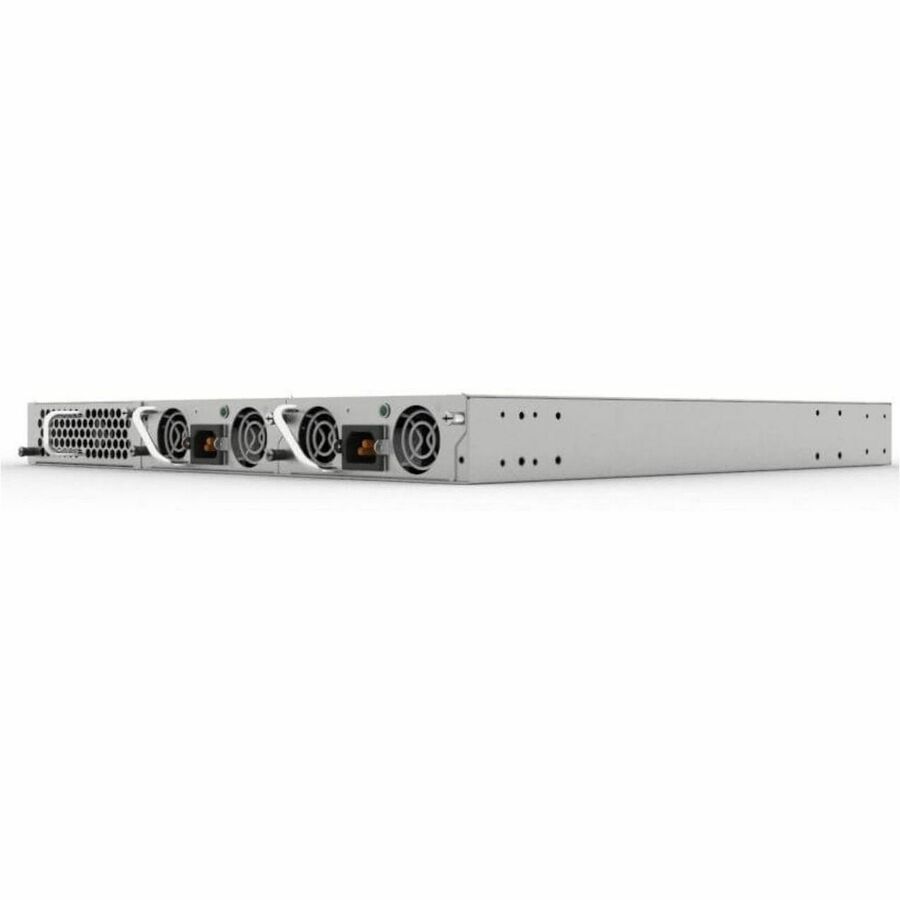

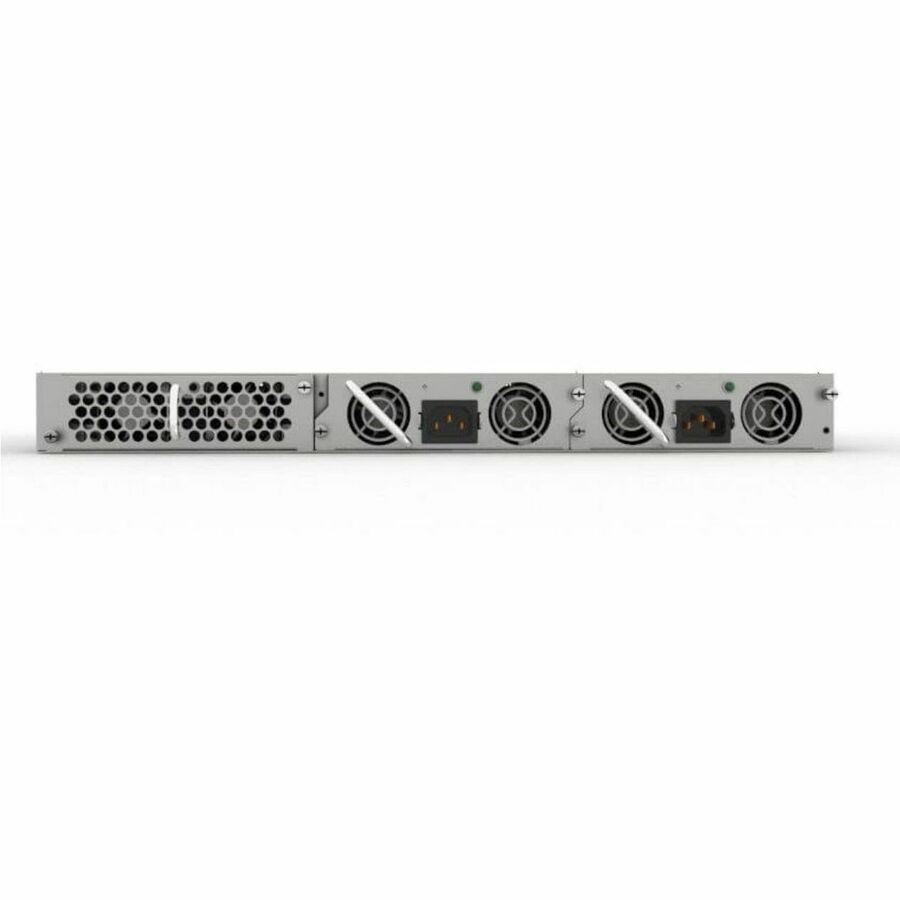

| Power Supplies Supported | 2 (Hot-swappable) |
| Power Consumption (Max) | 110W (base), 1480W PoE Budget |
| Manageability | Web GUI, CLI, SNMP, Vista Manager EX, AMF, AWC |
| Form Factor | Rack-mountable (1U) |
| Dimensions (H x W x D) | 1.7" x 17.4" x 16.6" |
| Weight | 11.9 lbs |
| Included Accessories | Rack Mount Kit |
| Environmental Compliance | RoHS |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 17 lbs |
