Description

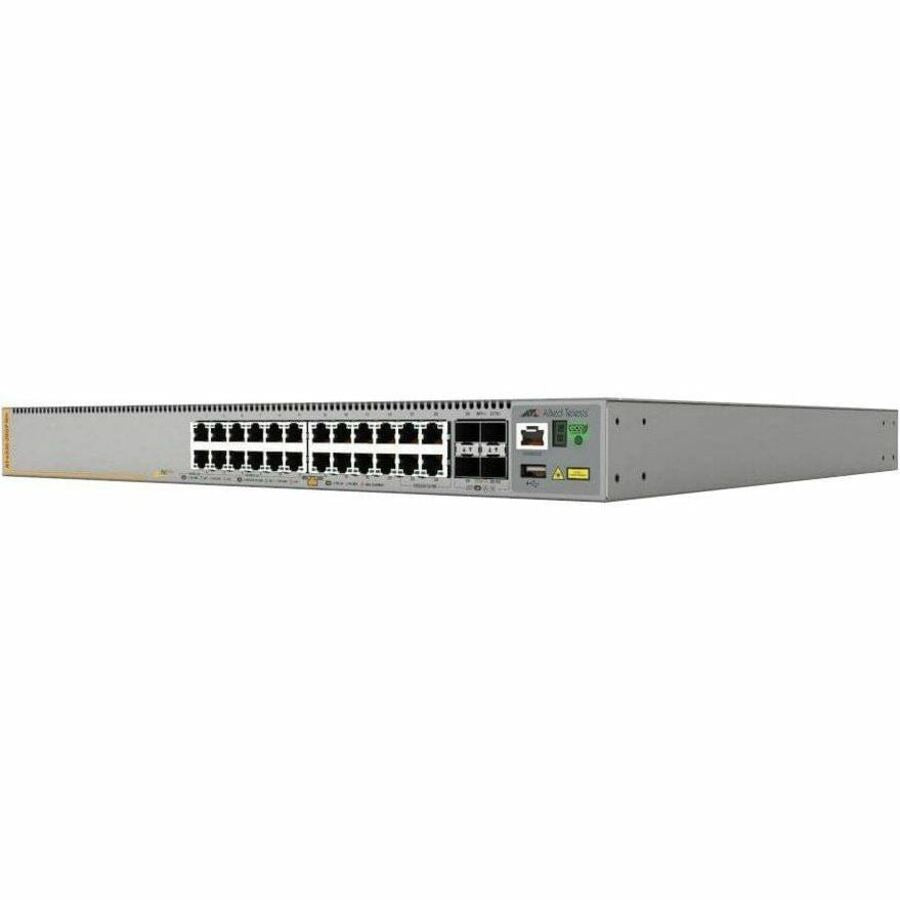

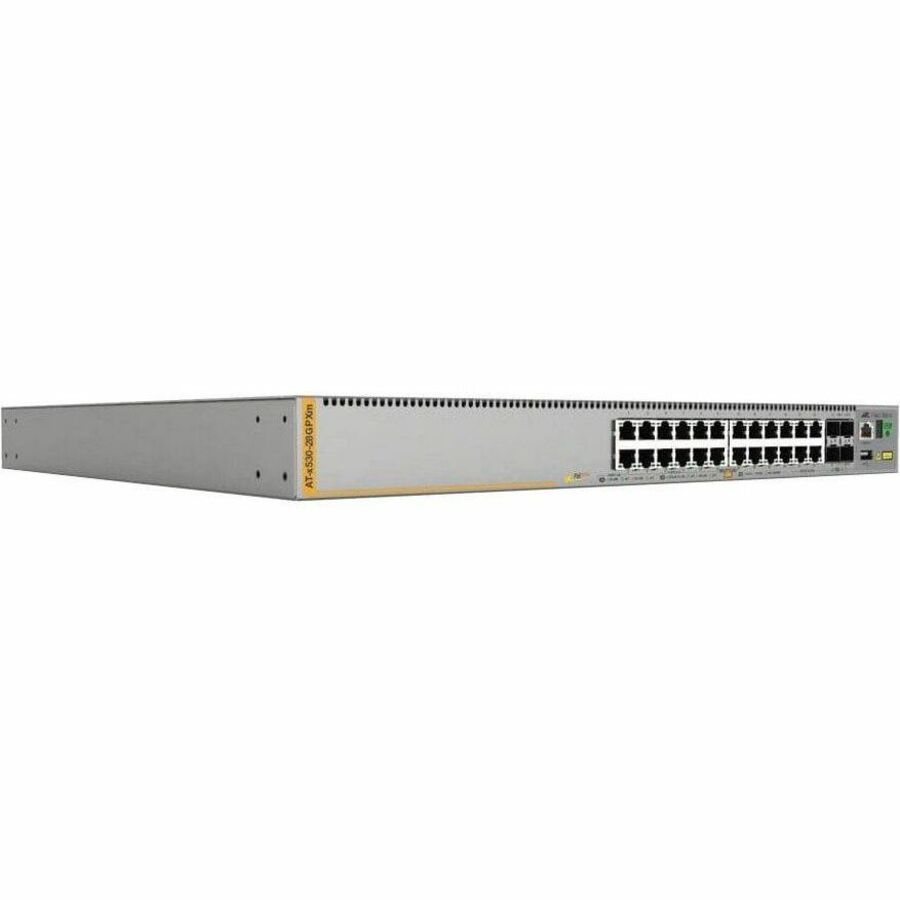

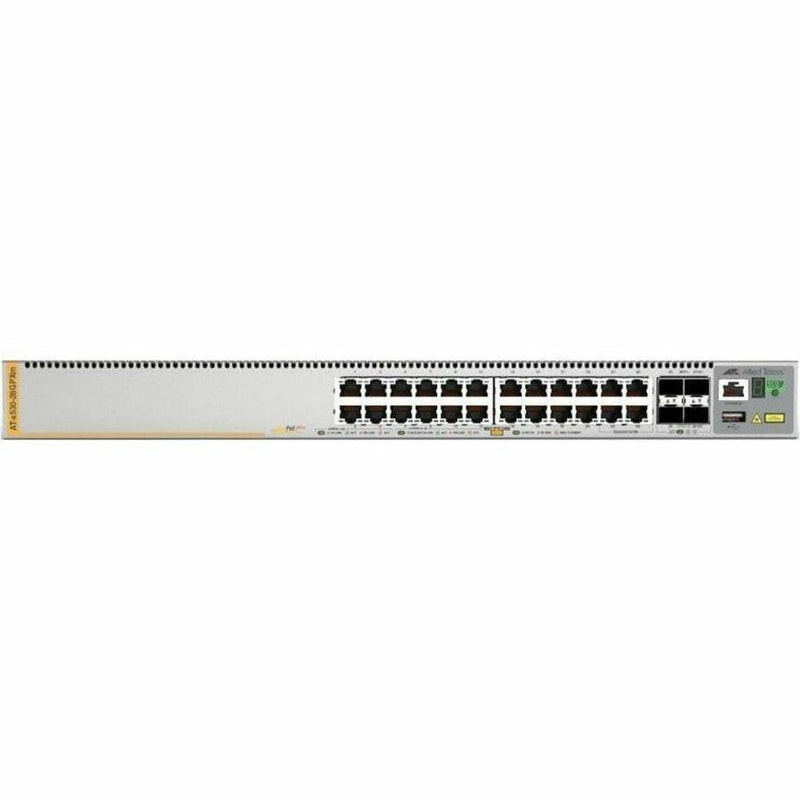

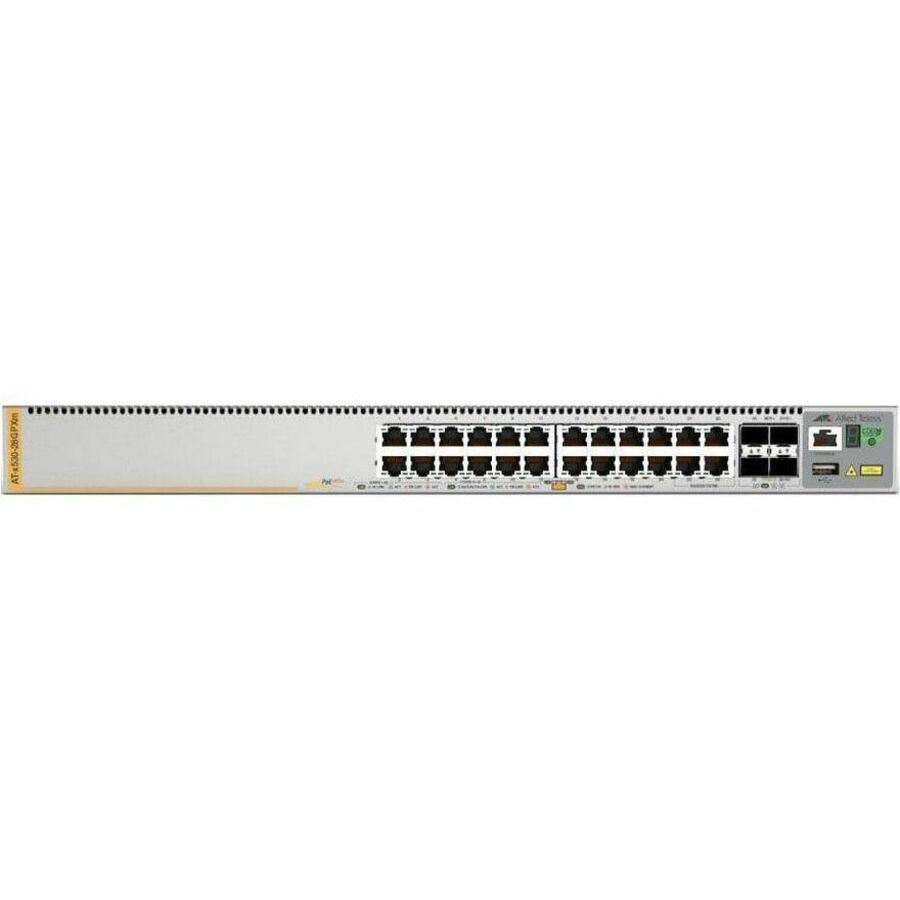

The Allied Telesis x530-28GPXm is a high-performance Layer 3 stackable switch, designed to meet the networking needs of modern enterprise environments. Featuring 24 PoE+ ports, 4x 10G uplink slots, and support for long-distance stacking, this switch delivers exceptional resiliency and flexibility.
With a PoE budget of 740W and comprehensive support for Gigabit, 5 Gigabit, and 10 Gigabit Ethernet, it ensures high-speed connectivity for demanding devices and applications. Built-in management features via Allied Telesis' AMF™ and robust security protocols ensure easy deployment and secure network operations.
Perfect for core or edge deployments, the x530-28GPXm combines reliability, energy efficiency, and scalability in a rack-mountable, modular design.
| Feature | Specification |
|---|---|
| Brand | Allied Telesis |
| Model | x530-28GPXm |
| Part Number | ATX53028GPXMJ90 |
| Product Type | Layer 3 Managed Switch |
| Ports | 20 x Gigabit PoE+4 x 5 Gigabit PoE+ |
| Uplink Ports | 4 x 10 Gigabit SFP+ Slots |
| Stacking Support | Yes – 2 Stack Ports, up to 8 units |
| Modular Design | Yes |
| Media Types Supported | Twisted Pair, Optical Fiber |
| Ethernet Standards | 10/100/1000Base-T, 5GBase-T, 10GBase-X |
| Network Standards | IEEE 802.1x, 802.3af/at/bt, 802.3ad, etc. |
| Layer Supported | Layer 3 |
| PoE Ports | Yes |
| PoE Budget | 740 Watts |
| Power Consumption | 77 Watts |

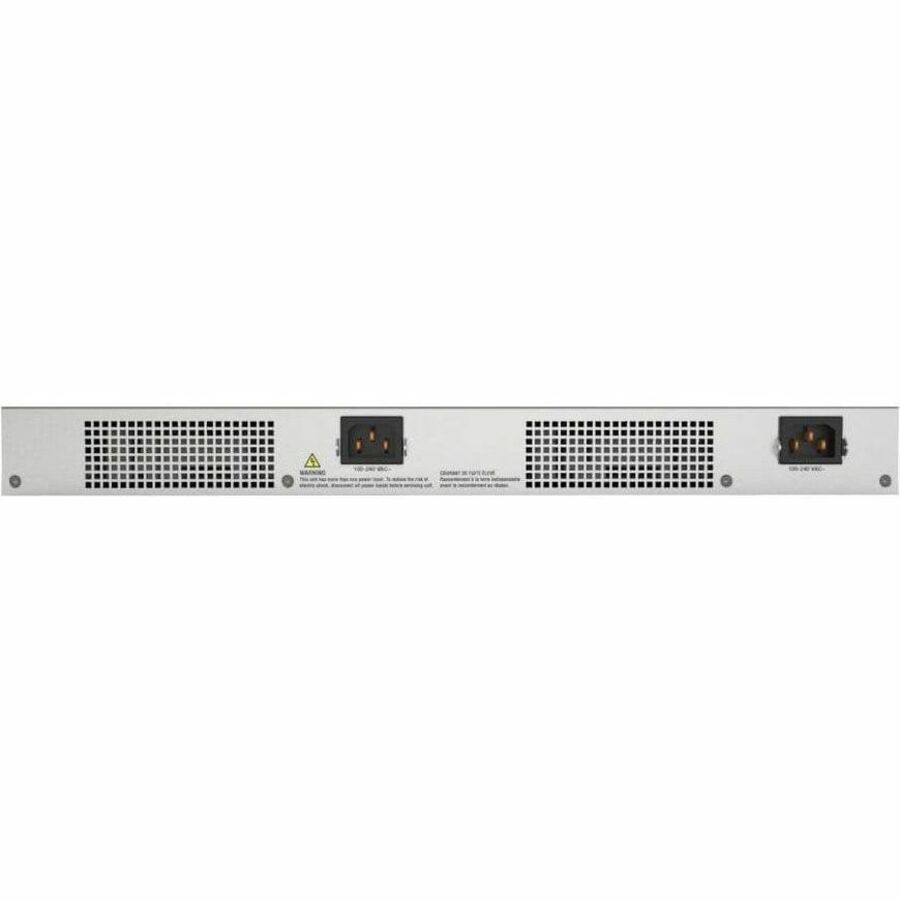

| Power Supplies | 2 Installed |
| Form Factor | Rack-mountable (1U) |
| Dimensions (H x W x D) | 1.7" x 17.4" x 16.6" |
| Weight | 13.89 lbs (6.3 kg) |
| Package Includes | Switch, Rack-Mount Brackets |
| Environmentally Friendly | Yes – RoHS Compliant |
| Shipping Weight | 19 lbs |
| Product Condition | New and Factory Fresh |
